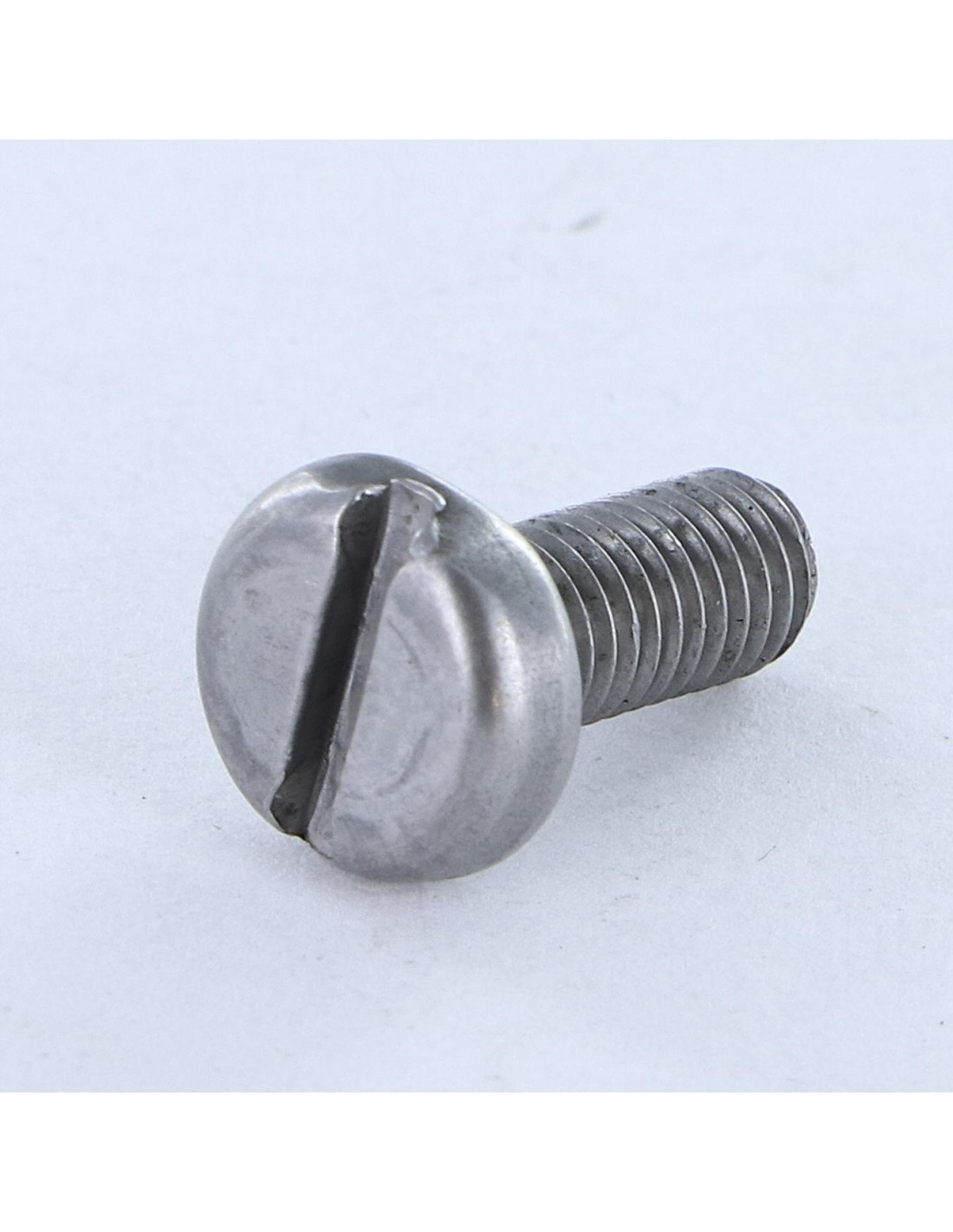

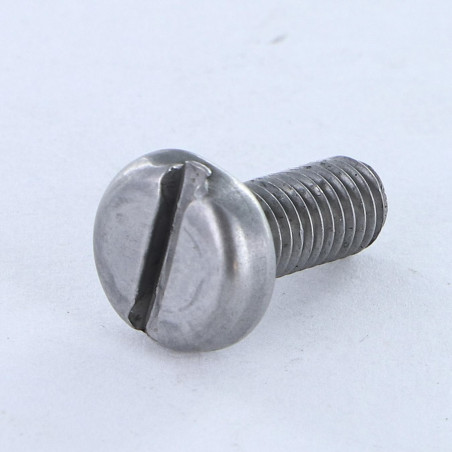

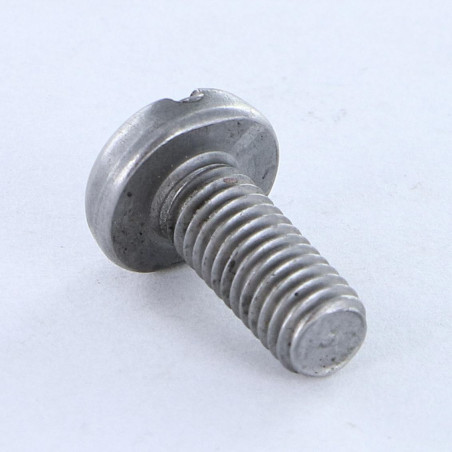

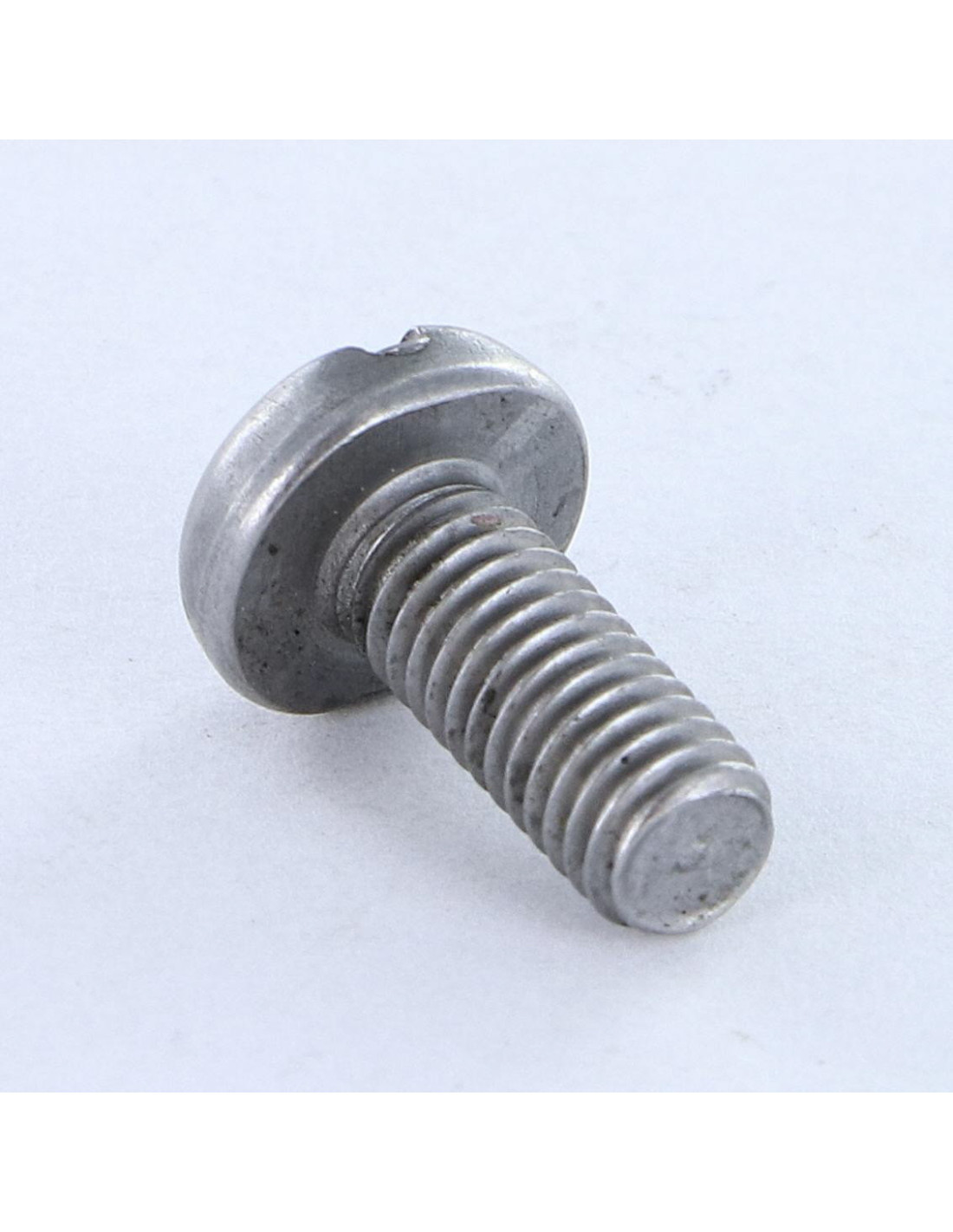

1 x Machine Screw Large Pan Head Slotted M8X65 With Hole 3.8 Steel
1 x Machine Screw Large Pan Head Slotted M8X65 With Hole 3.8 Steel
1 x Machine Screw Large Pan Head Slotted M8X65 With Hole 3.8 Steel
1 x Machine Screw Large Pan Head Slotted M8X65...
1 x Machine Screw Large Pan Head Slotted M8X65...
1 x Machine Screw Large Pan Head Slotted M8X65...

1 x Machine Screw Large Pan Head Slotted M8X65 With Hole 3.8 Steel

3109806601_1
In stock 1393 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.50 €7.05 €8.40 €9.10

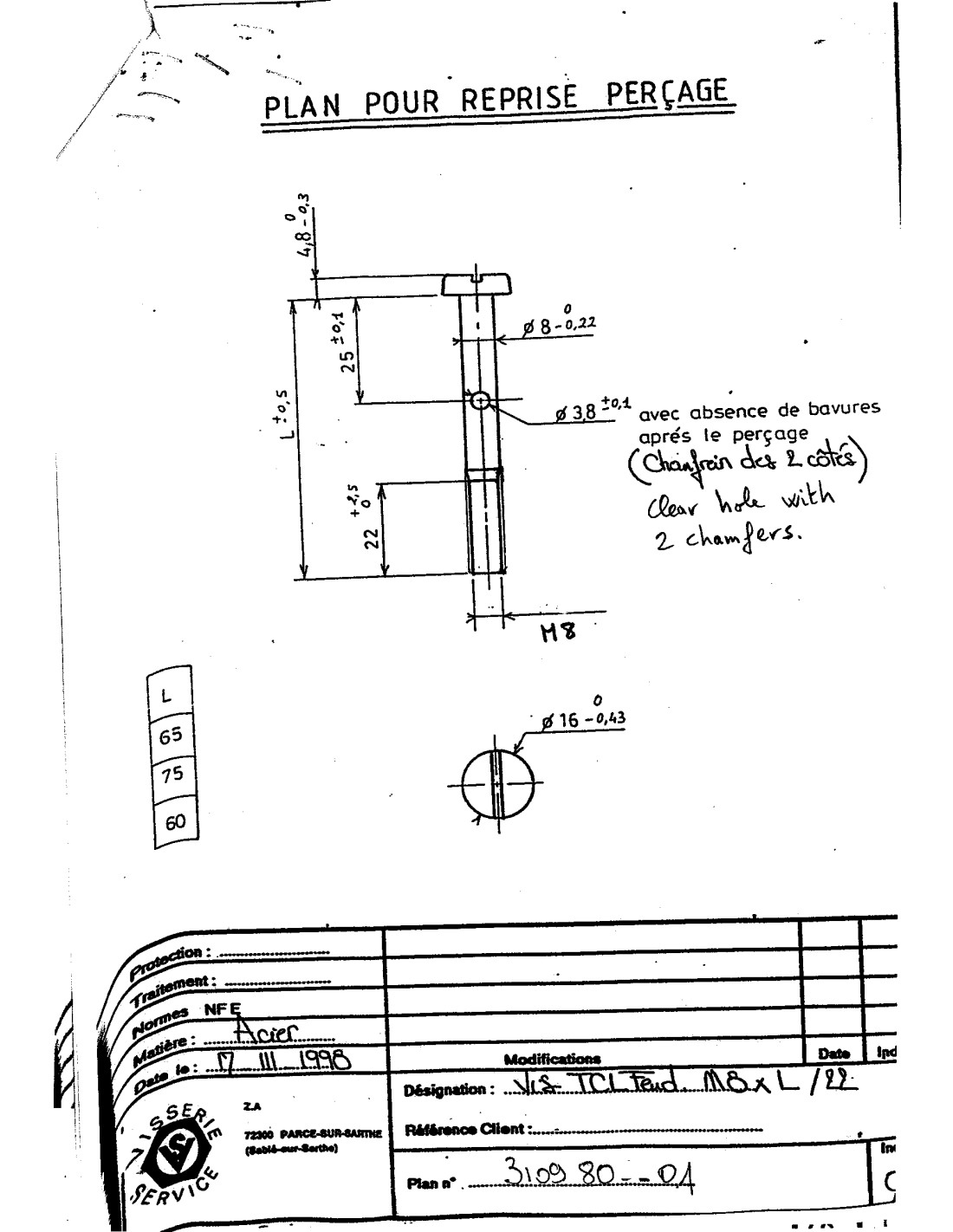

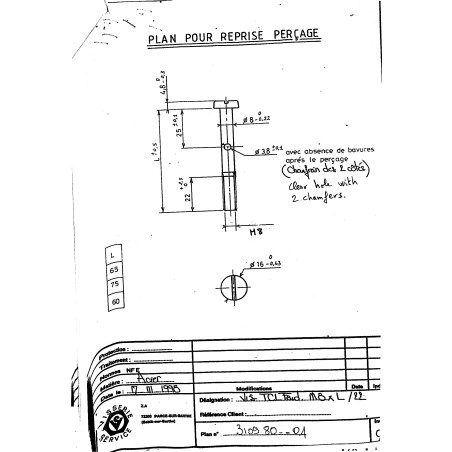

DIN 85 - Machine Screw Large Pan Head Slotted M8X65 With Hole 3.8 Steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
65
Thread
Metal
Drive Type
Slotted
Size Drive Type
2.06-2.31 (WIDTH SLOT) / 1.90 (DEPTH SLOT)
Pitch
Standard pitch 125
Diameter Head
15.57-16.00
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 85
Product Family
Machine Screw
Sub product family
Cylindrical Head Large
Head thickness
4.50-4.80
Diameter in mm
7.972 - 7,772
Unit weight
28.75 GR
1393 Items
3663072036581
Machine Screw Large Pan Head Slotted M8X65 With Hole 3.8 Steel Other Reference : 3617500190352 3663072036581
