1 x Machine Screw Large Pan Head Slotted M3X30 Steel micro screw
1 x Machine Screw Large Pan Head Slotted M3X30 Steel micro screw
1 x Machine Screw Large Pan Head Slotted M3X30...
1 x Machine Screw Large Pan Head Slotted M3X30...

1 x Machine Screw Large Pan Head Slotted M3X30 Steel micro screw

3109303001_1
In stock 900 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €3.50 €8.45 €9.20 €9.15

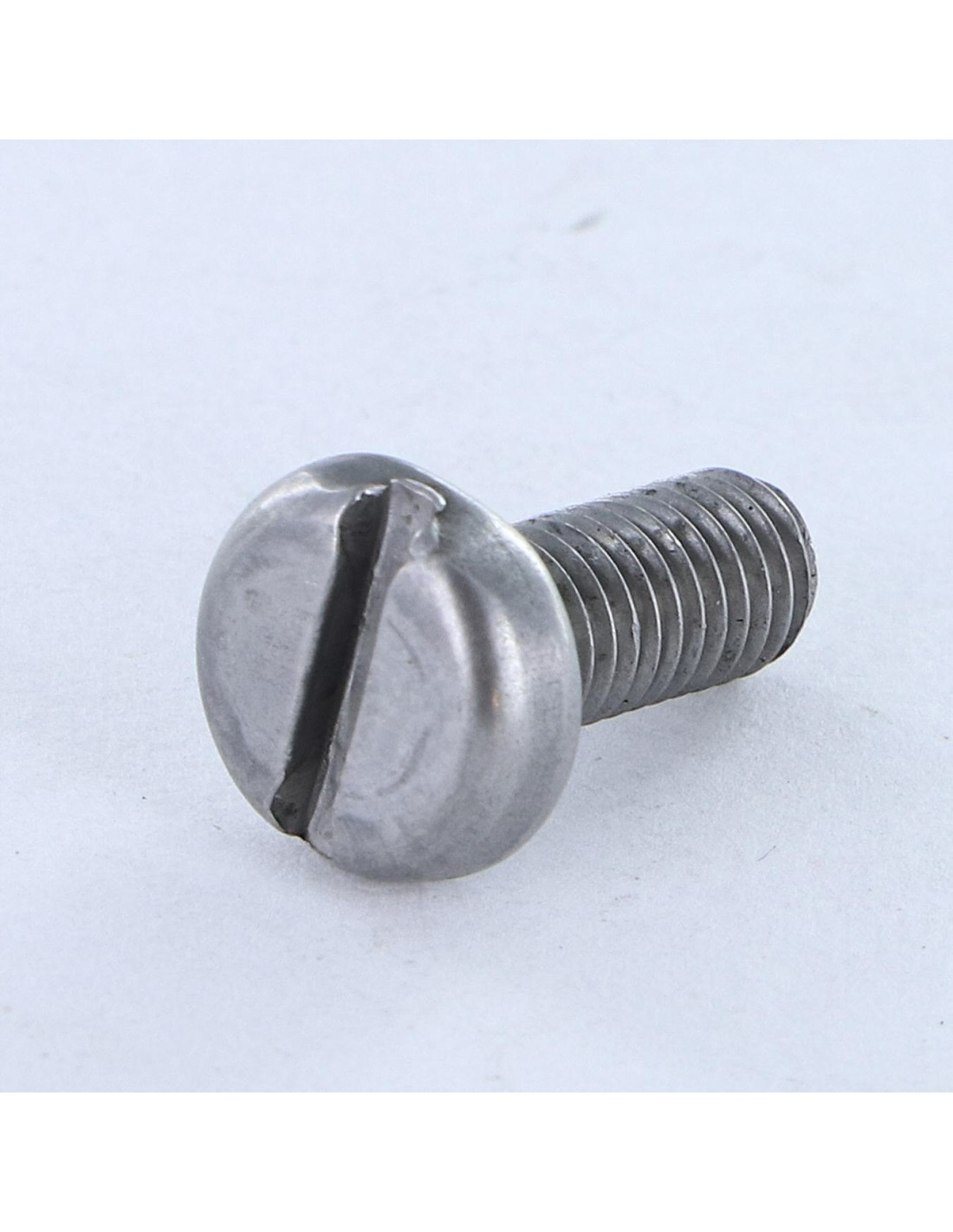

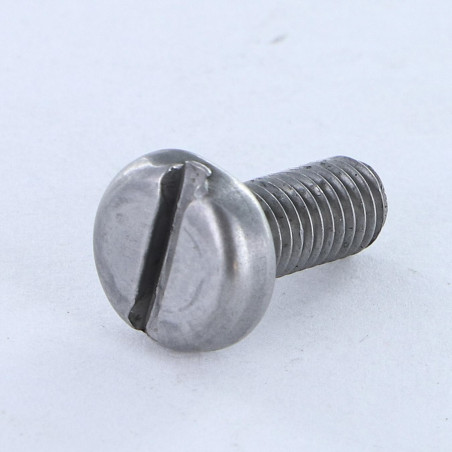

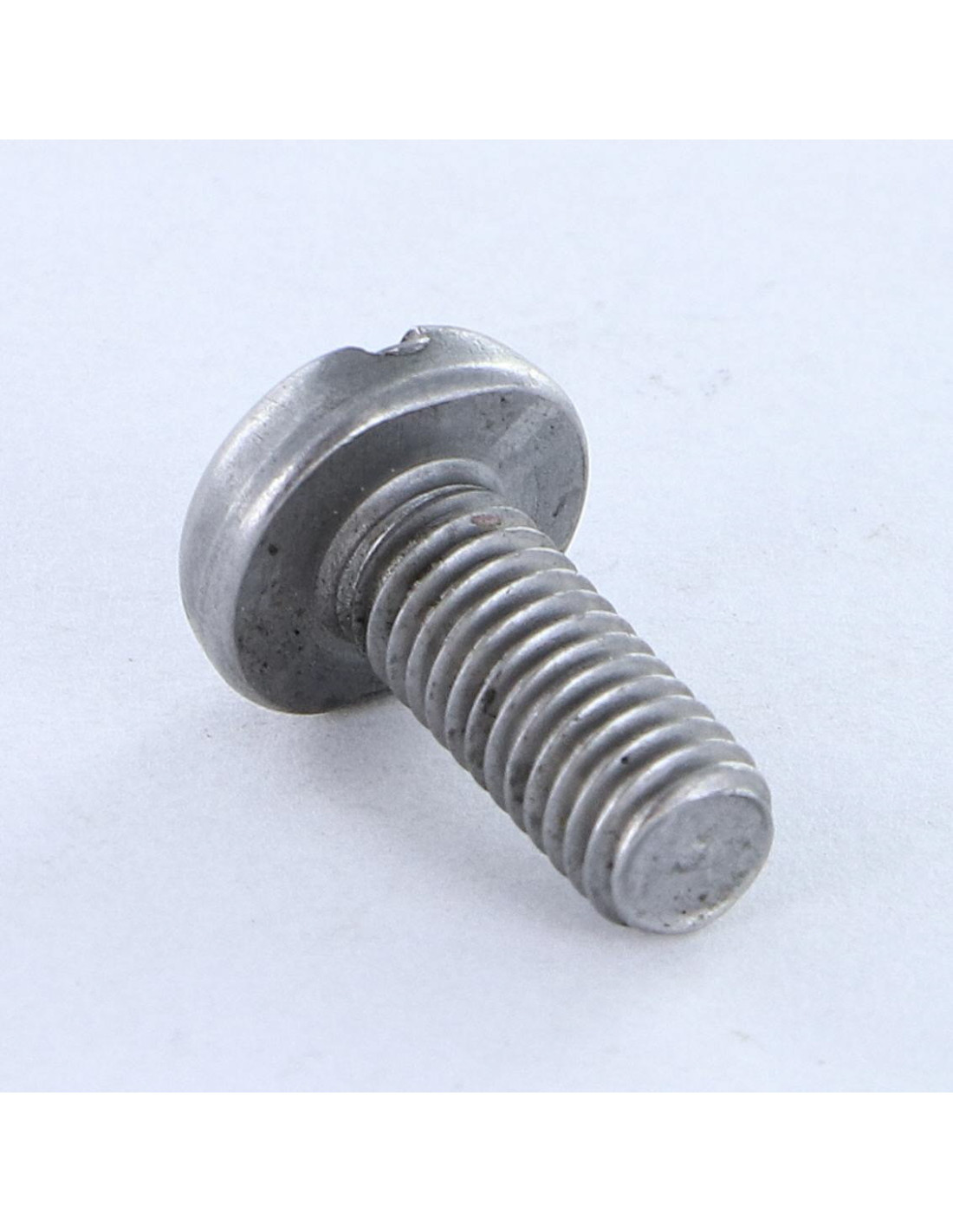

DIN 85 - Machine Screw Large Pan Head Slotted M3X30 Steel micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
30
Thread
Metal
Drive Type
Slotted
Size Drive Type
0.86-1 (WIDTH SLOT) / 0.70 (DEPTH SLOT)
Pitch
Standard pitch 50
Diameter Head
5.70-6.00
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 85
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head Large
Head thickness
1.66-1.80
Diameter in mm
2.974 - 2.835
Unit weight
1.55 GR
900 Items
3663072273689
Machine Screw Large Pan Head Slotted M3X30 Steel micro screw
Diameter = M3, Length = 30, Sub Product Family = Cylindrical Head Large, Material = Steel, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 85, Product Family = Machine Screw / MICROVIS, Size Drive Type = 0.86-1 (WIDTH SLOT) / 0.70 (DEPTH SLOT), Diameter Head = 5.70-6.00


dimensional guide (mm)
Diameter 3 4 5 6
Head diameter 6 8 10 12
Head Tickness 1.8 2.4 3 3.6
Slot width 0.8 1.2 1.2 1.6

Other Reference : 3617500074423 3663072273689
