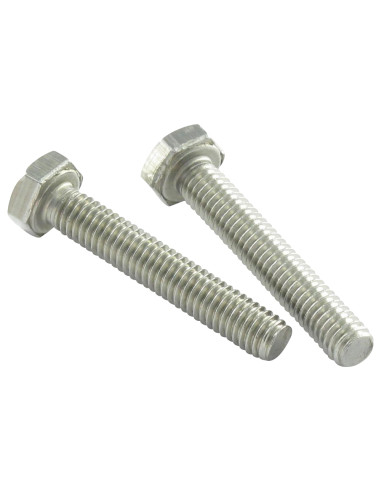

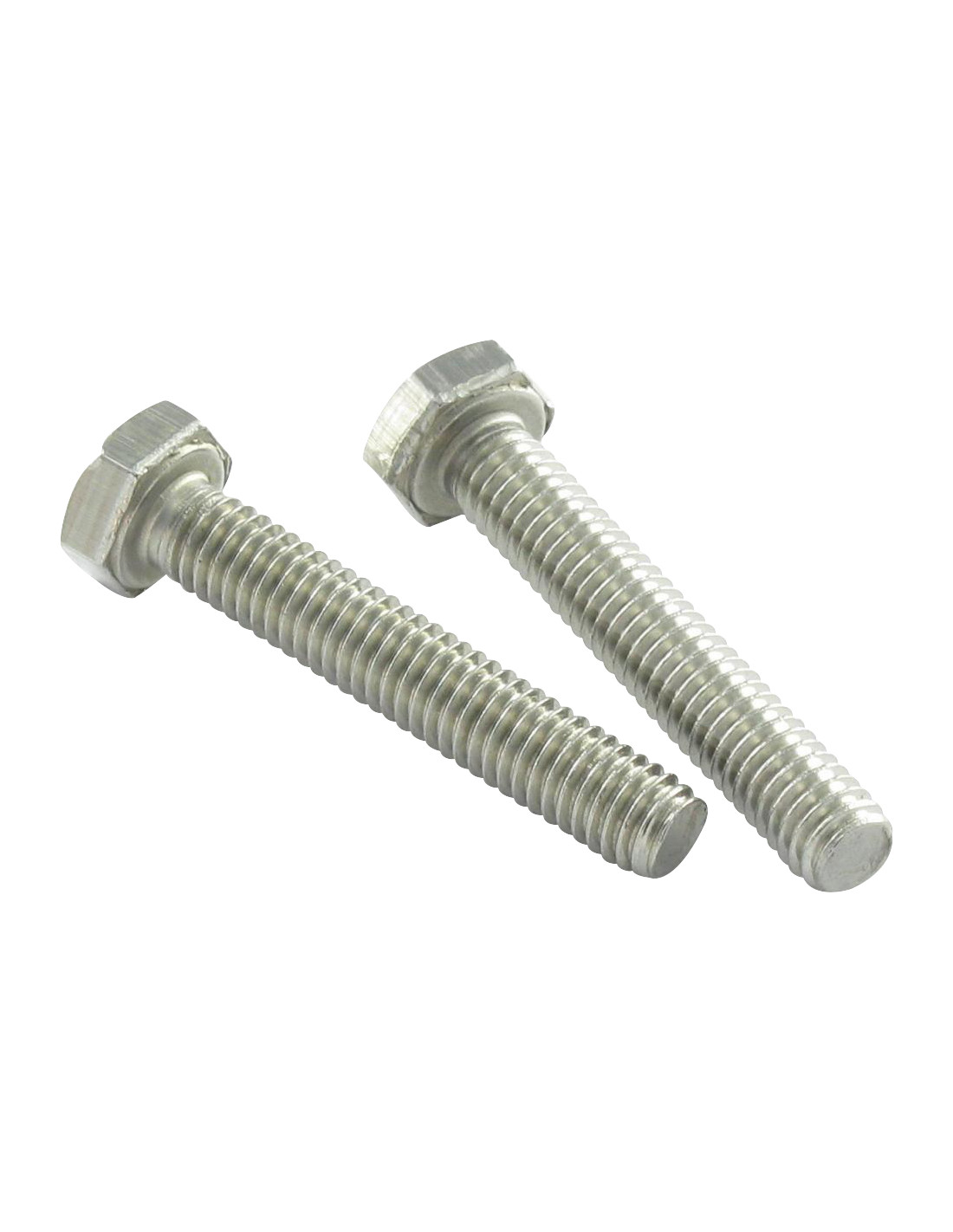

1 x Machine Screw Hexagonal Head 3/8X 3/4 Full Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2

1 x Machine Screw Hexagonal Head 3/8X 3/4 Full...

1 x Machine Screw Hexagonal Head 3/8X 3/4 Full Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2

Name: 1 x Machine Screw Hexagonal Head 3/8X 3/4 Full Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2
Brand: Screw Express
SKU: 8413102018
Price: 3.04 GBP
Availability: InStock

Reference 8413102018_1

In stock 585 Pièces

£3.04 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100
Lot price VAT included	£3.04	£6.12	£16.40	£54.54

ANSI B18-2-1,VS 4126 - Machine Screw Hexagonal Head 3/8X 3/4 Full Thread Unc Or Bsw British Standard Whitworth Stainless Steel A21 inch = 25.4mm

Packaging

1 unit
10 units
30 units
100 units

Correspondence table inches and mm

Product Details

Diameter: 3/8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 3/419.05
Thread: Metal
Pitch: Pitch Unc EQUIVALENT BSW
Material: Stainless Steel Stainless Steel A2
COLOR: Grey
Product Family: Screw AMERICANS
Sub product family: Hex Head
Number of threads per inch

Number of threads per inch

How to determine the diameter of a UNC or UNF screw:

The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.

Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.

For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD

Ø in inches

Ø in mm

Number of threads/inch in UNC

Number of threads/inch in UNF (fine pitch)

N°0

1.524

80

N°1

1.854

64

72

N°2

2.184

56

64

N°3

2.515

48

56

N°4

2.845

40

48

N°5

3.175

40

44

N°6

3.505

32

40

N°8

4.166

32

36

N°10

4.826

24

32

N°12

5.486

24

28

1/4

6.35

20

28

5/16

7.938

18

24

3/8

9.525

16

24

7/16

11.113

14

20

1/2

12.7

13

20

9/16

14.288

12

18

5/8

15.875

11

18

3/4

19.05

10

16

7/8

22.225

9

14

1”

25.4

8

14

1”1/8

28.575

7

12

1”1/4

31.75

7

12

1“1/2

38.1

6

12

1”3/4

44.45

5

-: 16
Diameter in mm: 9,525
Unit weight: 16 GR

In stock 585 Items

ean13 3663072162013

Description

Machine Screw Hexagonal Head 3/8X 3/4 Full Thread Unc Or Bsw British Standard Whitworth Stainless Steel A2 Other Reference : 3617500245786 3663072162013
