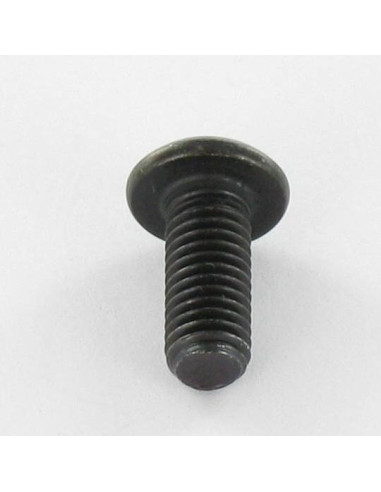

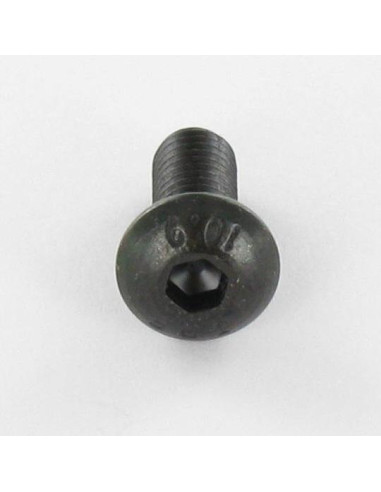

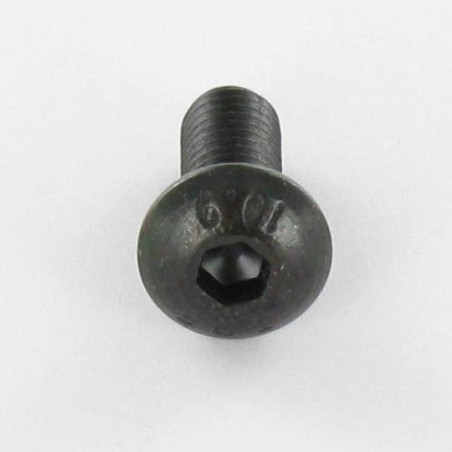

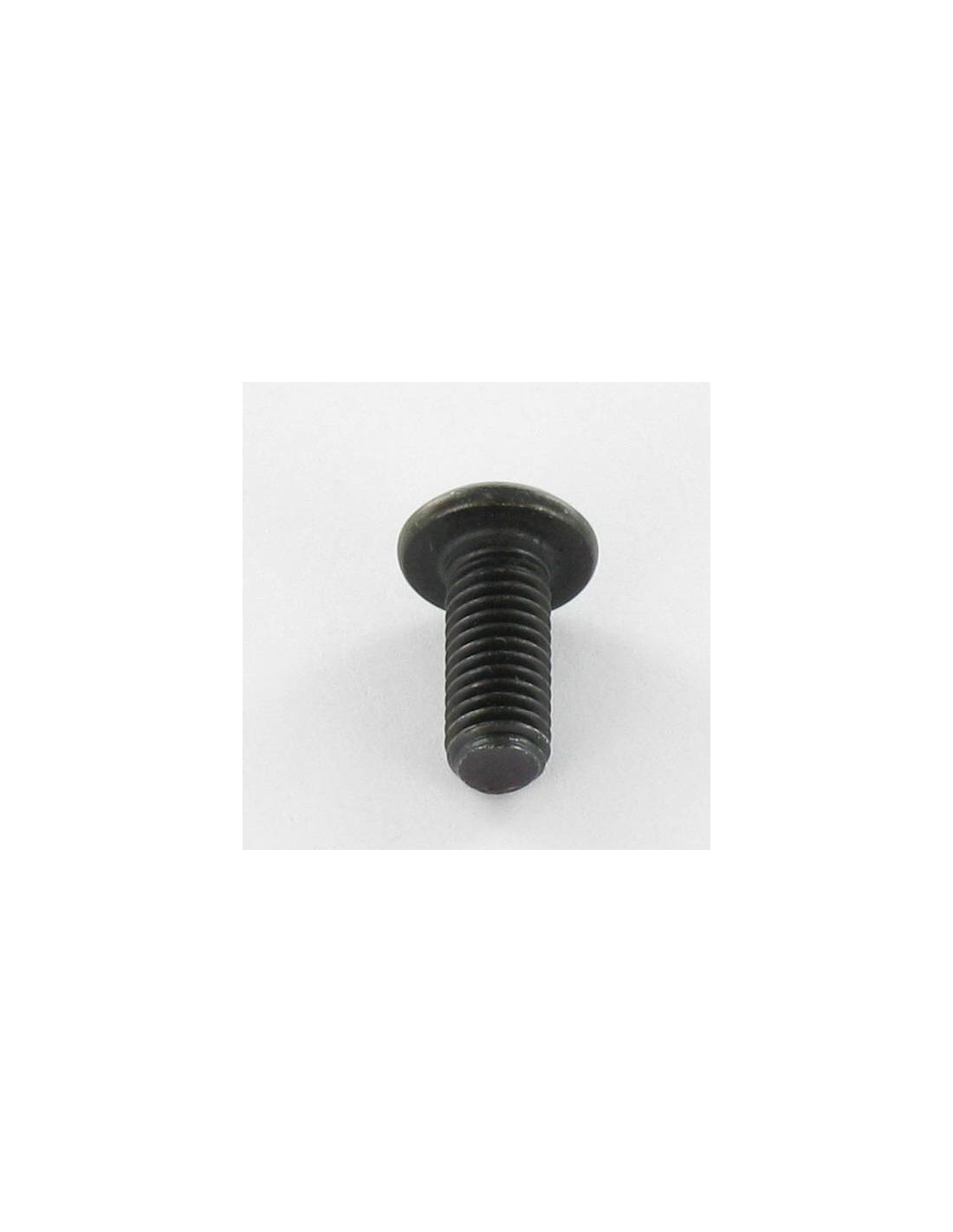

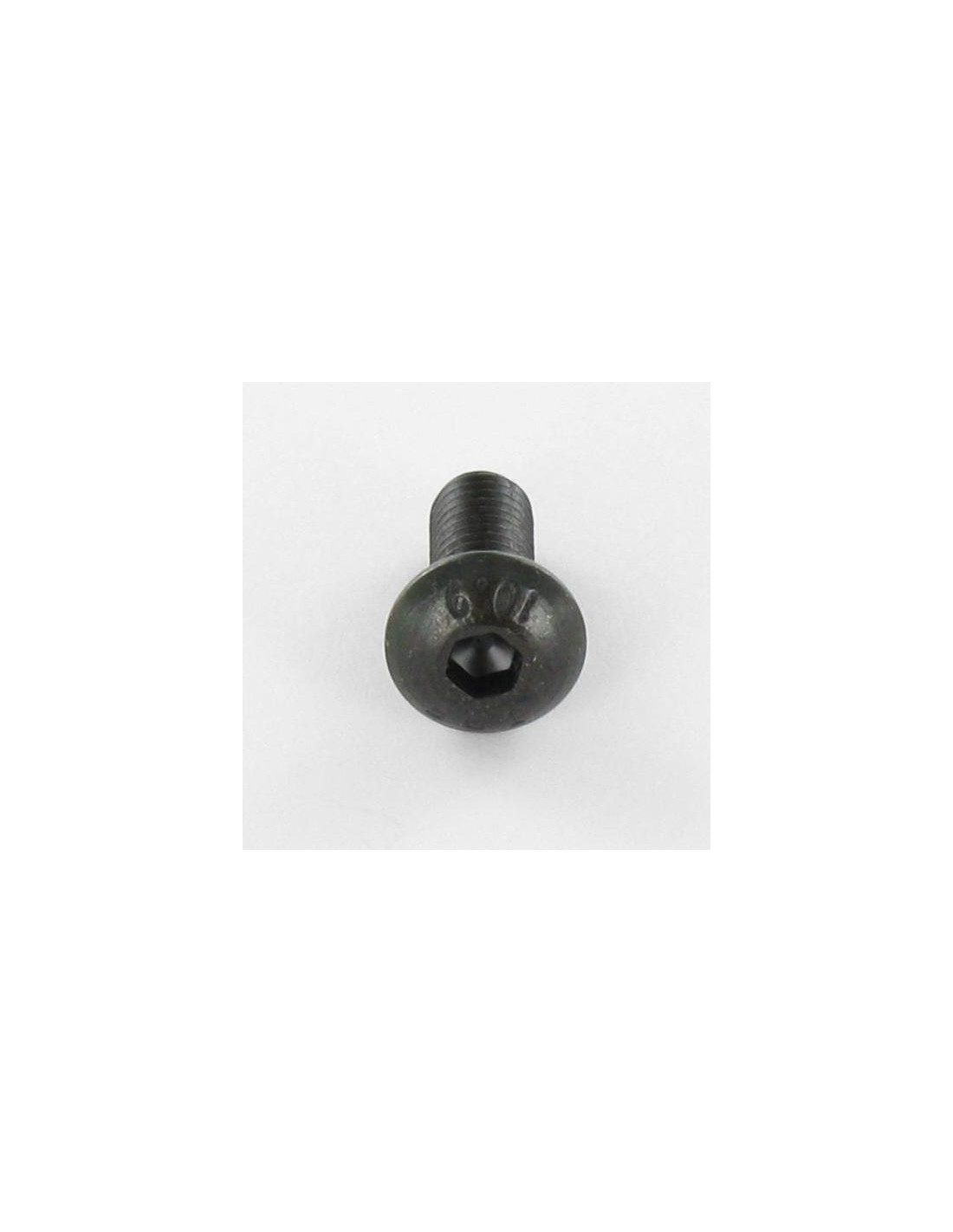

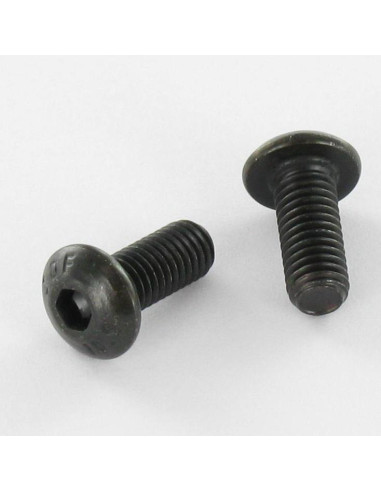

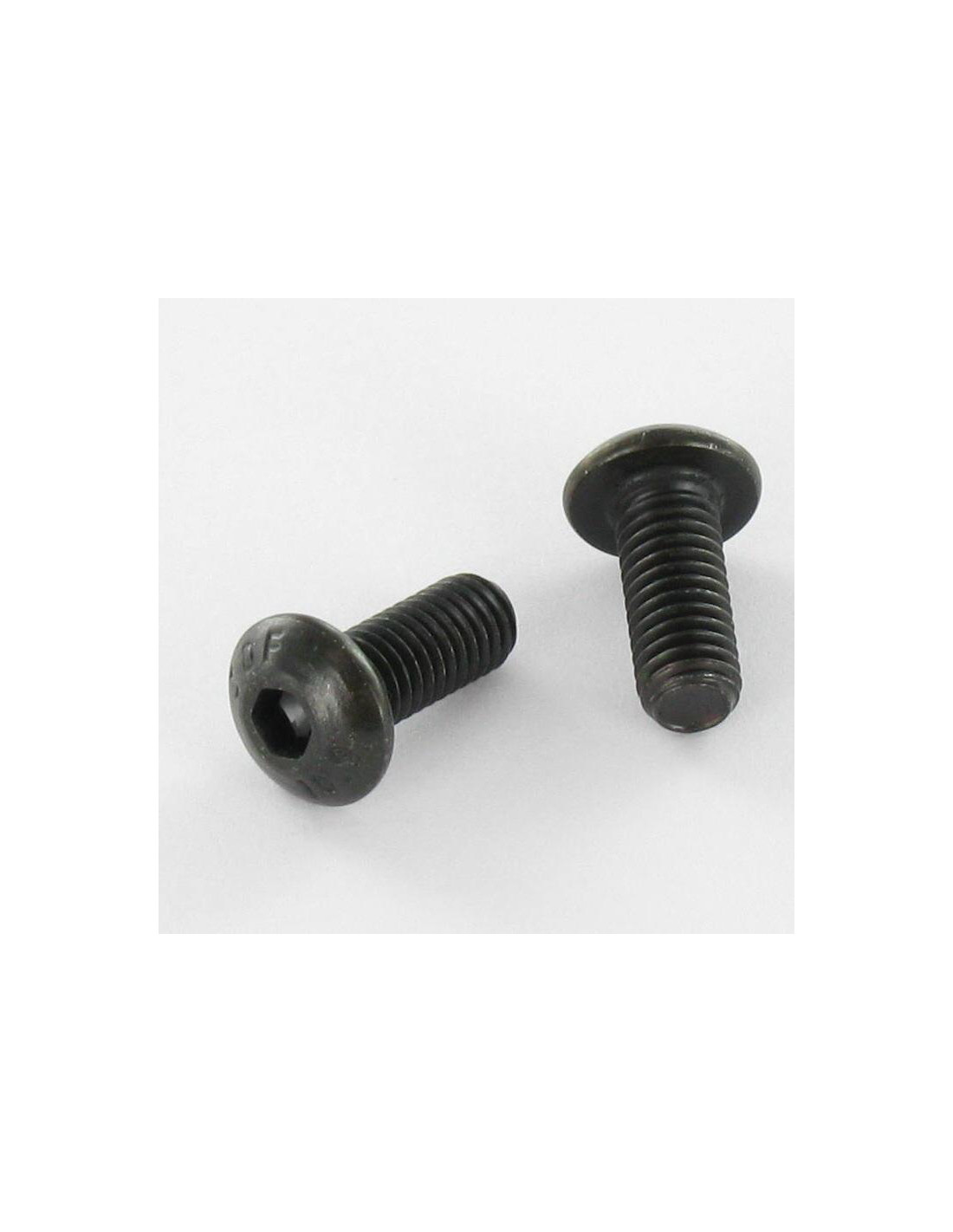

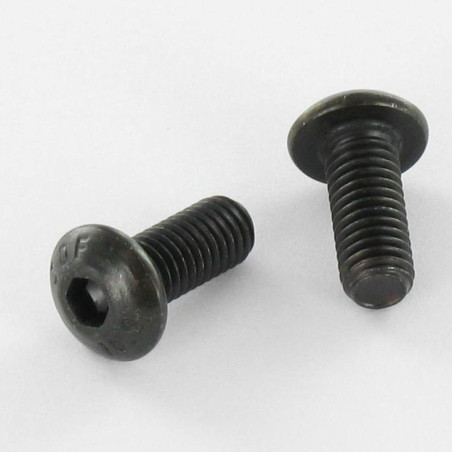

1 x Machine Screw Hex Socket Pan Head Cap M4X12 Full Thread Class 10.9 Hexagon Socket 2.5 Black Zinc Plated

1 x Machine Screw Hex Socket Pan Head Cap M4X12...

1 x Machine Screw Hex Socket Pan Head Cap M4X12 Full Thread Class 10.9 Hexagon Socket 2.5 Black Zinc Plated

Name: 1 x Machine Screw Hex Socket Pan Head Cap M4X12 Full Thread Class 10.9 Hexagon Socket 2.5 Black Zinc Plated
Brand: Screw Express
SKU: 4614401206
Price: 1.39 GBP
Availability: InStock

Reference 4614401206_1

In stock 63957 Pièces

£1.39 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	200
Lot price VAT included	£1.39	£2.78	£3.38	£4.25

ISO 7380 filetage total - Machine Screw Hex Socket Pan Head Cap M4X12 Full Thread Class 10.9 Hexagon Socket 2.5 Black Zinc Plated

Packaging

1 unit
10 units
30 units
200 units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M4
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 12
Thread: Metal
Drive Type: Socket Cap
Size Drive Type: Hexagon Socket 2.5
Pitch: Standard pitch 70
Material: Steel
Class Class Current mechanical classes of screws in accordance with ISO 898-1 Meaning of class 8.8: The first number (8) indicates the ultimate tensile strength of the material, expressed in hundreds of MPa (megapascals). Here, 8 × 100 = 800 MPa ultimate tensile strength. The second number (8) indicates the ratio between yield strength and ultimate tensile strength, multiplied by 10. Here, 8 means that the yield strength is 0.8 times the ultimate tensile strength. So, yield strength = 0.8 × 800 MPa = 640 MPa. Mechanical classes of screws (common examples) Class Tensile strength (MPa) Yield strength (MPa) Typical use 4.6 400 0.6 × 400 = 240 Low-strength screw, light use 5.6 500 0.6 × 500 = 300 General light to medium duty 8.8 800 0.8 × 800 = 640 High strength, mechanical, construction 10.9 1000 0.9 × 1000 = 900 Very high strength, demanding applications 12.9 1200 0.9 × 1200 = 1080 Ultra high strength, heavy industrial use Additional explanations: Ultimate tensile strength: maximum load the screw can withstand before breaking. Yield strength: maximum load before plastic deformation (permanent and irreversible). The higher the class, the stronger the screw, but it is also often more brittle (can break suddenly without much bending). Lower classes are used for assemblies that are less subject to high stresses. Unmarked screw = class 4.6 or equivalent (generally) In general, an unmarked screw is a low-strength screw, often made of mild steel or standard steel. It may correspond to a class 4.6 (tensile strength ~400 MPa, yield strength ~240 MPa) or sometimes even lower. These screws are suitable for assemblies not subject to high mechanical stress. Why are they suitable? Screws in higher classes (8.8, 10.9, 12.9, etc.) must be marked to guarantee their quality and traceability. The absence of marking often means that the screw is not standardised or is of low quality.: CLASS Class 10.9
Coating: ZINGUE Black
COLOR: Black
Norm: ISO 7380-1 Total Thread
Product Family: Machine Screw
Sub product family: Head Hex Socket Pan Head Cap
Diameter in mm: 3.976 - 3.835
Unit weight: 1.5 GR

In stock 63957 Items

EAN13 3663072100121

Description

Machine Screw Hex Socket Pan Head Cap M4X12 Full Thread Class 10.9 Hexagon Socket 2.5 Black Zinc Plated Other Reference : 3617501050105 VBHC4X12ZN QC0146 69010TB412 VVS024 QC0146 740445 2009705 VBHC4X12ZN 40800040 NBHC10412 MPVIS00184 MPVIS00184 3663072100121

Use Cases

Benjamin A. (vis-express.fr)
2025-11-30

Reinforce tag re Leroymerlin ref 85061887

François M. (vis-express.fr)
2025-04-20

I use it to attach a privacy fence to my balcony. It's more to prevent my cat from jumping than to block the view. I created a custom 3D printed fastening system for my balcony, but I need a lot of fasteners and therefore screws. I designed the part to accommodate screws from an assortment purchased on Amazon, but it doesn't contain many of each type of screw and it's impossible to find this specific type in large quantities on Amazon.

David C. (vis-express.fr)
2025-03-30

For amplifier cabinet BOSE 1800 series IV

Alexis R. (vis-express.fr)
2024-03-17

Assemble suction cups and phone holders. We will use a slot of 4 screws and bolts, size M4, the length of the screws can be between 12 and 16 mm, they will be used to assemble Brodit brand PDA/telephone holders on suction cups, the assembly of the 2 parts requires 4 screws and bolts, these products are for postal vehicles.
