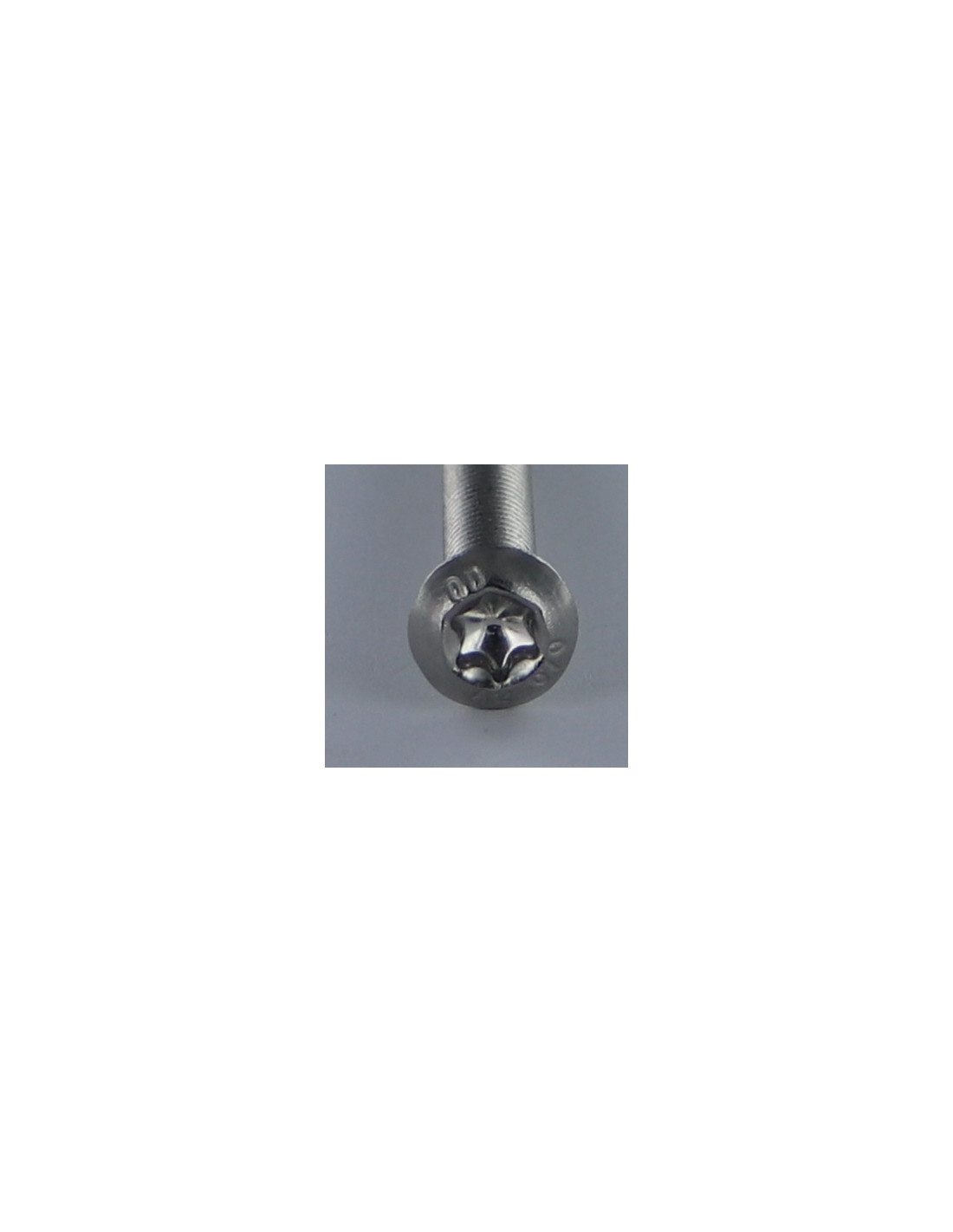

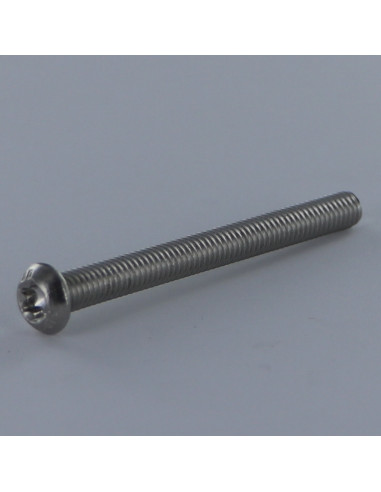

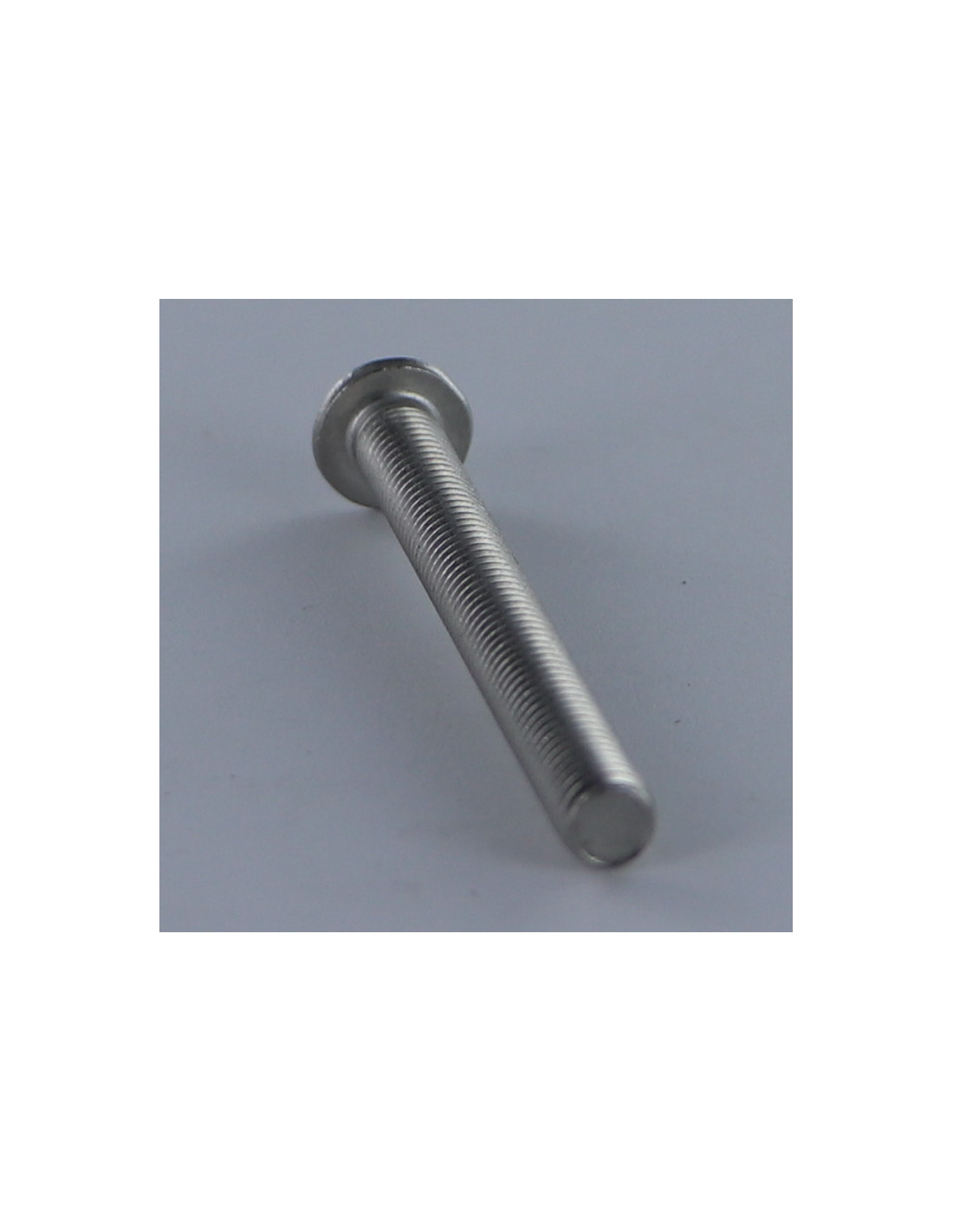

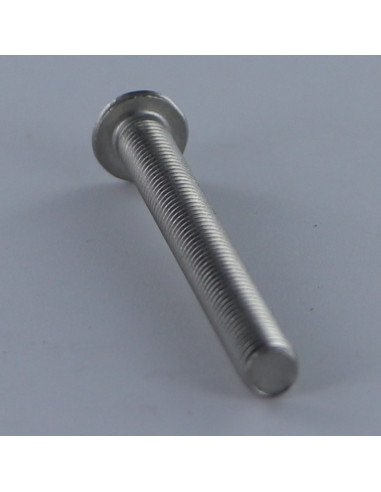

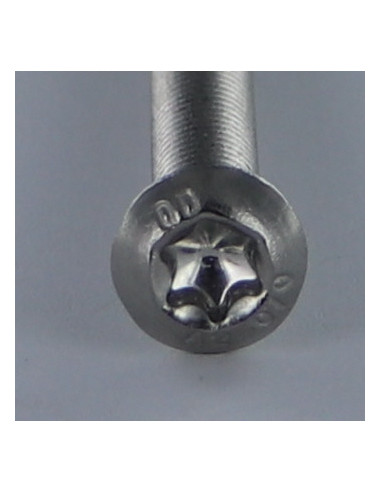

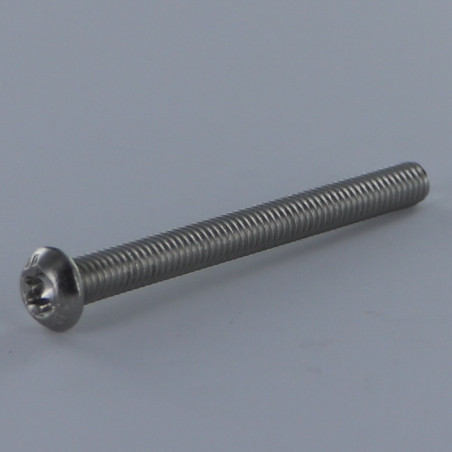

1 x Machine Screw Head Pan Head T10 M3X16 Full Thread Stainless Steel A2 micro screw

8466301618_1
In stock 6905 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included €3.50 €8.45 €9.20 €19.00

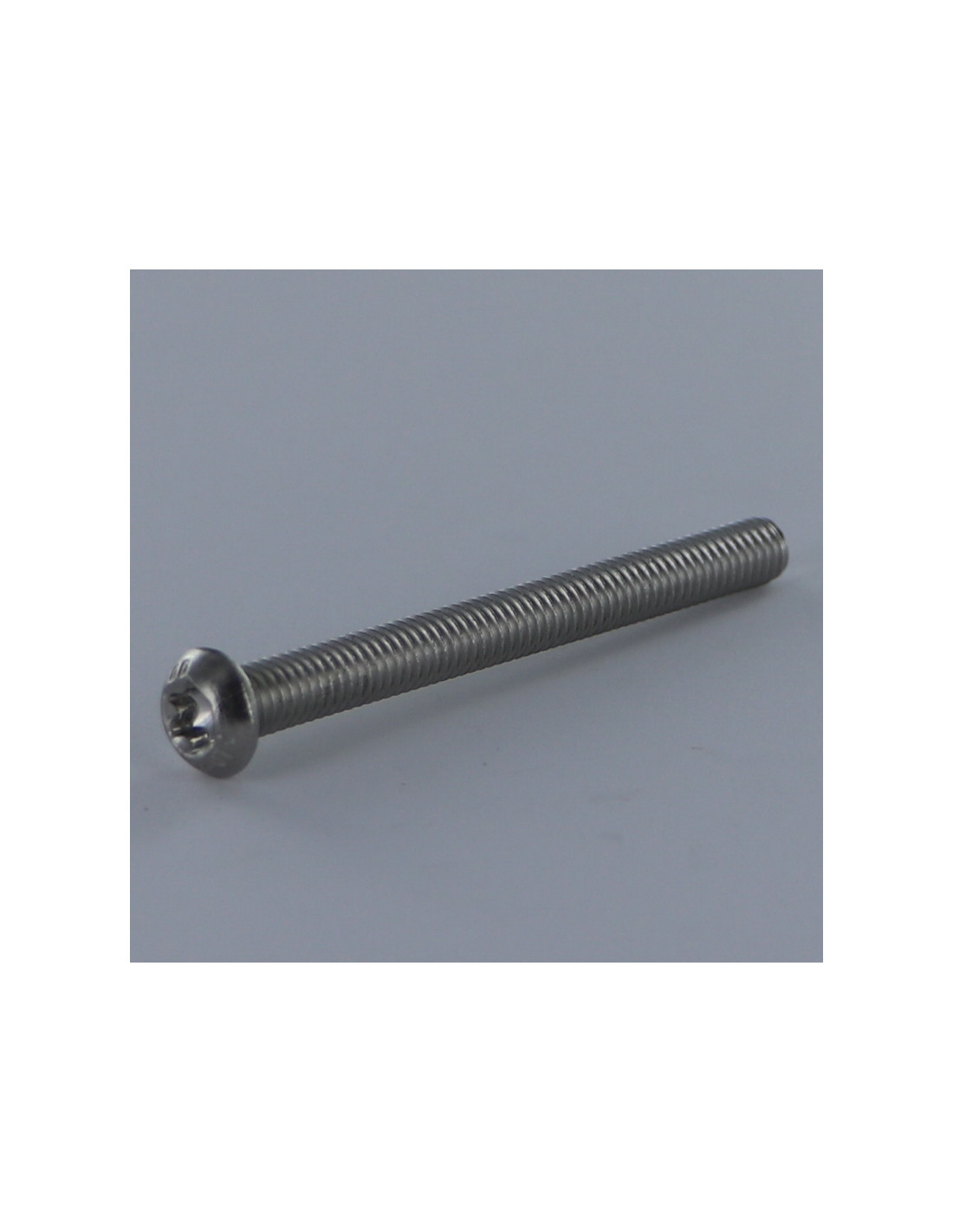

Machine Screw Head Pan Head T10 M3X16 Full Thread Stainless Steel A2 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
16
Thread
Metal
Drive Type
Torx
Size Drive Type
T10
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm

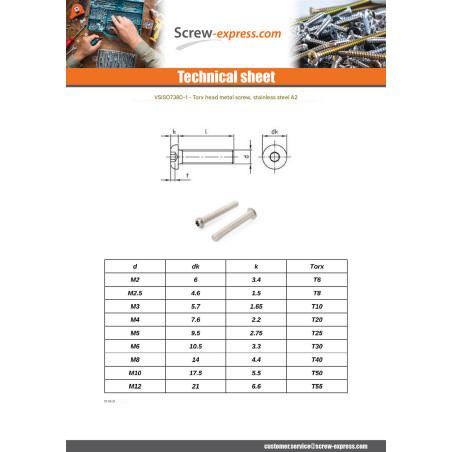

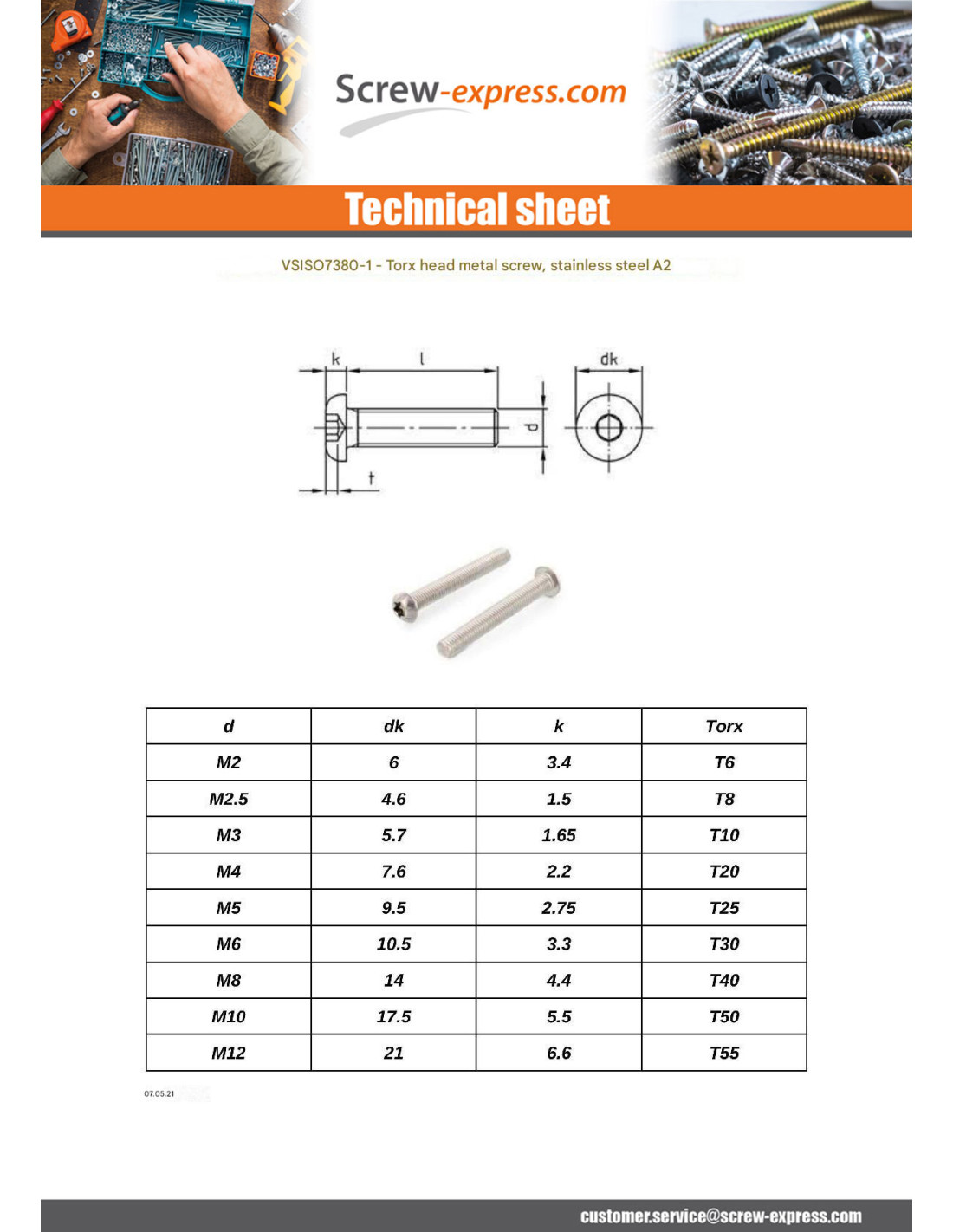

VSISO7380-1 Torx
Product Family
Machine Screw / MICROVIS
Diameter in mm
2.974 - 2.835
Unit weight
0.9 GR
6905 Items
3663072500419
Machine Screw Head Pan Head T10 M3X16 Full Thread Stainless Steel A2 micro screw
Diameter = M3, Length = 16, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Torx, Norm = VSISO7380-1 Torx, Product Family = Machine Screw / MICROVIS, Size Drive Type = T10
Other Reference : 4043377241979 QC1706 3663072500419
Michel B. (vis-express.fr)
2024-01-14

Used to fix an LCD screen against a metal front cut to the dimensions of the LCD. The LCD screen is part of an electronic box of my design. The 4 fixing screws are the corners of an 80x25mm rectangle, and the metal front is of my own design. The LCD technical sheet can be found here: https://www.mouser.fr/ProductDetail/DFRobot/DFR0555
