8806251218_1
In stock 4724 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €3.50 €8.45 €9.20 €9.15

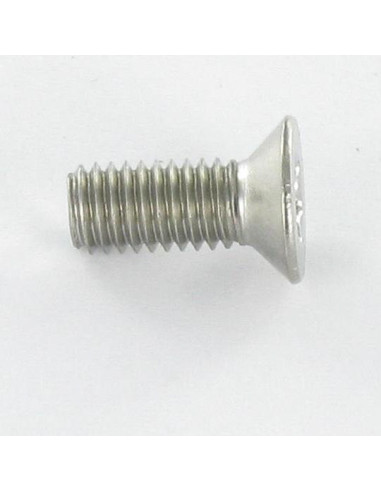

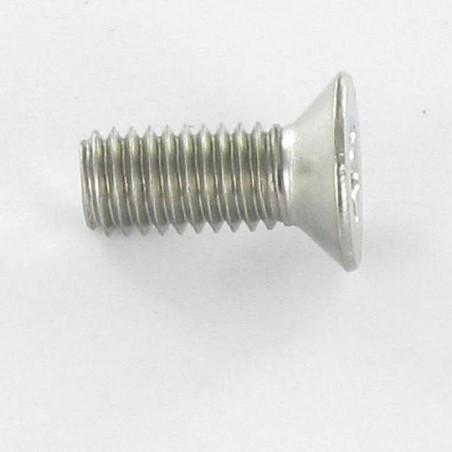

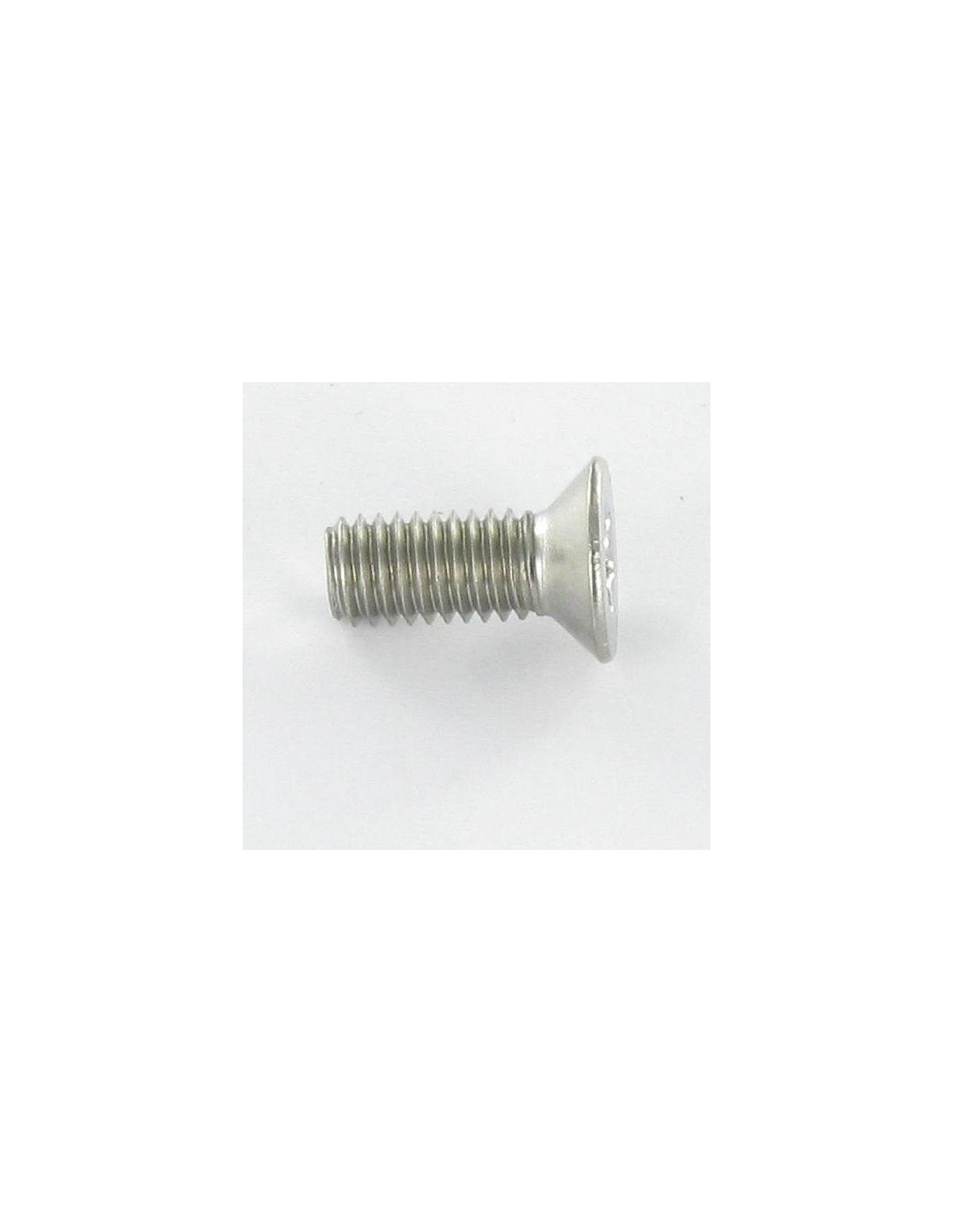

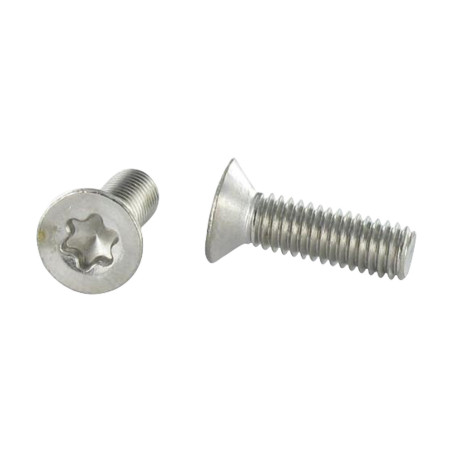

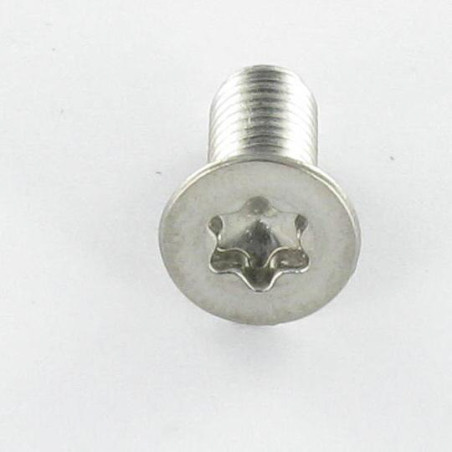

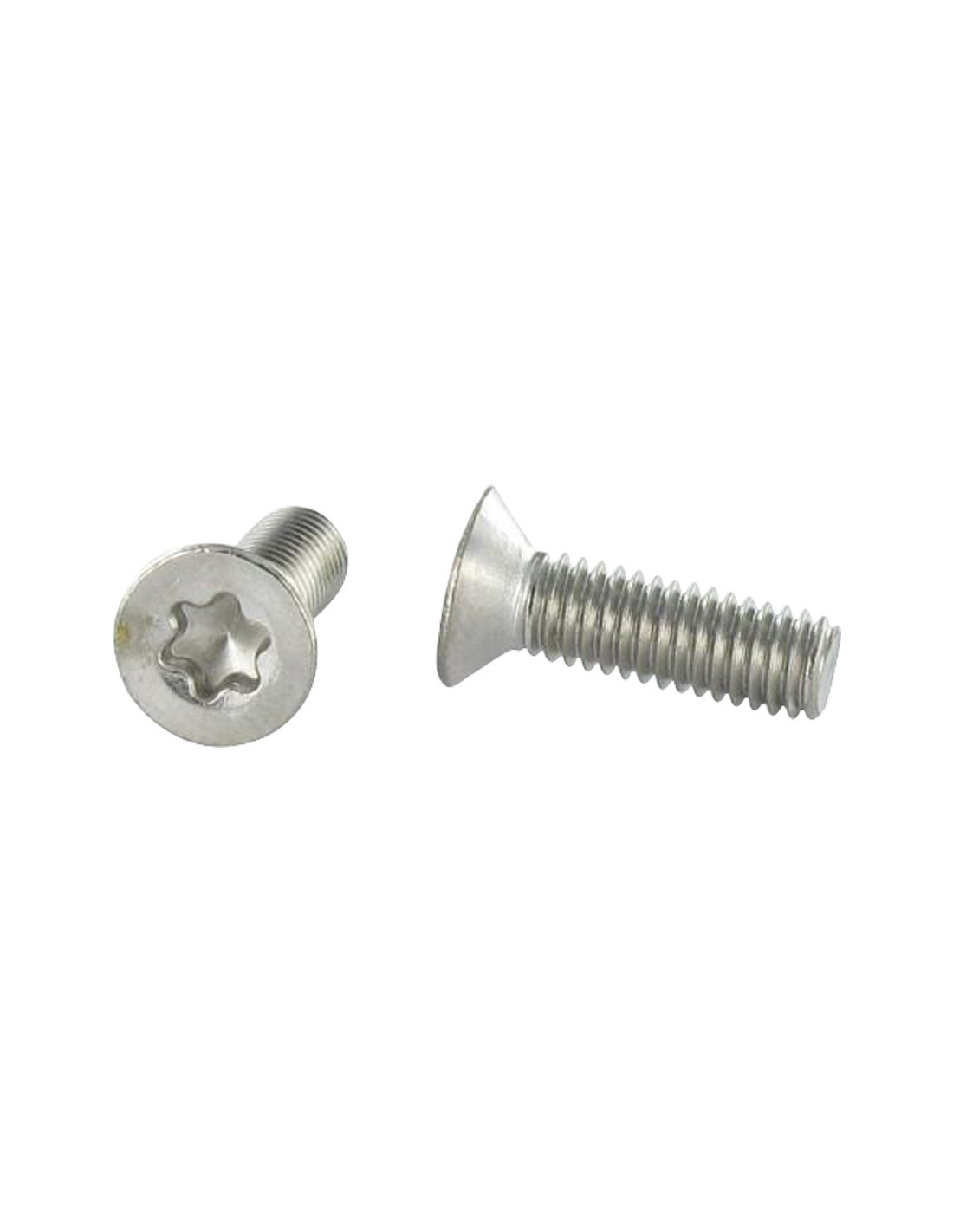

DIN 965 - Machine Screw Countersunk Head T8 M2.5X12 Stainless Steel A4 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M2.5
Length
12
Thread
Metal
Drive Type
Torx
Size Drive Type
T8
Pitch
Standard pitch 45
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 965
Product Family
Machine Screw / MICROVIS
Sub product family
Countersunk Head
Diameter in mm
1.948 - 2013
Unit weight
0.4 GR
4724 Items
3663072415836
Machine Screw Countersunk Head T8 M2.5X12 Stainless Steel A4 micro screw
Diameter = M2.5, Length = 12, Sub Product Family = Countersunk Head, Material = Stainless Steel A4, Pitch = Standard pitch 45, Drive Type = Torx, Norm = DIN 965, Product Family = Machine Screw / MICROVIS, Size Drive Type = T8


dimensional guide (mm)
Diameter M2 M2.5 M3 M4 M5 M6
PARTIE LISSE 0.8 0.9 1 1.4 1.6 2
Head diameter 3.8 4.7 5.6 7.5 9.2 11
Head tickness 1.2 1.5 1.65 2.2 2.5 3
TORX T6 T8 T10 T20 T25 T30

Other Reference : 4043377118226 2916 3663072415836
