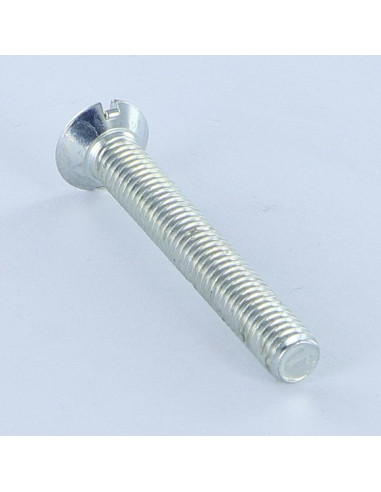

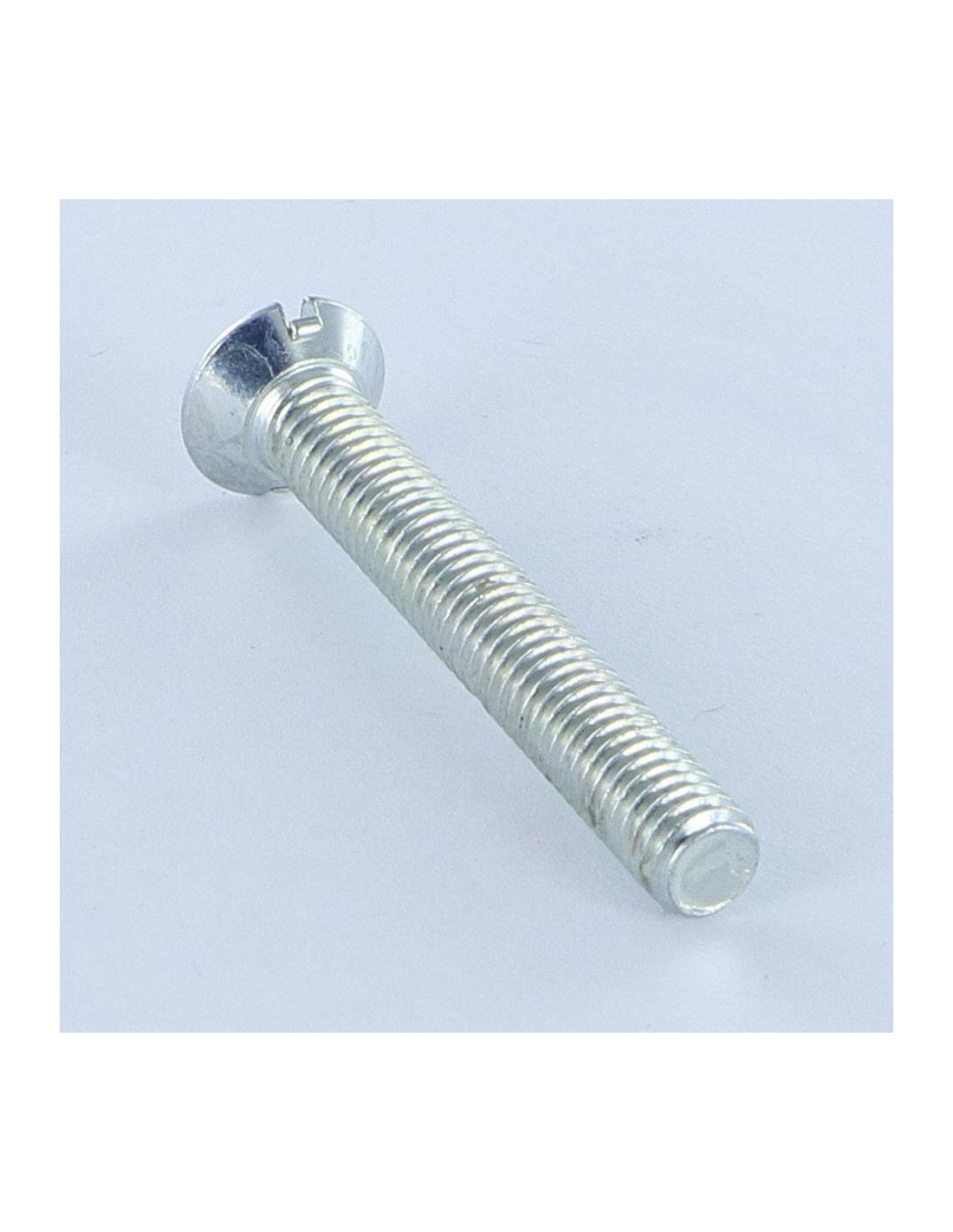

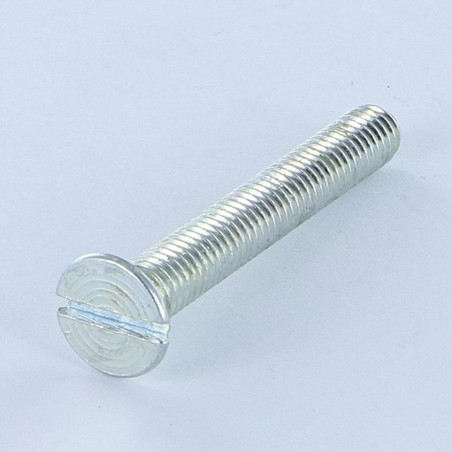

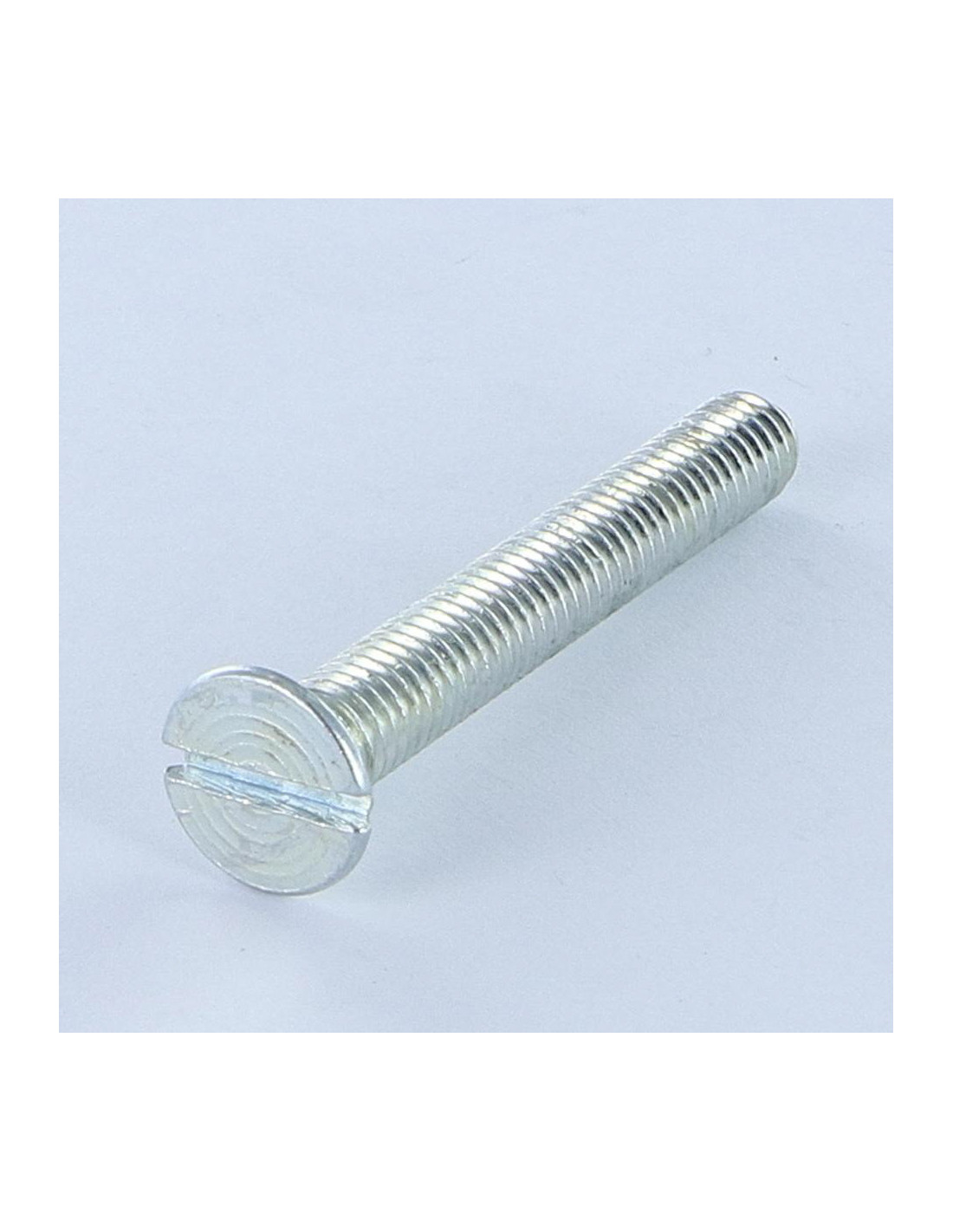

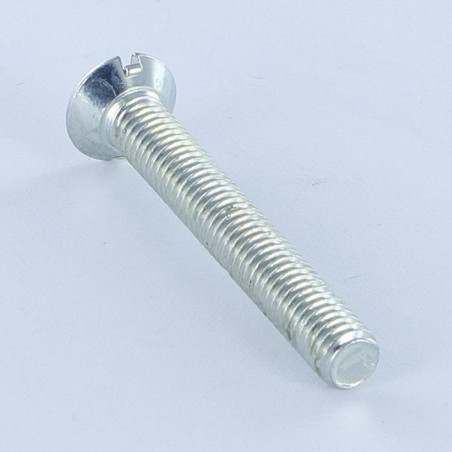

1 x Machine Screw Countersunk Head Slotted M3X22 Steel micro screw
1 x Machine Screw Countersunk Head Slotted M3X22 Steel micro screw
1 x Machine Screw Countersunk Head Slotted...
1 x Machine Screw Countersunk Head Slotted...

1 x Machine Screw Countersunk Head Slotted M3X22 Steel micro screw

3101302201_1
In stock 780 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100
Lot price VAT included £3.04 £6.12 £27.77
DIN 963 - Machine Screw Countersunk Head Slotted M3X22 Steel micro screw
Packaging
  • 1 unit
  • 10 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
22
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 50
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 963
Product Family
Machine Screw / MICROVIS
Sub product family
Countersunk Head
Diameter in mm
2.974 - 2.835
Unit weight
3 GR
780 Items
3663072045170
Machine Screw Countersunk Head Slotted M3X22 Steel micro screw
Diameter = M3, Length = 22, Sub Product Family = Countersunk Head, Material = Steel, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 963, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 3 4 5 6 8 10 12
Head diameter 5.6 7.5 9.2 11 14.5 18 22
Head Tickness 1.65 2.2 2.5 3 4 5 6
Slot width 0.8 1 1.2 1.6 2 2.5 3

Other Reference : 3617500164384 3663072045170
