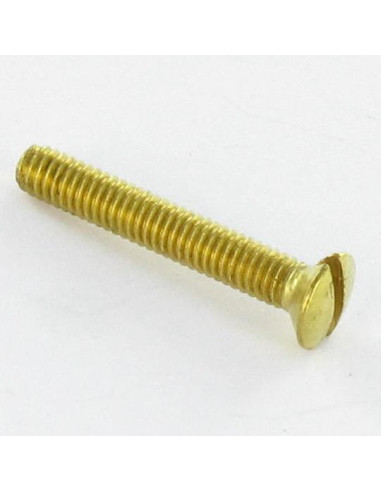

1 x Machine Screw Brass Pan Countersunk Head...

1 x Machine Screw Brass Pan Countersunk Head Slotted M3X20 micro screw

1503302009_1
In stock 1628 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.04 £6.12 £7.29 £14.49

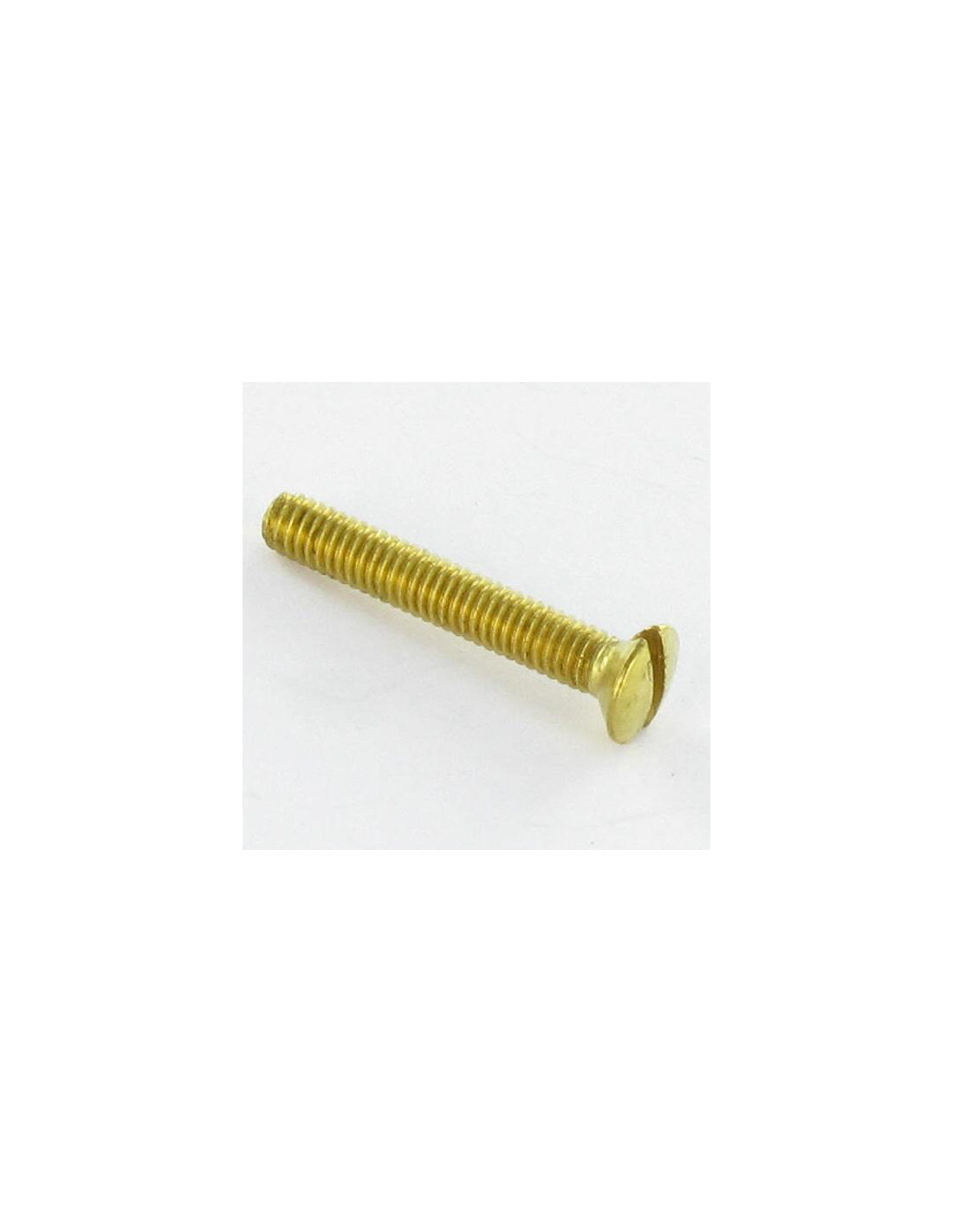

DIN 964 - Machine Screw Brass Pan Countersunk Head Slotted M3X20 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
20
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 50
Material
Brass
COLOR
Yellow
Norm
DIN 964
Product Family
Machine Screw / MICROVIS
Sub product family
Pan Countersunk Head
Diameter in mm
2.974 - 2.835
Unit weight
1.29 GR
1628 Items
3663072006492
Machine Screw Brass Pan Countersunk Head Slotted M3X20 micro screw
Diameter = M3, Length = 20, Sub Product Family = Pan Countersunk Head, Material = Brass, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 964, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
diametre M1 M1.2 M1.4 M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
Head diameter 1.9A1.76 2.3A2.06 2.6A2.45 3A2.86 3.8A3.5 4.7A4.4 5.6A5.3 6.5A6.14 7.5A7.14 9.2A8.84 11A10.57 14.5A14.07 18A17.5
largeur fente 0.25 0.3 0.3 0.4 0.5 0.6 0.8 0.8 1 1.2 1.6 2 2.5
profondeur fente 0.4A0.5 0.5A0.6 0.52A0.65 0.65A0.8 0.8A1 1A1.2 1.2A1.45 1.4A1.7 1.8A1.9 2A2.3 2.4A2.8 3.2A4.6 4A4.6
hauteur tete (sans le bombee) 0.6 0.72 0.84 0.96 1.2 1.5 1.65 1.93 2.2 2.5 3 4 5
hauteur du bombee 0.25 0.3 0.35 0.4 0.5 0.6 0.75 0.9 1 1.25 1.5 2 2.5

Other Reference : 3617501138926 M193179156 3663072006492
