1 x Machine Screw Brass Pan Countersunk Head...

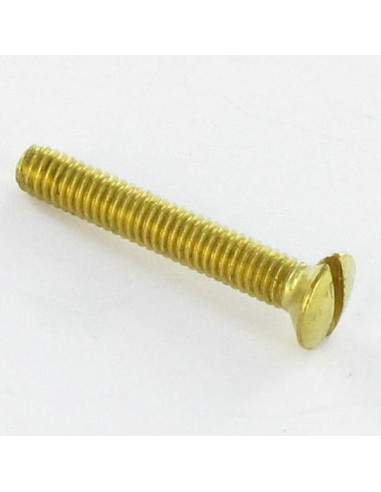

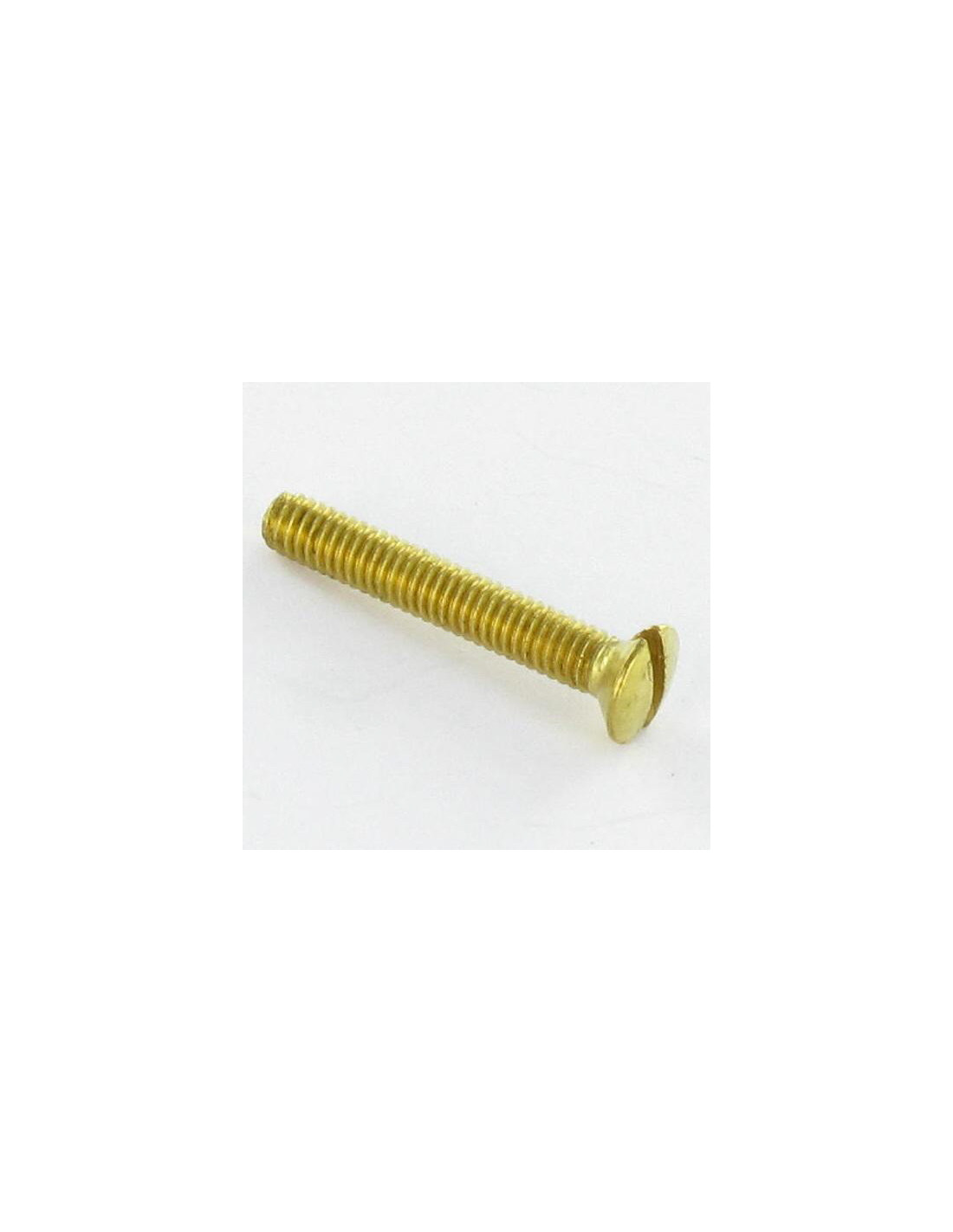

1 x Machine Screw Brass Pan Countersunk Head Slotted M2.5X10 micro screw

1503251009_1
Available within 40 business days
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €3.50 €8.45 €9.20 €14.15
DIN 964 - Machine Screw Brass Pan Countersunk Head Slotted M2.5X10 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M2.5
Length
10
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 45
Material
Brass
COLOR
Yellow
Norm
DIN 964
Product Family
Machine Screw / MICROVIS
Sub product family
Pan Countersunk Head
Diameter in mm
1.948 - 2013
Unit weight
0.45 GR
3663072239265
Machine Screw Brass Pan Countersunk Head Slotted M2.5X10 micro screw
Diameter = M2.5, Length = 10, Sub Product Family = Pan Countersunk Head, Material = Brass, Pitch = Standard pitch 45, Drive Type = Slotted, Norm = DIN 964, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
diametre M1 M1.2 M1.4 M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
Head diameter 1.9A1.76 2.3A2.06 2.6A2.45 3A2.86 3.8A3.5 4.7A4.4 5.6A5.3 6.5A6.14 7.5A7.14 9.2A8.84 11A10.57 14.5A14.07 18A17.5
largeur fente 0.25 0.3 0.3 0.4 0.5 0.6 0.8 0.8 1 1.2 1.6 2 2.5
profondeur fente 0.4A0.5 0.5A0.6 0.52A0.65 0.65A0.8 0.8A1 1A1.2 1.2A1.45 1.4A1.7 1.8A1.9 2A2.3 2.4A2.8 3.2A4.6 4A4.6
hauteur tete (sans le bombee) 0.6 0.72 0.84 0.96 1.2 1.5 1.65 1.93 2.2 2.5 3 4 5
hauteur du bombee 0.25 0.3 0.35 0.4 0.5 0.6 0.75 0.9 1 1.25 1.5 2 2.5

Other Reference : 3617501300910 3663072239265
