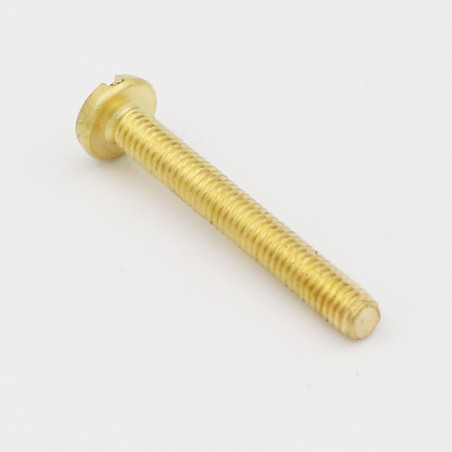

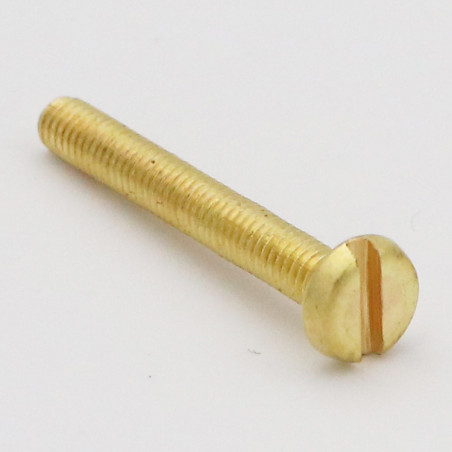

1 x Machine Screw Brass Large Pan Head Slotted M3X20 micro screw

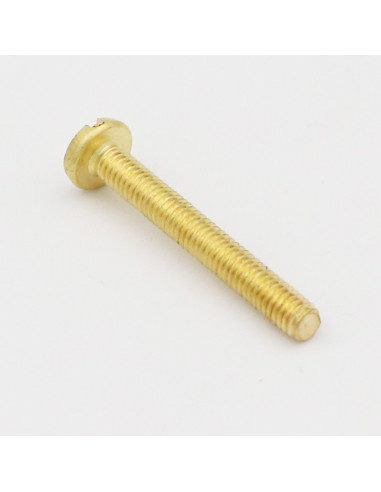

1 x Machine Screw Brass Large Pan Head Slotted M3X20 micro screw

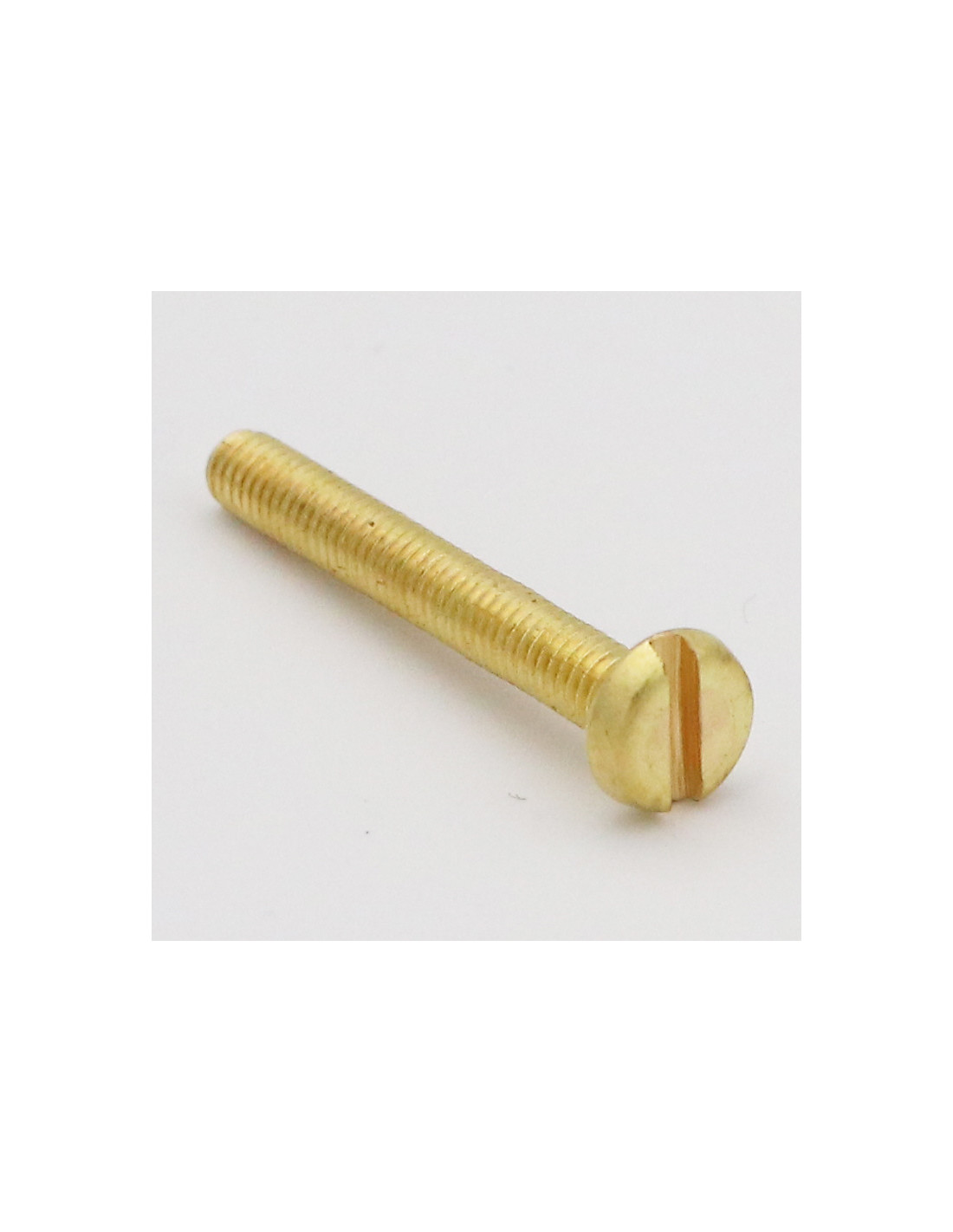

1 x Machine Screw Brass Large Pan Head Slotted...

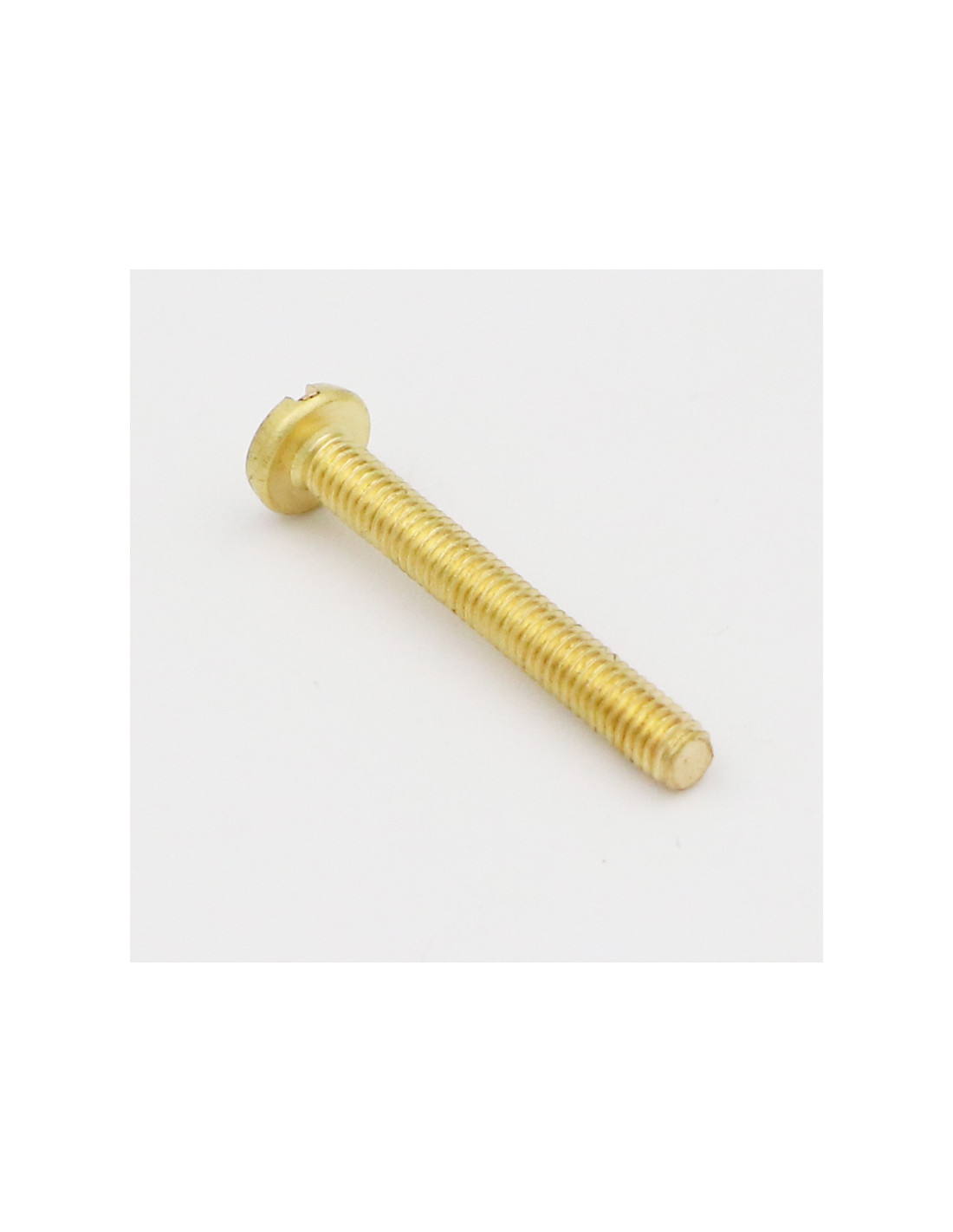

1 x Machine Screw Brass Large Pan Head Slotted...

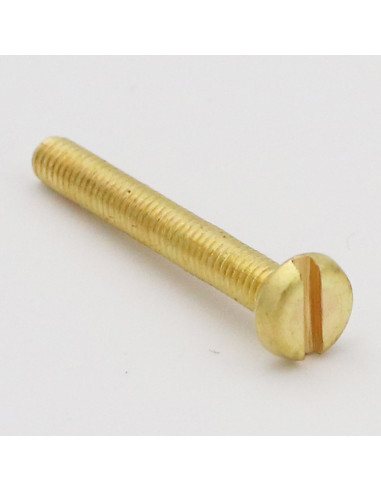

1 x Machine Screw Brass Large Pan Head Slotted M3X20 micro screw

1509302009_1
In stock 511 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £3.04 £7.55 £15.10 £35.88
DIN 85 - Machine Screw Brass Large Pan Head Slotted M3X20 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
20
Thread
Metal
Drive Type
Slotted
Size Drive Type
0.86-1 (WIDTH SLOT) / 0.70 (DEPTH SLOT)
Pitch
Standard pitch 50
Diameter Head
5.70-6.00
Material
Brass
COLOR
Yellow
Norm
DIN 85
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head Large
Head thickness
1.66-1.80
Diameter in mm
2.974 - 2.835
Unit weight
1.31 GR
511 Items
3663072007130
Machine Screw Brass Large Pan Head Slotted M3X20 micro screw
Diameter = M3, Length = 20, Sub Product Family = Cylindrical Head Large, Material = Brass, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 85, Product Family = Machine Screw / MICROVIS, Size Drive Type = 0.86-1 (WIDTH SLOT) / 0.70 (DEPTH SLOT), Diameter Head = 5.70-6.00


dimensional guide (mm)
Diameter M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
Head diameter 3 4 5 6 8 10 12 16 20
Head Tickness 1 1.2 1.5 1.8 2.4 3 3.6 4.8 6
Slot width 0.4 0.7 0.8 0.8 1.2 1.2 1.6 2 2.5

Other Reference : 3617501503557 3663072007130
