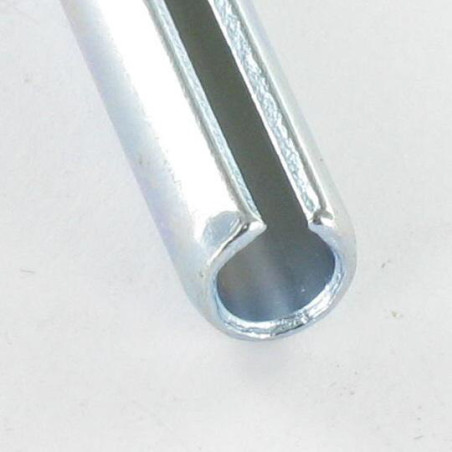

1 x Elastic Pin Zinc Plated 8X40 Thick Series

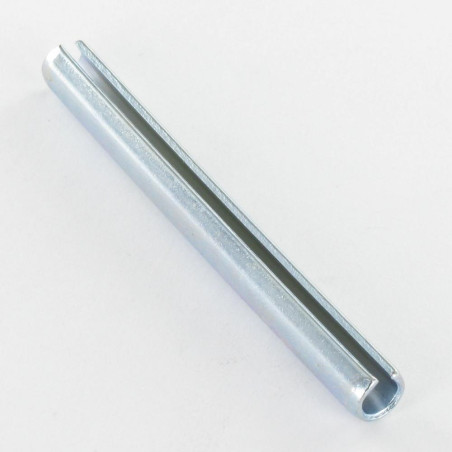

1 x Elastic Pin Zinc Plated 8X40 Thick Series

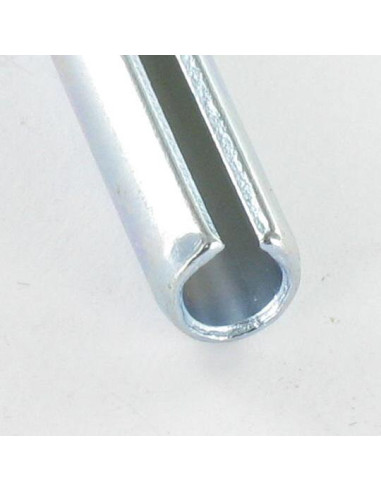

1 x Elastic Pin Zinc Plated 8X40 Thick Series
1 x Elastic Pin Zinc Plated 8X40 Thick Series

1 x Elastic Pin Zinc Plated 8X40 Thick Series

7090804002_1
In stock 2076 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included £3.34 £6.68 £8.07 £30.41
Elastic Pin Zinc Plated 8X40 Thick Series
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
8
Length
40
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Norm
VS-DIN1481
Product Family
Pin
Sub product family
Elastic Pin
WEIGHT For THERE unit
11.94 GR
2076 Items
3663072182806

Application

  • Assembly of mechanical parts
  • Positioning of shafts and hubs
  • Industrial machinery
  • General mechanics and maintenance
Elastic Pin Zinc Plated 8X40 Thick Series
Diameter = 8, Length = 40, Coating = Zinc Plated, Sub Product Family = Elastic Pin, Material = Steel, Norm = VS-DIN1481, Product Family = Pin


dimensional guide (mm)
diam tre du trou de per age 1 1.5 2 2.5 3 3.5 4 4.5 5 6 7 8 10 12 13 14 16 18 20 21 25 28 30 32 35 38 40
diam tre mini 1.2 1.7 2.3 2.8 3.3 4.4 4.9 5.4 6.4 7.45 8.5 8.5 10.5 12.5 13.4 14.5 16.5 18.5 20.5 21.5 25.5 28.5 30.5 32.5 35.5 38.5 40.5
diam rtre maxi 1.3 1.8 2.4 2.9 3.5 4 4.6 5.1 5.6 6.7 7.8 8.8 10.8 12.8 13.8 14.8 16.8 18.9 20.9 21.9 25.9 - - - - - -
paisseur 0.2 0.3 0.4 0.5 0.6 0.75 0.8 1 1 1.2 1.2 1.5 2 2.5 2.5 3 3 3.5 4 4 5 5.5 6 6 7 7.5 7.5

Other Reference : 3617501570146 C09000025 26499 1405022530 OGOUPE8.40 3GOEL028 B15273 G511-08040 OBGM0840 04D337 290010 22050110 3663072182806
