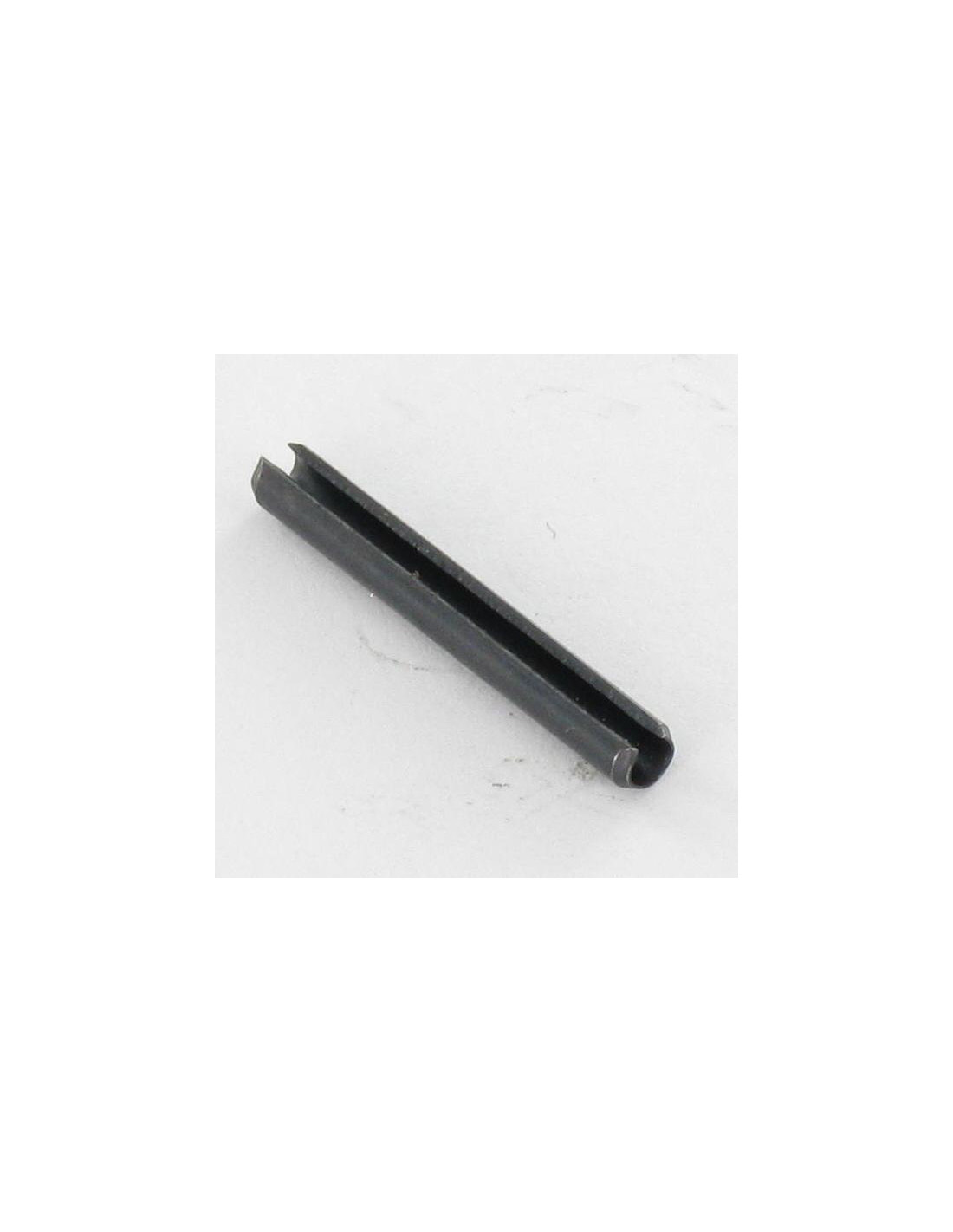

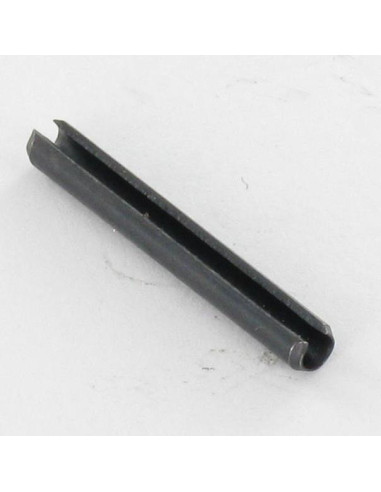

1 x Elastic Pin Steel 4X16 Thick Series

1 x Elastic Pin Steel 4X16 Thick Series

7090401601_1
In stock 6963 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €19.25
Elastic Pin Steel 4X16 Thick Series
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Length
16
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN1481
Product Family
Pin
Sub product family
Elastic Pin
Unit weight
0.96 GR
6963 Items
3663072126084

Application

  • Assembly of mechanical parts
  • Positioning of shafts and hubs
  • Industrial machinery
  • General mechanics and maintenance
Elastic Pin Steel 4X16 Thick Series
Diameter = 4, Length = 16, Sub Product Family = Elastic Pin, Material = Steel, Norm = VS-DIN1481, Product Family = Pin


dimensional guide (mm)
diam tre du trou de per age 1 1.5 2 2.5 3 3.5 4 4.5 5 6 7 8 10 12 13 14 16 18 20 21 25 28 30 32 35 38 40
diam tre mini 1.2 1.7 2.3 2.8 3.3 4.4 4.9 5.4 6.4 7.45 8.5 8.5 10.5 12.5 13.4 14.5 16.5 18.5 20.5 21.5 25.5 28.5 30.5 32.5 35.5 38.5 40.5
diam rtre maxi 1.3 1.8 2.4 2.9 3.5 4 4.6 5.1 5.6 6.7 7.8 8.8 10.8 12.8 13.8 14.8 16.8 18.9 20.9 21.9 25.9 - - - - - -
paisseur 0.2 0.3 0.4 0.5 0.6 0.75 0.8 1 1 1.2 1.2 1.5 2 2.5 2.5 3 3 3.5 4 4 5 5.5 6 6 7 7.5 7.5

Other Reference : 3473576906125 GPIMECAN4/16 VB080 /AN 800060ROO 14050000024 07GM4.0X15 936 086198 086198 3663072126084
Gilles B. (vis-express.fr)
2024-03-24

cable door chain lock reconstruction of a new machine tool
