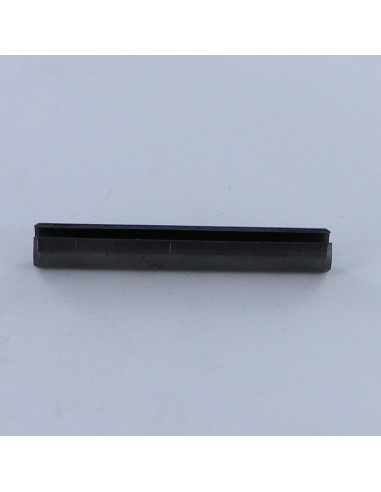

1 x Elastic Pin Steel 3X16 Slim Series

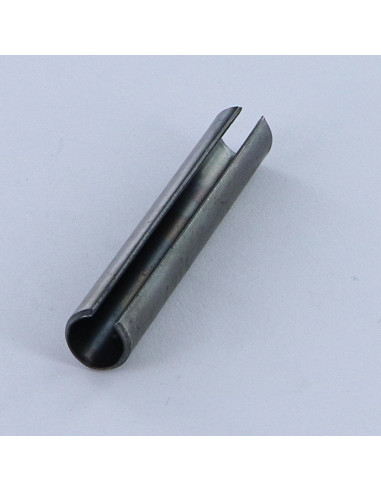

1 x Elastic Pin Steel 3X16 Slim Series

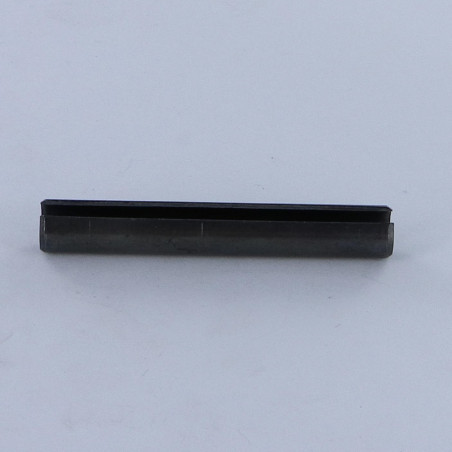

1 x Elastic Pin Steel 3X16 Slim Series
1 x Elastic Pin Steel 3X16 Slim Series

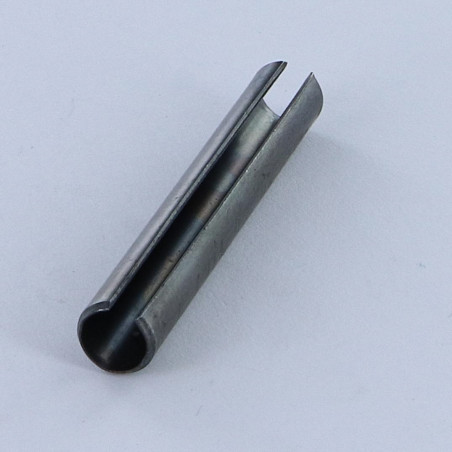

1 x Elastic Pin Steel 3X16 Slim Series

7097301601_1
In stock 1070 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €65.10
DIN 7346 - Elastic Pin Steel 3X16 Slim Series
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
3
Length
16
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 7346
Product Family
Pin
Sub product family
Elastic Pin
Unit weight
4 GR
1070 Items
3663072028319

Application

  • Assembly of mechanical parts
  • Positioning of shafts and hubs
  • Industrial machinery
  • General mechanics and maintenance
Elastic Pin Steel 3X16 Slim Series
Diameter = 3, Length = 16, Sub Product Family = Elastic Pin, Material = Steel, Norm = DIN 7346, Product Family = Pin


dimensional guide (mm)
Diameter 1.5 2 2.5 3 3.5 4 4.5 5 6 7 8 9 10 11 12 13 14 15 16 18 20 22 24 26 28 30 32 34 36 38 40
T 1.65 2.2 2.75 3.3 3.8 4.35 4.85 5.35 6.4 7.45 8.45 9.5 10.5 11.5 12.5 13.5 14.5 15.5 16.5 18.5 20.5 22.5 24.5 26.5 28.5 30.5 32.5 34.5 36.5 38.5 40.5
e 0.2 0.2 0.25 0.3 0.3 0.4 0.4 0.5 0.6 0.6 0.8 1 1 1 1 1.2 1.5 1.5 1.5 1.75 2 2.5 2.5 2.5 2.5 3 3 3.5 4 4 4

Other Reference : 3617501934818 3663072028319
