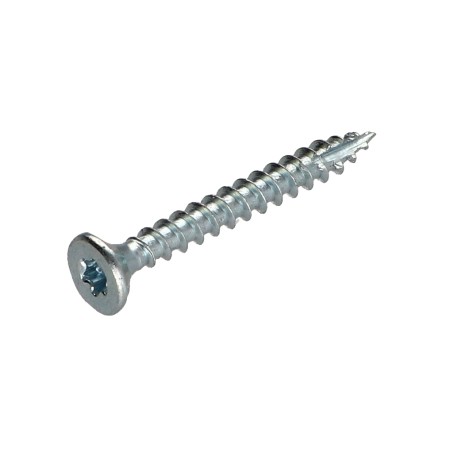

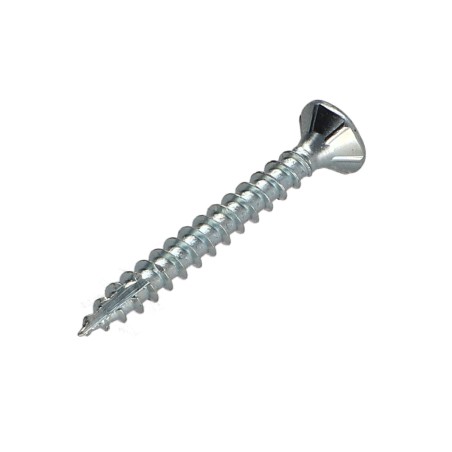

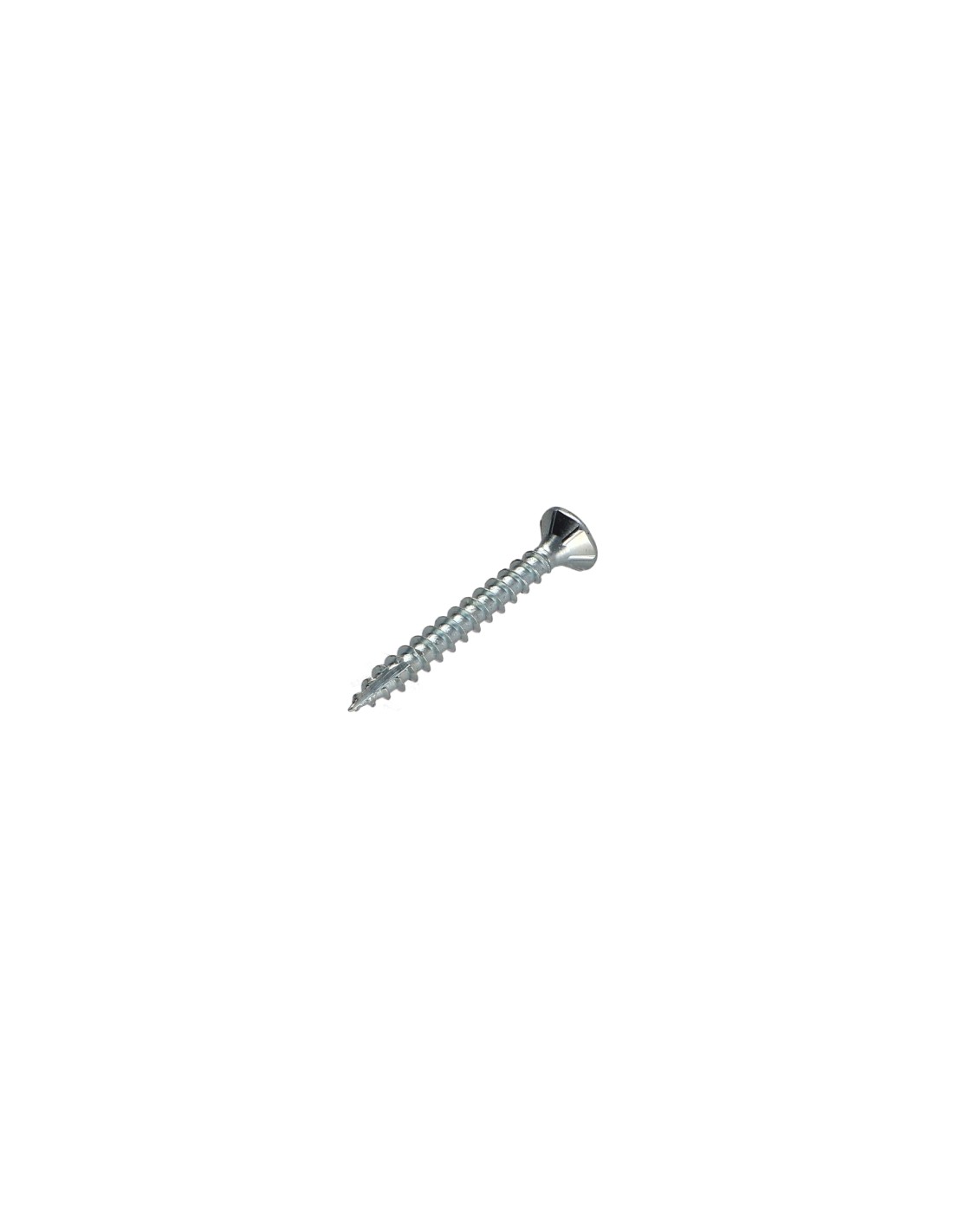

1 x Chipboard Screw Tekor Countersunk Head With Serration 3x30 T10 Zinc Plated Full Thread cut Type 17 Drilling Point

1 x Chipboard Screw Tekor Countersunk Head With...

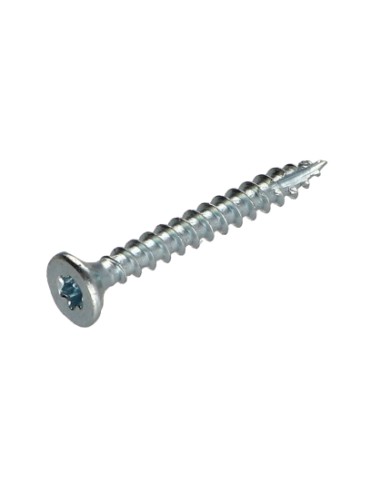

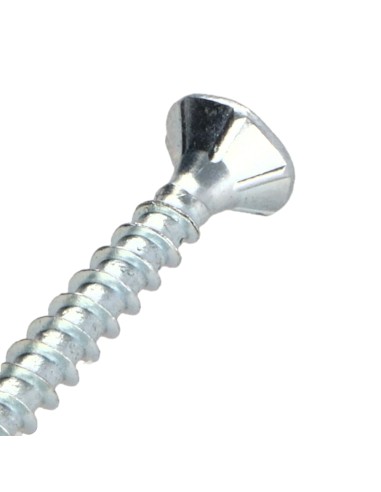

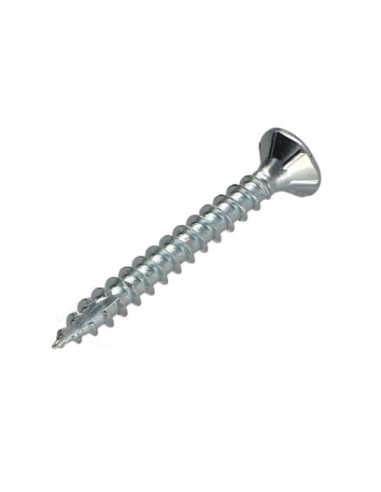

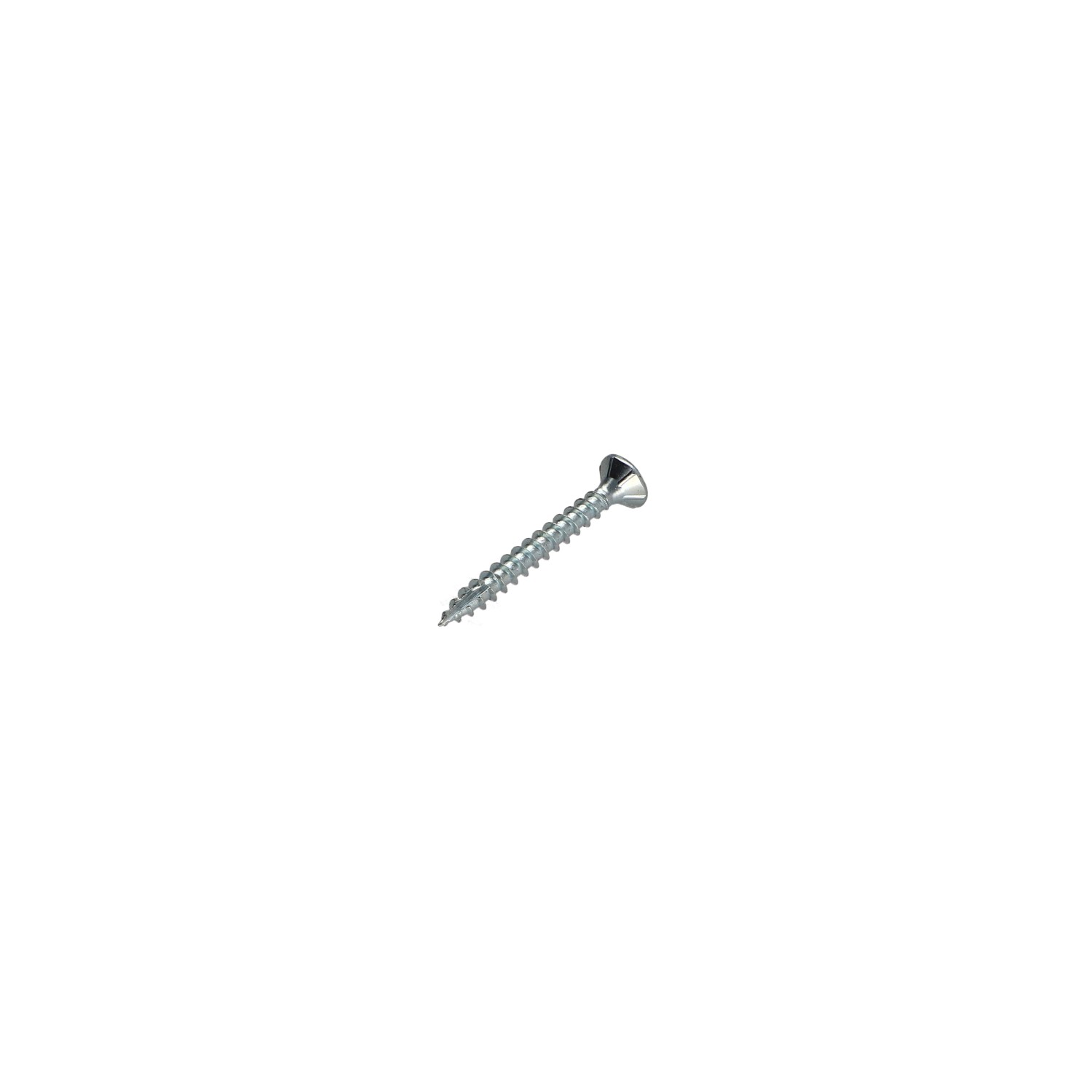

1 x Chipboard Screw Tekor Countersunk Head With Serration 3x30 T10 Zinc Plated Full Thread cut Type 17 Drilling Point

Name: 1 x Chipboard Screw Tekor Countersunk Head With Serration 3x30 T10 Zinc Plated Full Thread cut Type 17 Drilling Point
Brand: Tekor
SKU: 2036303002
Price: 0.43 GBP
Availability: InStock

Reference 2036303002_1

In stock 101269 Pièces

£0.43 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	200	800
Lot price VAT included	£0.43	£0.87	£1.04	£1.82	£6.60

Chipboard Screw Tekor Countersunk Head With Serration 3x30 T10 Zinc Plated Full Thread cut Type 17 Drilling Point micro screw

Packaging

1 unit
10 units
30 units
200 units
800 Units

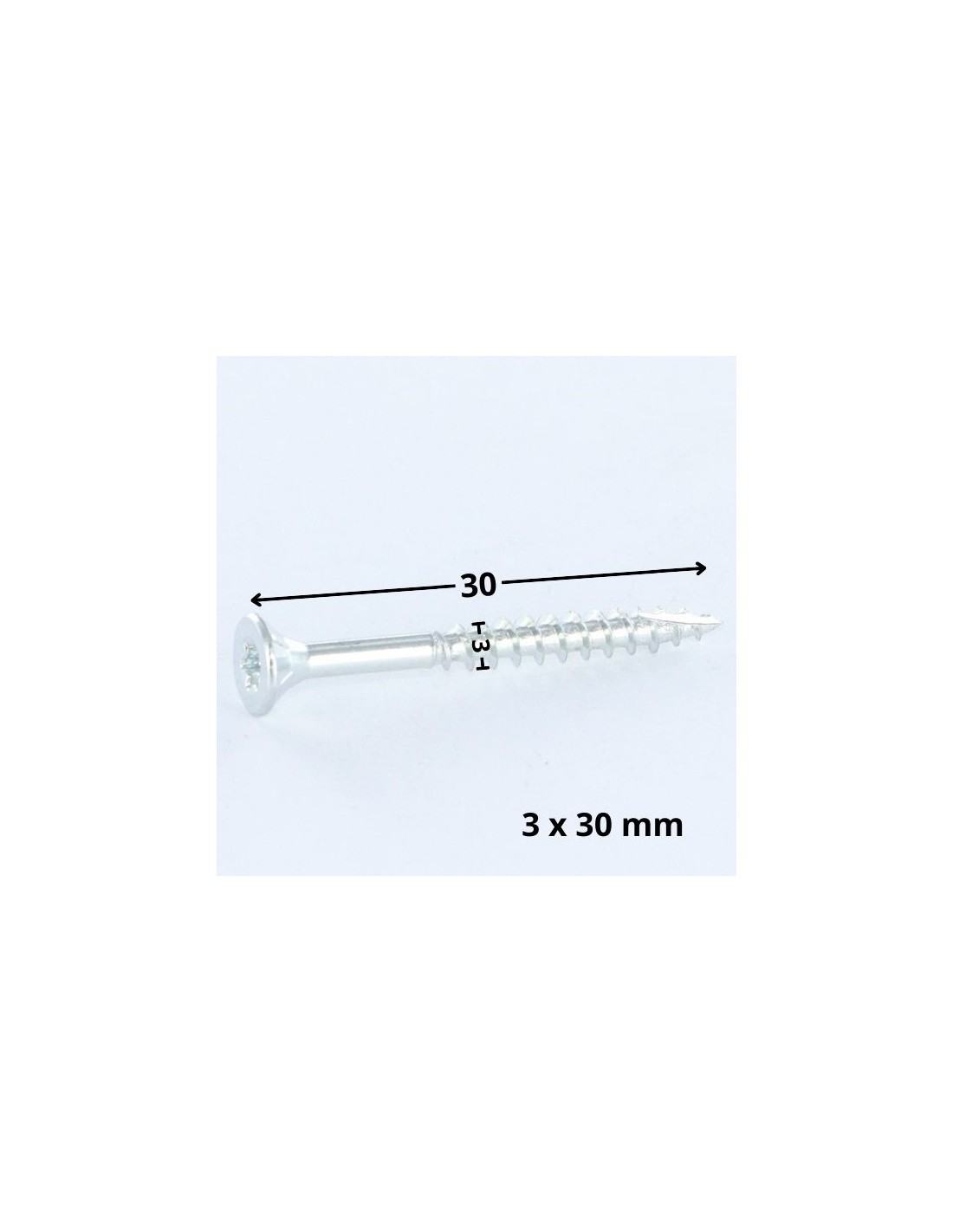

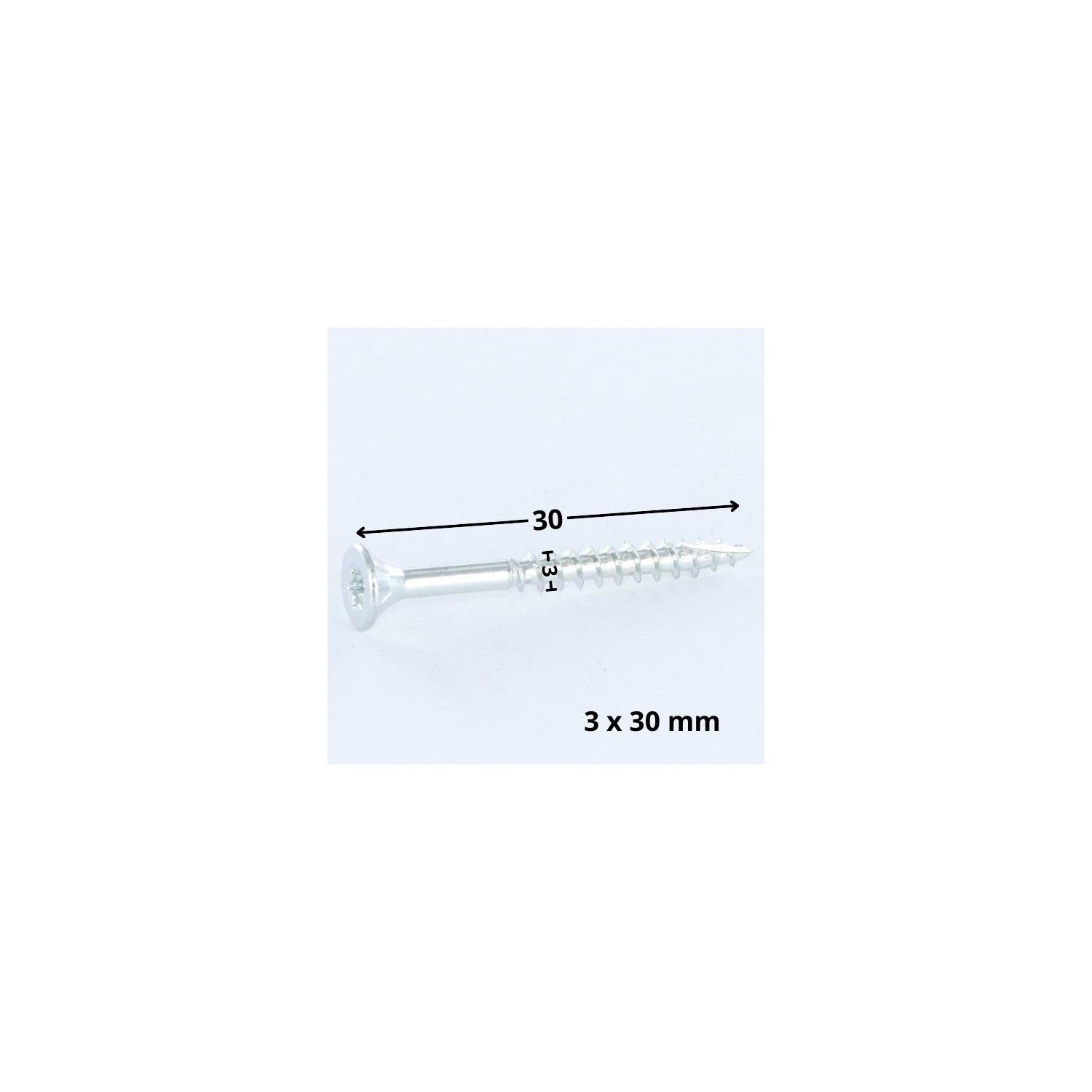

See all available dimensions in this range Dimensions shown in millimeters (mm)

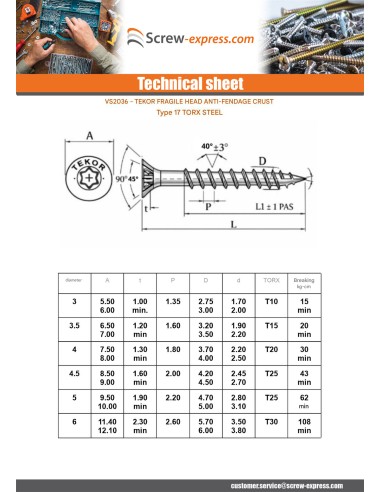

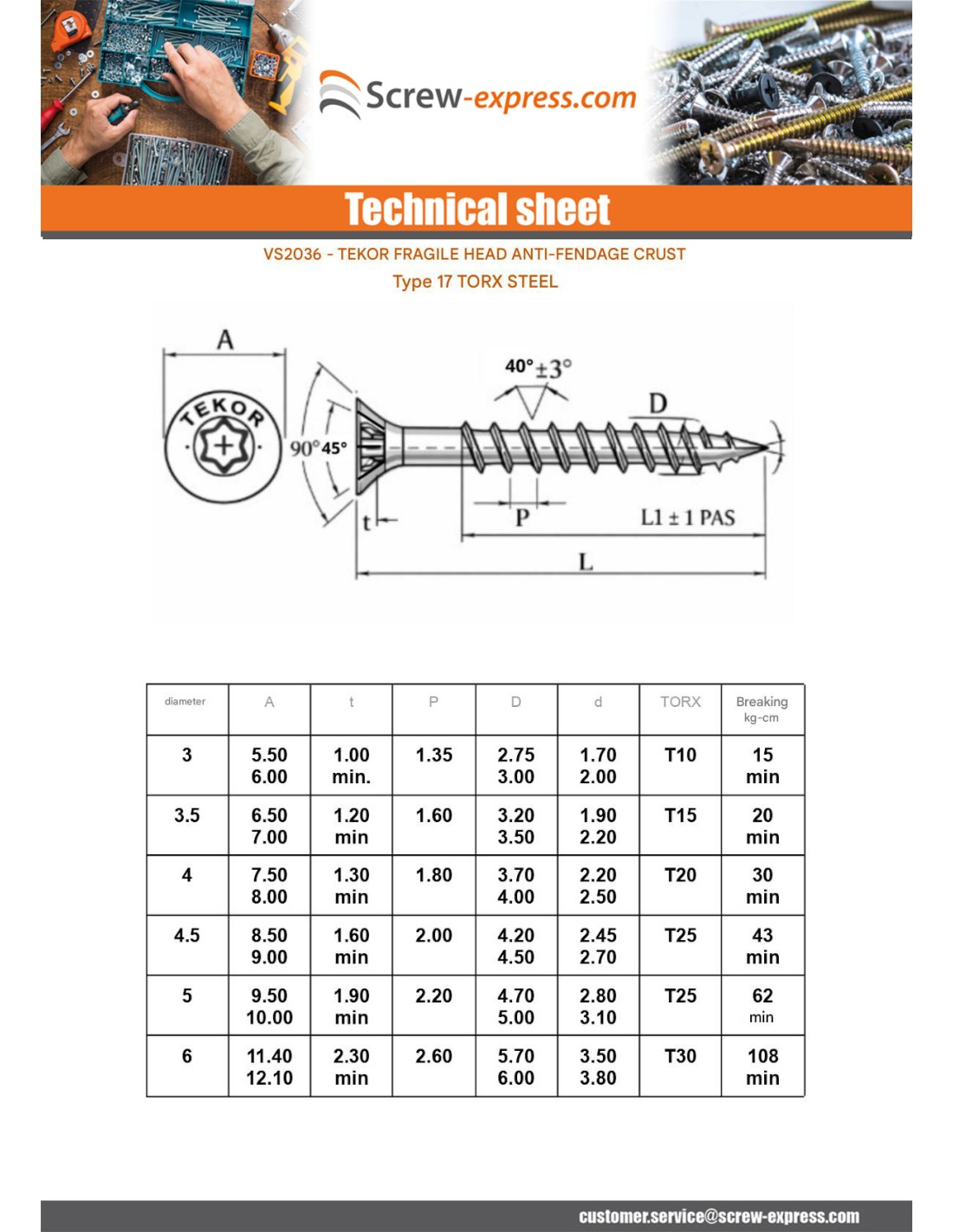

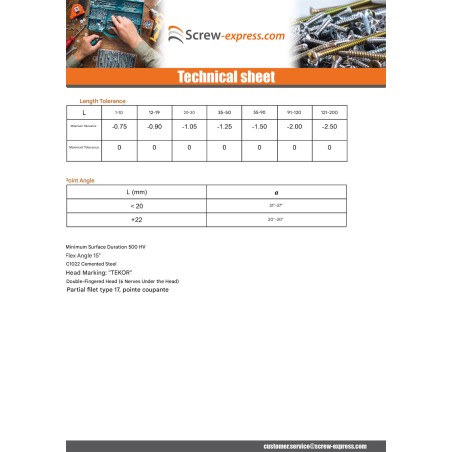

Product Details

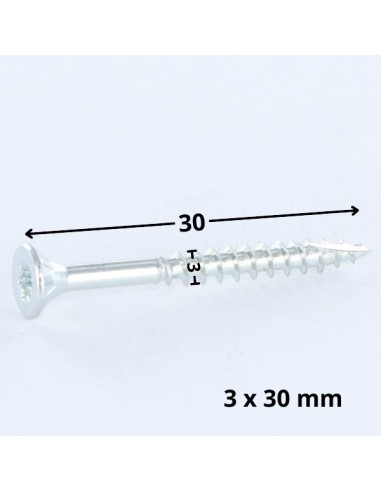

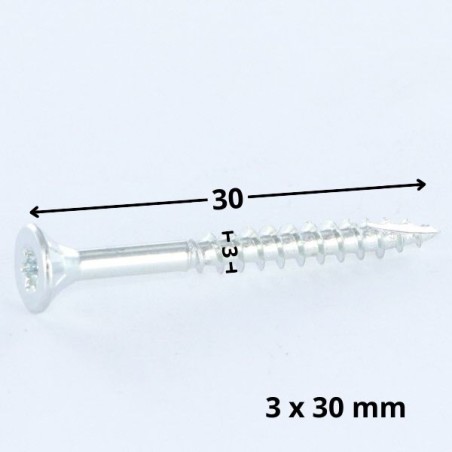

Diameter: 3
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 30
Drive Type: Torx
Size Drive Type: T10
Material: Steel
Coating: ZINGUE White

ZINGUE White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Brand: Chipboard Screw Tekor
Product Family: Wood Screws

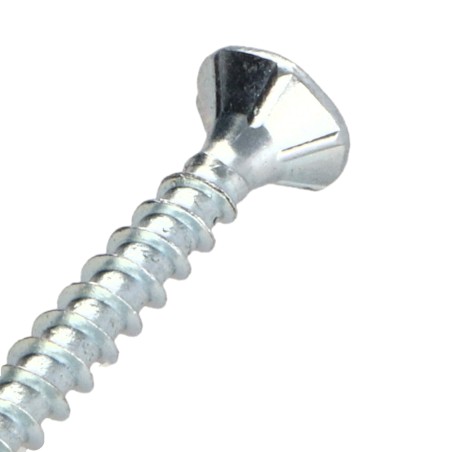

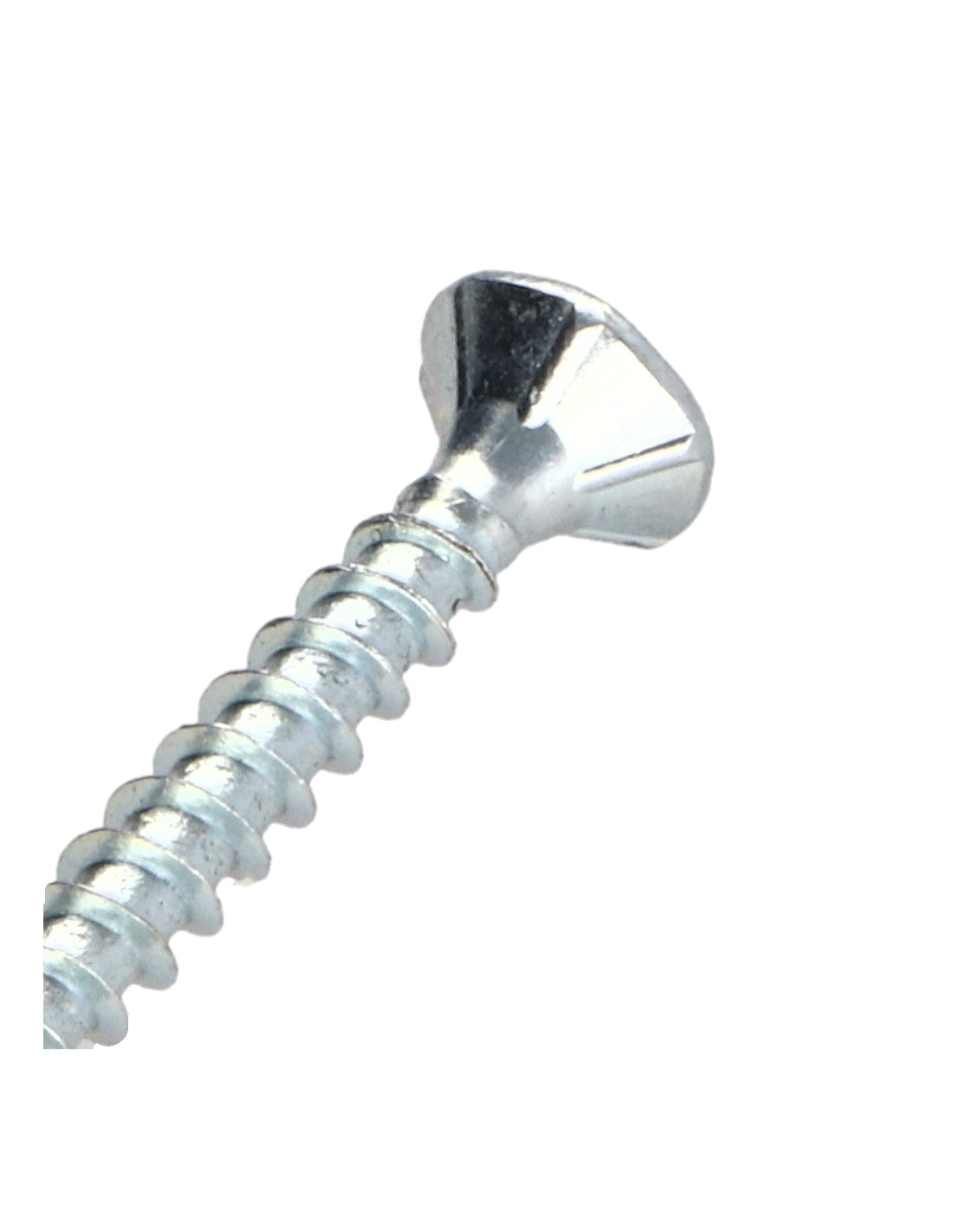

Sub product family: Countersunk Head

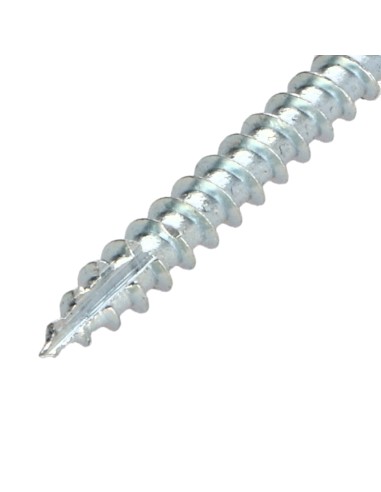

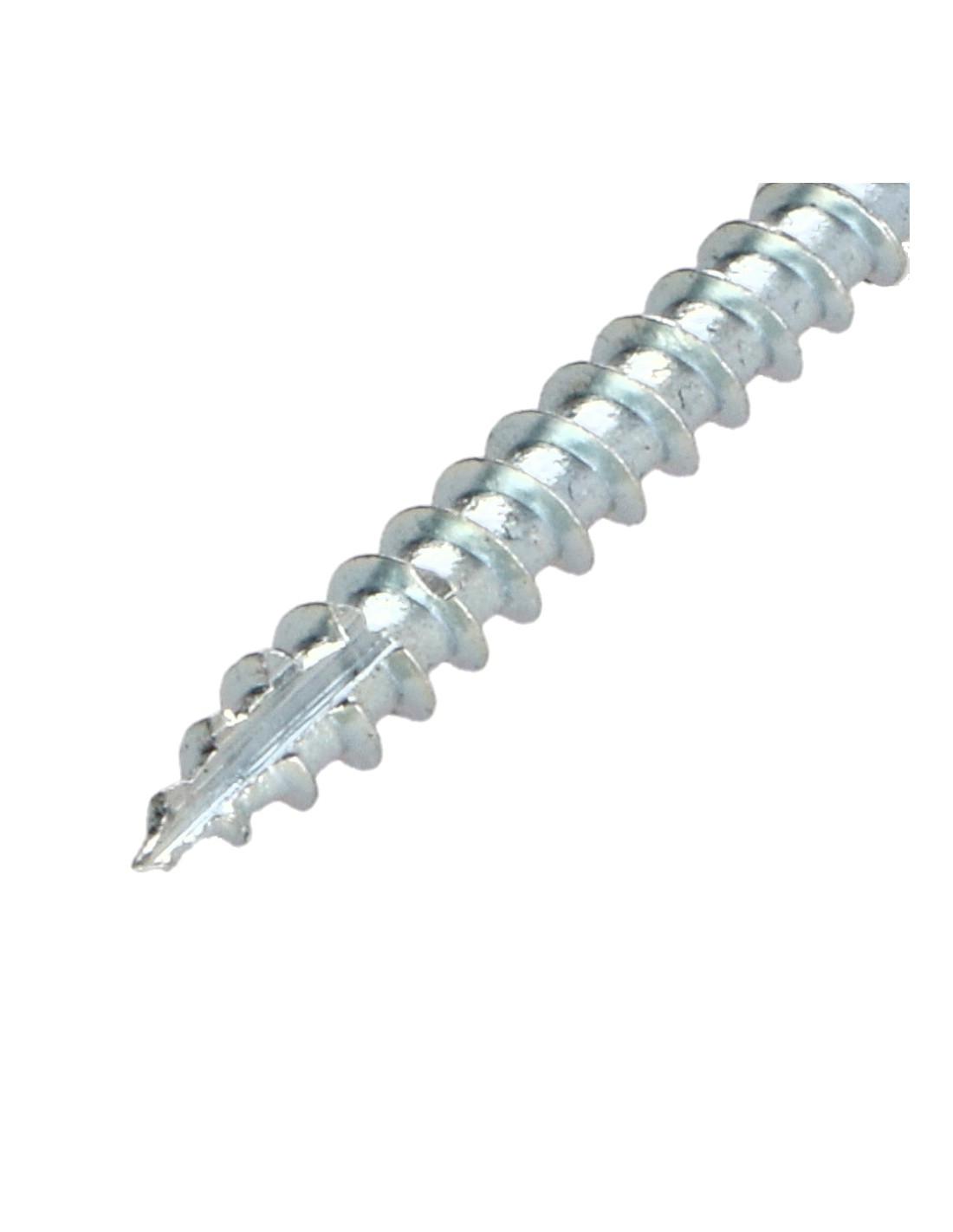

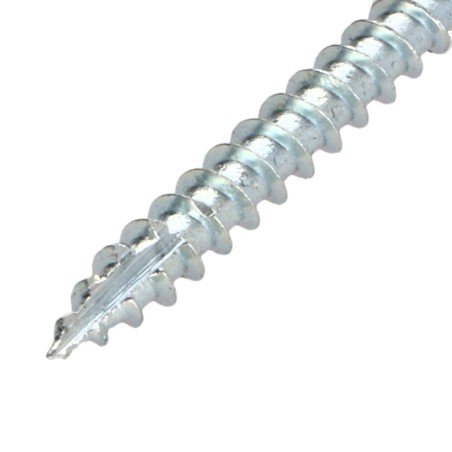

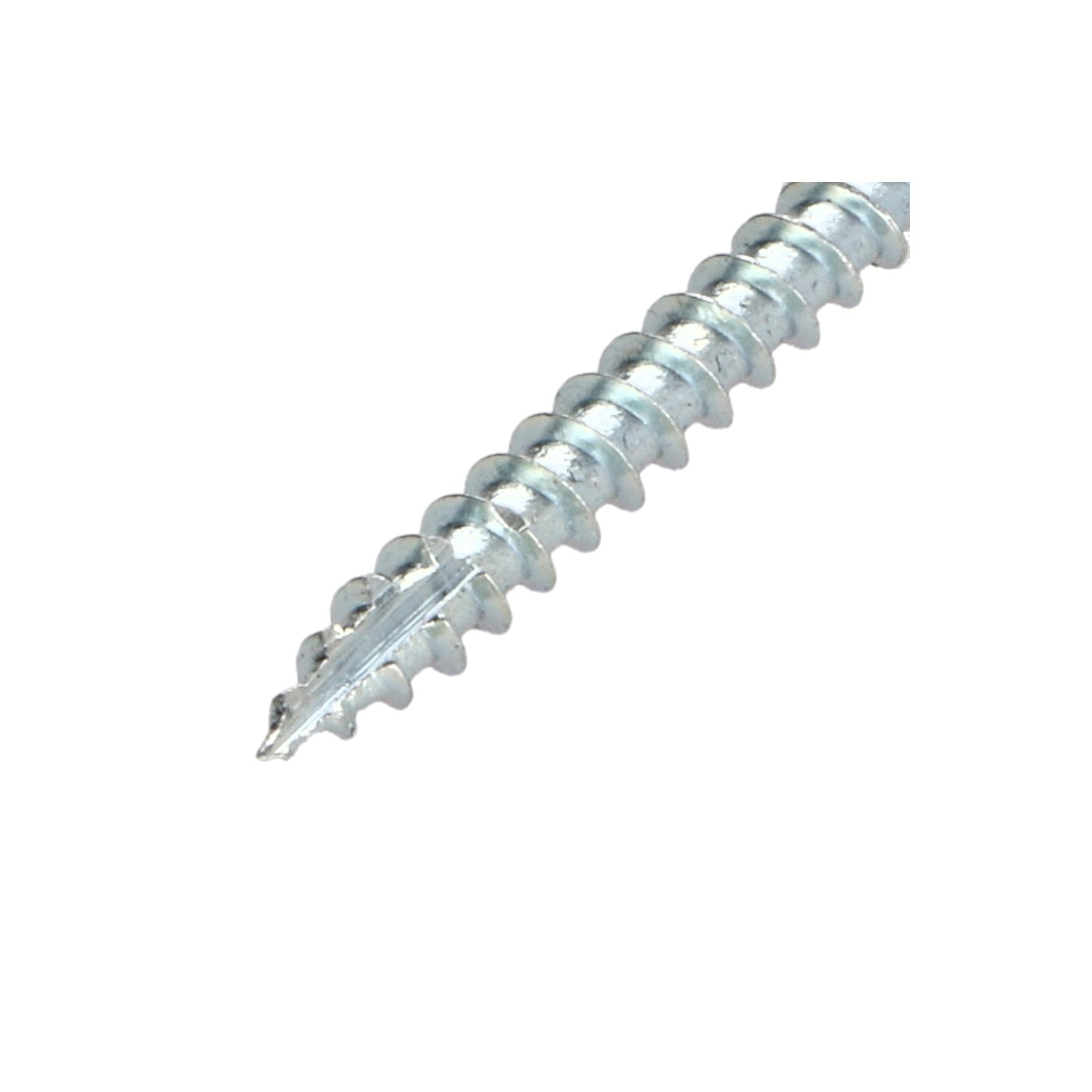

Tip: Drilling Point Type 17
Unit weight: 0.98 GR

In stock 101269 Items

ean13 3663072179578

Application

Carpentry / joinery: assembly of small wooden pieces (battens, strips, frames, moldings, baseboards, small reinforcements)
Wood panels (chipboard, plywood, thin OSB): for fixing thin parts

Description

Chipboard Screw Tekor Countersunk Head With Serration 3x30 T10 Zinc Plated Full Thread cut Type 17 Drilling Point micro screw
Diameter = 3, Length = 30, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Product Family = Wood Screws, Size Drive Type = T10, Brand = Chipboard Screw Tekor
Other Reference : 8032975266190 AR01579 A00016918 QVIS091LA VS3X30 VIPA024 002661 3663072179578

Use Cases

REMY G. (vis-express.fr)
2026-07-12

manufacturing tag re Large dressing room

Benjamin G. (vis-express.fr)
2026-03-29

Construction of several standing tables from pallets 100 x 50 x 50

Didier J. (vis-express.fr)
2026-01-11

Assembling an MFT table jig

Antoine A. (vis-express.fr)
2025-08-17

To be placed at the end of a threaded rod in a cabin diameter 10 Threaded rod holding the timbers, avoids hurting yourself on it and serves as a hook to fix what you want on it

Raoux Jean-Rémi E. (vis-express.fr)
2025-02-02

Animal shelters

Pierre C. (vis-express.fr)
2024-10-13

For all types of DIY I only use torx, much more precise. Cheaper than in supermarkets

florian L. (vis-express.fr)
2024-02-25

for OSB flooring OSB3 panel 250x65 cm

JEAN FRANCOIS J. (vis-express.fr)
2024-01-21

res tag creation
