1 x Nut to SLOTS HK M48 CLEARED Zinc Plated
1 x Nut to SLOTS HK M48 CLEARED Zinc Plated
1 x Nut to SLOTS HK M48 CLEARED Zinc Plated
1 x Nut to SLOTS HK M48 CLEARED Zinc Plated

1 x Nut to SLOTS HK M48 CLEARED Zinc Plated

4344004802_1
Available within 20 business days
£37.62 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 20
Lot price VAT included £37.62 £188.21 £376.38 £752.81

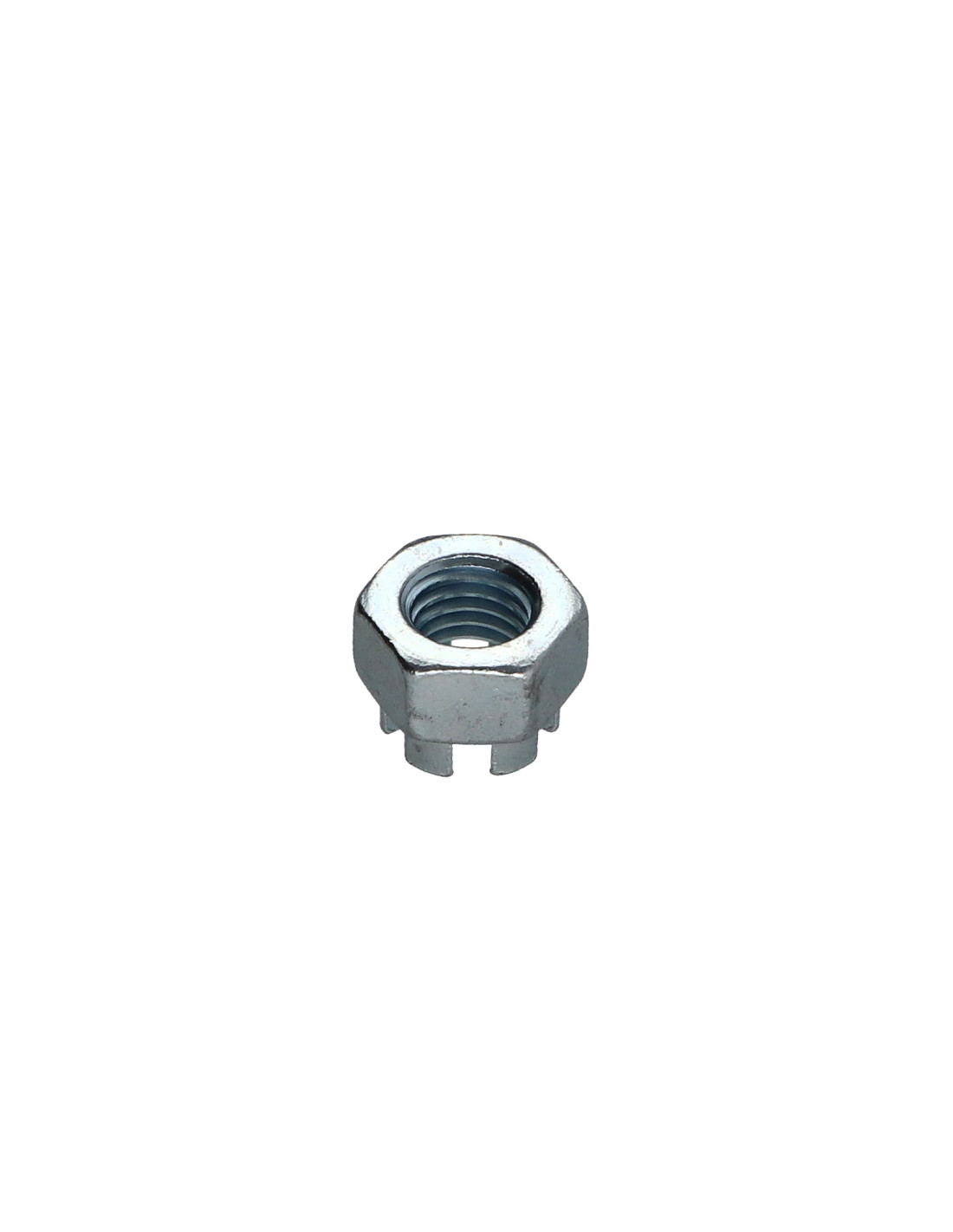

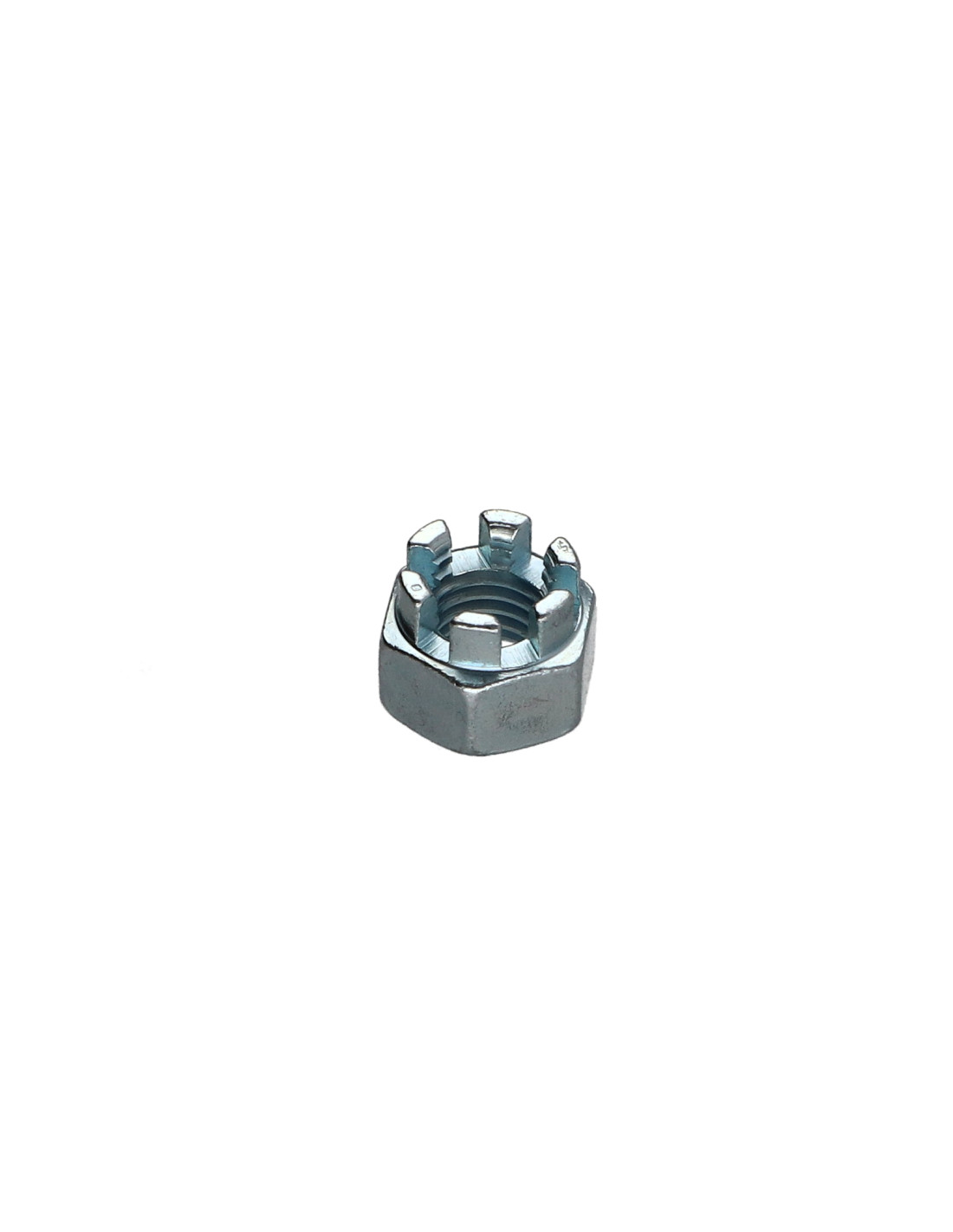

DIN 935 - Nut to SLOTS HK M48 CLEARED Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 20 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M48
Pitch
Standard pitch 500
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 935
Product Family
Nut
Unit weight
0 GR
3663072341500
Nut to SLOTS HK M48 CLEARED Zinc Plated
Diameter = M48, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 500, Norm = DIN 935, Product Family = Nut


dimensional guide (mm)
Diameter M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M56
Pitch 80 100 125 150 175 200 200 250 250 250 270 300 330 350 380 400 460 480 500 570
Tickness 6 7.5 9.5 12 15 16 19 21 22 26 27 30 33 35 38 40 46 48 50 57
Height 4 5 6.5 8 10 11 13 15 16 18 19 22 24 26 29 31 34 36 38 45
Across flats 8 10 13 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75 85
e 8.8 11 14.4 18.9 21.1 24.5 26.8 29.36 33 35 39.6 45.2 50.9 55.4 60.8 66.4 71.3 77 82.6 93.6
Minimum slot width 1.4 2 2.5 2.8 3.5 3.5 4.5 4.5 4.5 5.5 5.5 5.5 7 7 7 7 9 9 9 9

Other Reference : 3617500904942 RF26813 RF26813 260242 3663072341500
