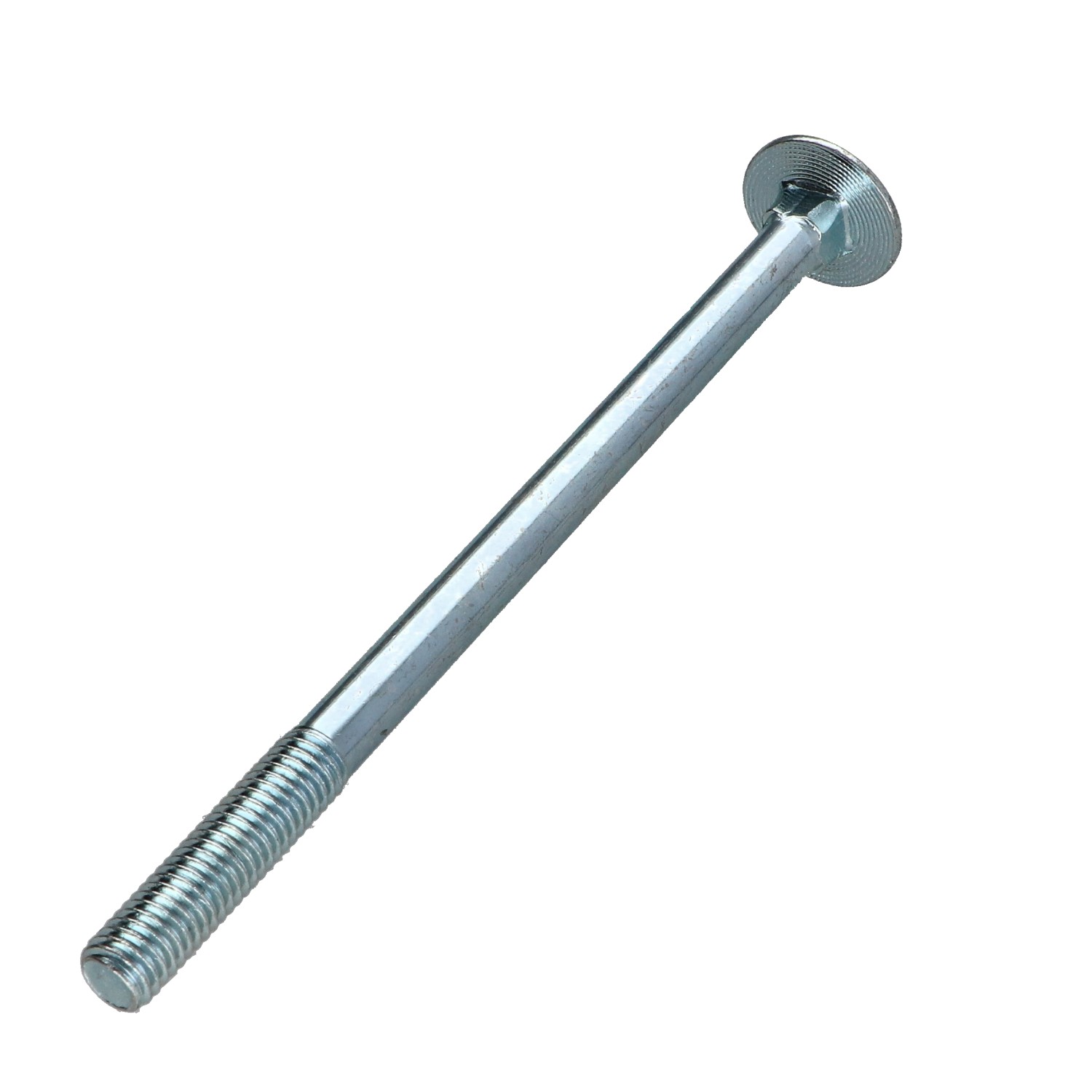

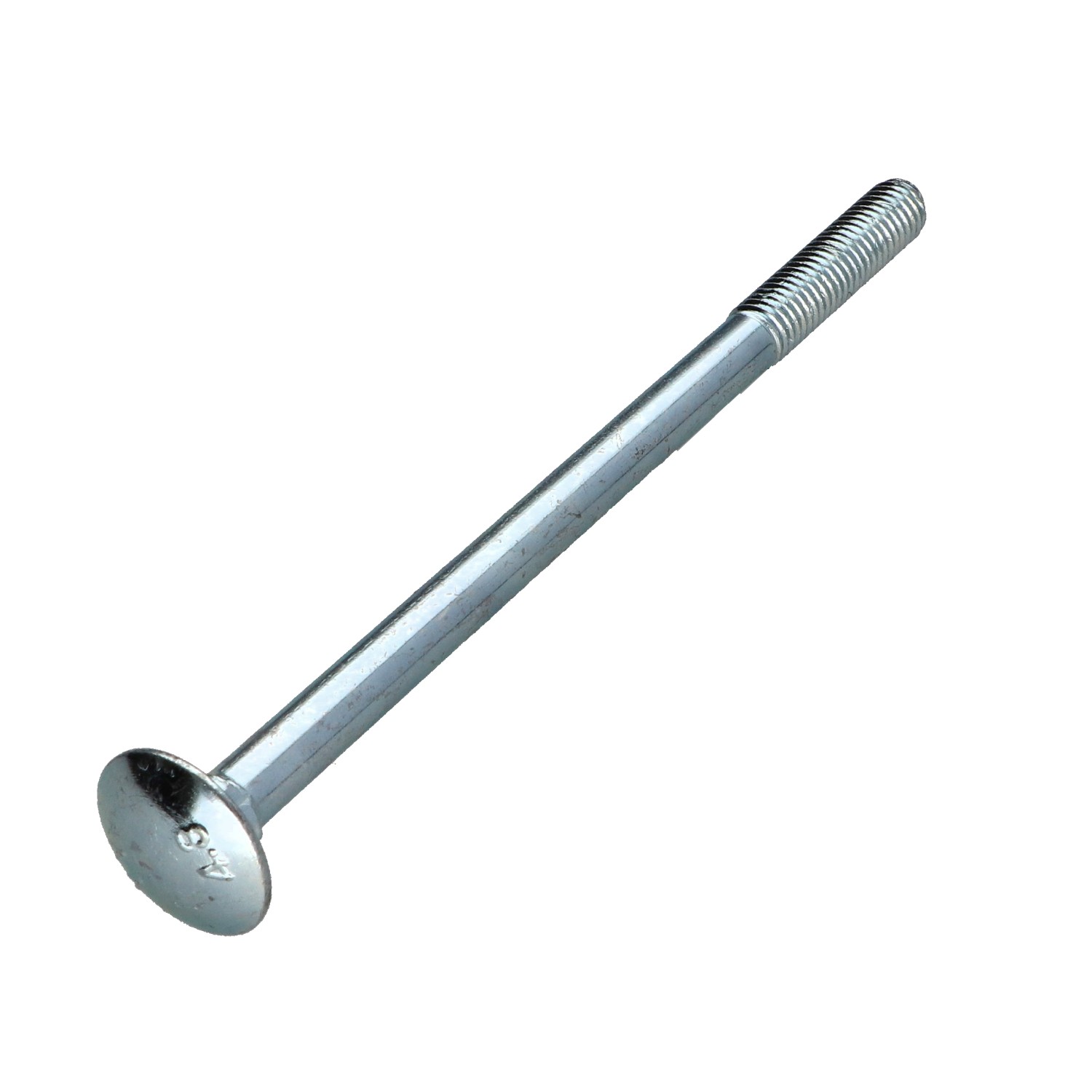

1 x Carriage Bolt M8X200 Thread Length: 28 Partial Thread Zinc Plated
1 x Carriage Bolt M8X200 Thread Length: 28 Partial Thread Zinc Plated
1 x Carriage Bolt M8X200 Thread Length: 28 Partial Thread Zinc Plated

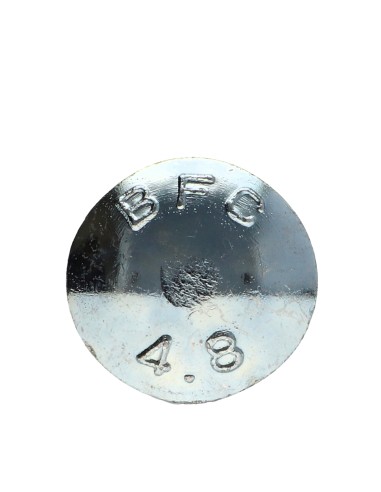

1 x Carriage Bolt M8X200 Thread Length: 28...
1 x Carriage Bolt M8X200 Thread Length: 28...
1 x Carriage Bolt M8X200 Thread Length: 28...

1 x Carriage Bolt M8X200 Thread Length: 28 Partial Thread Zinc Plated

4515820002_1
In stock 1080 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.85 €7.70 €13.10 €29.90
DIN603 FP VS4515 - Carriage Bolt M8X200 Thread Length: 28 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
200
Thread
Partial Thread
Pitch
Standard pitch 125
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
74 GR
1080 Items
3663072023956
Carriage Bolt M8X200 Thread Length: 28 Partial Thread Zinc Plated
Diameter = M8, Length = 200, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501650350 3663072023956
Laurent J. (vis-express.fr)
2025-04-06

This product is part of a fixing kit. Screws used as a fixing bracket
