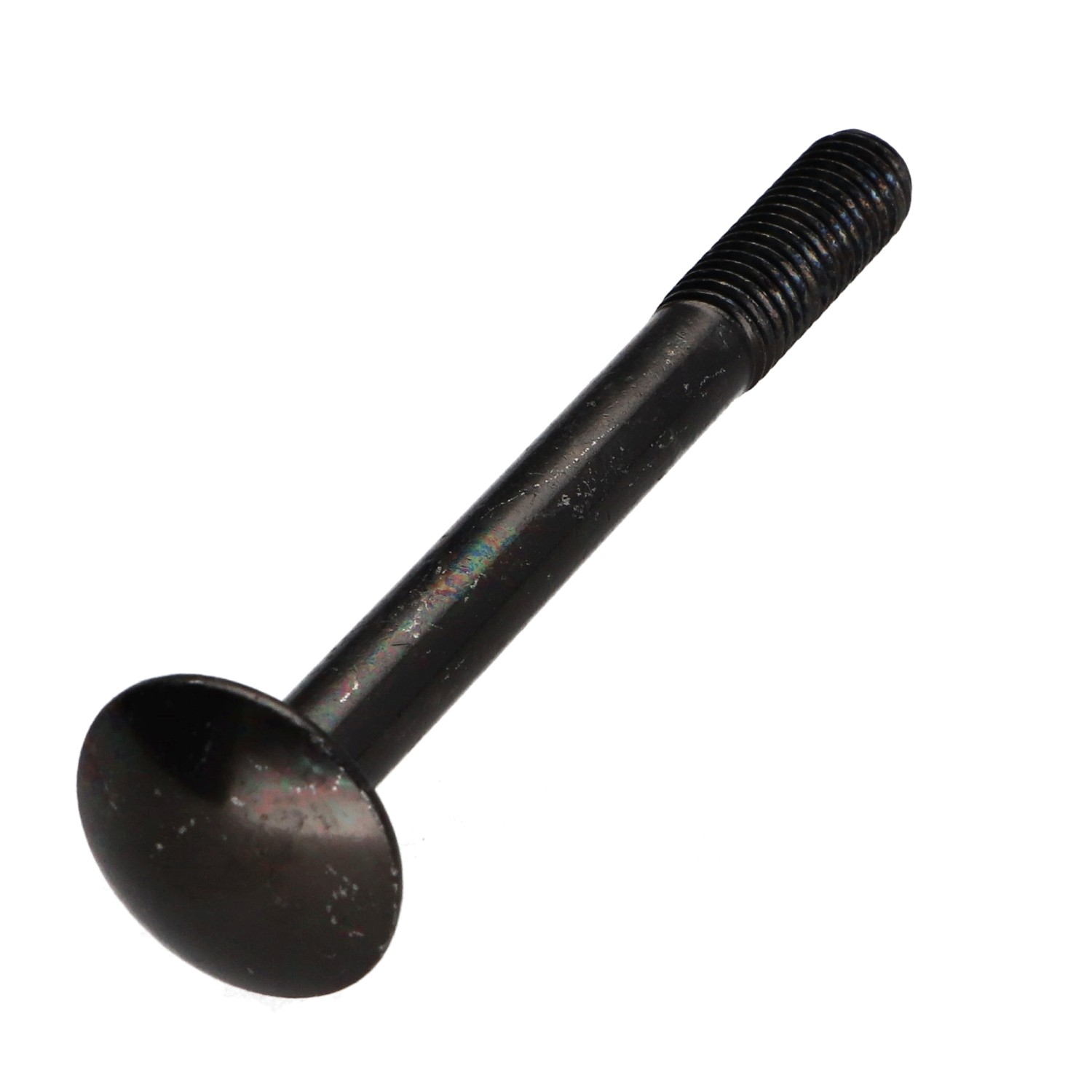

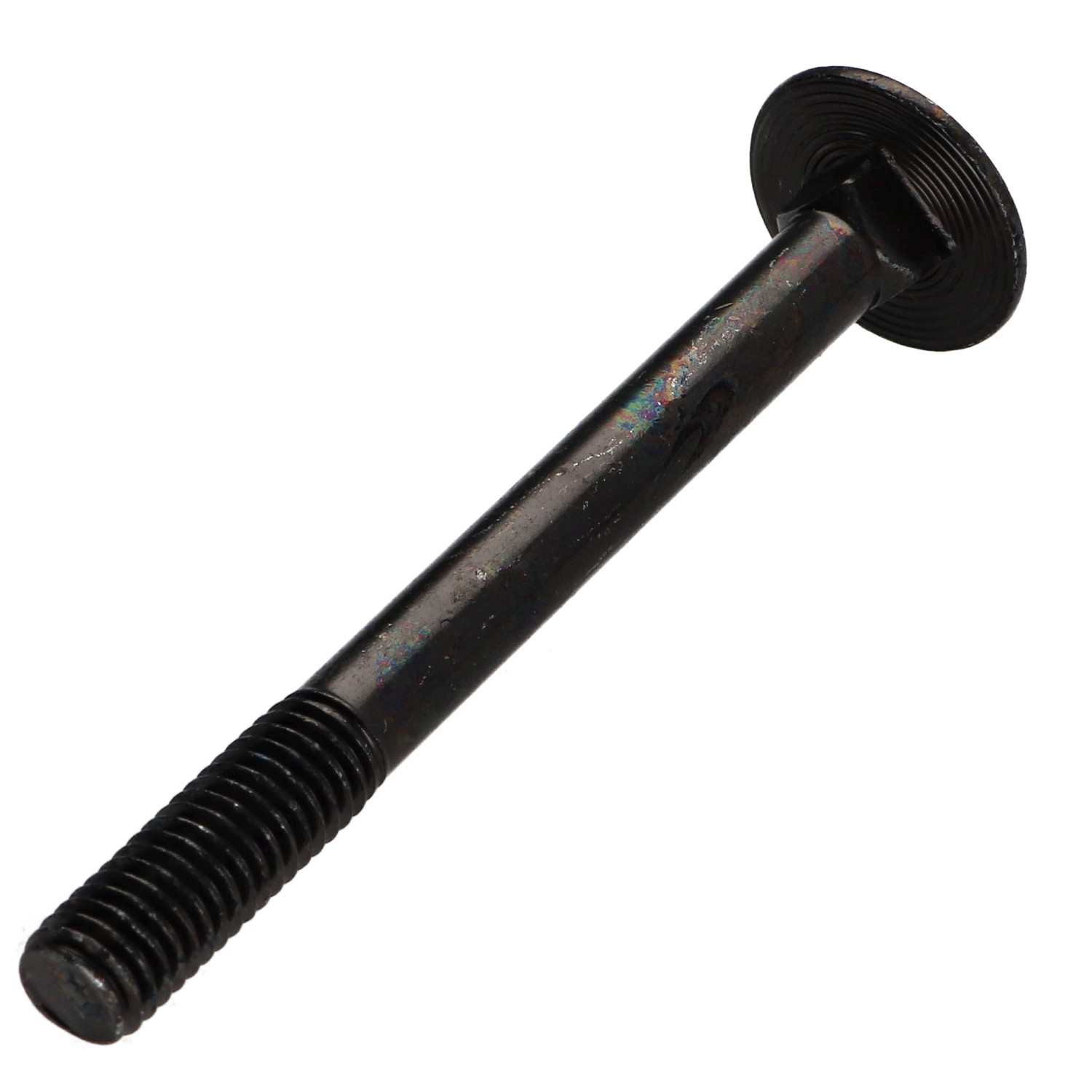

1 x Carriage Bolt M8X110 Thread Length: 22 Partial Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Thread Length: 22 Partial Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Thread Length: 22 Partial Thread Black Zinc Plated
1 x Carriage Bolt M8X110 Thread Length: 22...
1 x Carriage Bolt M8X110 Thread Length: 22...
1 x Carriage Bolt M8X110 Thread Length: 22...

1 x Carriage Bolt M8X110 Thread Length: 22 Partial Thread Black Zinc Plated

4515811006_1
In stock 5375 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100 400
Lot price VAT included €1.70 €4.05 €12.15 €35.50 €135.00
DIN603 FP VS4515 - Carriage Bolt M8X110 Thread Length: 22 Partial Thread Black Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units
  • 400 Units

Dimensions shown in millimeters (mm)

Diameter
M8
Length
110
Thread
Partial Thread
Pitch
Standard pitch 125
Material
Steel
Coating
ZINGUE Black
COLOR
Black
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
8X8X5.6
Diameter in mm
7.972 - 7,772
Unit weight
43 GR
5375 Items
3663072164543
Carriage Bolt M8X110 Thread Length: 22 Partial Thread Black Zinc Plated
Diameter = M8, Length = 110, Coating = Black Zinc Plated, Material = Steel, Pitch = Standard pitch 125, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501168893 3663072164543
Jean paul J. (vis-express.fr)
2025-10-05

Fixing wooden posts to a metal frame The bolts fix the wooden posts into which resin blades slide for a privacy screen
