1 x Carriage Bolt M6X60 Partial Thread Black Zinc Plated
1 x Carriage Bolt M6X60 Partial Thread Black Zinc Plated
1 x Carriage Bolt M6X60 Partial Thread Black Zinc Plated
1 x Carriage Bolt M6X60 Partial Thread Black...
1 x Carriage Bolt M6X60 Partial Thread Black...
1 x Carriage Bolt M6X60 Partial Thread Black...

1 x Carriage Bolt M6X60 Partial Thread Black Zinc Plated

4515606006_1
In stock 5447 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100 400
Lot price VAT included €1.85 €3.70 €4.50 €11.30 €37.60

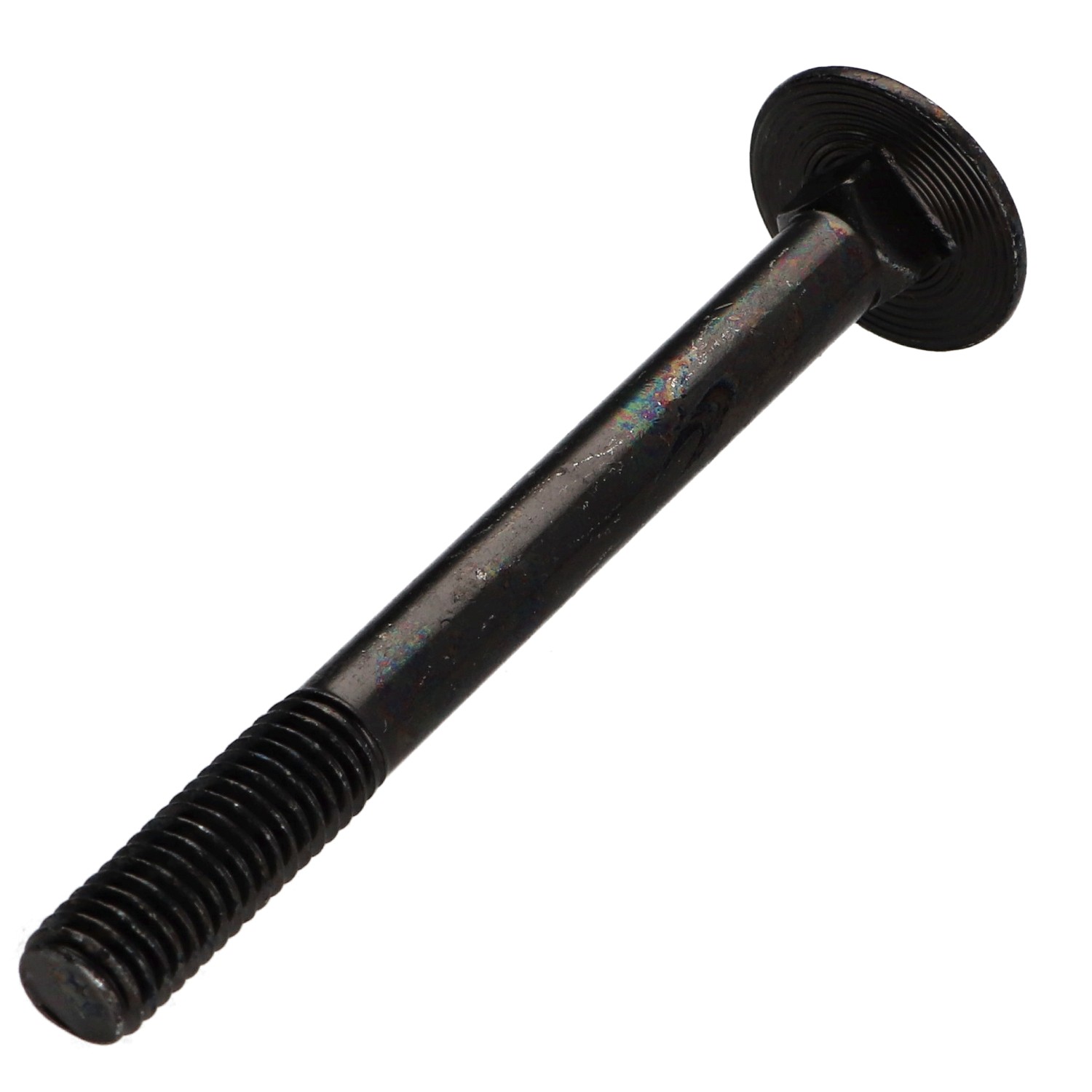

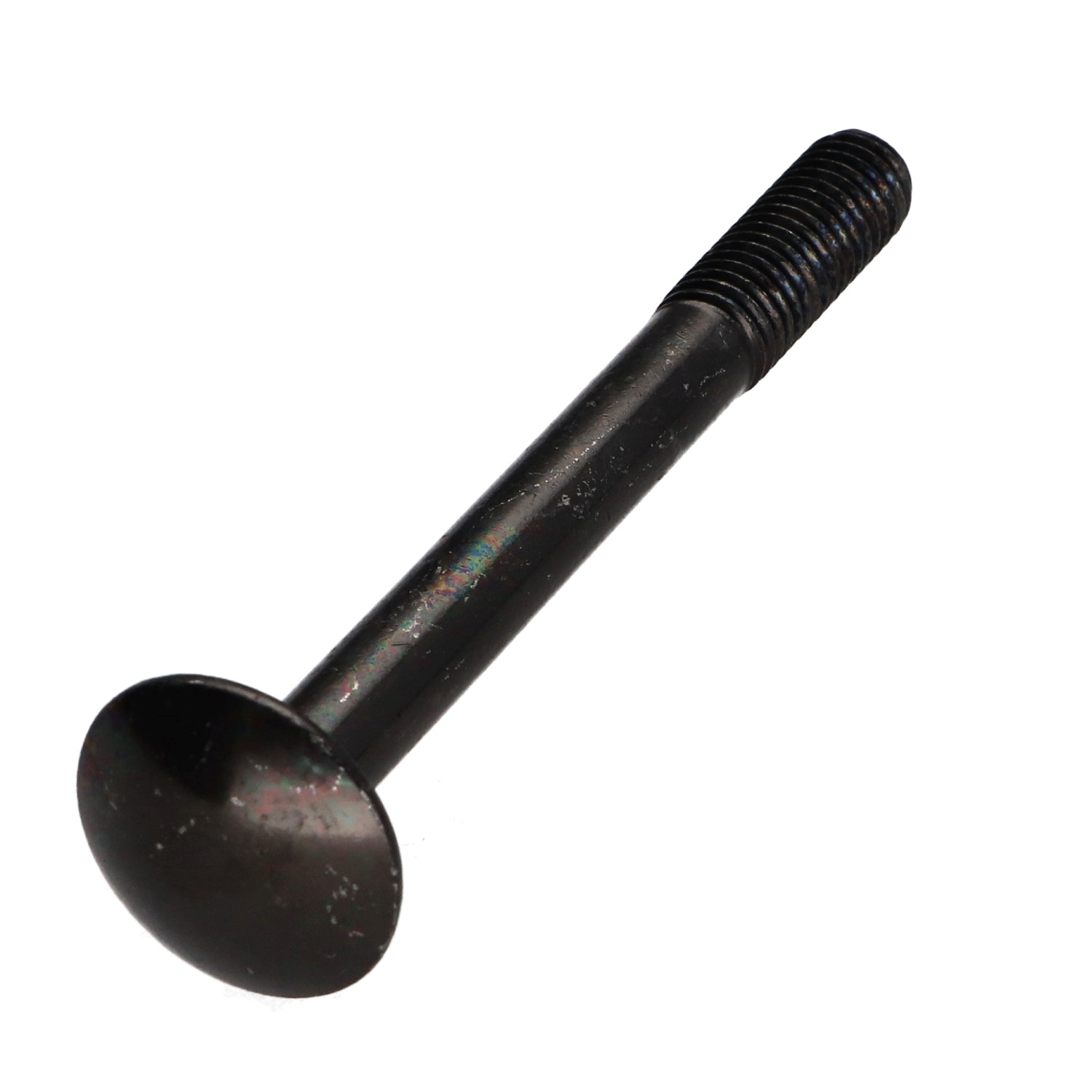

DIN603 FP VS4515 - Carriage Bolt M6X60 Partial Thread Black Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units
  • 400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M6
Length
60
Thread
Partial Thread
Pitch
Standard pitch 100
Material
Steel
Coating
ZINGUE Black
COLOR
Black
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
6X6X4.6
Diameter in mm
5,974 - 5,794
Unit weight
13.15 GR
5447 Items
3663072026483
Carriage Bolt M6X60 Partial Thread Black Zinc Plated
Diameter = M6, Length = 60, Coating = Black Zinc Plated, Material = Steel, Pitch = Standard pitch 100, Norm = DIN603 Partial Thread VS4515

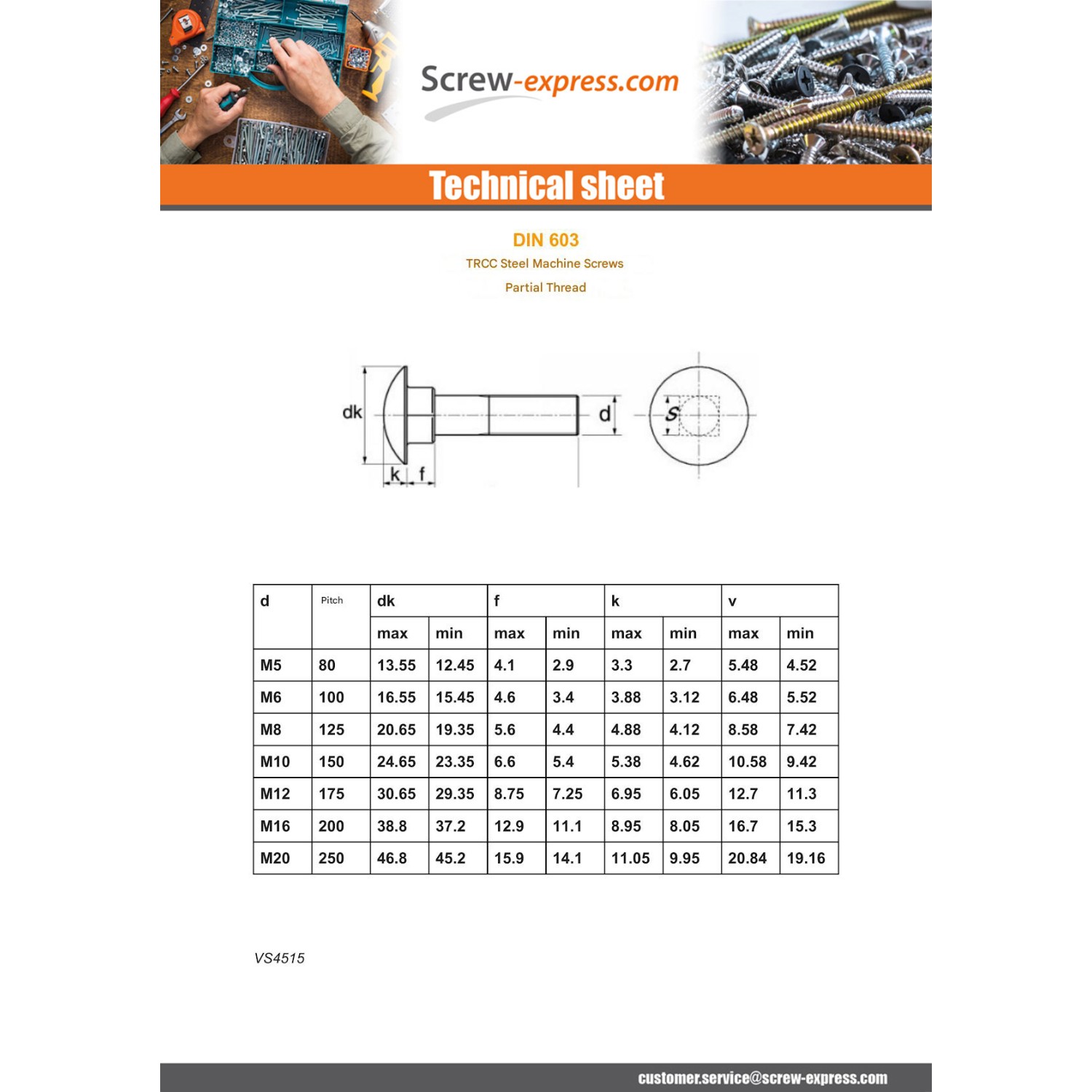

dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501269248 3663072026483
Florian T. (vis-express.fr)
2026-08-23

Installation of Douglas fir decking boards With notched flange nut ref 4337000606


Florian T. (vis-express.fr)
2026-08-23

Used to fix Douglas fir boards for a fence In M6x60, with notched flange nuts ref 4337000606


Florian T. (vis-express.fr)
2026-08-23

Used to fix Douglas fir boards for a fence Size M6X60 used with nuts ref 4337000606


Jérémie c. (vis-express.fr)
2026-08-02

Douglas fir plank fixing outdoors


Geoffrey G. (vis-express.fr)
2026-07-12

Shutter assembly Trcc japu t te ronde m6/60
