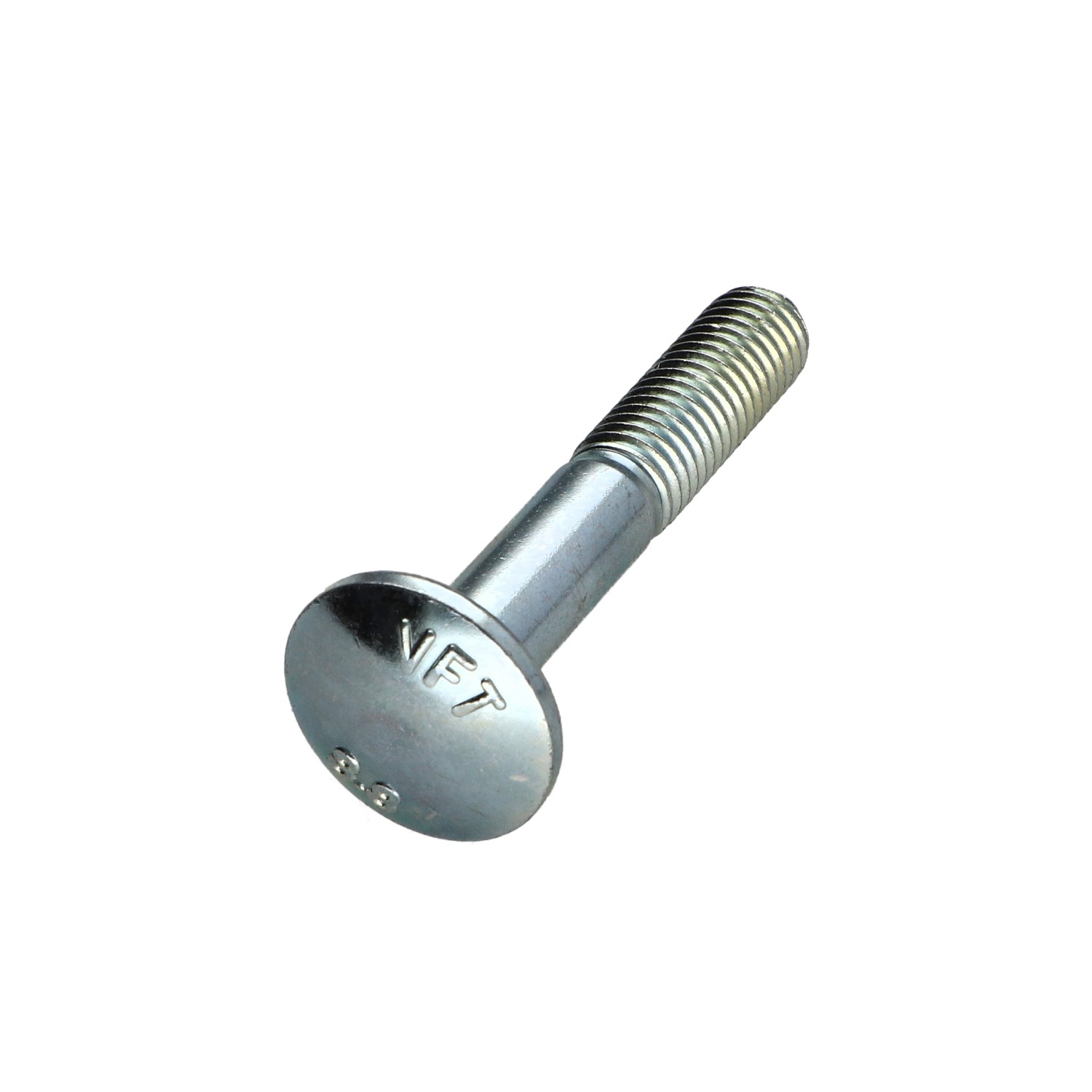

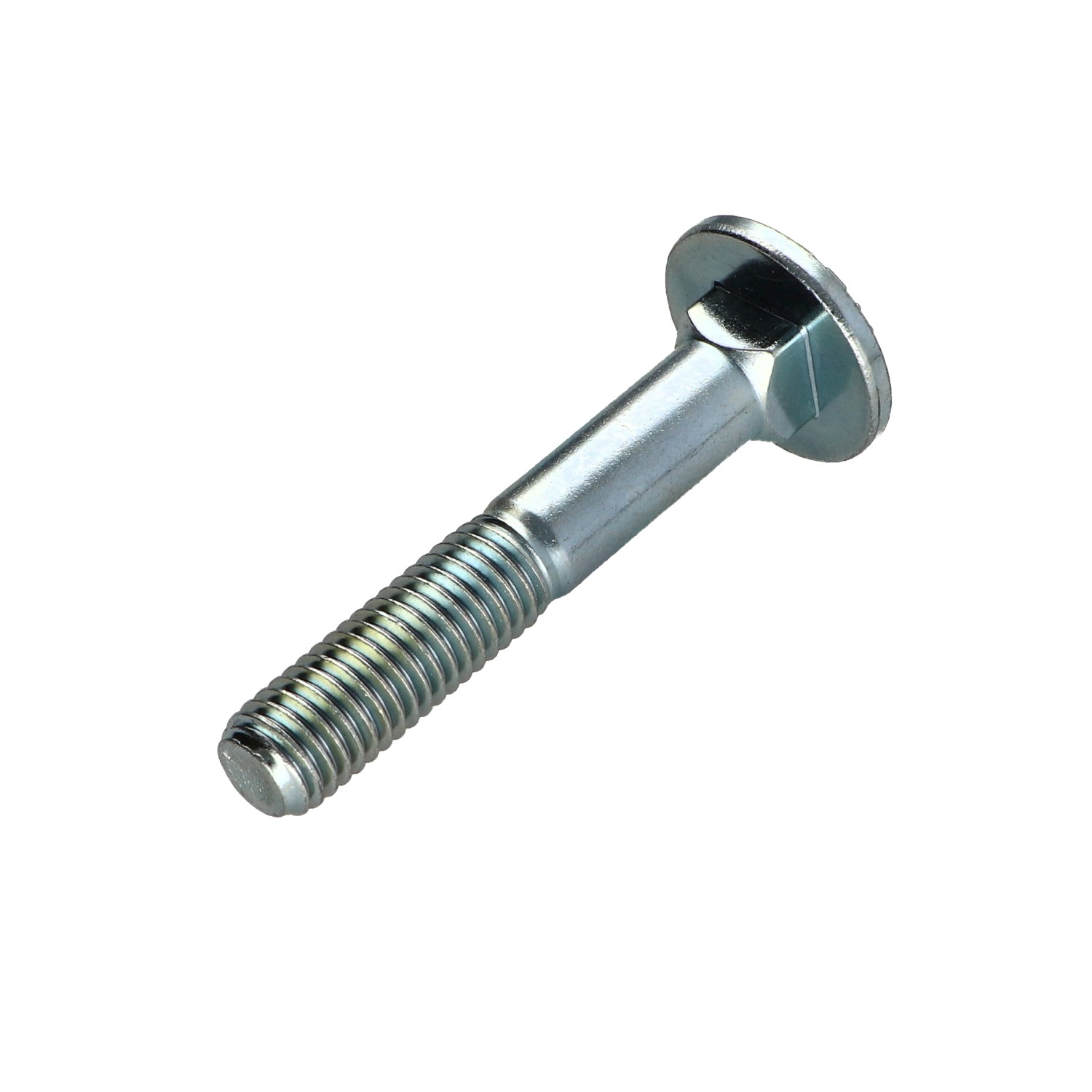

1 x Carriage Bolt M16X60 Partial Thread Zinc Plated
1 x Carriage Bolt M16X60 Partial Thread Zinc Plated
1 x Carriage Bolt M16X60 Partial Thread Zinc Plated
1 x Carriage Bolt M16X60 Partial Thread Zinc...
1 x Carriage Bolt M16X60 Partial Thread Zinc...
1 x Carriage Bolt M16X60 Partial Thread Zinc...

1 x Carriage Bolt M16X60 Partial Thread Zinc Plated

4515166002_1
In stock 40 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €3.85 €7.70 €9.85 €24.55
DIN603 FP VS4515 - Carriage Bolt M16X60 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

Dimensions shown in millimeters (mm)

Diameter
M16
Length
60
Thread
Partial Thread
Pitch
Standard pitch 200
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
16X16X12.9
Diameter in mm
15,962 - 15,692
Unit weight
131 GR
40 Items
3663072060449
Carriage Bolt M16X60 Partial Thread Zinc Plated
Diameter = M16, Length = 60, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 200, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501256347 3663072060449
