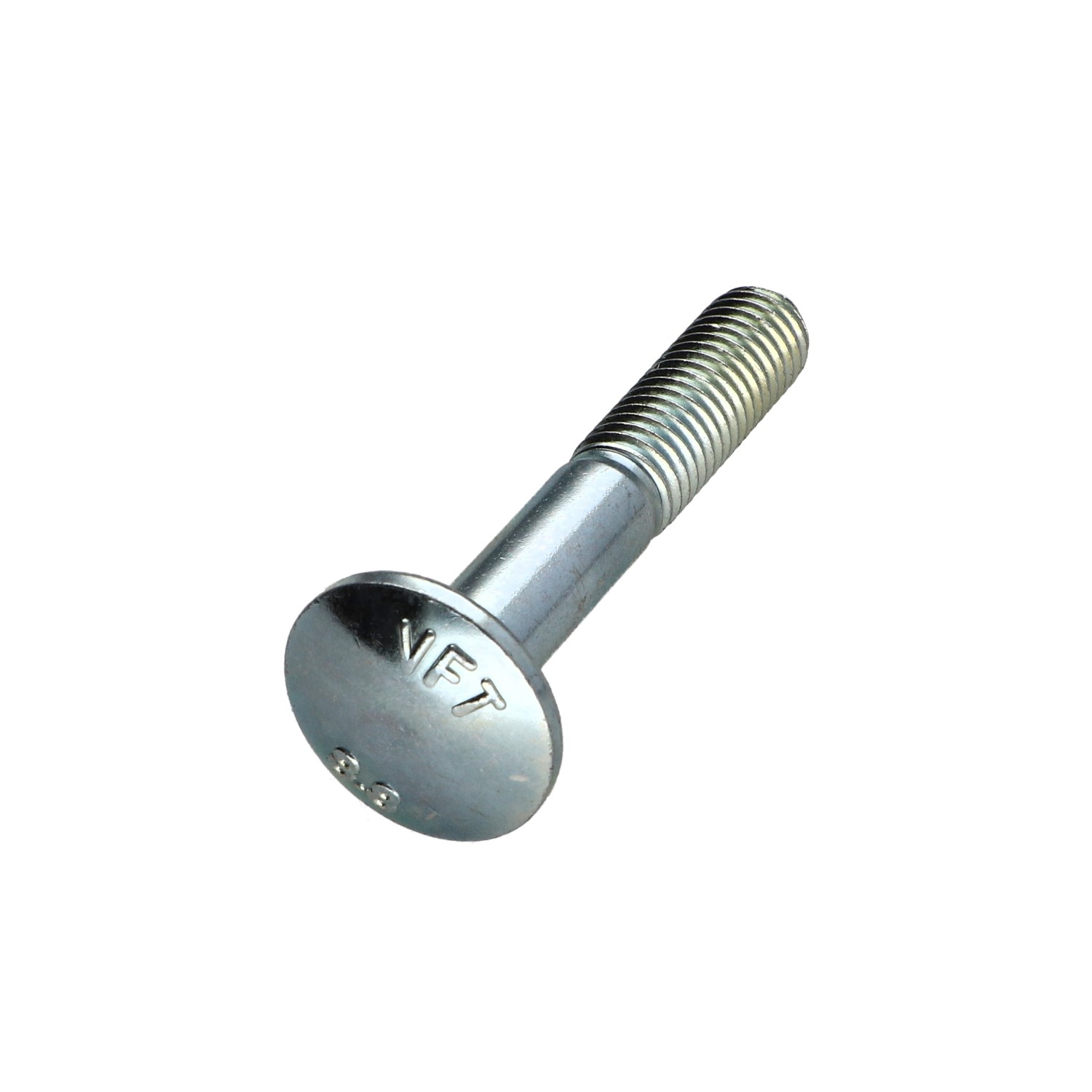

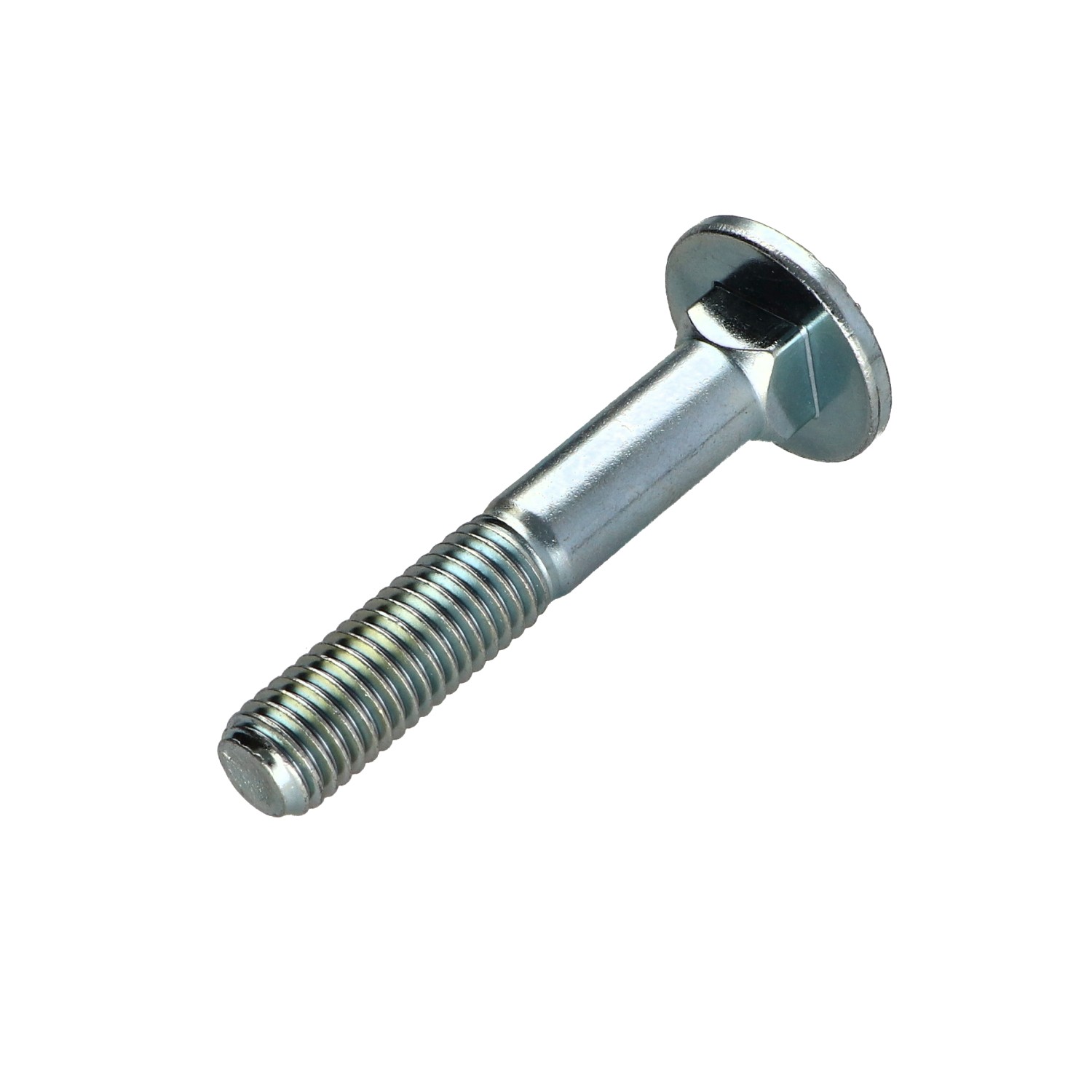

1 x Carriage Bolt M12X90 Partial Thread Zinc Plated
1 x Carriage Bolt M12X90 Partial Thread Zinc Plated
1 x Carriage Bolt M12X90 Partial Thread Zinc Plated
1 x Carriage Bolt M12X90 Partial Thread Zinc...
1 x Carriage Bolt M12X90 Partial Thread Zinc...
1 x Carriage Bolt M12X90 Partial Thread Zinc...

1 x Carriage Bolt M12X90 Partial Thread Zinc Plated

4515129002_1
In stock 11 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €4.25 €8.45 €15.60 €39.05
DIN603 FP VS4515 - Carriage Bolt M12X90 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M12
Length
90
Thread
Partial Thread
Pitch
Standard pitch 175
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
12X12X8.75
Diameter in mm
11,966 - 11,718
Unit weight
91.95 GR
11 Items
3663072056299
Carriage Bolt M12X90 Partial Thread Zinc Plated
Diameter = M12, Length = 90, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 175, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501646612 730500392 611208 3663072056299
