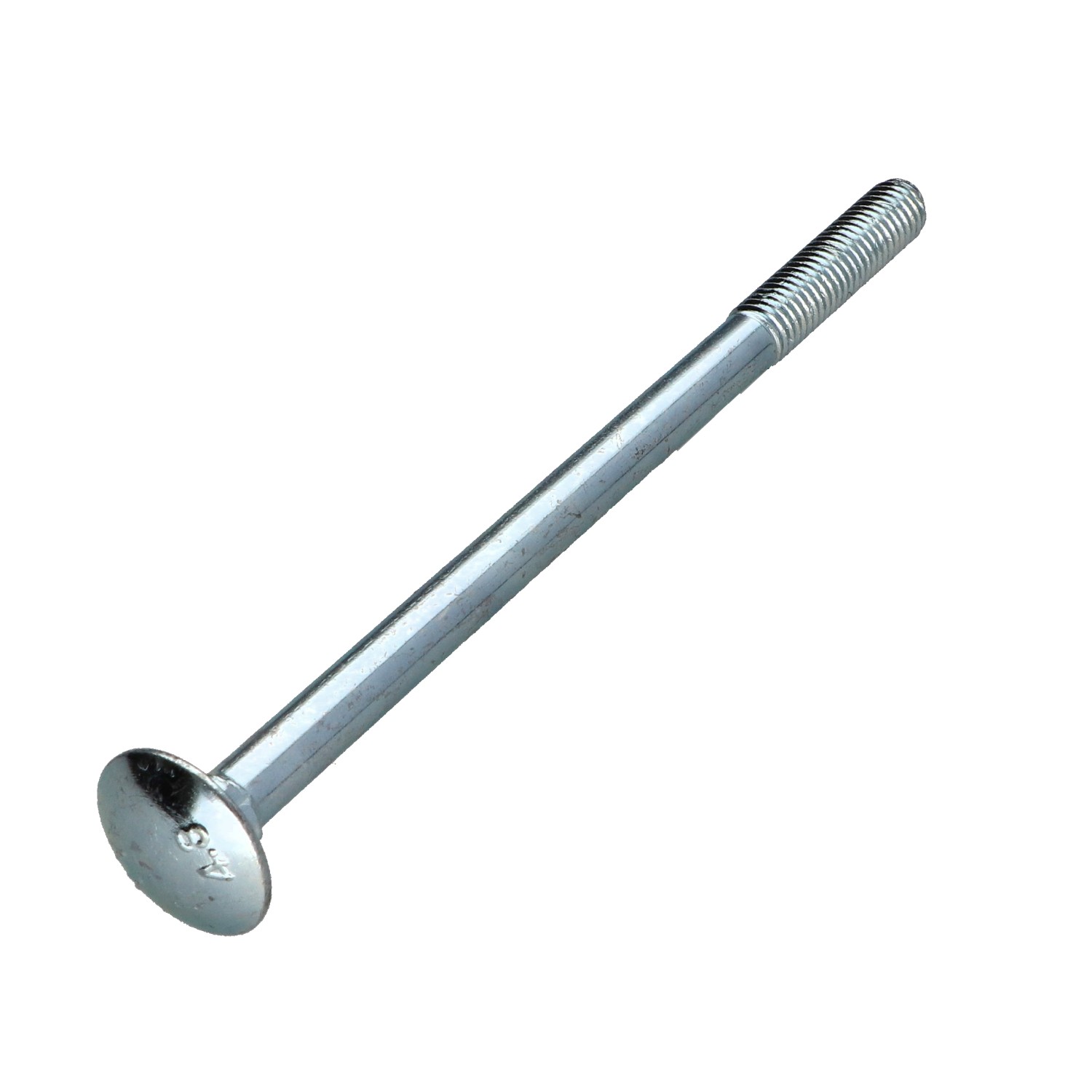

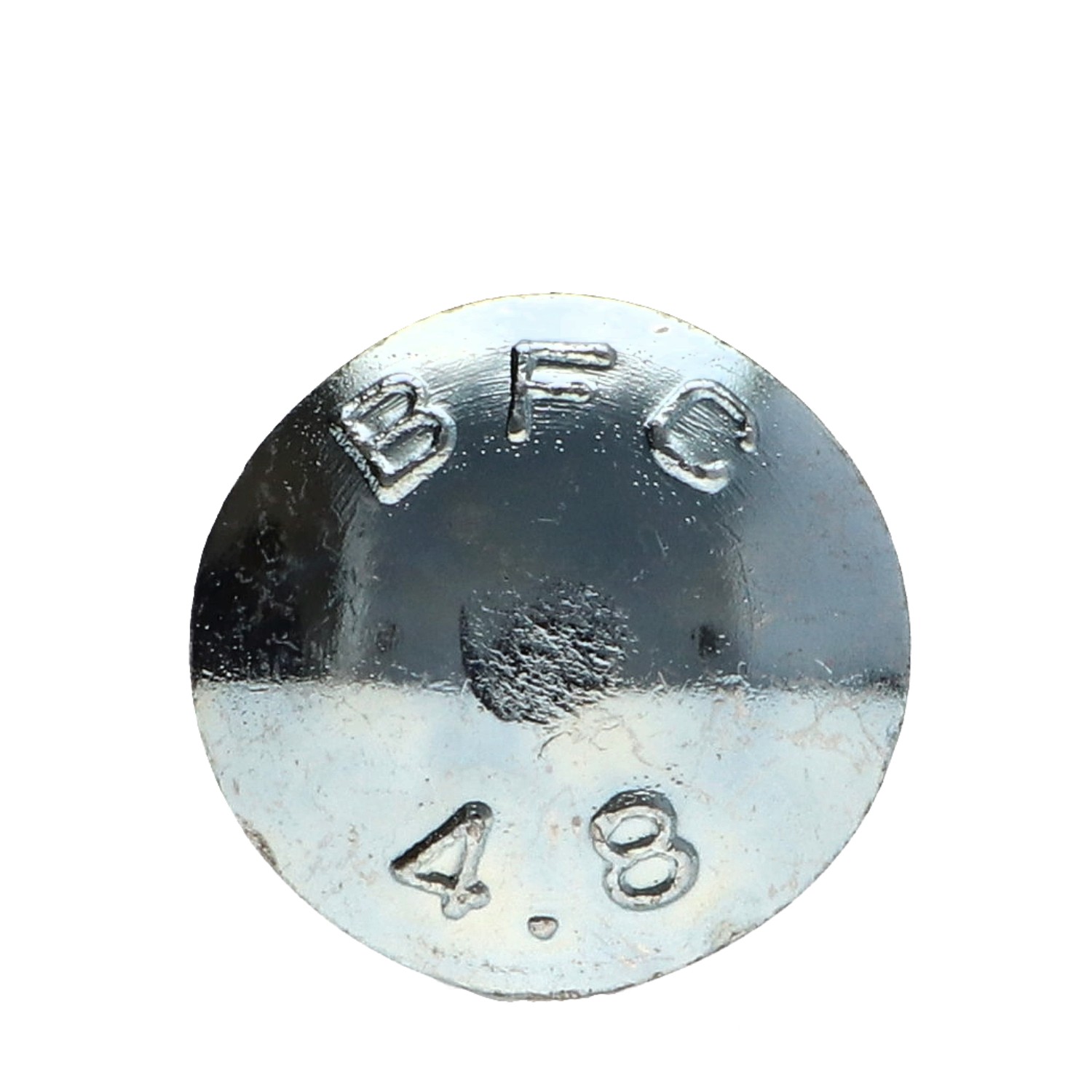

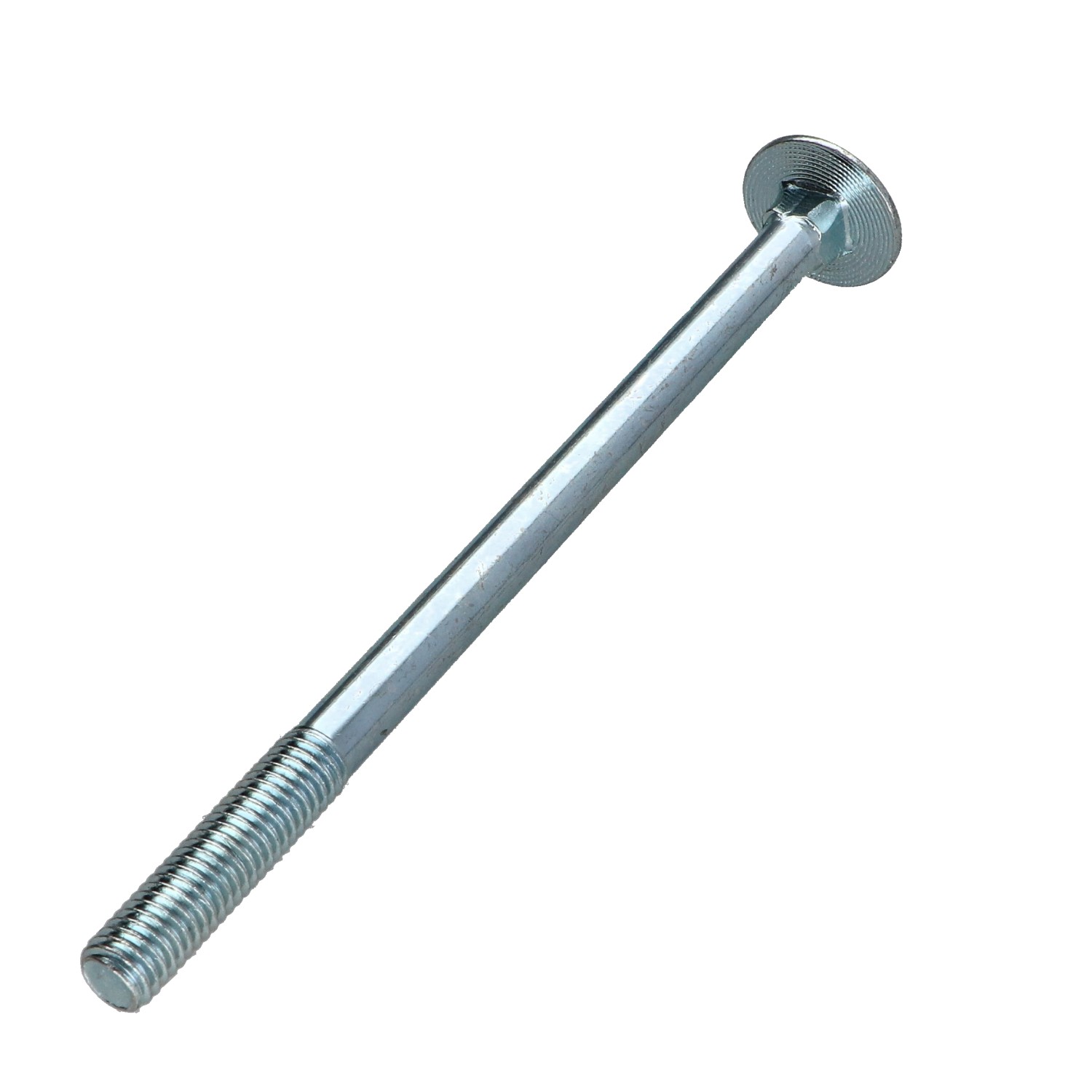

1 x Carriage Bolt M10X180 Partial Thread Zinc Plated
1 x Carriage Bolt M10X180 Partial Thread Zinc Plated
1 x Carriage Bolt M10X180 Partial Thread Zinc Plated

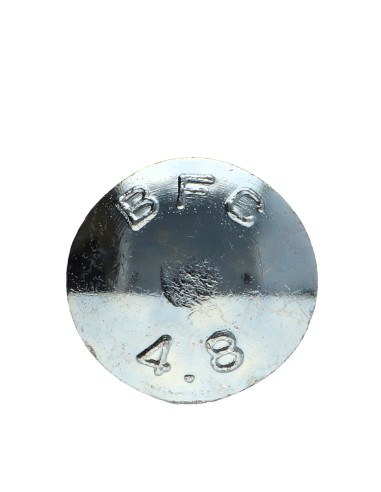

1 x Carriage Bolt M10X180 Partial Thread Zinc...
1 x Carriage Bolt M10X180 Partial Thread Zinc...
1 x Carriage Bolt M10X180 Partial Thread Zinc...

1 x Carriage Bolt M10X180 Partial Thread Zinc Plated

4515111802_1
In stock 5108 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included €3.85 €7.70 €7.70 €14.65
DIN603 FP VS4515 - Carriage Bolt M10X180 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

Dimensions shown in millimeters (mm)

Diameter
M10
Length
180
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
114.4 GR
5108 Items
3663072243781
Carriage Bolt M10X180 Partial Thread Zinc Plated
Diameter = M10, Length = 180, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501271555 300340 TRCC.M10X180 5211A2458010 3663072243781
Jérôme P. (vis-express.fr)
2024-07-14

TBARS FIXATION TO FIX TBARS SLPA ON KIWIS WOODEN POSTS
