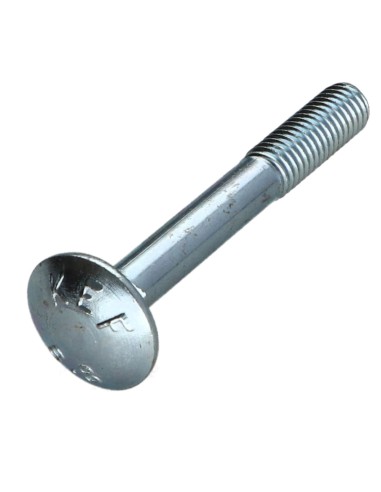

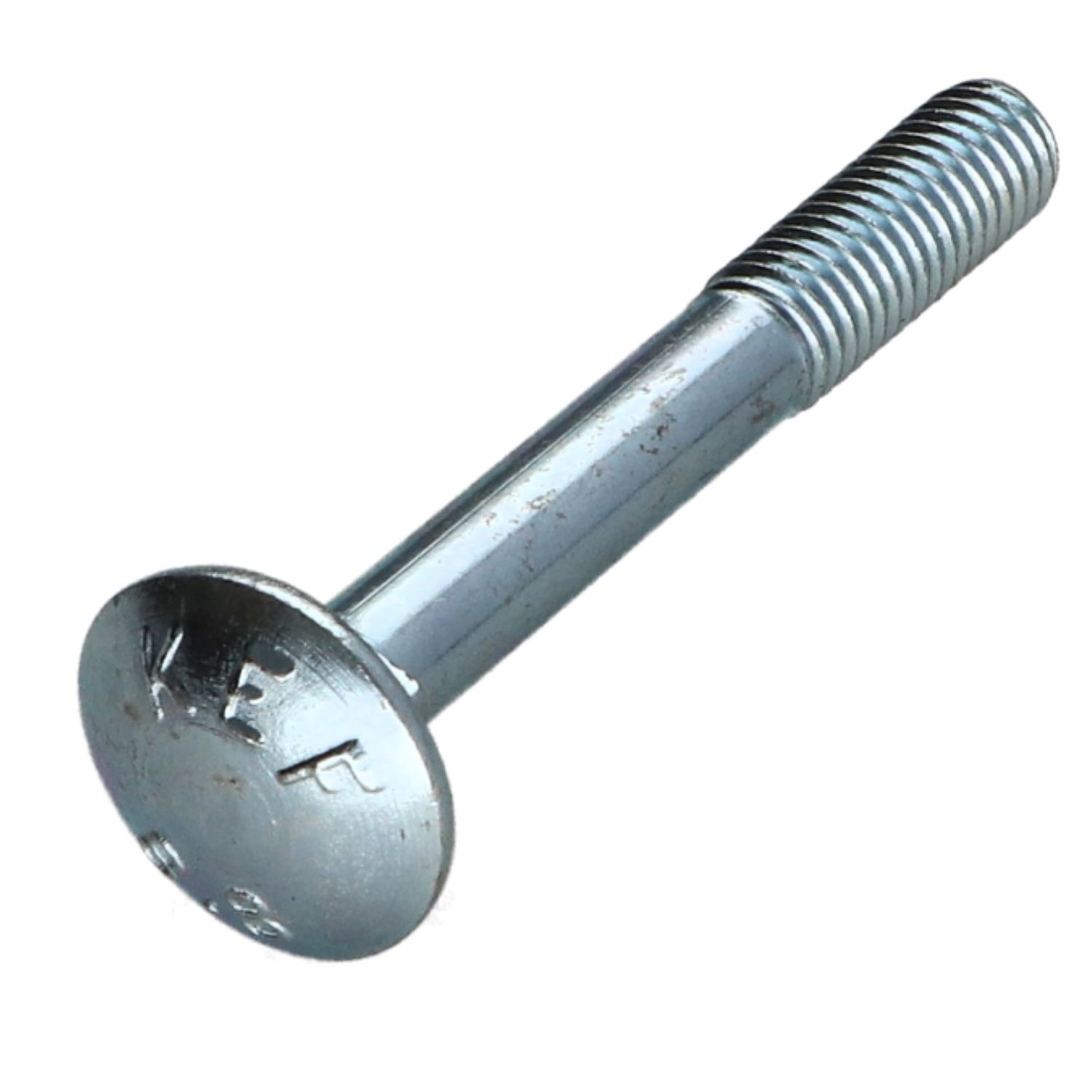

1 x Carriage Bolt M10X150 Partial Thread Zinc Plated 10 MICRONS
1 x Carriage Bolt M10X150 Partial Thread Zinc Plated 10 MICRONS
1 x Carriage Bolt M10X150 Partial Thread Zinc...
1 x Carriage Bolt M10X150 Partial Thread Zinc...

1 x Carriage Bolt M10X150 Partial Thread Zinc Plated 10 MICRONS

4515111598_1
In stock 7220 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.69 £7.33 £14.97 £99.36
DIN603 FP VS4515 - Carriage Bolt M10X150 Partial Thread Zinc Plated 10 MICRONS
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
150
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
94.8 GR
7220 Items
3663072436787
Carriage Bolt M10X150 Partial Thread Zinc Plated 10 MICRONS
Diameter = M10, Length = 150, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501161597 3663072436787
