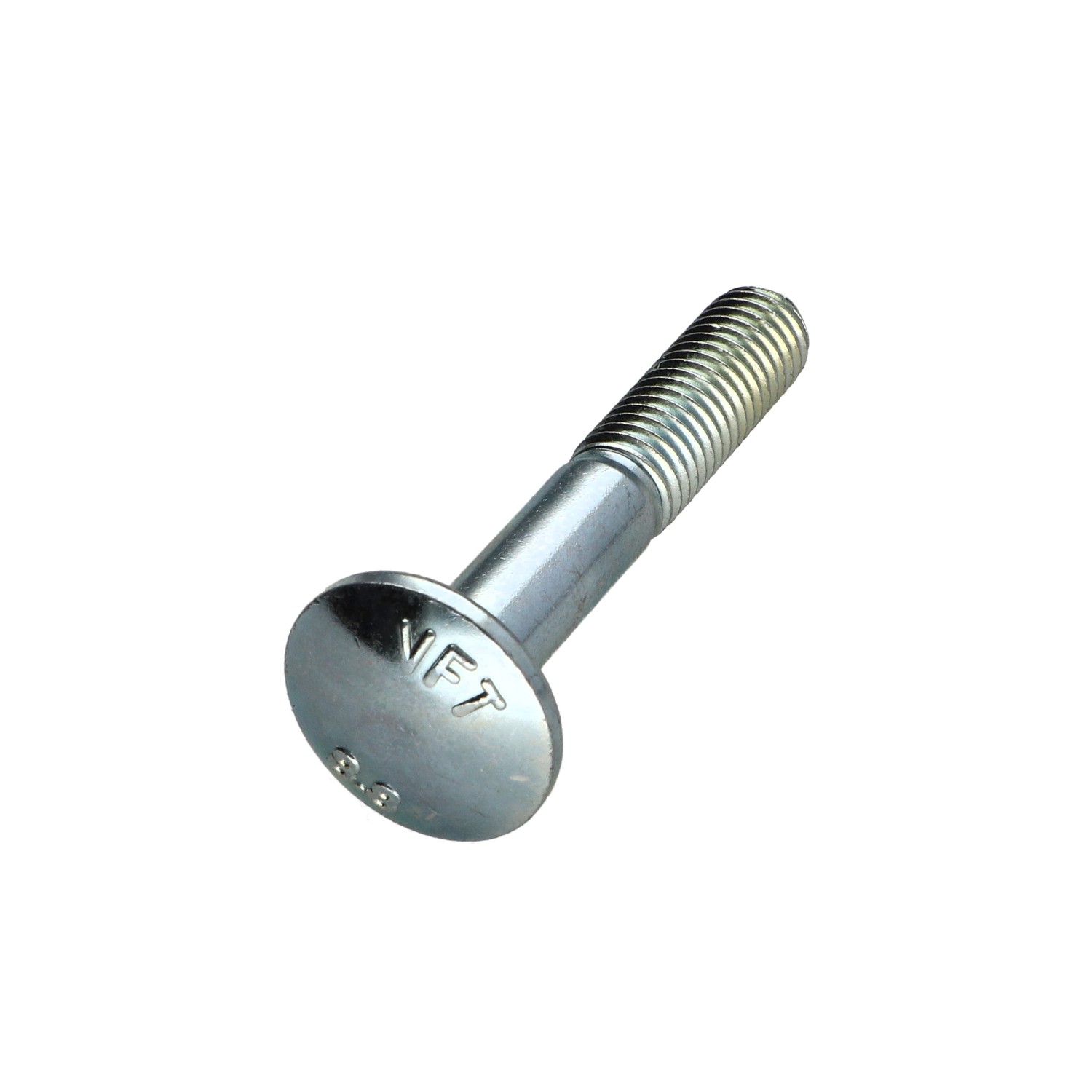

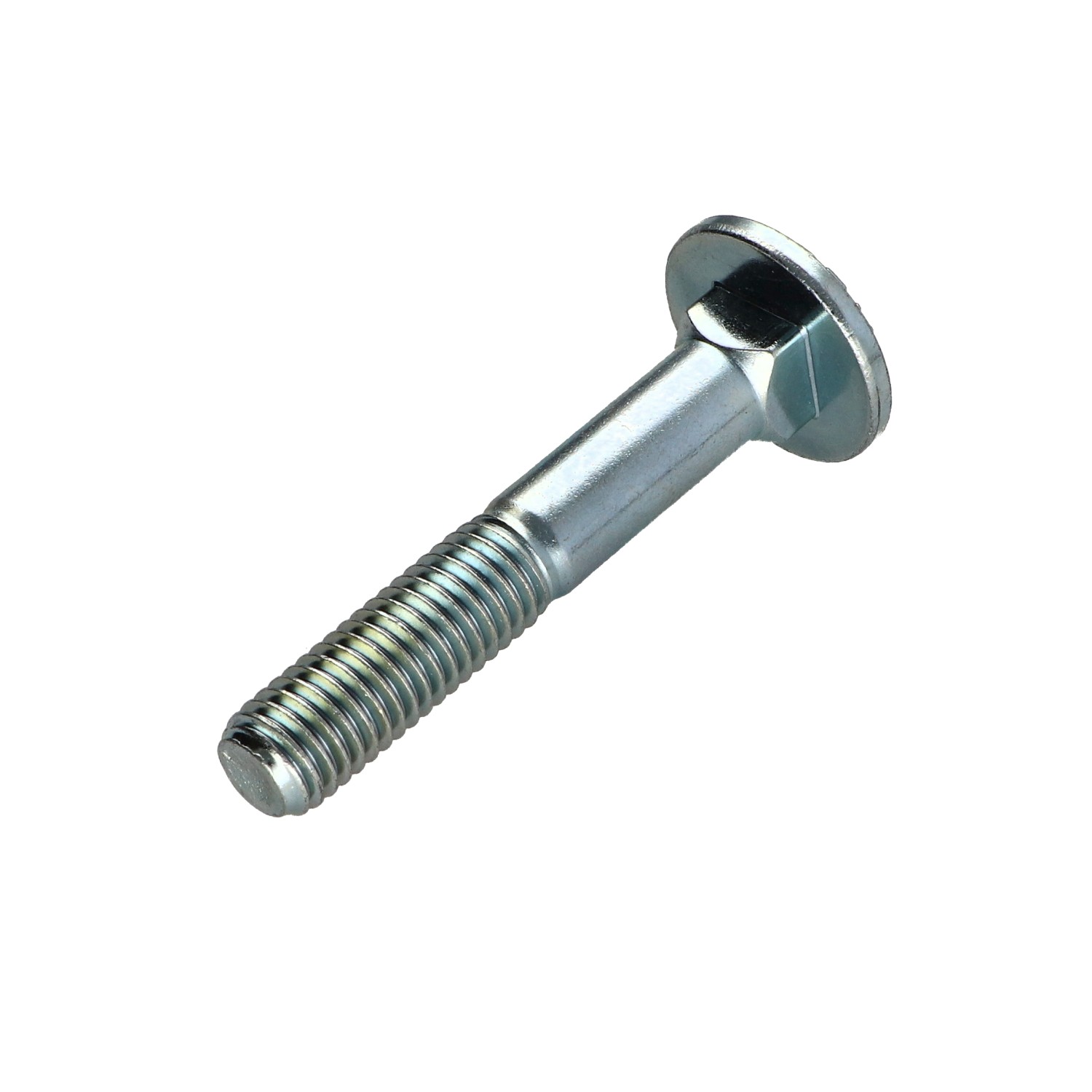

1 x Carriage Bolt M10X94 Partial Thread Zinc Plated
1 x Carriage Bolt M10X94 Partial Thread Zinc Plated
1 x Carriage Bolt M10X94 Partial Thread Zinc Plated
  • On sale!
  • -40%
1 x Carriage Bolt M10X94 Partial Thread Zinc...
1 x Carriage Bolt M10X94 Partial Thread Zinc...
1 x Carriage Bolt M10X94 Partial Thread Zinc...

1 x Carriage Bolt M10X94 Partial Thread Zinc Plated

4515109602_1
In stock 26918 Pièces
€2.55 Incl VAT €4.25 -40%
Decreasing prices by quantity
Number of pieces 1 10 100
Lot price VAT included €2.55 €5.07 €26.13
DIN603 FP VS4515 - Carriage Bolt M10X94 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
94
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
68 GR
26918 Items
3663072240711
Carriage Bolt M10X94 Partial Thread Zinc Plated
Diameter = M10, Length = 94, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501073456 3663072240711
