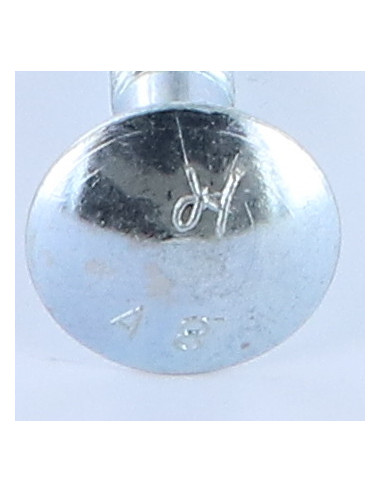

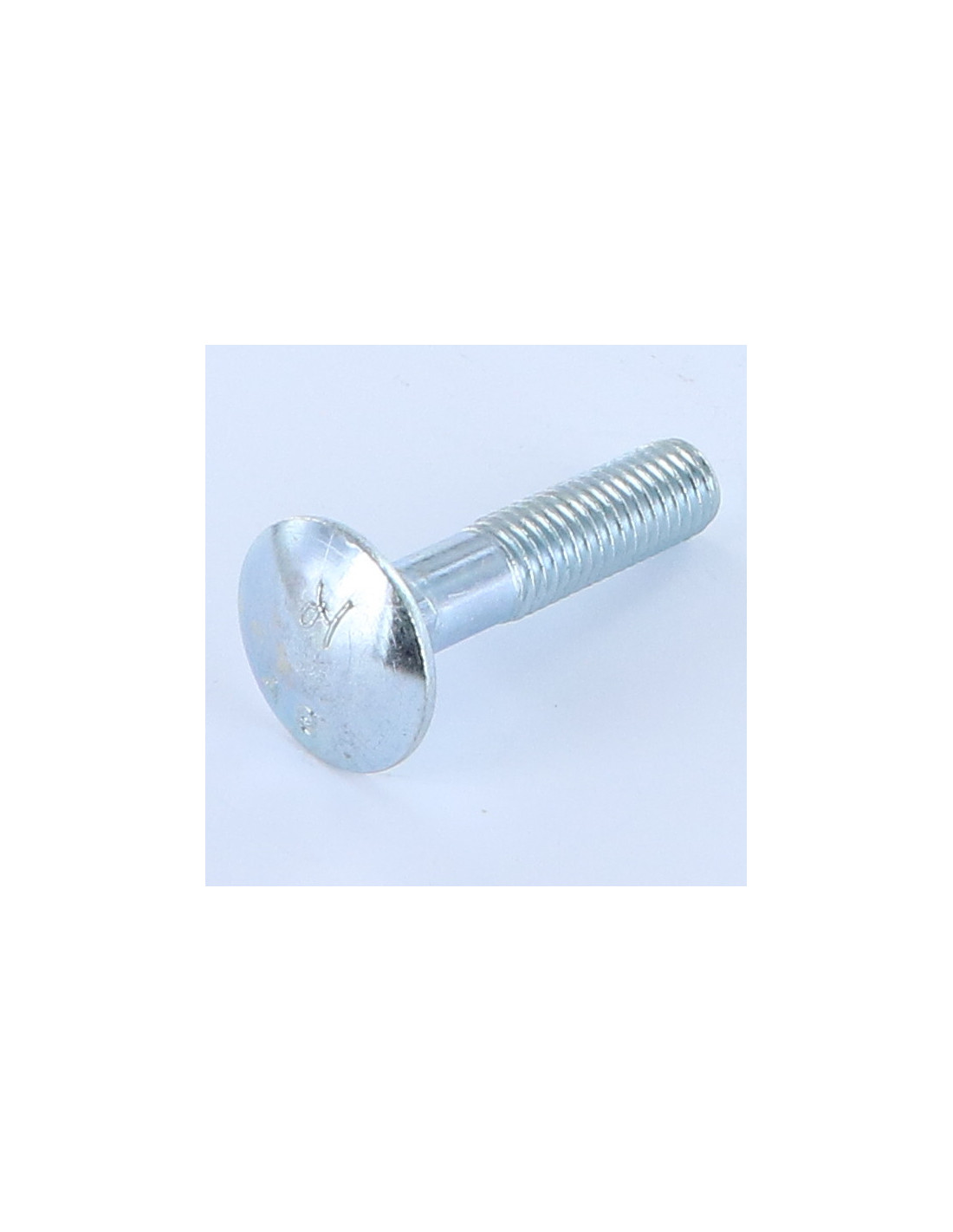

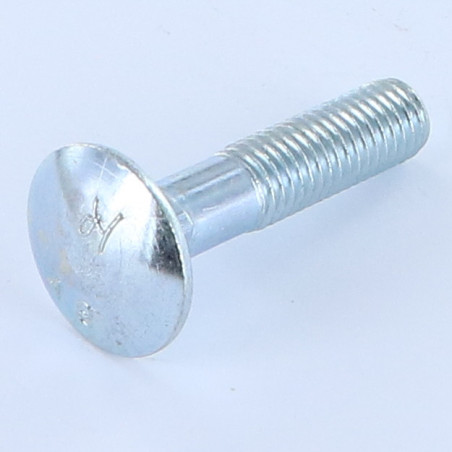

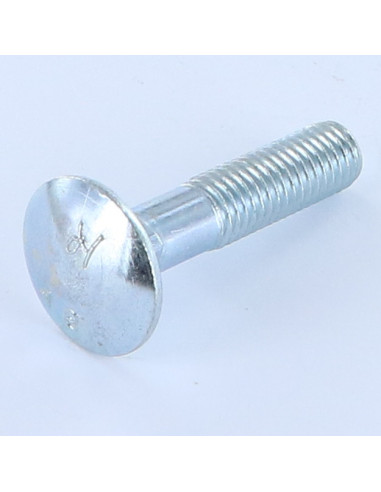

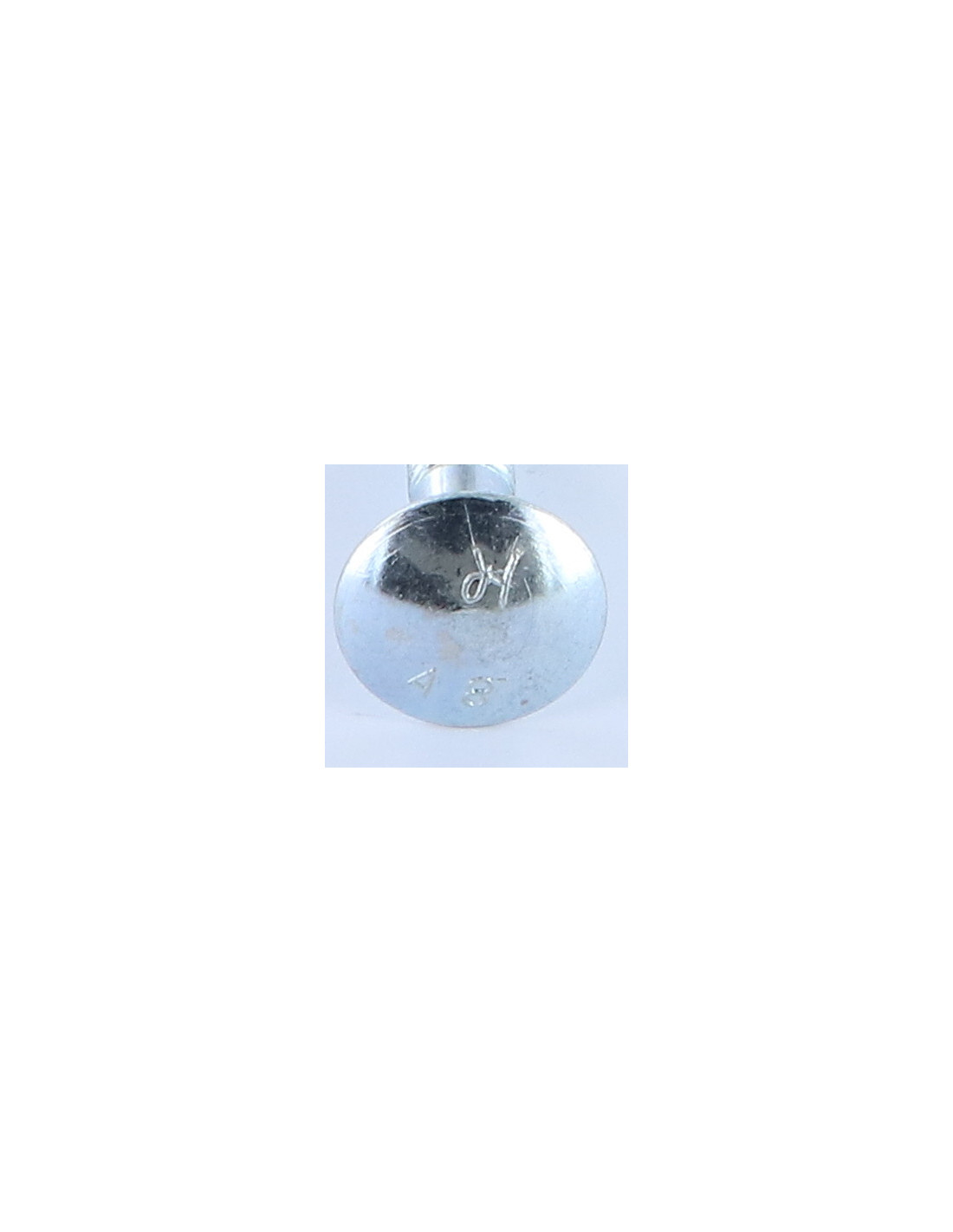

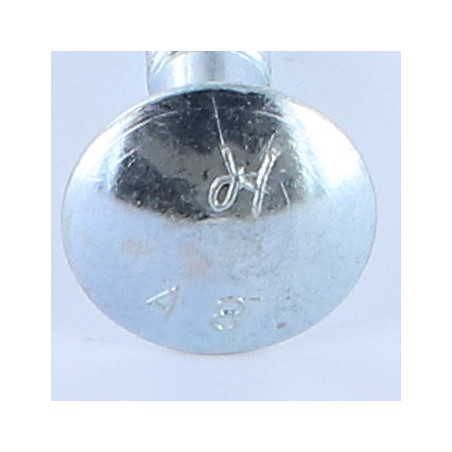

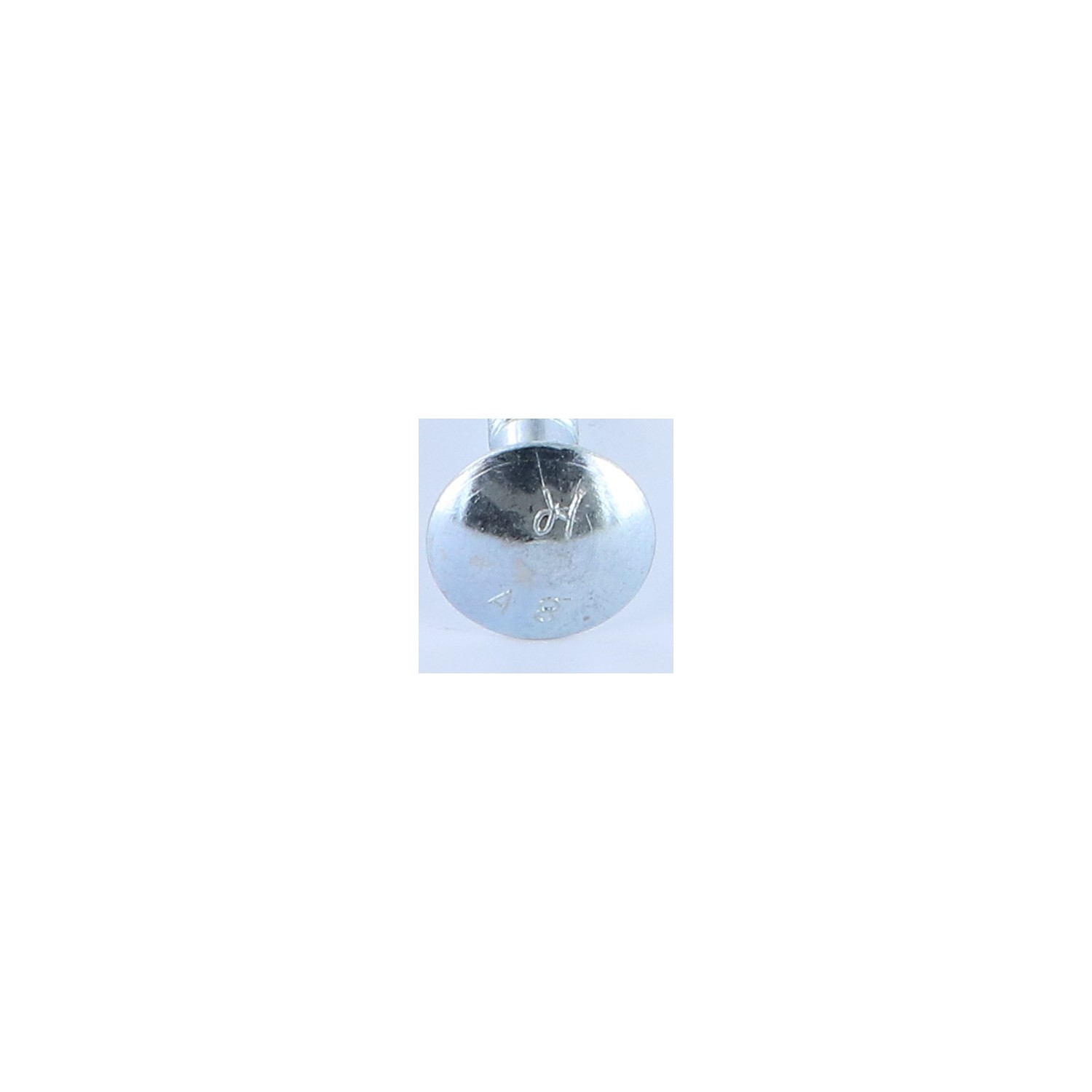

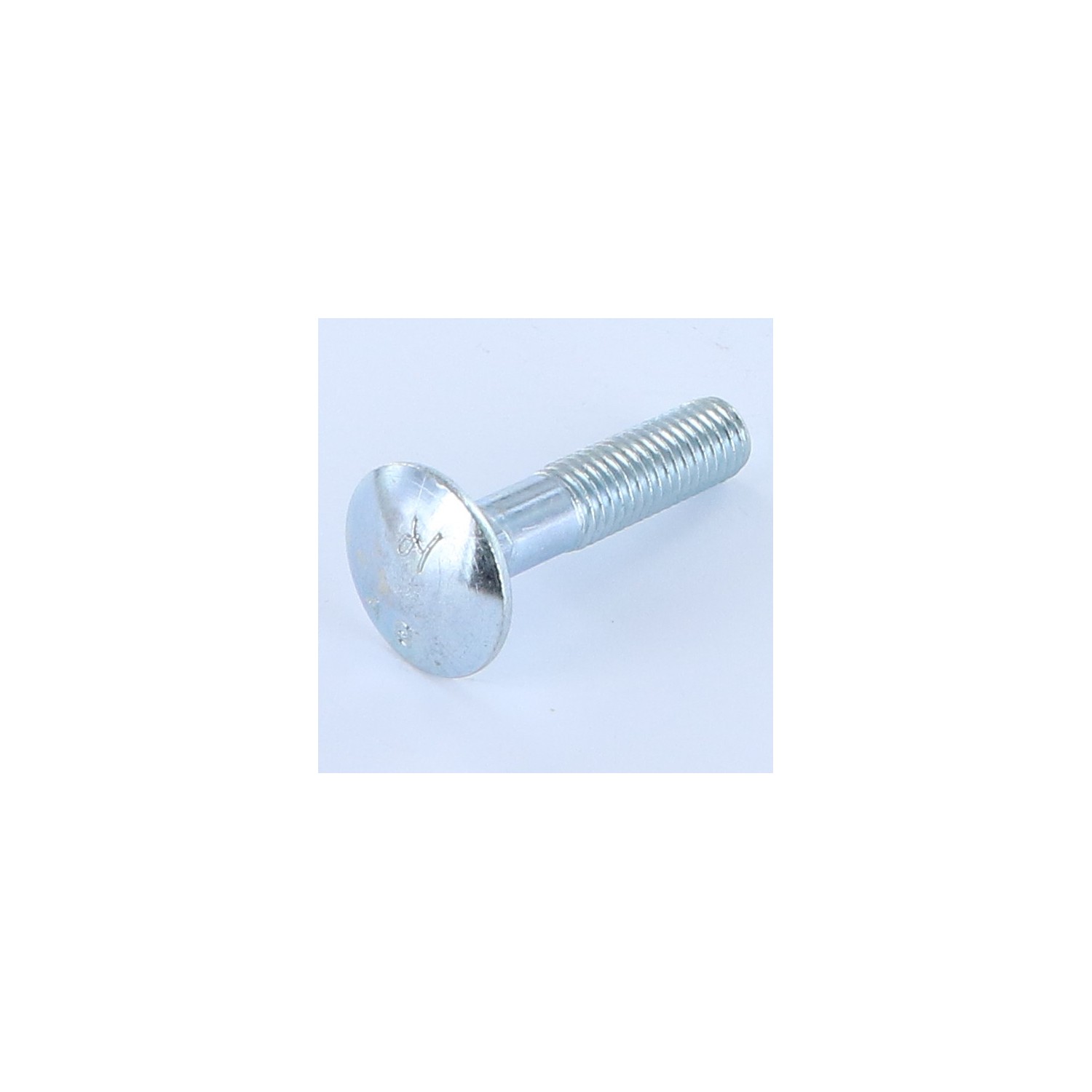

1 x Carriage Bolt M10X45 Partial Thread Zinc Plated
1 x Carriage Bolt M10X45 Partial Thread Zinc Plated
1 x Carriage Bolt M10X45 Partial Thread Zinc Plated
1 x Carriage Bolt M10X45 Partial Thread Zinc...
1 x Carriage Bolt M10X45 Partial Thread Zinc...
1 x Carriage Bolt M10X45 Partial Thread Zinc...

1 x Carriage Bolt M10X45 Partial Thread Zinc Plated

4515104502_1
In stock 840 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.85 €7.70 €10.50 €32.05
DIN603 FP VS4515 - Carriage Bolt M10X45 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M10
Length
45
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
36.3 GR
840 Items
3663072236851
Carriage Bolt M10X45 Partial Thread Zinc Plated
Diameter = M10, Length = 45, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter567810121416
Head diameter13.516.51820.524.530.53239
Head Tickness3.33.94.855.47109

Other Reference : 3617501128491 066501 3663072236851
