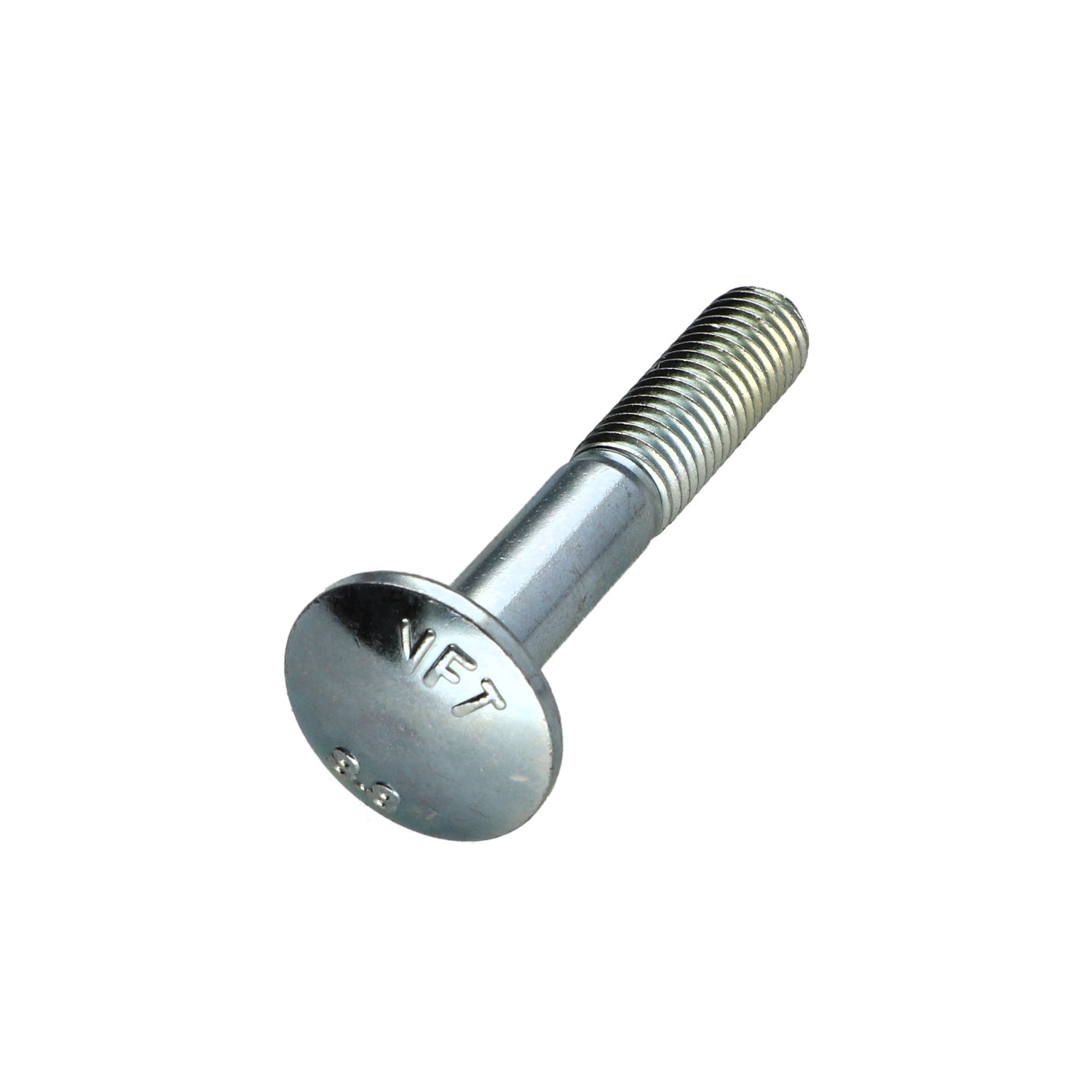

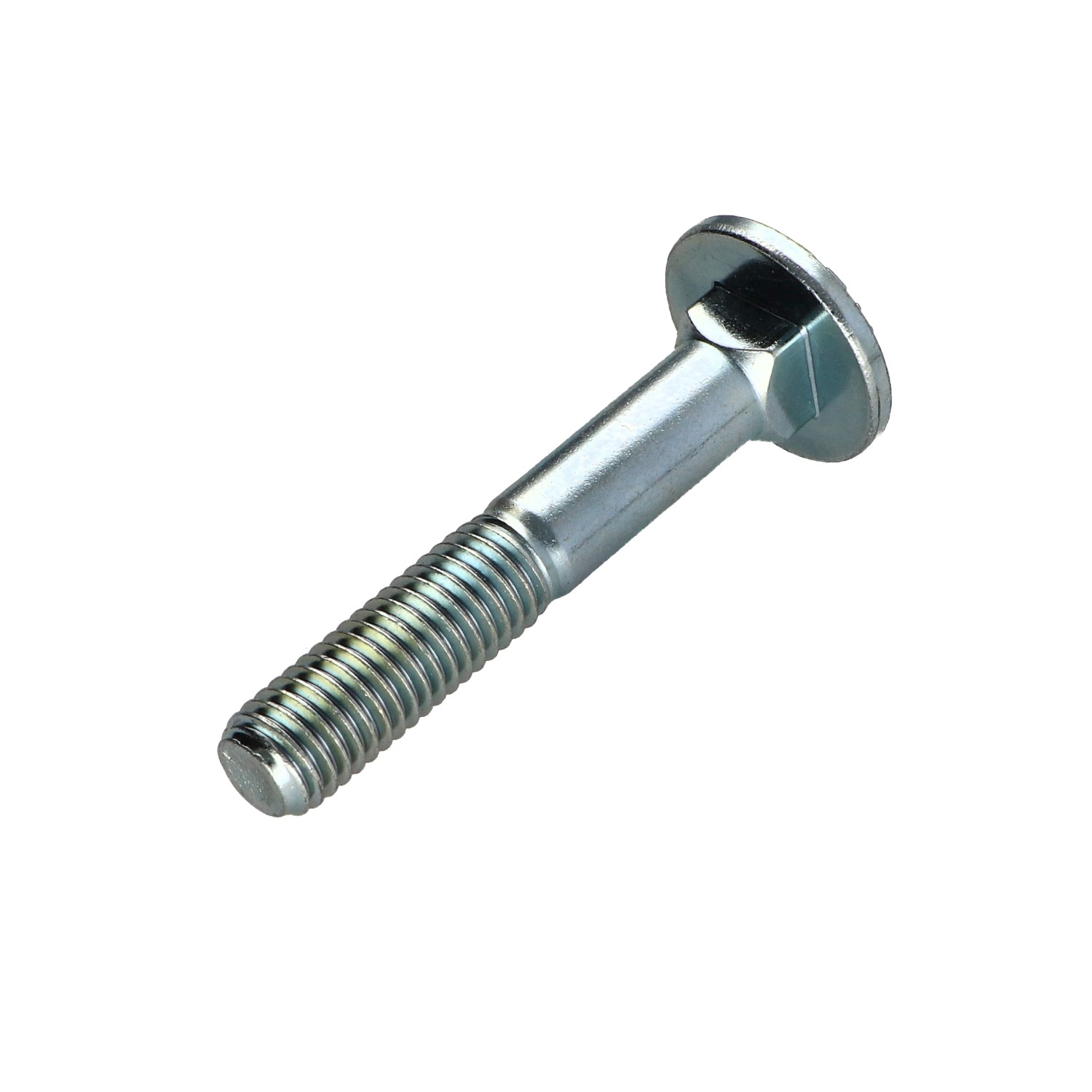

1 x Carriage Bolt M10X40 Partial Thread Zinc Plated
1 x Carriage Bolt M10X40 Partial Thread Zinc Plated
1 x Carriage Bolt M10X40 Partial Thread Zinc Plated
1 x Carriage Bolt M10X40 Partial Thread Zinc...
1 x Carriage Bolt M10X40 Partial Thread Zinc...
1 x Carriage Bolt M10X40 Partial Thread Zinc...

1 x Carriage Bolt M10X40 Partial Thread Zinc Plated

4515104002_1
In stock 12766 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €4.25 €8.45 €10.20 €25.15
DIN603 FP VS4515 - Carriage Bolt M10X40 Partial Thread Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
40
Thread
Partial Thread
Pitch
Standard pitch 150
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Partial Thread VS4515
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
10X10X6.6
Diameter in mm
9.968 - 9.752
Unit weight
34 GR
12766 Items
3663072361607
Carriage Bolt M10X40 Partial Thread Zinc Plated
Diameter = M10, Length = 40, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 150, Norm = DIN603 Partial Thread VS4515


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501162563 3663072361607
JP B. (vis-express.fr)
2024-11-10

Renovation of an old wooden gate with wrought iron hinges
