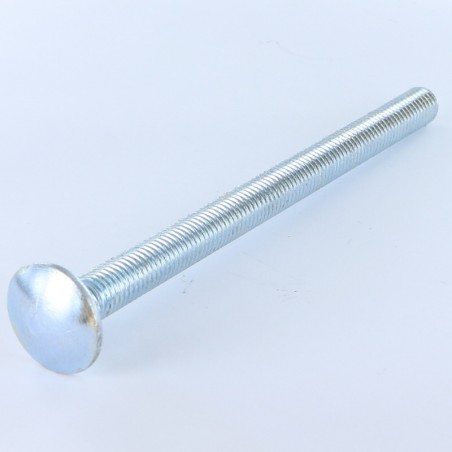

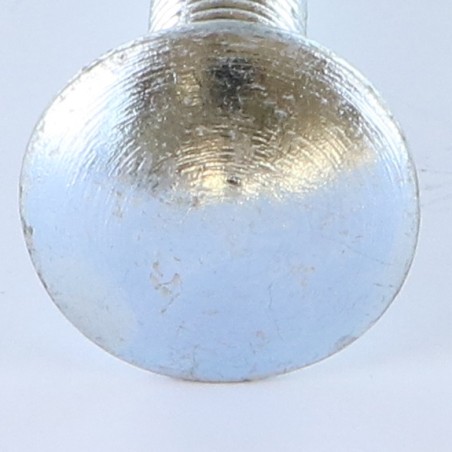

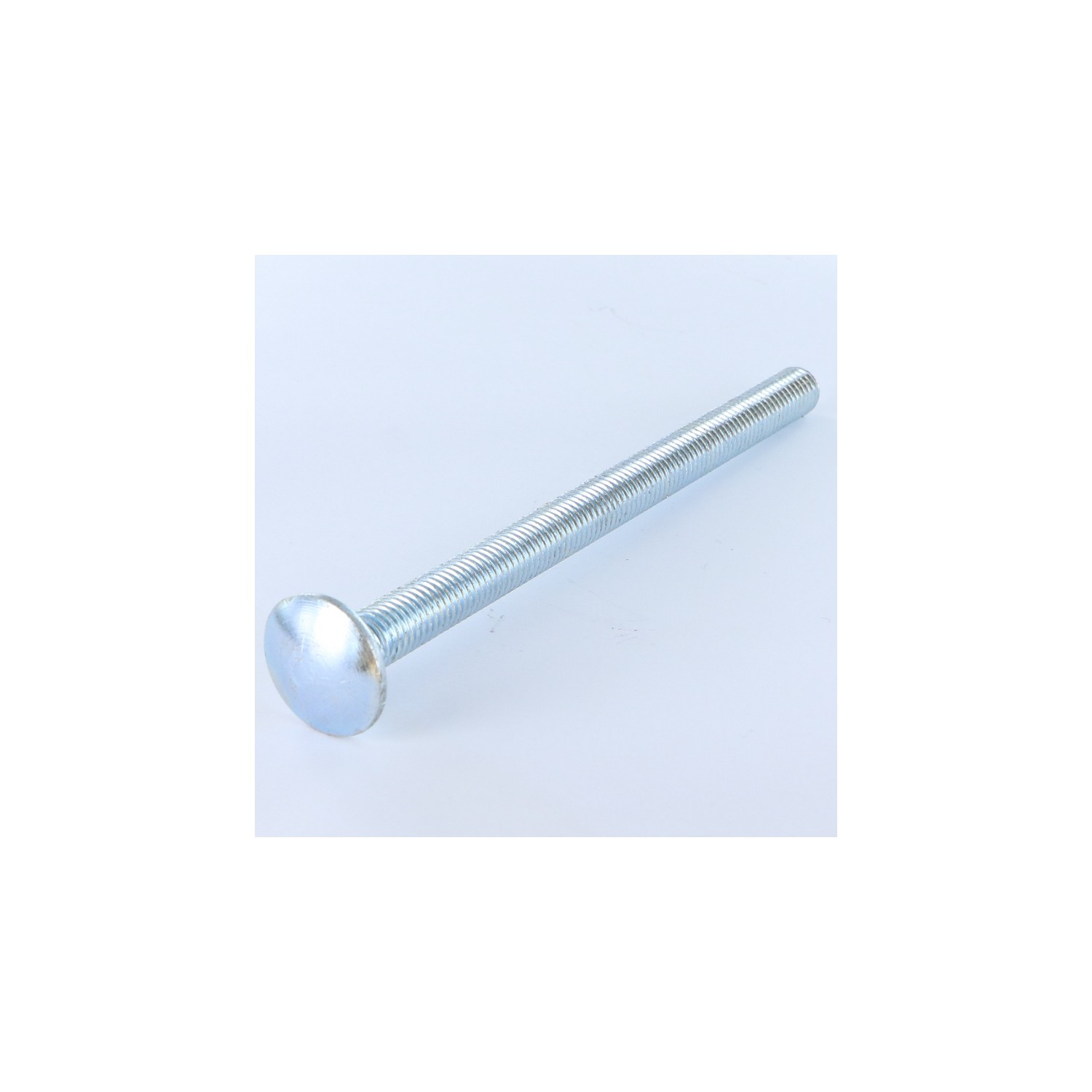

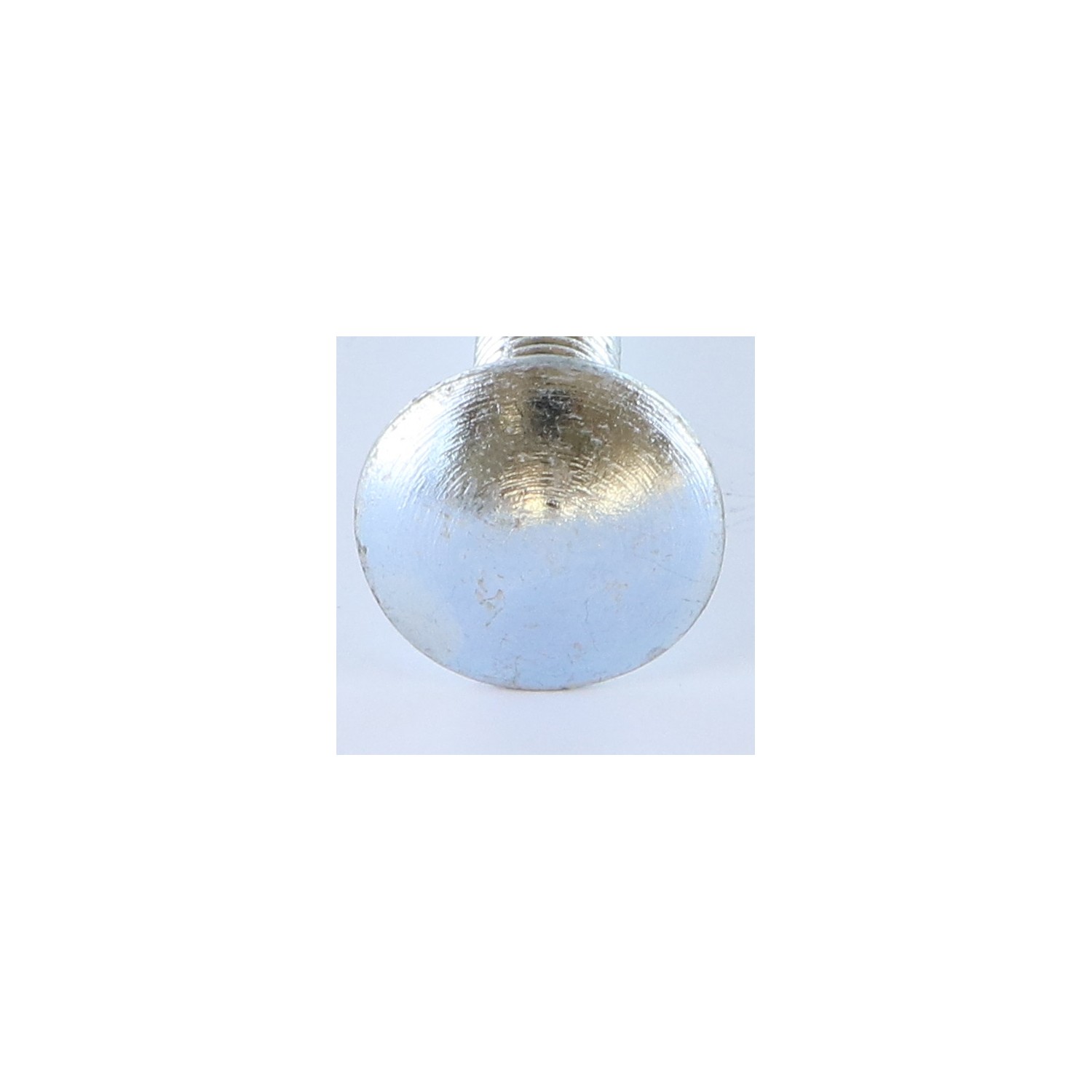

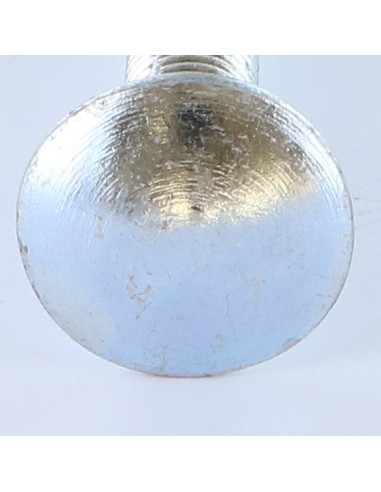

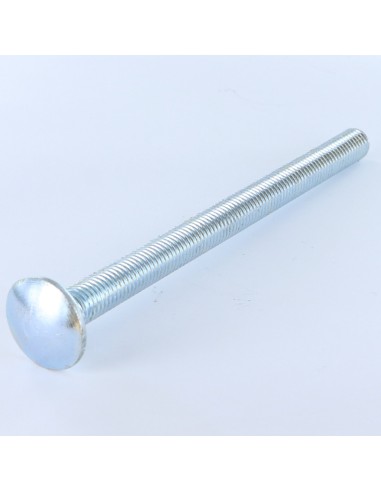

1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated
1 x Carriage Bolt M12X75 Full Thread Zinc Plated

1 x Carriage Bolt M12X75 Full Thread Zinc Plated

4516127502_1
In stock 5120 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included £3.69 £7.33 £7.33 £11.19
DIN603 FT VS4516 - Carriage Bolt M12X75 Full Thread Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M12
Length
75
Thread
Full Thread
Pitch
Standard pitch 175
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
12X12X8.75
Diameter in mm
11,966 - 11,718
Unit weight
89 GR
5120 Items
3663072095571
Carriage Bolt M12X75 Full Thread Zinc Plated
Diameter = M12, Length = 75, Coating = Zinc Plated, Material = Steel, Pitch = Standard pitch 175, Norm = DIN603 Full Thread VS4516


dimensional guide (mm)
Diameter 5 6 7 8 10 12 14 16
Head diameter 13.5 16.5 18 20.5 24.5 30.5 32 39
Head Tickness 3.3 3.9 4.8 5 5.4 7 10 9

Other Reference : 3617501310322 3663072095571
VINCENT C. (vis-express.fr)
2023-11-19

fixing shutter frames on a garage door in accordance with one in order to limit the deformation of the leaves fixing sashes dimensions 27x95mm 2.4m northern wood on leaves in accordance with one of garage doors
