4516124508_1
In stock 1102 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.85 €7.70 €7.70 €16.70

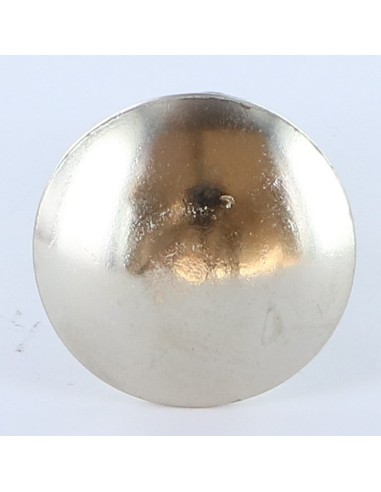

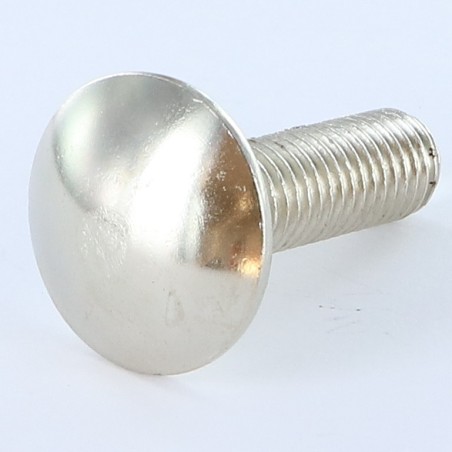

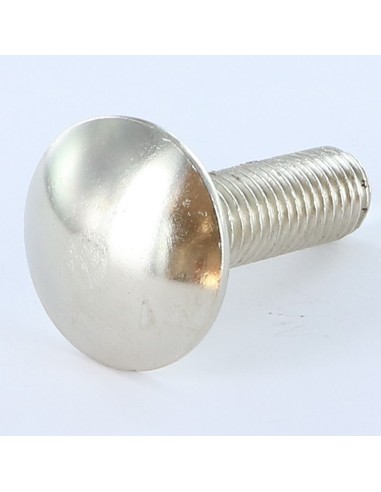

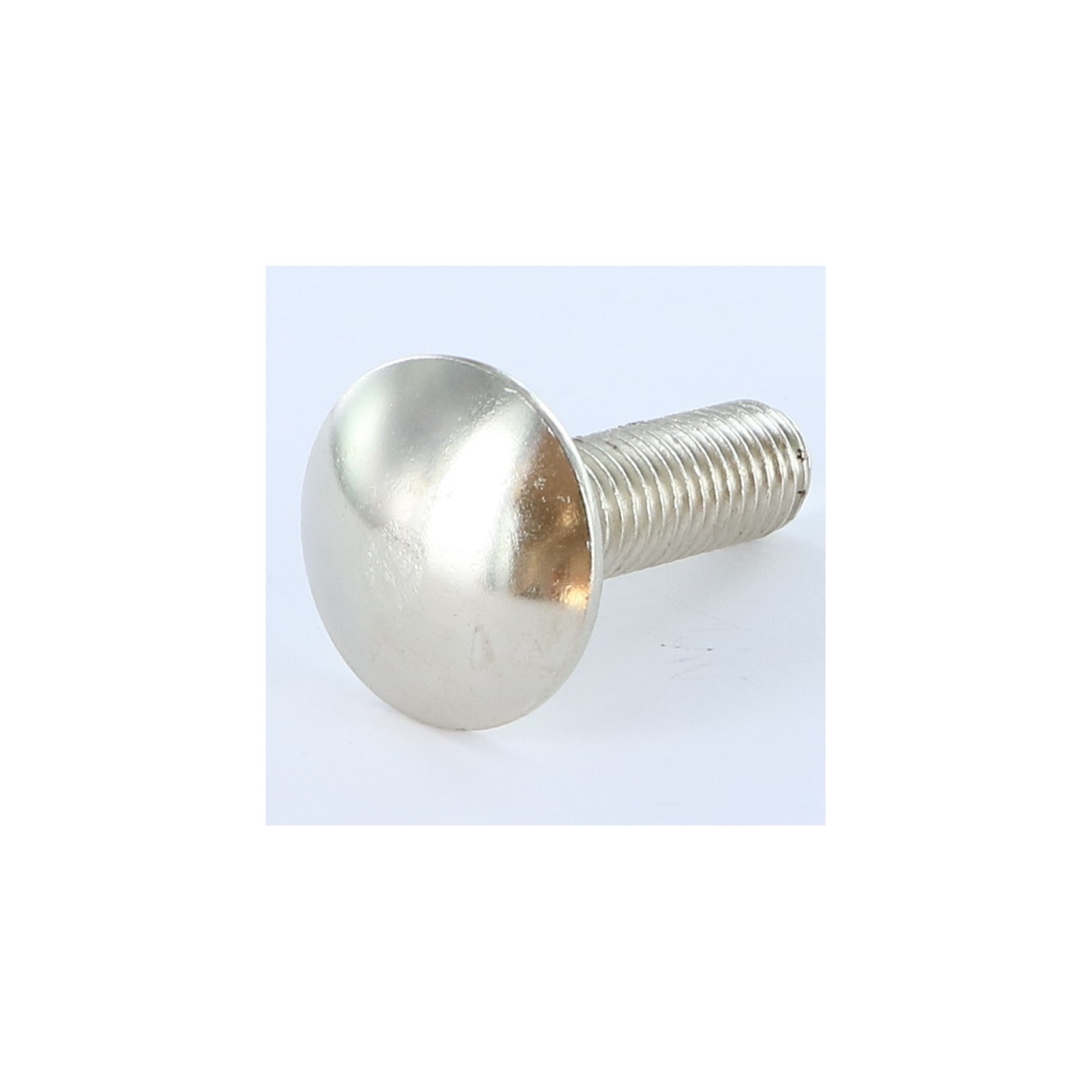

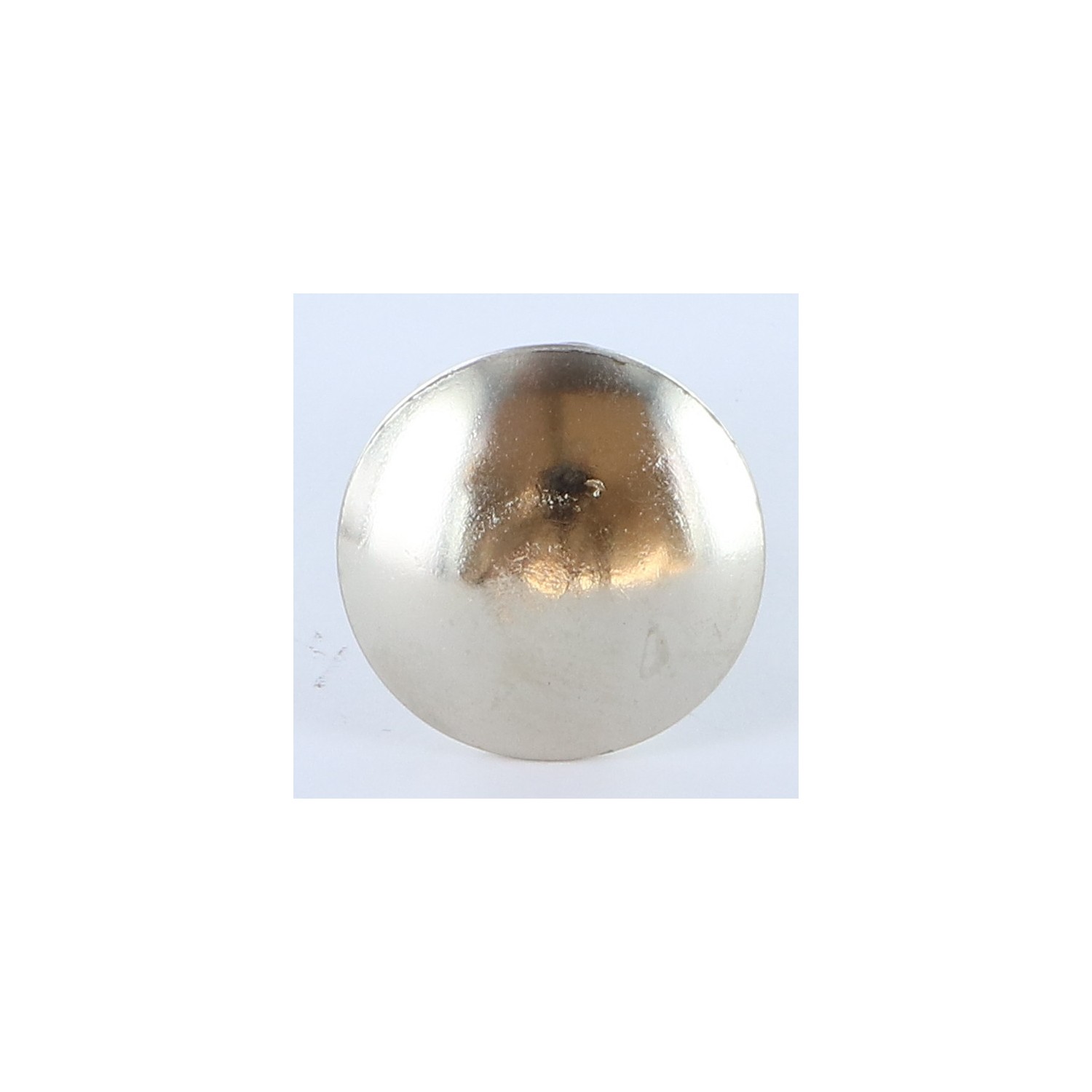

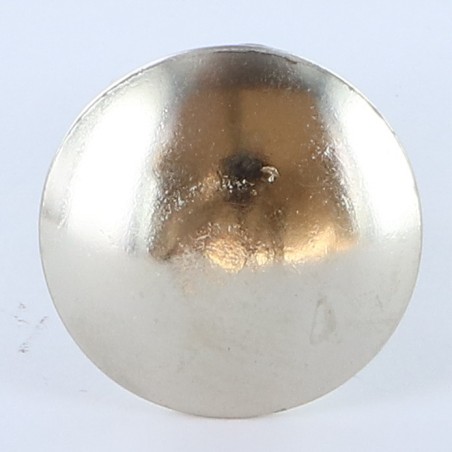

DIN603 FT VS4516 - Carriage Bolt M12X45 Full Thread Nickel Plated
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M12
Length
45
Thread
Full Thread
Pitch
Standard pitch 175
Material
Steel
Coating
Nickel
COLOR
Grey
Norm
DIN603 Full Thread VS4516
Sub product family
Carriage Bolt
Width X Width X Thickness of square collar
12X12X8.75
Diameter in mm
11,966 - 11,718
Unit weight
49.8 GR
1102 Items
3663072095502
Carriage Bolt M12X45 Full Thread Nickel Plated
Diameter = M12, Length = 45, Coating = Nickel, Material = Steel, Pitch = Standard pitch 175, Norm = DIN603 Full Thread VS4516


dimensional guide (mm)
Diameter567810121416
Head diameter13.516.51820.524.530.53239
Head Tickness3.33.94.855.47109

Other Reference : 3617501310070 1140098 3663072095502
