1 x Bolt With Nut Hexagonal Head M16X220 Zinc...

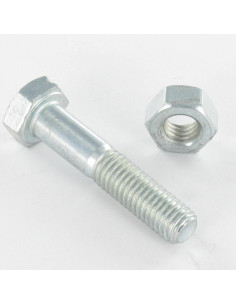

1 x Bolt With Nut Hexagonal Head M16X220 Zinc Plated

4212172202_1
In stock 2320 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25
Lot price VAT included £3.04 £7.68 £15.32 £34.93
ISO4014+4032,VS4109 - Bolt With Nut Hexagonal Head M16X220 Zinc Plated
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units

Dimensions shown in millimeters (mm)

2320 Items
3663072084438
Bolt With Nut Hexagonal Head M16X220 Zinc Plated
Diameter = M16, Length = 220, Coating = ZINGUE White, Sub Product Family = Hex Head, Material = Steel, Norm = ISO4014+4032,VS4109, Product Family = Bolts Hexagonal Head


dimensional guide (mm)
Diameter 6 8 10 12 14 16 18 20 22 24 27
Head Tickness 4 5.3 6.4 7.5 8.8 10 11.5 12.5 14 15 17
Across flats 10 13 16 18 21 24 27 30 34 36 41
Thread if total screw length < 125 18 22 26 30 34 38 42 46 50 54 0
Thread if total screw length > 125 0 28 32 36 40 44 48 52 56 60 0
Thread if total screw length > 200 0 0 45 49 53 57 61 65 69 73 79
b<200 0 0 32 36 40 44 48 52 0 0 66

Other Reference : 3617500908148 BZ16*220 70135023 509171 30116A220 / CDE 103192 3084495 TR11780781 2G015333 103195 39909 THZ16/220 AN AN 3663072084438
