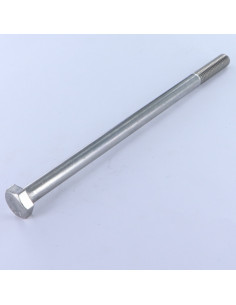

1 x Bolt Partial Thread Stainless Steel A2 Hexagonal Head M10X160
1 x Bolt Partial Thread Stainless Steel A2 Hexagonal Head M10X160
1 x Bolt Partial Thread Stainless Steel A2...
1 x Bolt Partial Thread Stainless Steel A2...

1 x Bolt Partial Thread Stainless Steel A2 Hexagonal Head M10X160

8409111618_1
In stock 751 Pièces
£1.48 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 10 25 100
Lot price VAT included £1.48 £4.08 £8.20 £20.48 £81.96
DIN931,ISO4014,VS4109,VS0100 - Bolt Partial Thread Stainless Steel A2 Hexagonal Head M10X160
Packaging
  • 1 unit
  • 5 units
  • 10 units
  • 25 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M10
Length
160
Material
Stainless Steel A2
COLOR
Grey
Norm
DIN931, ISO4014, VS4109, VS0100
Product Family
Bolts Hexagonal Head
Diameter in mm
9.968 - 9.752
Unit weight
108.9 GR
Head shape
Hex Head
Spanner
16
751 Items
3663072378704
Bolt Partial Thread Stainless Steel A2 Hexagonal Head M10X160
Diameter = M10, Length = 160, Material = Stainless Steel A2, Norm = DIN931, ISO4014, VS4109, VS0100, Product Family = Bolts Hexagonal Head


dimensional guide (mm)
Diameter 5 6 8 10 12 14 16 18 20 24 27 30 33
Head Tickness 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15 17 18.7 21
Across flats 8 10 13 17 19 22 24 27 30 36 41 46 50
Thread if total screw length < 125 16 18 22 26 30 34 38 42 46 54 60 66 72
Thread if total screw length > 125 22 24 28 32 36 40 44 48 52 60 66 72 78
Thread if total screw length > 200 0 0 0 0 0 0 57 61 65 73 79 85 91

Other Reference : 6210210X160 GVIS0175 ACC22290 H.M10X160.Z 501707 06554 3663072378704
Jeremy R. (vis-express.fr)
2026-04-12

To fix two joists together Two 75x225 joists, 5m long


Jean-Marie C. (vis-express.fr)
2025-06-01

ass structure terrace connection reinforcement Joists / joists


David A. (vis-express.fr)
2024-07-07

Fixing beams on wooden posts for carports
