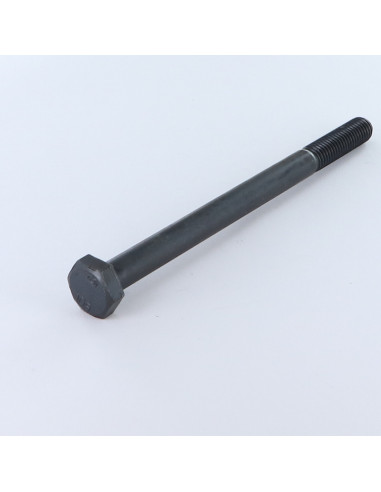

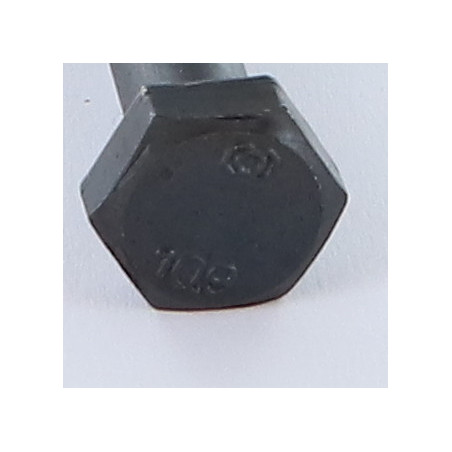

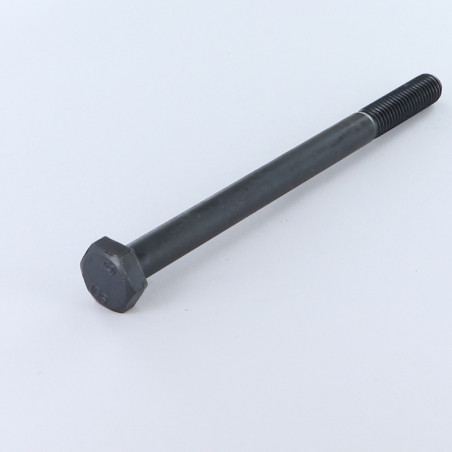

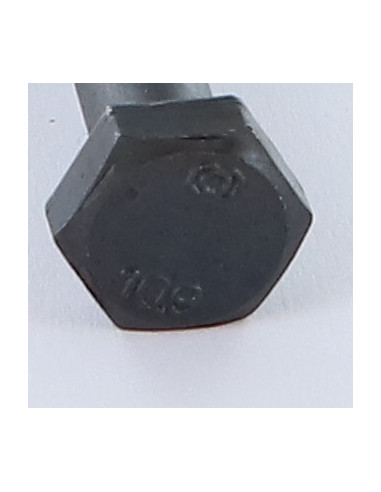

1 x Bolt Partial Thread Hexagonal Head M10X120 Class 10.9 Steel
1 x Bolt Partial Thread Hexagonal Head M10X120 Class 10.9 Steel
1 x Bolt Partial Thread Hexagonal Head M10X120...
1 x Bolt Partial Thread Hexagonal Head M10X120...

1 x Bolt Partial Thread Hexagonal Head M10X120 Class 10.9 Steel

4011111201_1
In stock 80 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.50 €7.05 €19.35 €58.60
DIN931,VS4109 - Bolt Partial Thread Hexagonal Head M10X120 Class 10.9 Steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

80 Items
3663072574595
Bolt Partial Thread Hexagonal Head M10X120 Class 10.9 Steel
Diameter = M10, Length = 120, Sub Product Family = Hex Head, Class = CLASS Class 10.9, Material = Steel, Norm = DIN931,VS4109, Product Family = Bolts Hexagonal Head


dimensional guide (mm)
Diameter 5 6 8 10 12 14 16 18 20 24 27 30 33
Head Tickness 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15 17 18.7 21
Across flats 8 10 13 17 19 22 24 27 30 36 41 46 50
Thread if total screw length < 125 16 18 22 26 30 34 38 42 46 54 60 66 72
Thread if total screw length > 125 22 24 28 32 36 40 44 48 52 60 66 72 78
Thread if total screw length > 200 0 0 0 0 0 0 57 61 65 73 79 85 91

Other Reference : 3617501820456 3663072574595
