3702240812_1
In stock 10600 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €17.10

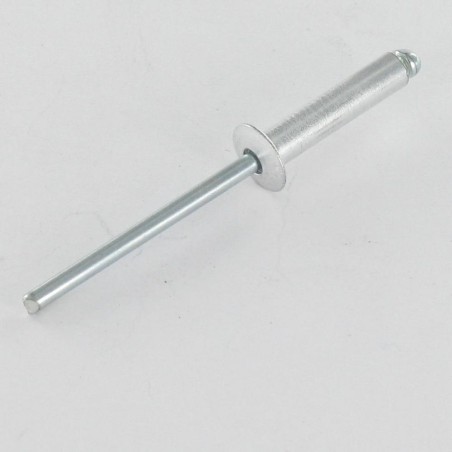

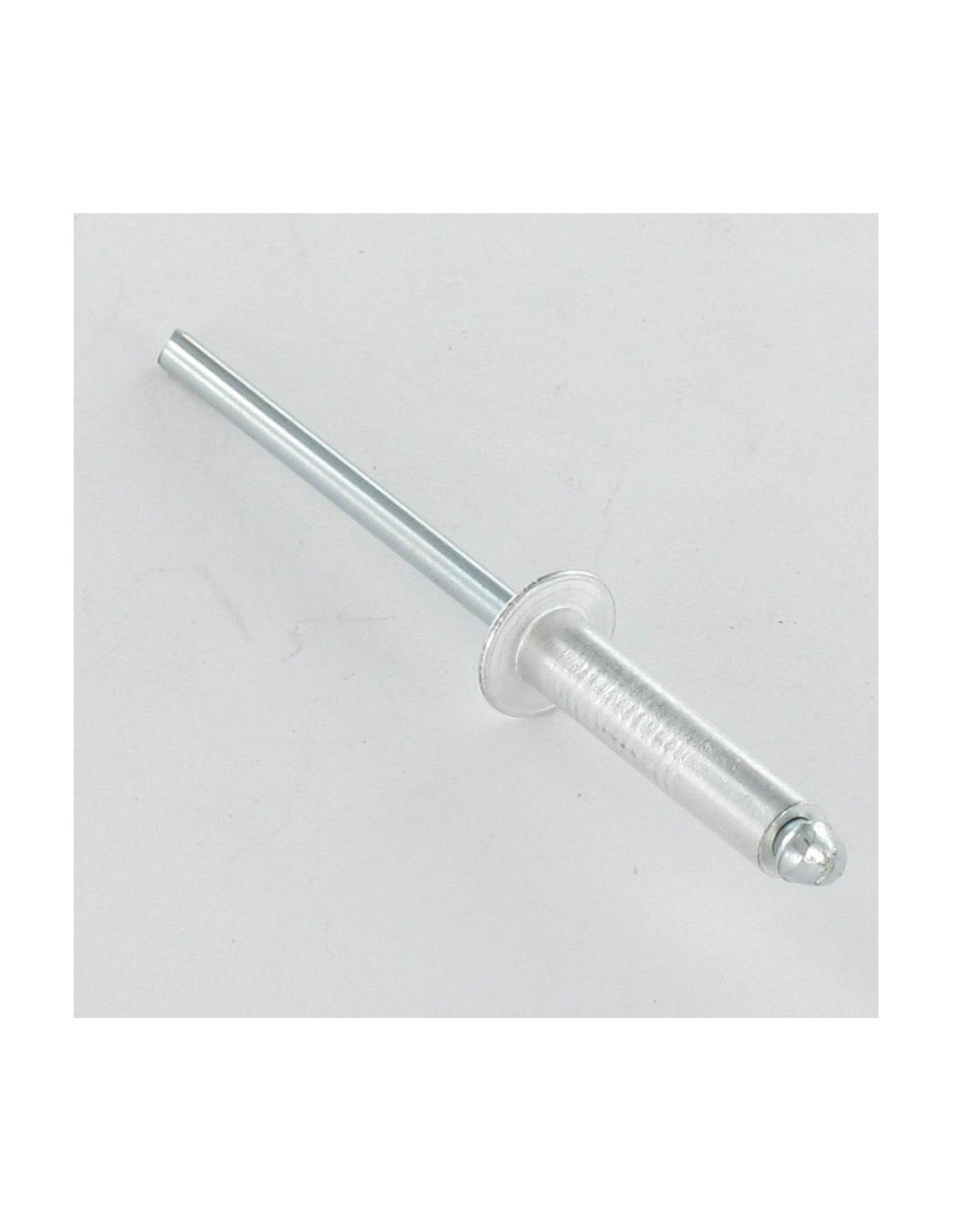

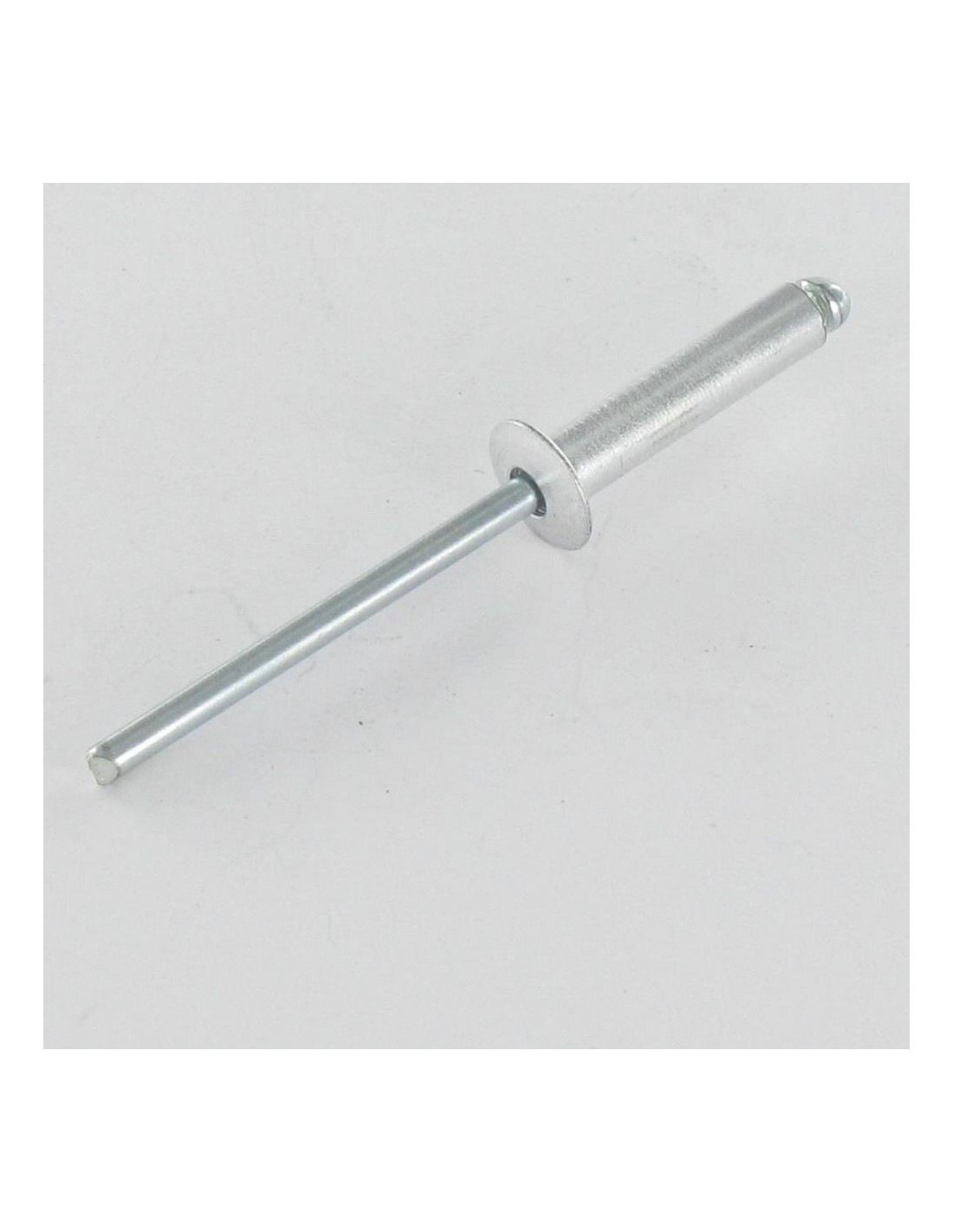

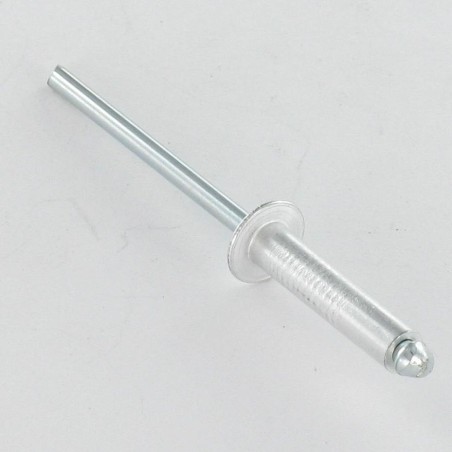

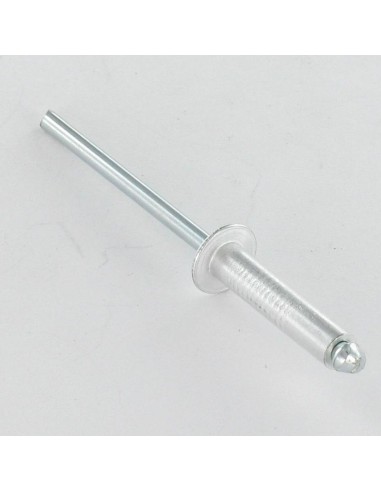

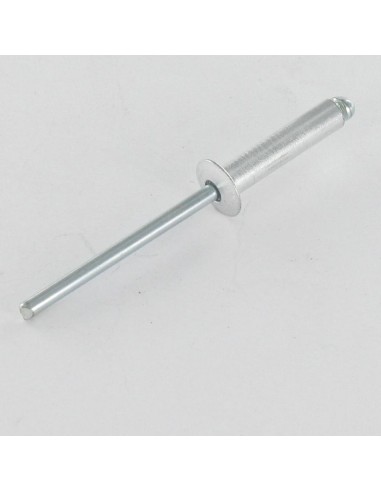

Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
2.4
Sub product family
Flat Head
WEIGHT For THERE unit
0.63 GR
Clamping thickness
4 to 6 MM
Rivet body length
8
10600 Items
3663072301955
Blind rivets Aluminium Stahlgewinde 2.4X8 Thickness Of Panel 4 to 6 Flat Head ALX
Diameter = 2.4

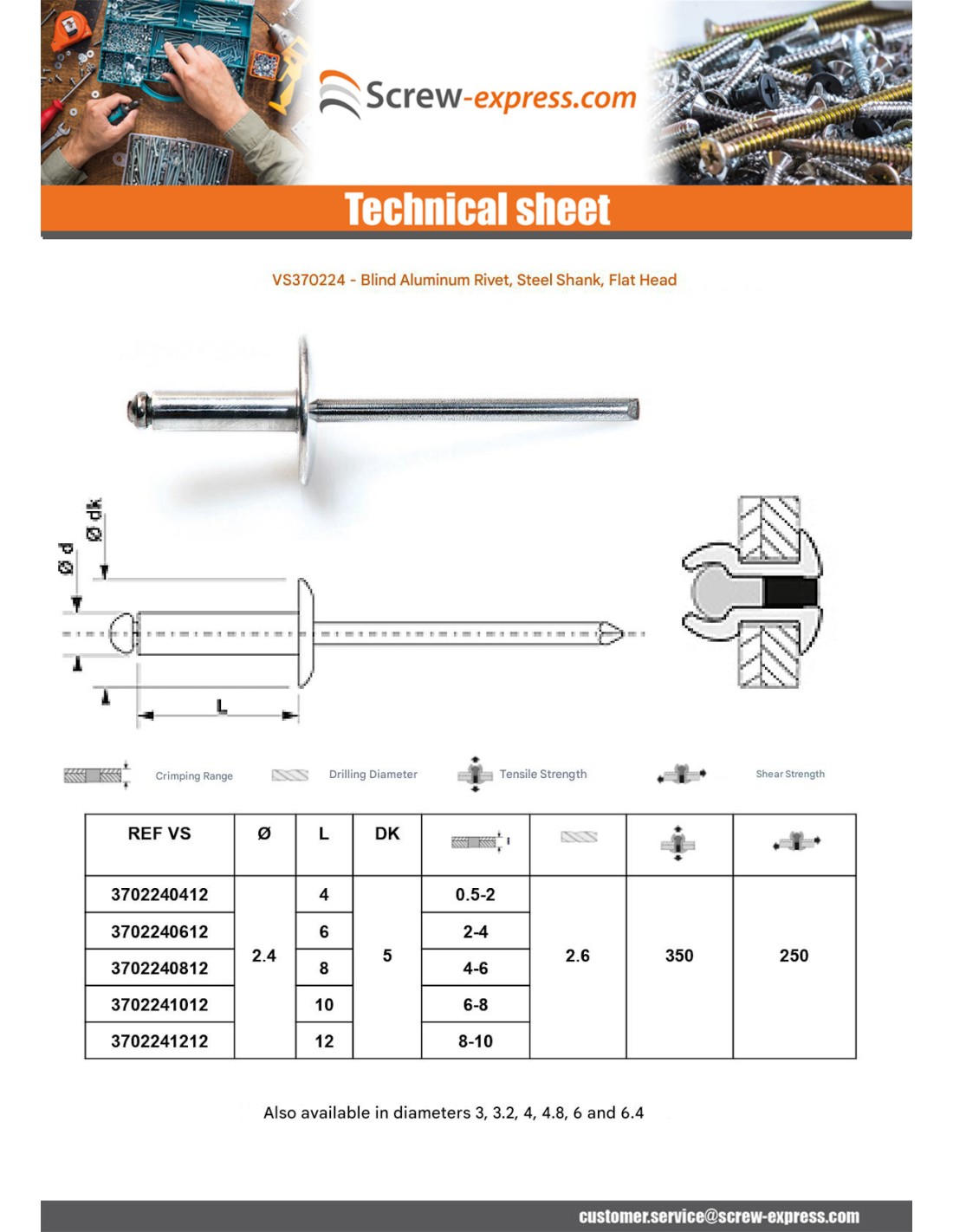

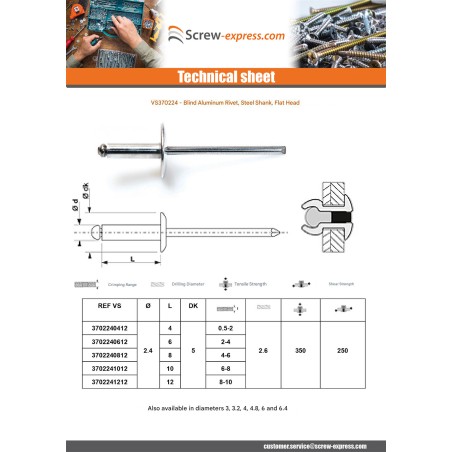

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103124081 AN 348-0001 RA/AL/AC/P/2 1187011 400556 3663072301955
