1 x Blind rivets Aluminium Stahlgewinde 3X8 Thickness Of Panel 3 to 5 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3X8 Thickness Of Panel 3 to 5 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3X8 Thickness Of Panel 3 to 5 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3X8...
1 x Blind rivets Aluminium Stahlgewinde 3X8...
1 x Blind rivets Aluminium Stahlgewinde 3X8...

1 x Blind rivets Aluminium Stahlgewinde 3X8 Thickness Of Panel 3 to 5 Flat Head ALX

3702300812_1
In stock 89023 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €1.70 €3.40 €4.05 €6.65

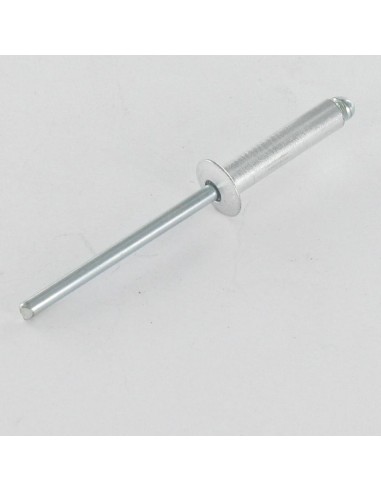

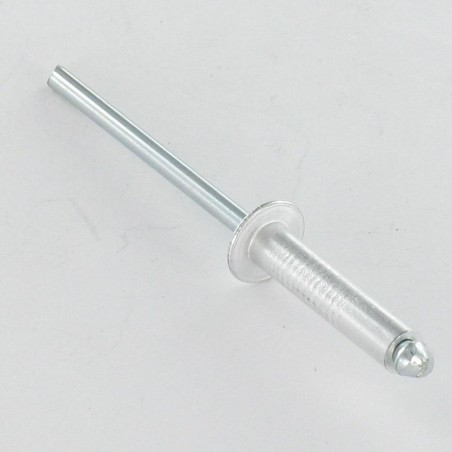

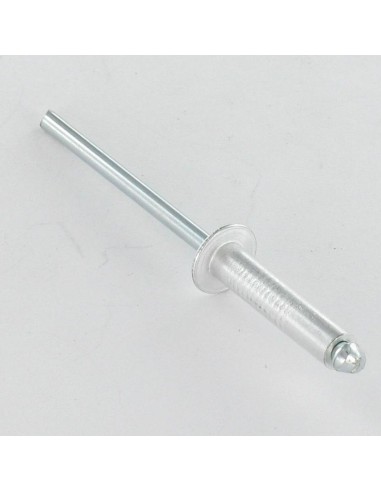

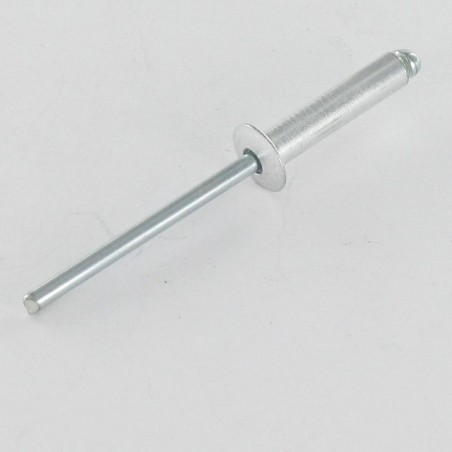

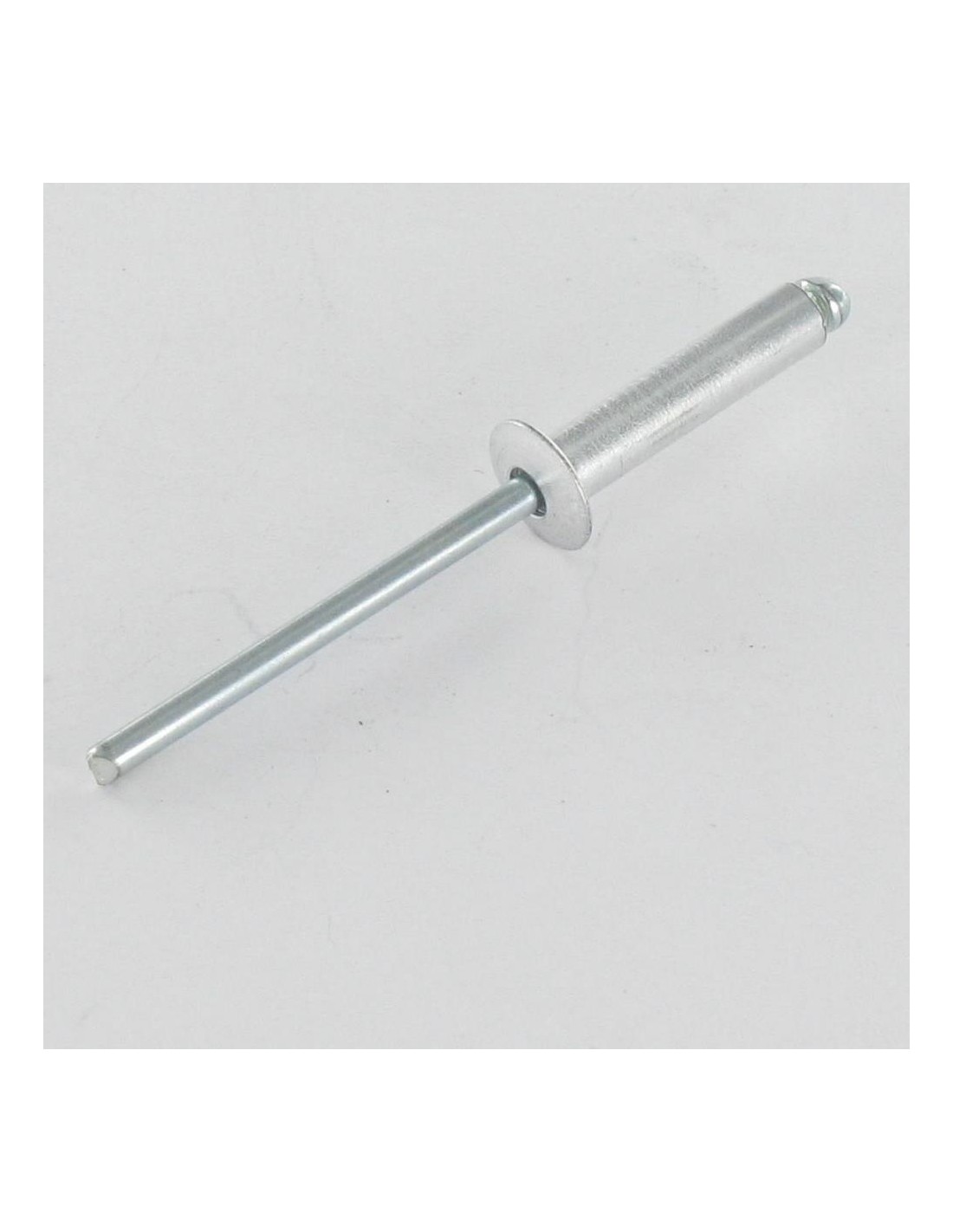

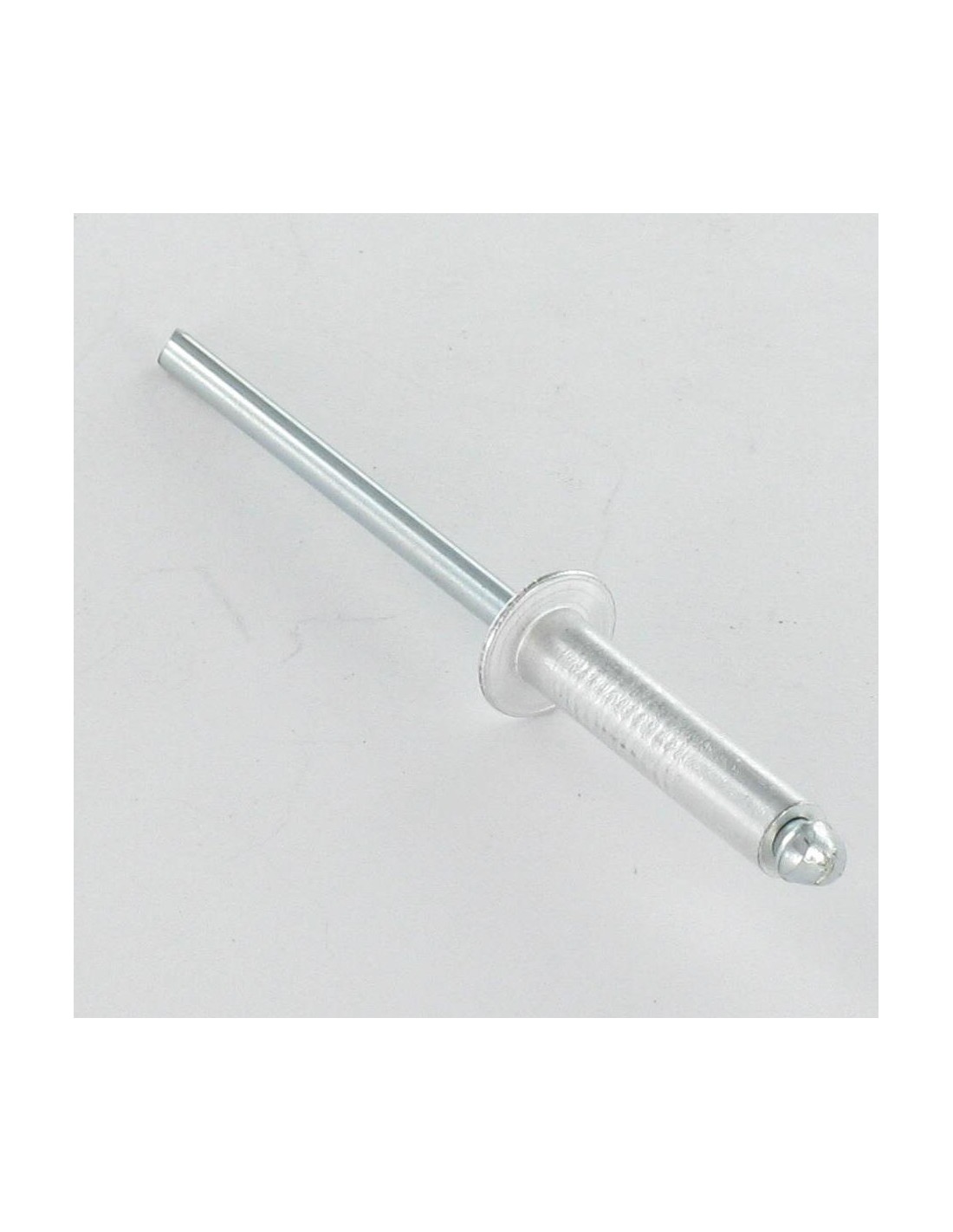

Blind rivets Aluminium Stahlgewinde 3X8 Thickness Of Panel 3 to 5 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3
Sub product family
Flat Head
WEIGHT For THERE unit
1 GR
Clamping thickness
3 to 5 MM
Rivet body length
8
89023 Items
3663072063716
Blind rivets Aluminium Stahlgewinde 3X8 Thickness Of Panel 3 to 5 Flat Head ALX
Diameter = 3

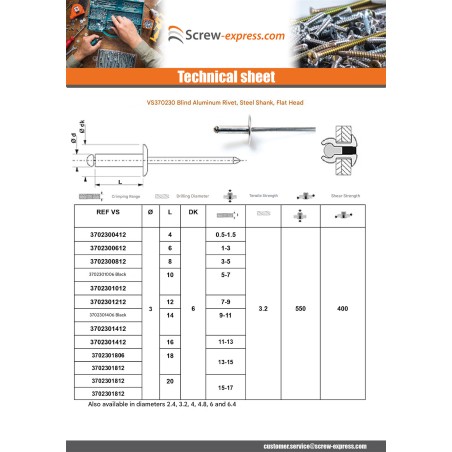

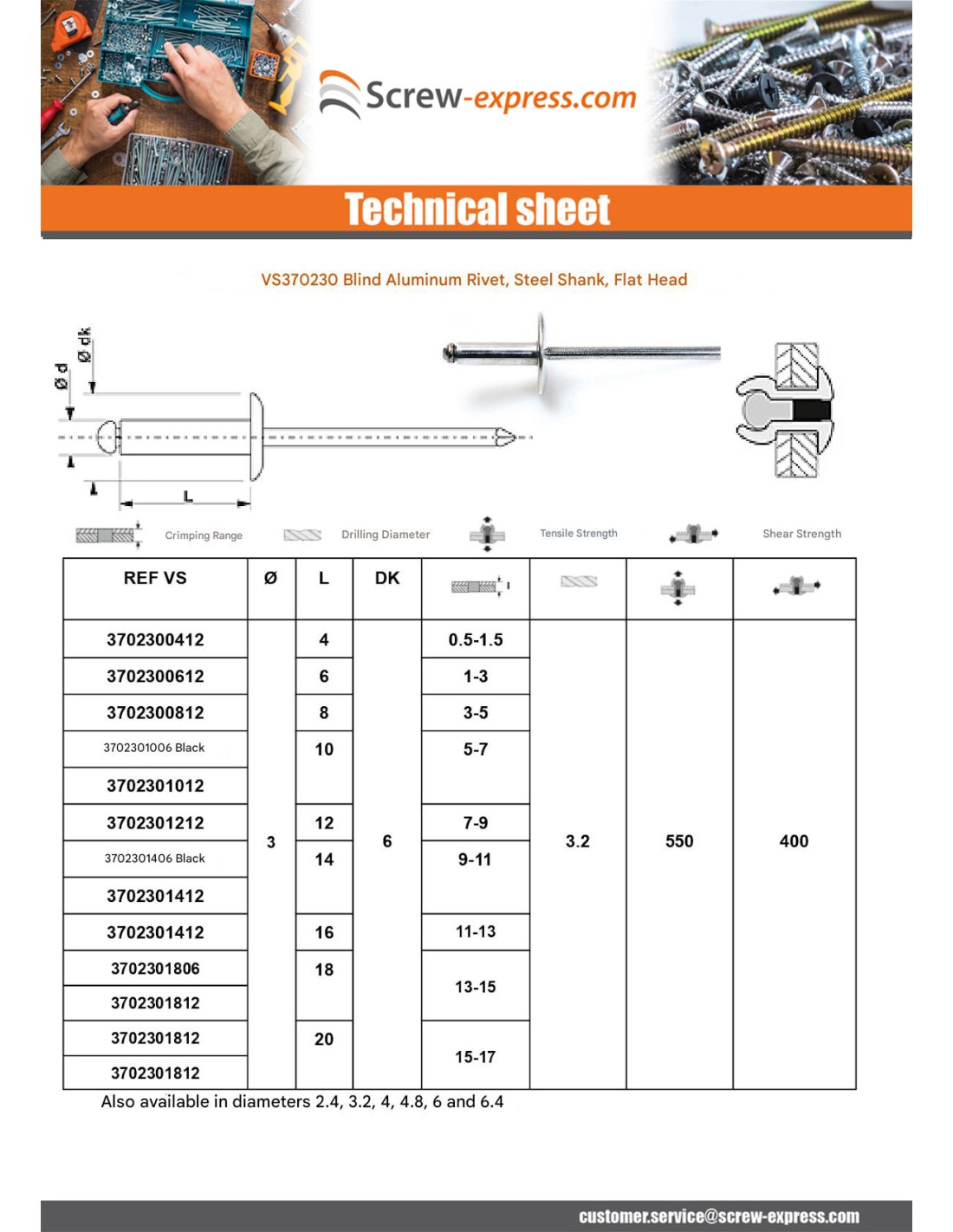

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103130081 103130081 99203061 99203061 RIB-ALU-3X8 HR01552 15000-03008 30319 9A-1508022 RA/AL/AC:P/3 38798.001 5s0609005 WUR093638 E00079 VINX7107 1407000005 41372 ACC18203 6300154 498059900 pdv0040a 1150.0241.0 ATN0308 PD0204 007681 RI014102 HR01552 475623 9230005000 025101 2410002 RIV0100 FID00074 ACC18203 1320520 123000000 123000000 12078/2 WHR01552 80511 3663072063716
