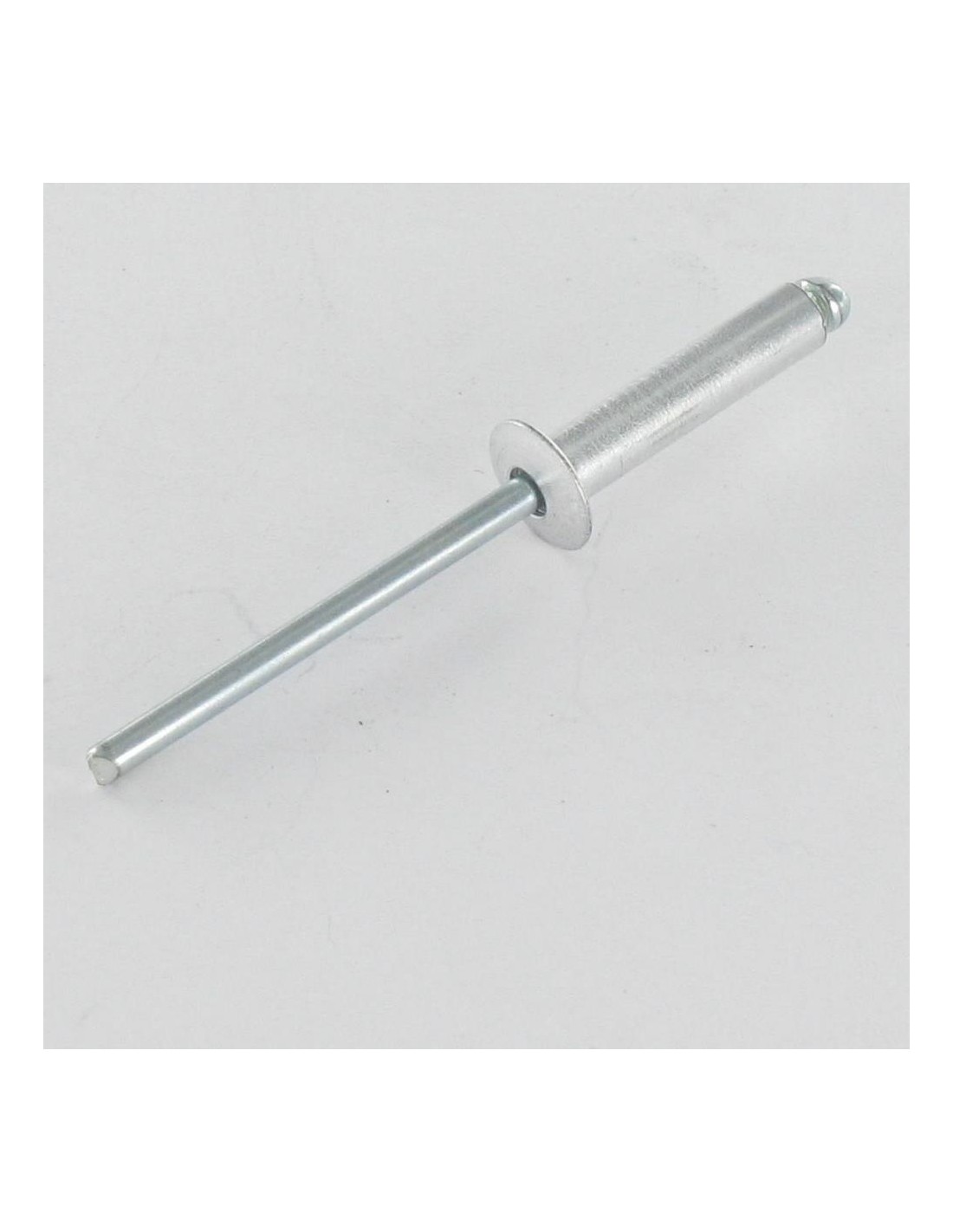

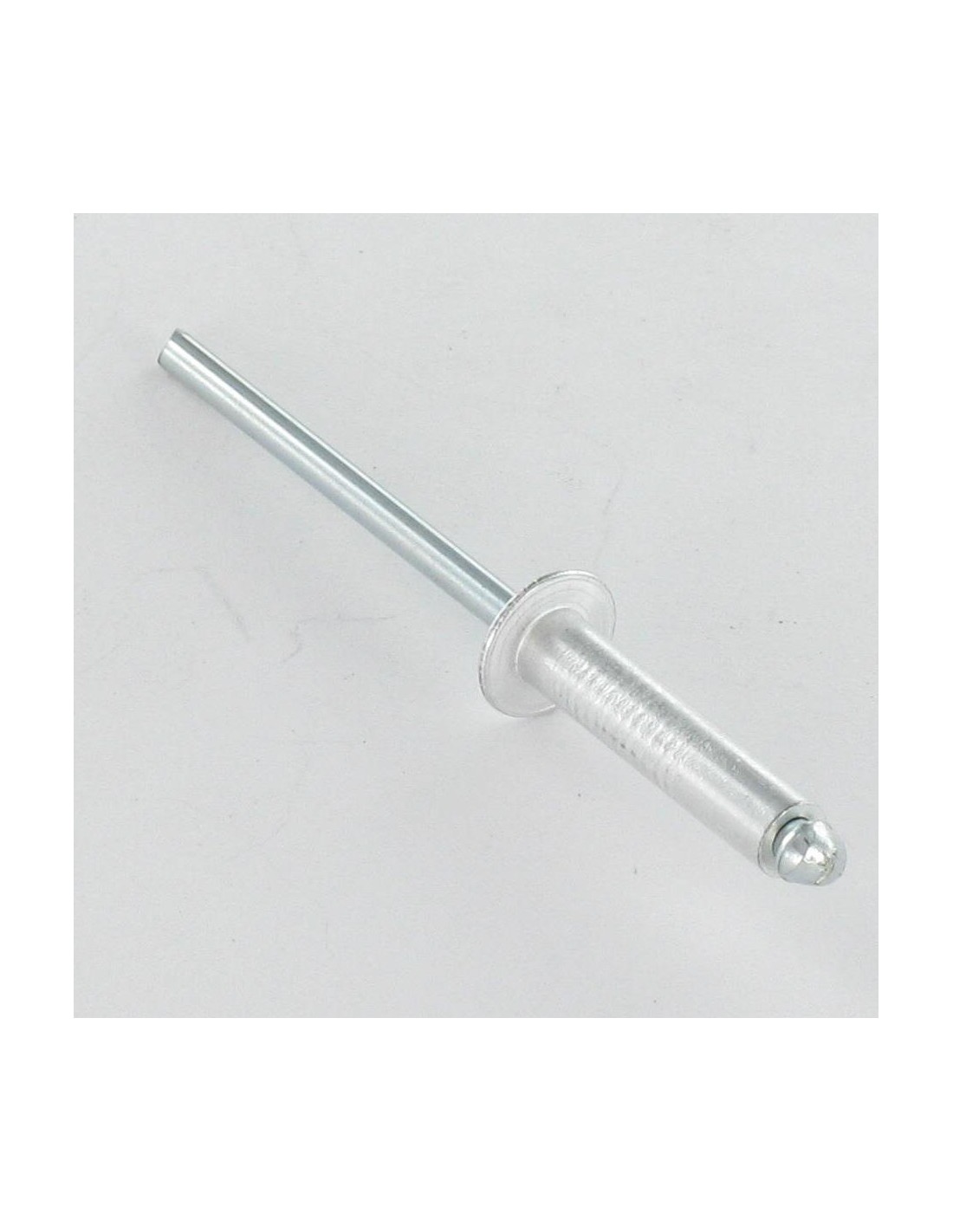

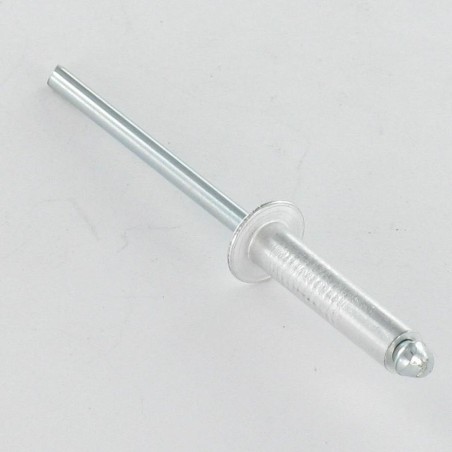

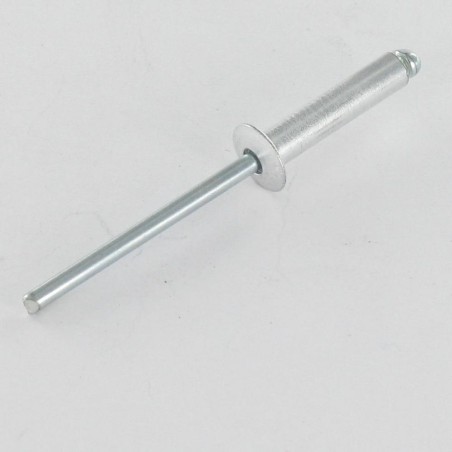

1 x Blind rivets Aluminium Stahlgewinde 3X10 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3X10 Thickness Of Panel 5 to 7 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3X10 Thickness Of Panel 5 to 7 Flat Head ALX

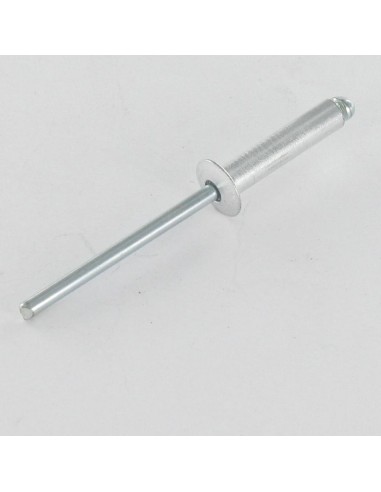

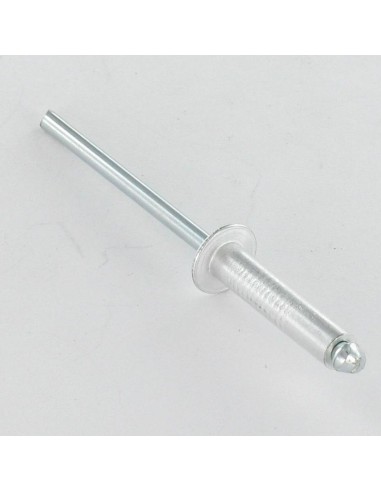

1 x Blind rivets Aluminium Stahlgewinde 3X10...
1 x Blind rivets Aluminium Stahlgewinde 3X10...
1 x Blind rivets Aluminium Stahlgewinde 3X10...

1 x Blind rivets Aluminium Stahlgewinde 3X10 Thickness Of Panel 5 to 7 Flat Head ALX

3702301012_1
In stock 600536 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €1.70 €3.40 €4.05 €4.55
Blind rivets Aluminium Stahlgewinde 3X10 Thickness Of Panel 5 to 7 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3
Sub product family
Flat Head
WEIGHT For THERE unit
1.1 GR
Clamping thickness
5 to 7 MM
Rivet body length
10
600536 Items
3663072063730
Blind rivets Aluminium Stahlgewinde 3X10 Thickness Of Panel 5 to 7 Flat Head ALX
Diameter = 3

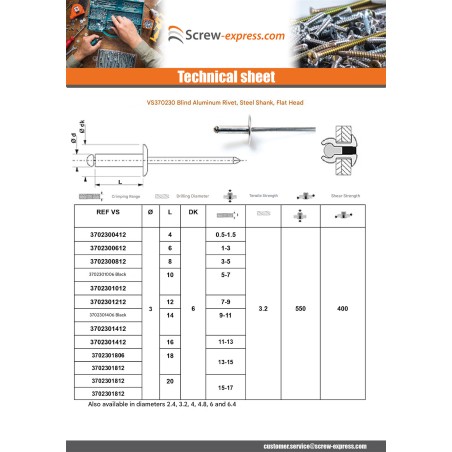

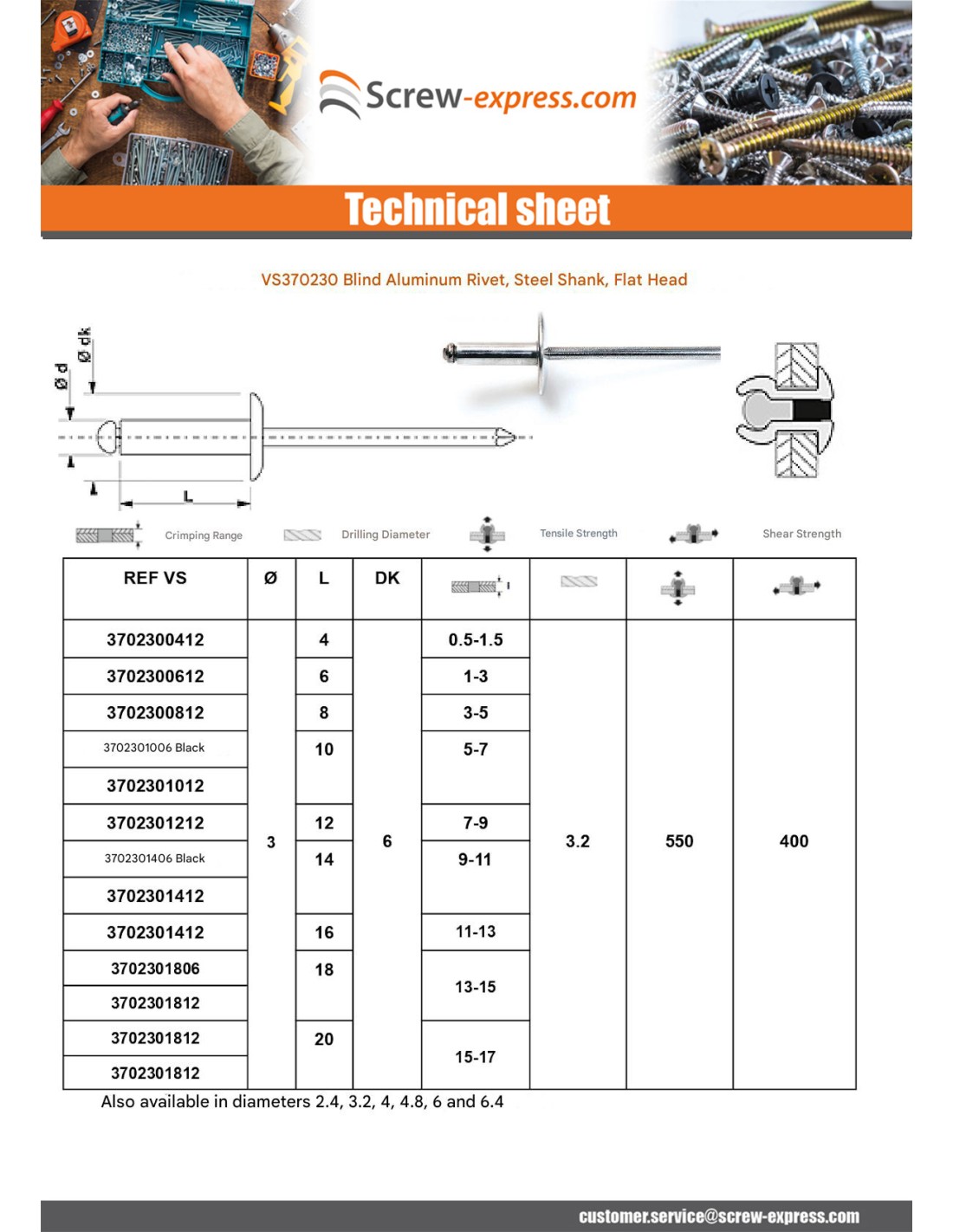

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103130101 9422725 VIARIVETPOP3 VI-ALTPRIV03 070C000146 5170313 30228 3031006 3VARI3010 VIARIVETPOP3 9A-1508019 Z0854 8000087XAL ZORI310 401601009900 RIVETTP3X10A COVS0043 54841 54841 AN PD0208 17496-00 AC0ZRIP310 212005 142608 40232 POP3-10 URIV10310 0847/0310 2410008 78725180 3020024 co220016 NI34427 RIV-3X10P A-01250 3663072063730
