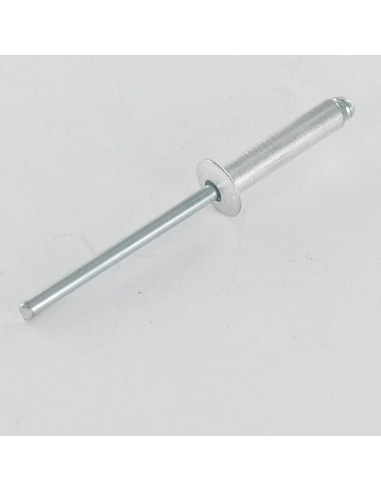

1 x Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX

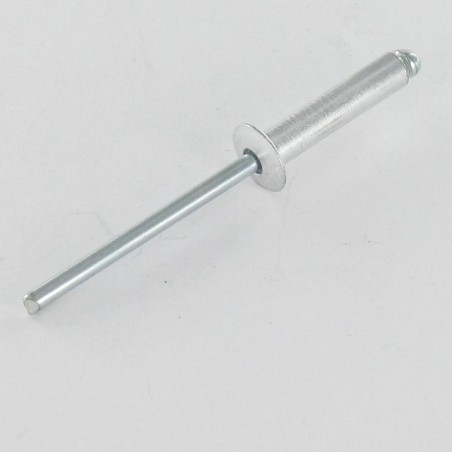

1 x Blind rivets Aluminium Stahlgewinde 3.2X20...
1 x Blind rivets Aluminium Stahlgewinde 3.2X20...

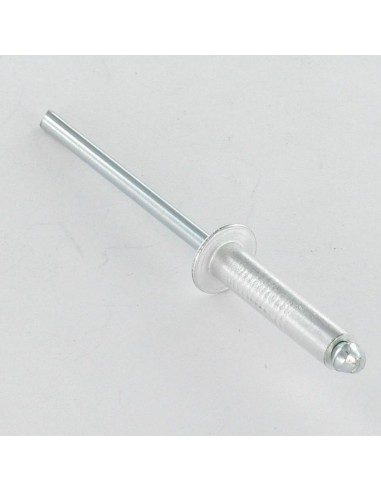

1 x Blind rivets Aluminium Stahlgewinde 3.2X20...
1 x Blind rivets Aluminium Stahlgewinde 3.2X20...

1 x Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX

3702322012_1
In stock 10250 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €13.90

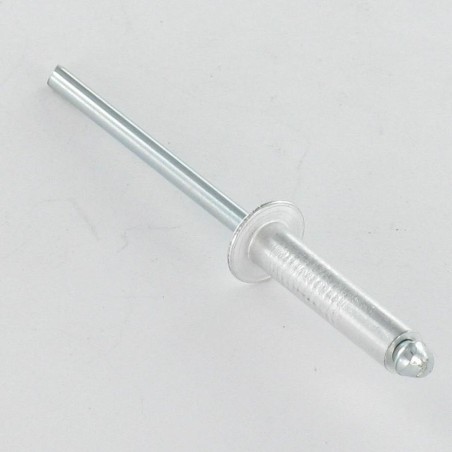

Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
3.2
Sub product family
Flat Head
WEIGHT For THERE unit
1.32 GR
Clamping thickness
15 to 17 MM
Rivet body length
20
10250 Items
3663072063891
Blind rivets Aluminium Stahlgewinde 3.2X20 Thickness Of Panel 15 to 17 Flat Head ALX

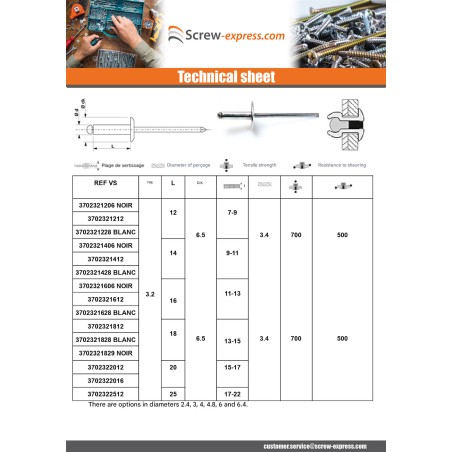

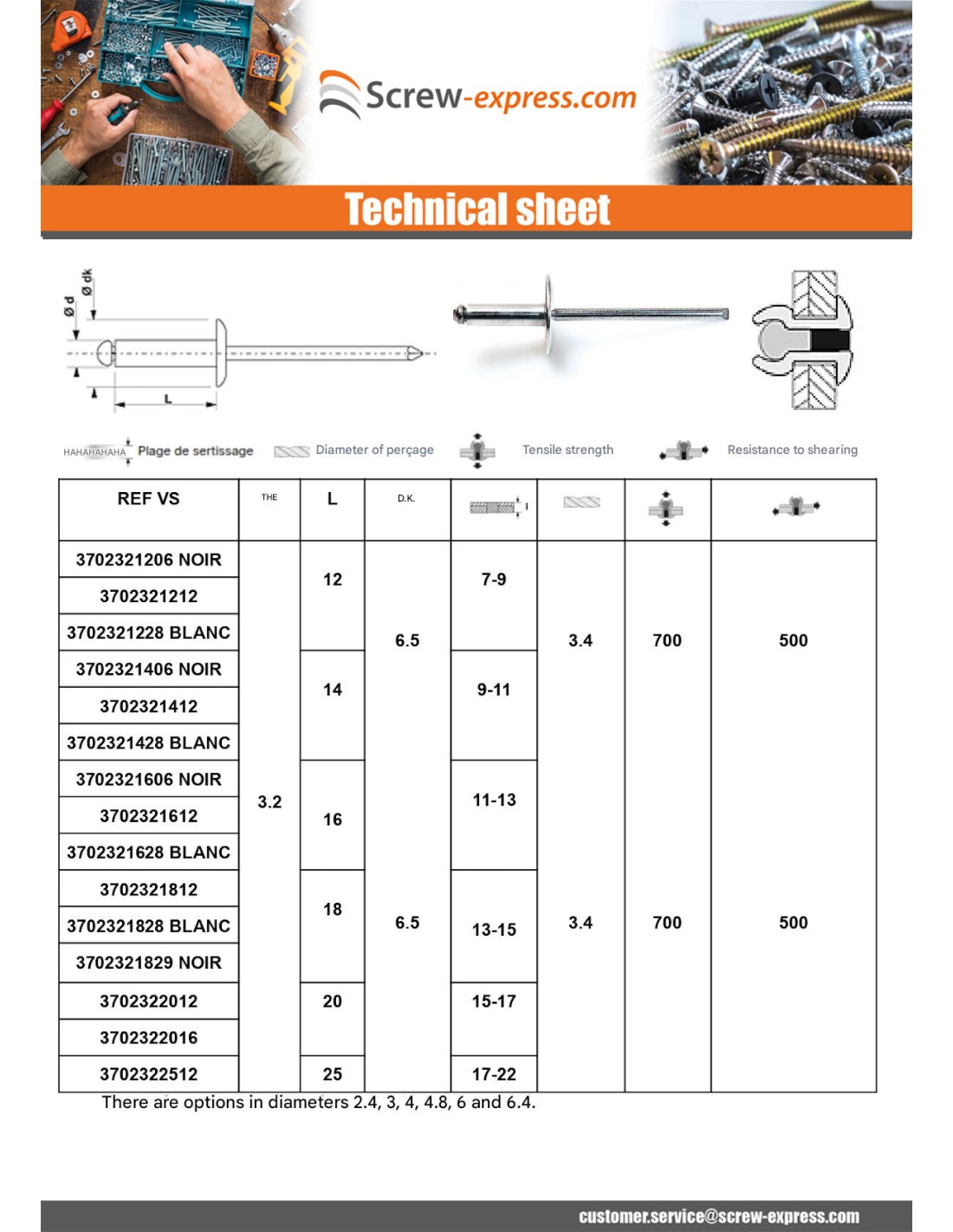

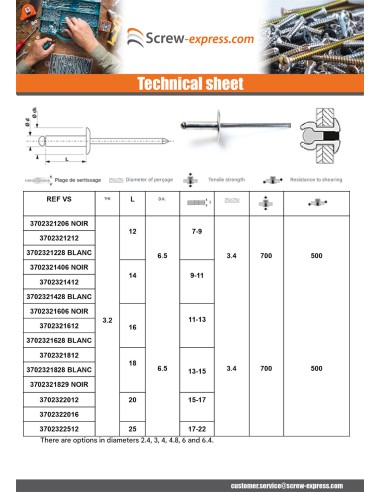

Diameter = 3.2


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103132201 0600956 7001-0831-A 0600956 0600956 78725190 0600956 0600956 0600956 0600956 3663072063891
