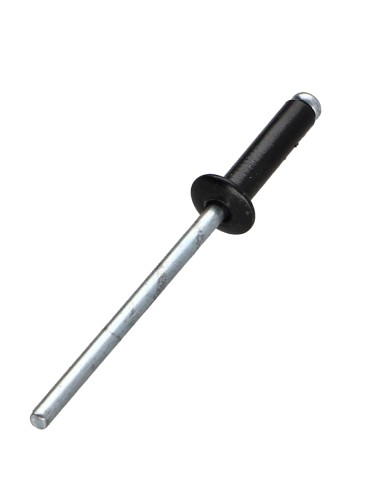

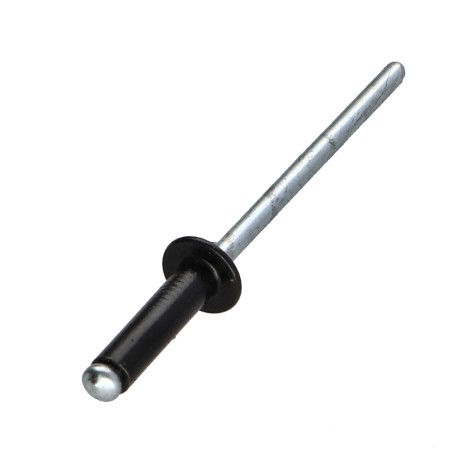

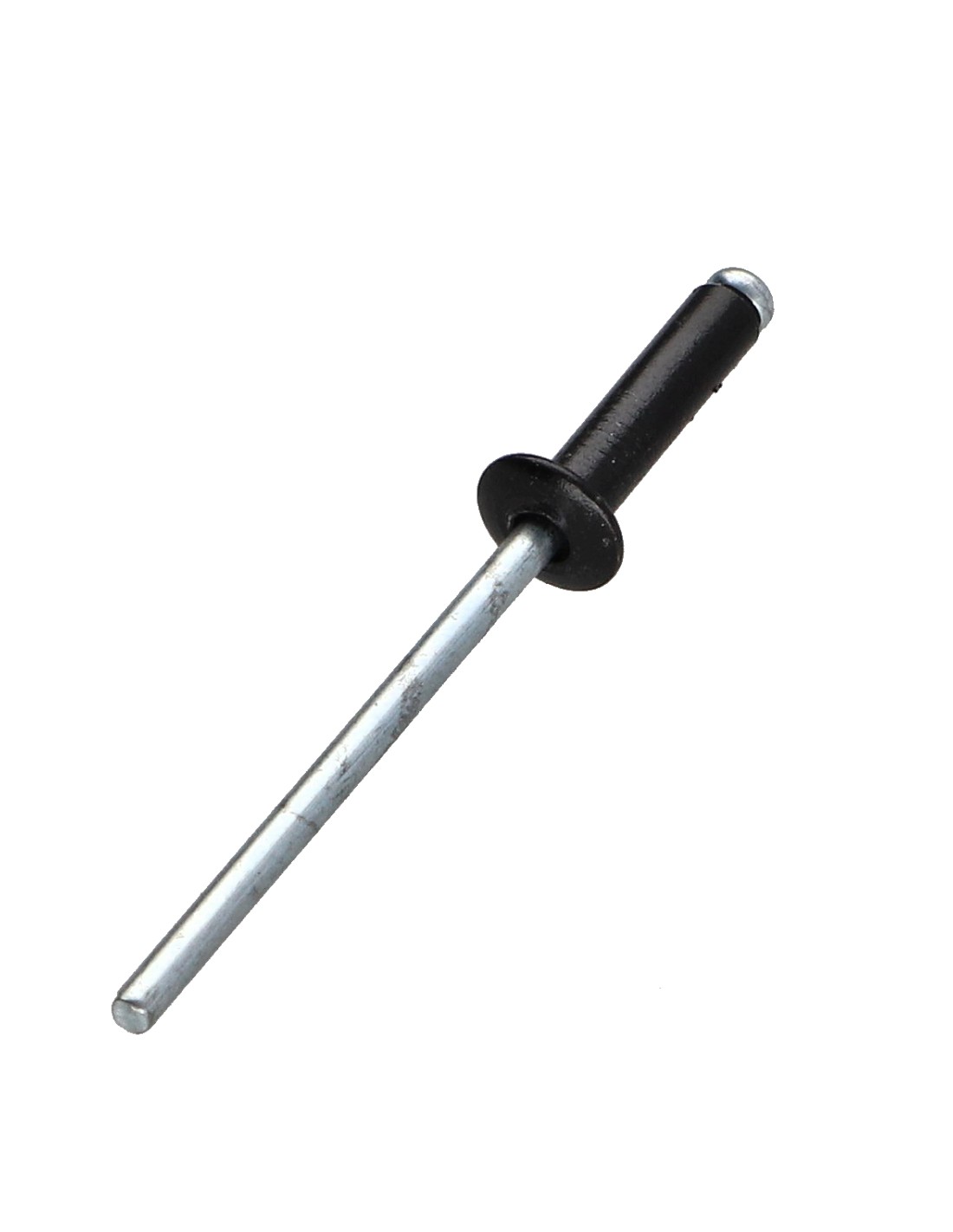

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head Ral9005/Jet Black
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head Ral9005/Jet Black
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head Ral9005/Jet Black
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head Ral9005/Jet Black

3702401606_1
In stock 9070 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €5.20 €21.55 €86.20

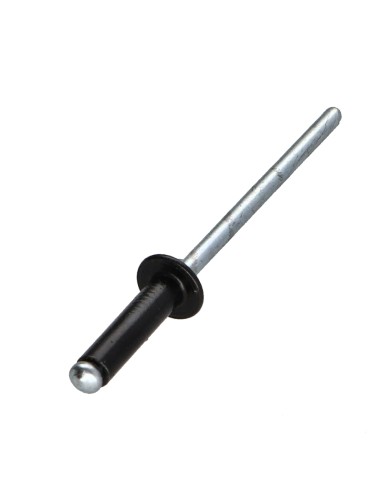

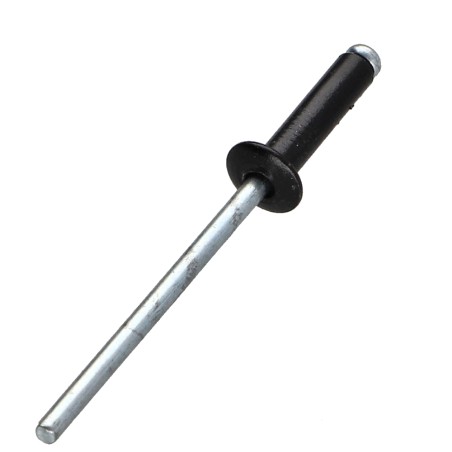

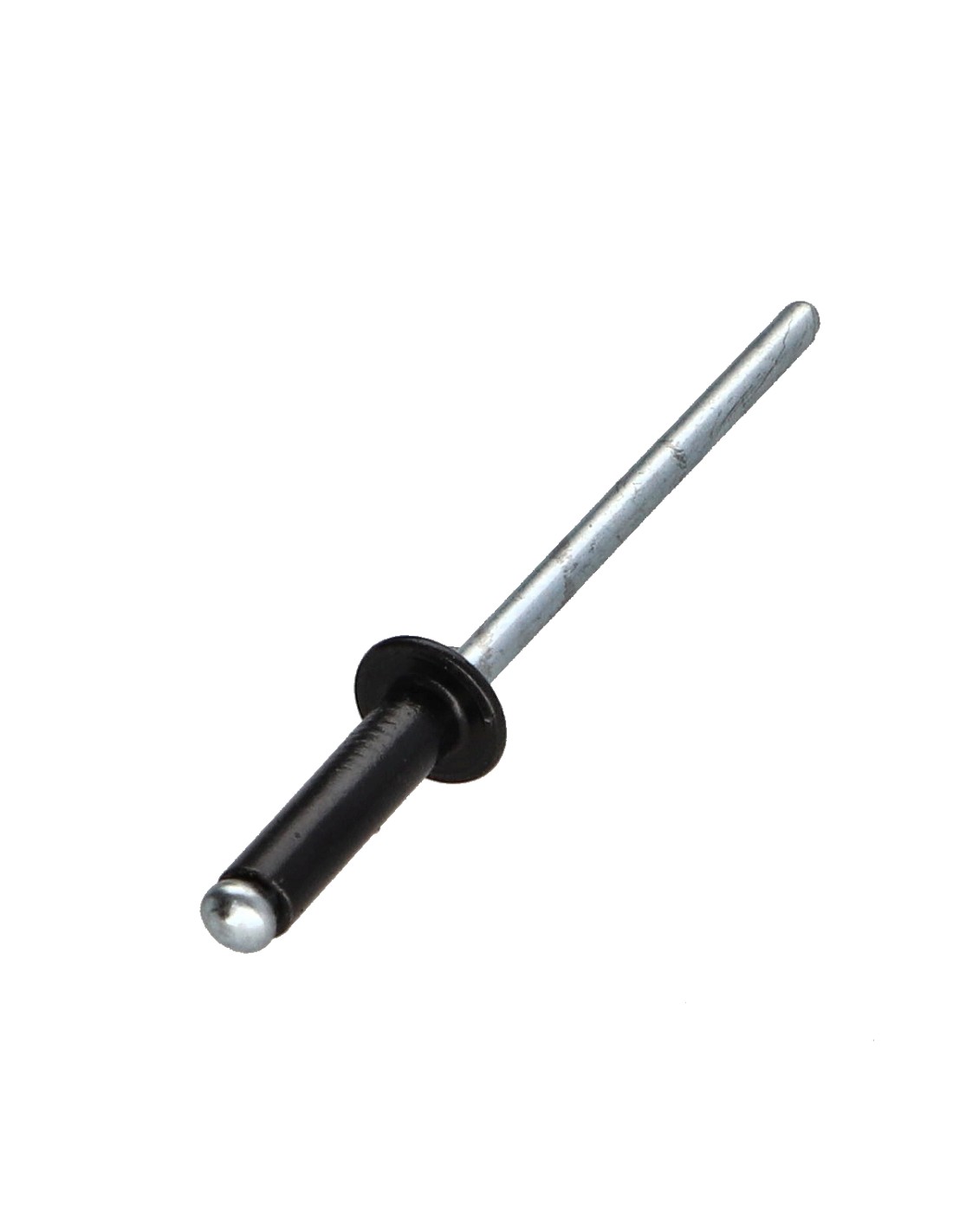

Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head Ral9005/Jet Black
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
4
COLOR
Ral9005/Jet Black
Sub product family
Flat Head
WEIGHT For THERE unit
2.94 GR
Clamping thickness
10 to 12 MM
Rivet body length
16
9070 Items
3663072186484
Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head Ral9005/Jet Black
Diameter = 4

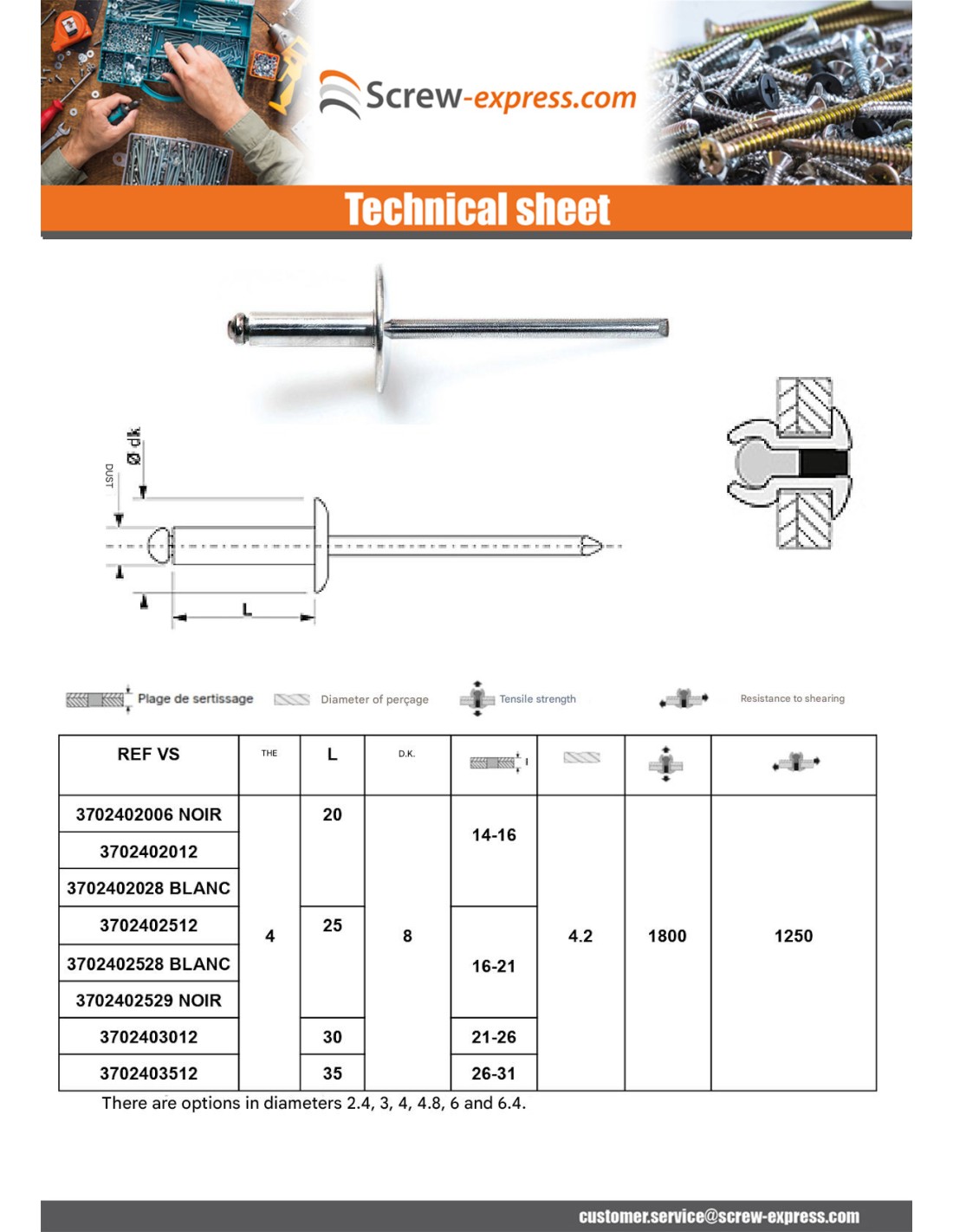

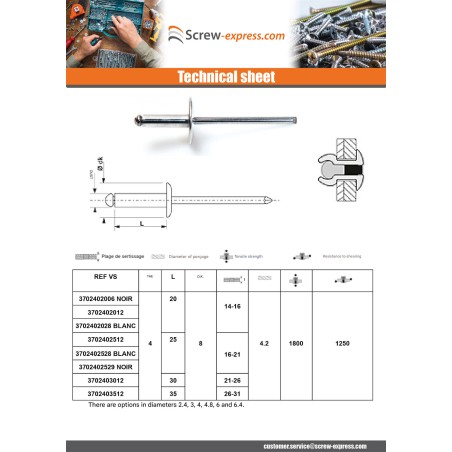

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 115140161 153270 0930509900 115140161 MT459 RAMRIVTP40X0 MT459 40100090 3663072186484
Jean baptiste S. (vis-express.fr)
2026-01-18

It will be used to fix the T-shaped brackets to a gate. The T-shaped brackets are made of 3 mm thick steel.
