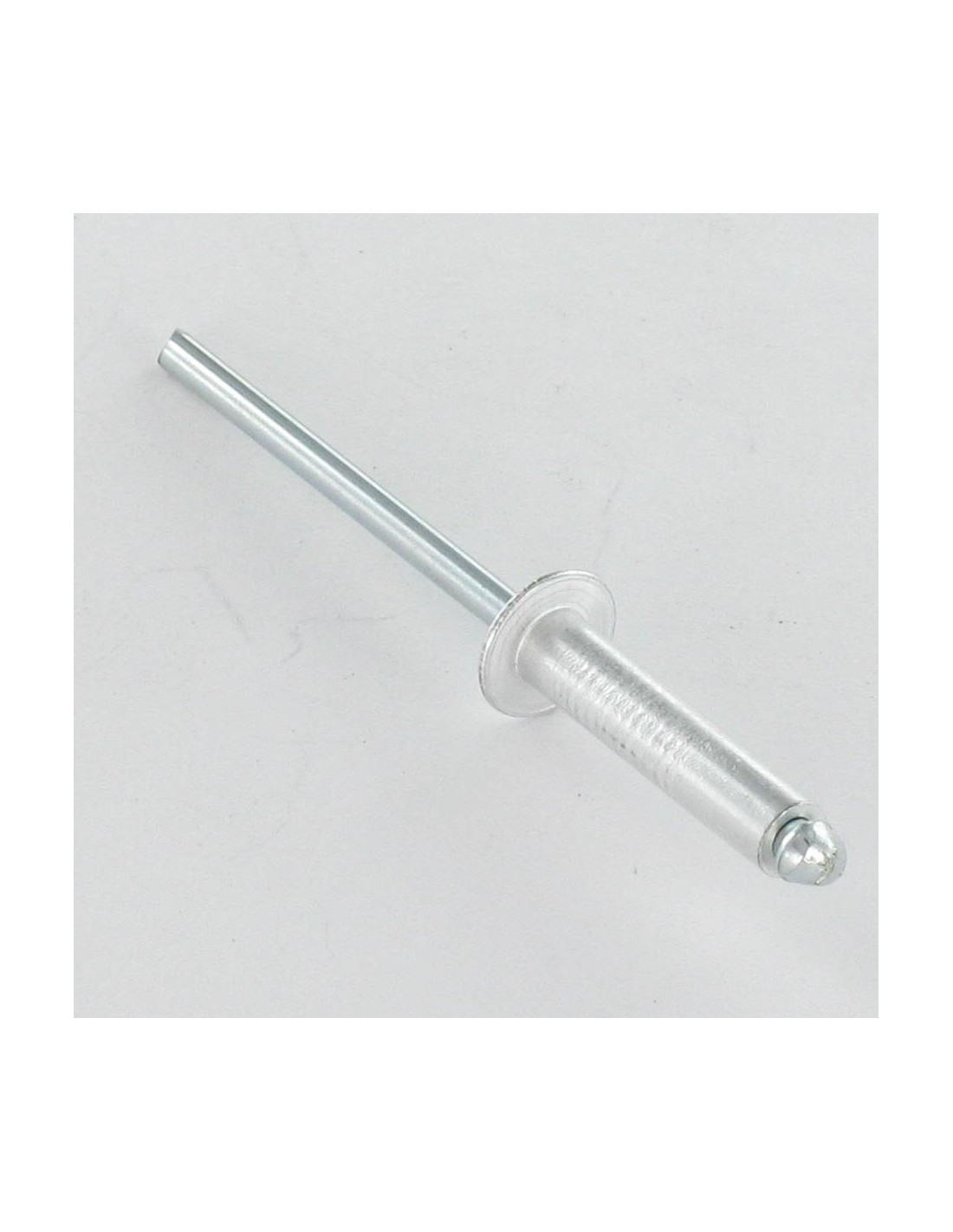

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX

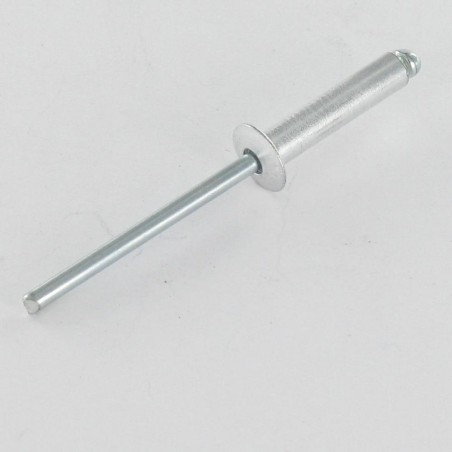

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX

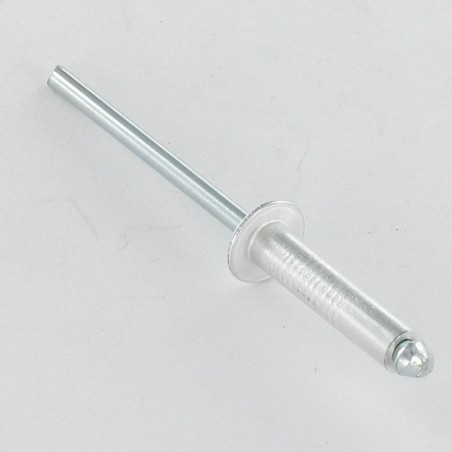

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX

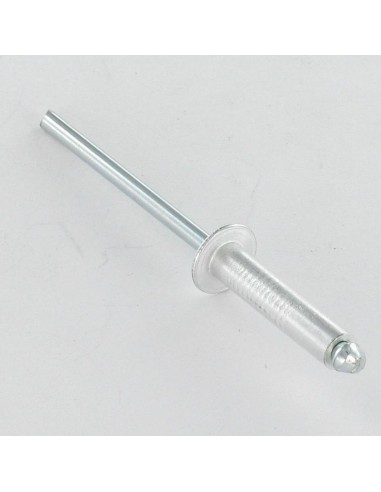

1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...
1 x Blind rivets Aluminium Stahlgewinde 4X16...

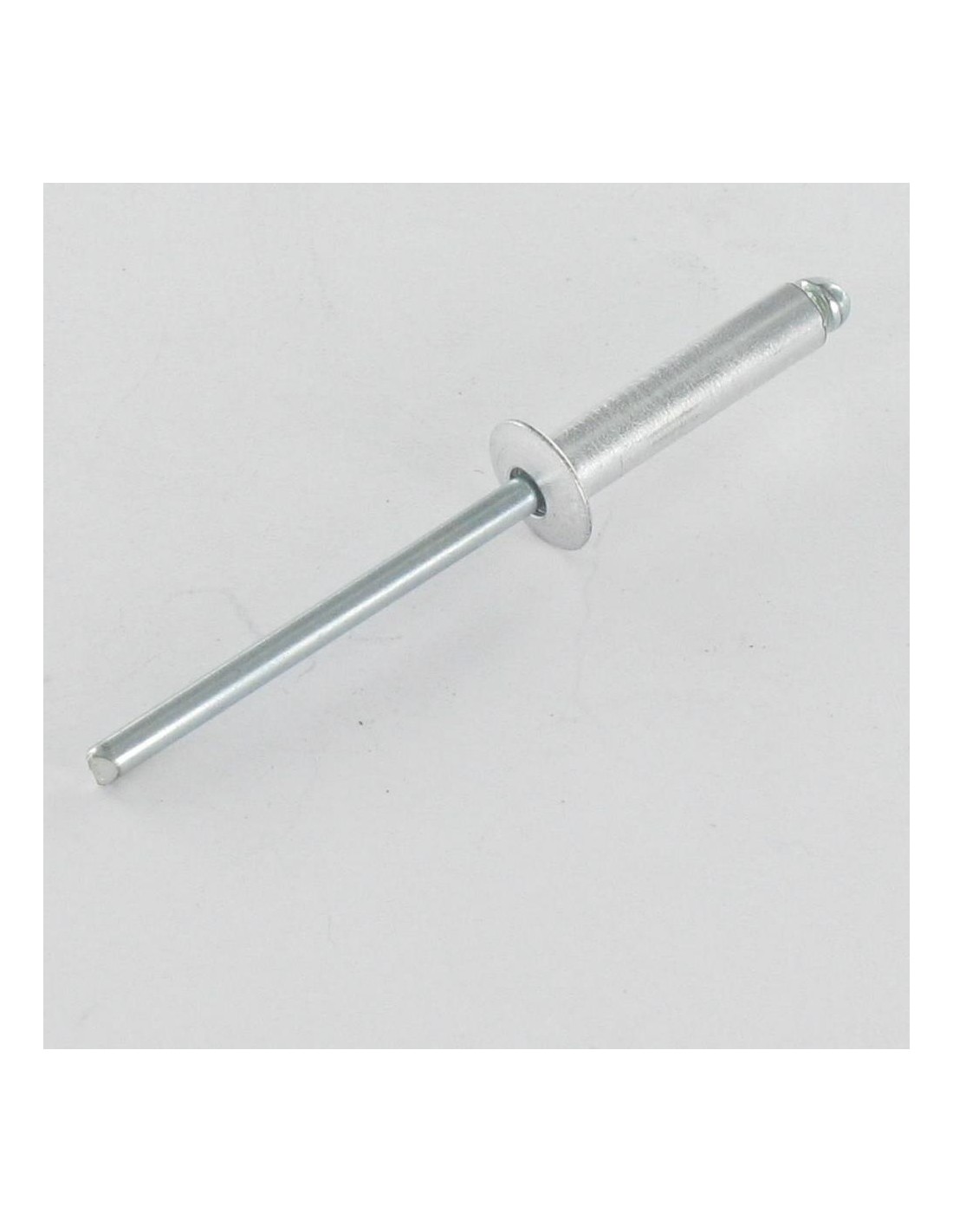

1 x Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX

3702401612_1
In stock 20282 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €1.70 €3.40 €4.05 €18.70

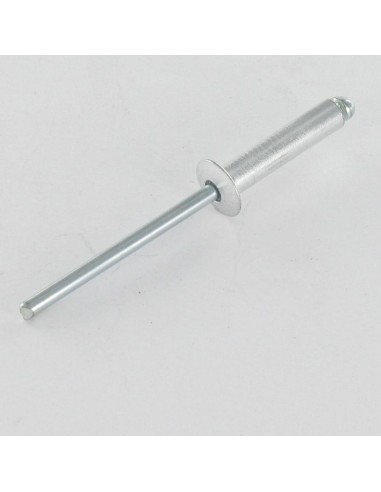

Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
Jobs
Carpenter
WEIGHT For THERE unit
2.1 GR
Clamping thickness
10 to 12 MM
Rivet body length
16
20282 Items
3663072064058
Blind rivets Aluminium Stahlgewinde 4X16 Thickness Of Panel 10 to 12 Flat Head ALX
Diameter = 4, Jobs = Carpenter

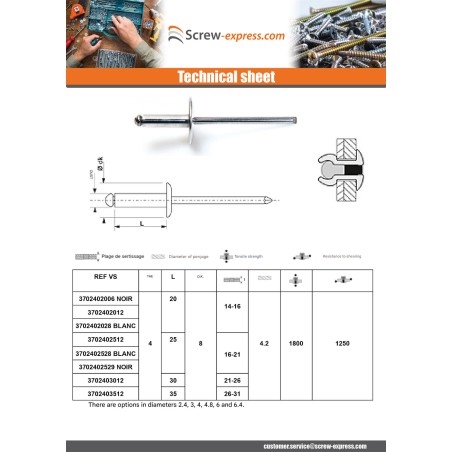

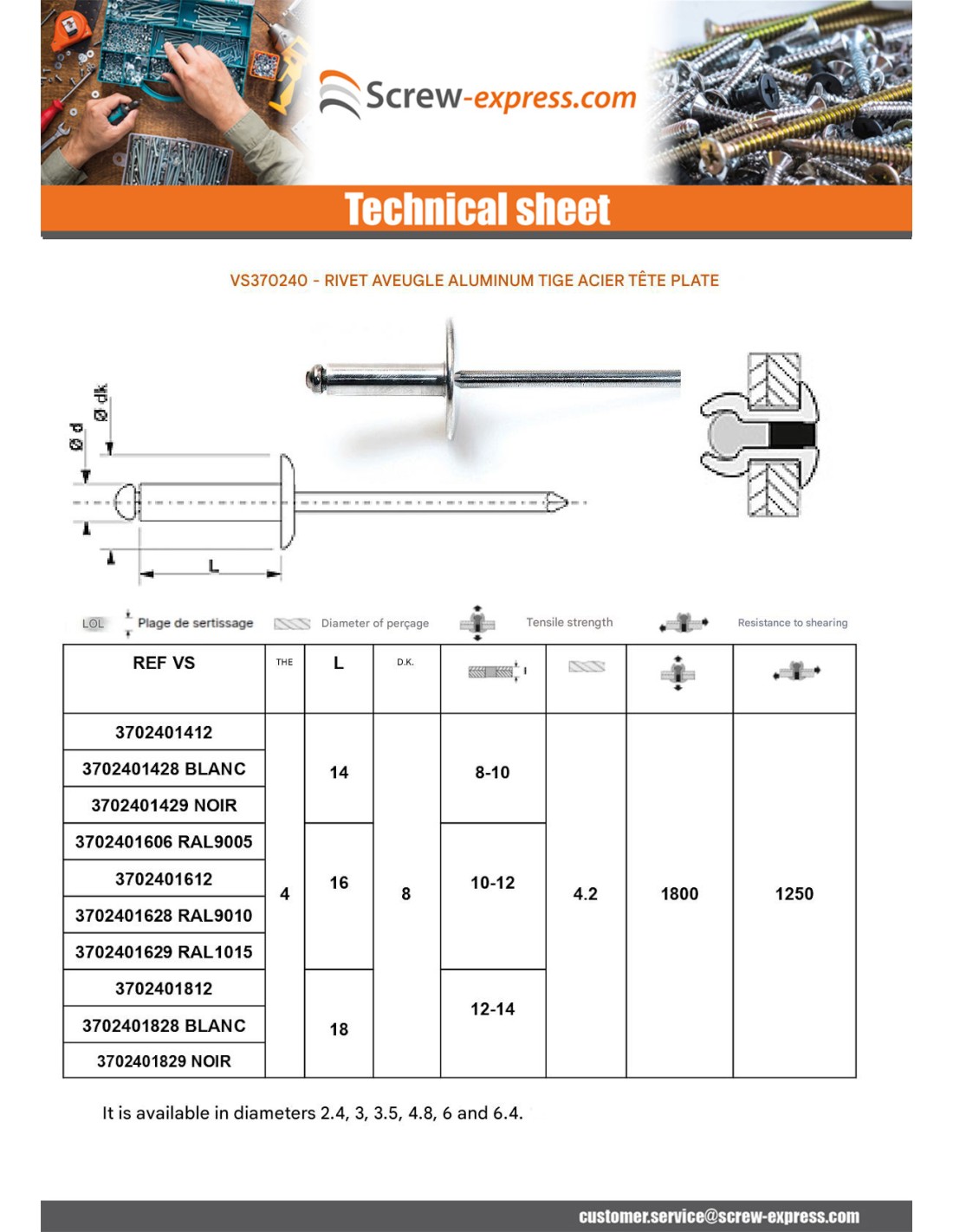

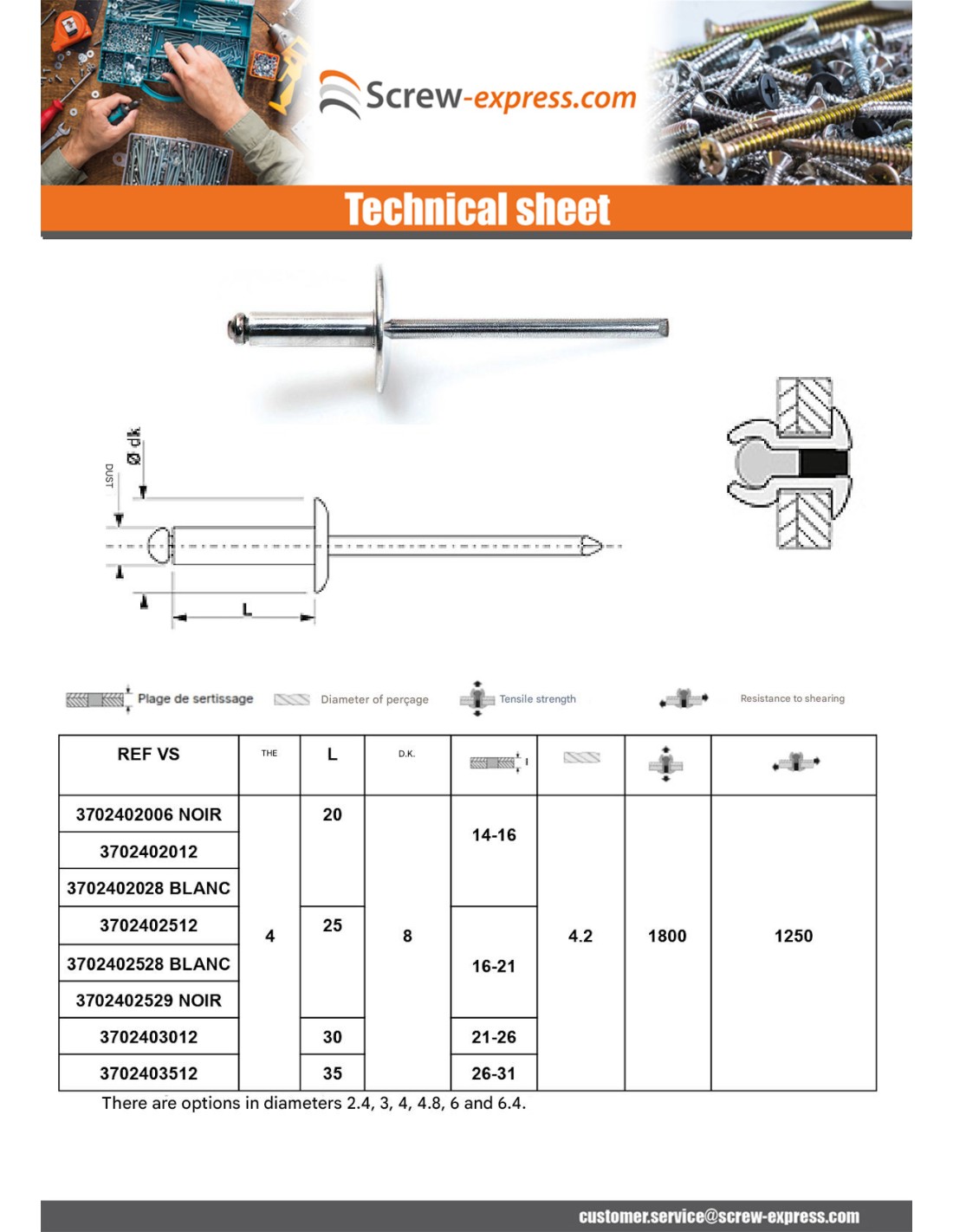

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140161 RIV4X16 2VIRIV008 803046 FIO1440 RIVE416 801416 801416 RIVET4X16 2= ACH3521 39754 11800 0609416 1519-000002 26661 RIVPOP4X16TP 0935098600 300 VU0023 RIVET4X16 39754 39754 RIPO0416 551719 107061 RIV4X16 803046 803046 WFI01440 212021 2741006 39754 RIPOP4X16 RIVAVEU4X16 0847/0416 40100094 300 VRI004816 MVISACI00040 54102 0977AC/4*16 0773 17101760 DMRIV0011 A-00664 39754 10300059 803046 803046 803046 803046 3663072064058
SALIM O. (vis-express.fr)
2025-11-23

For fixing license plates Blind rivet, aluminum, steel shank 4x16, clamping thickness 10-12, flat head ALX VS3702


SALIM O. (vis-express.fr)
2025-11-23

For fixing license plates Blind rivet, aluminum, steel shank 4x16, clamping thickness 10-12, flat head ALX VS3702
