3702401812_1
In stock 12350 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €20.80

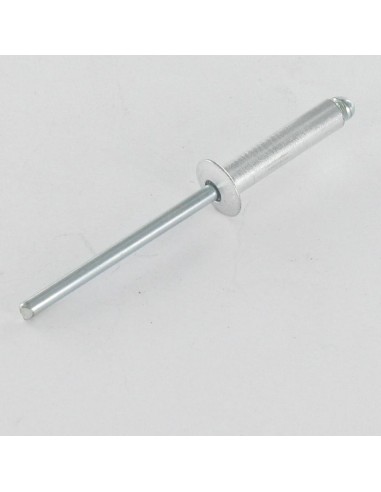

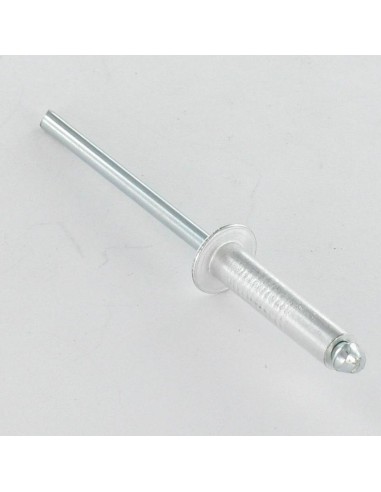

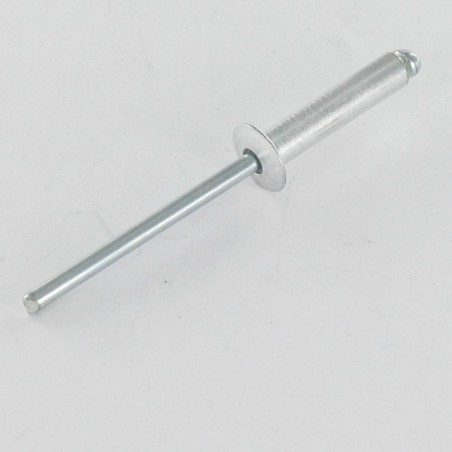

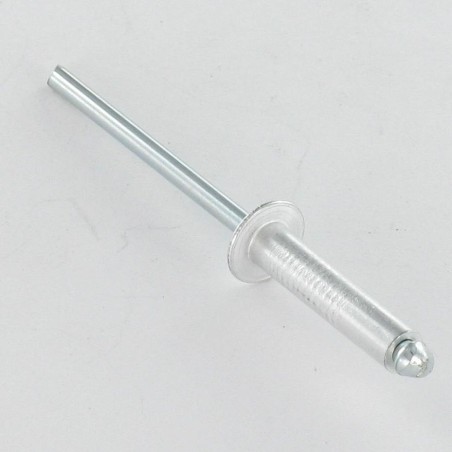

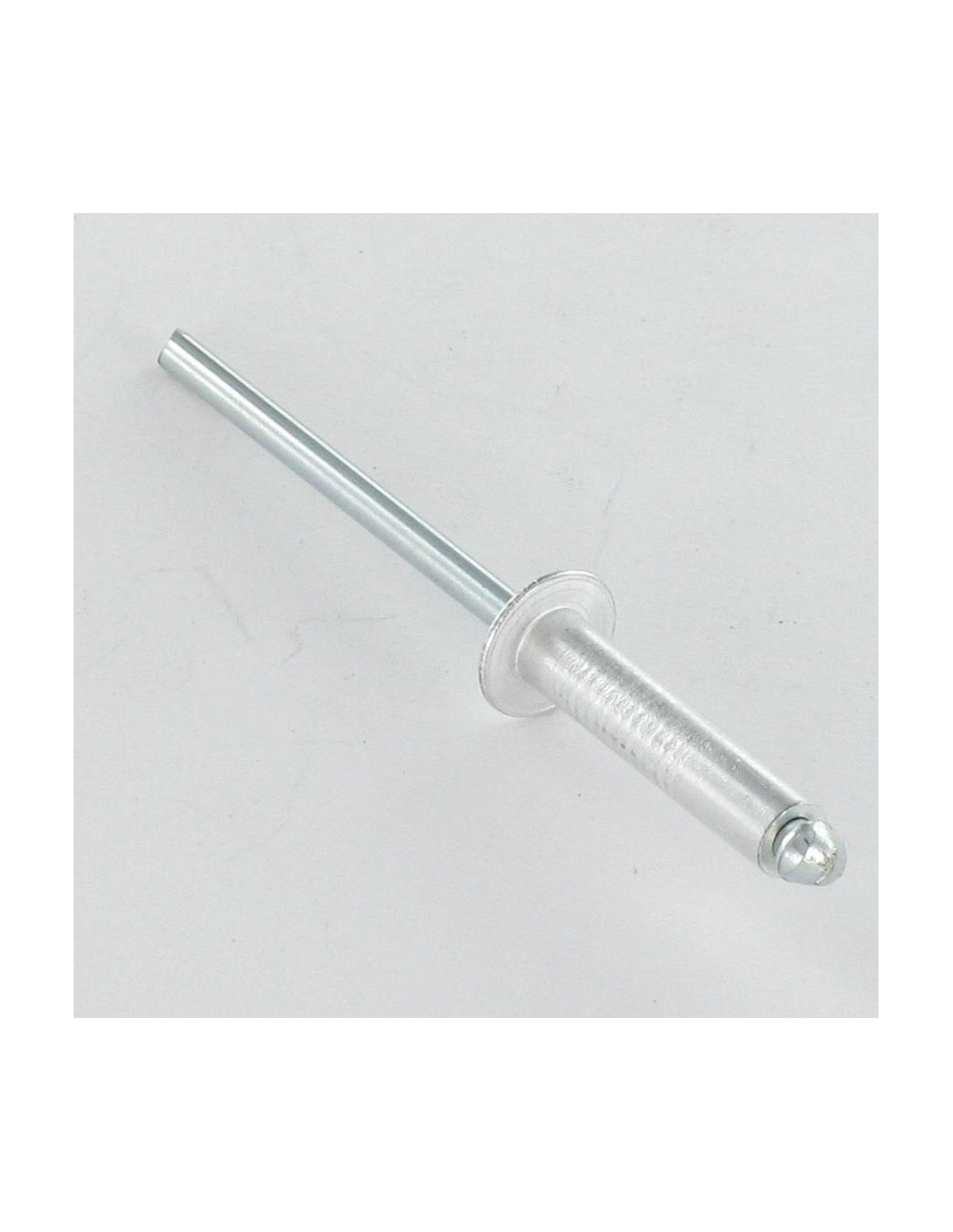

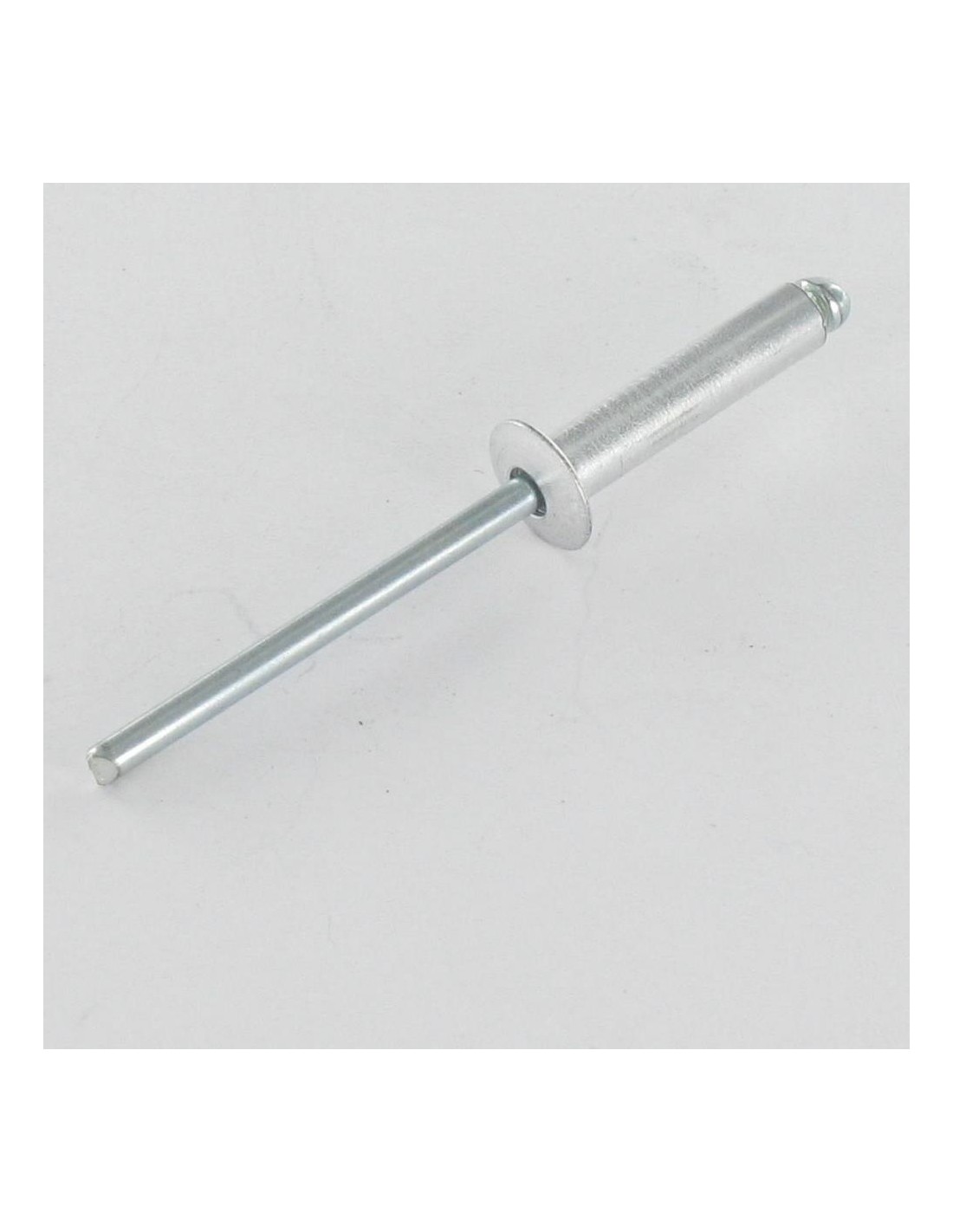

Blind rivets Aluminium Stahlgewinde 4X18 Thickness Of Panel 12 to 14 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Flat Head
WEIGHT For THERE unit
2.2 GR
Clamping thickness
12 to 14 MM
Rivet body length
18
12350 Items
3663072064089
Blind rivets Aluminium Stahlgewinde 4X18 Thickness Of Panel 12 to 14 Flat Head ALX
Diameter = 4


dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140181 A290006 A300104003 10531 VB136 RF16006 0626 301 RF16006 AN VIS154 RAS41003 212024 20911004 354448 301 123001020 A01313 123001020 MOIS 11595418 3663072064089
Clara L. (vis-express.fr)
2025-02-09

We use this product to assemble the sheets of our shelter. A shelter 1130 mm high and 800 mm wide.
