3702481412_1
In stock 73821 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €17.25

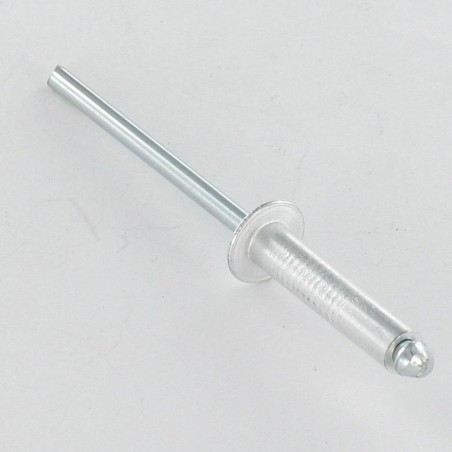

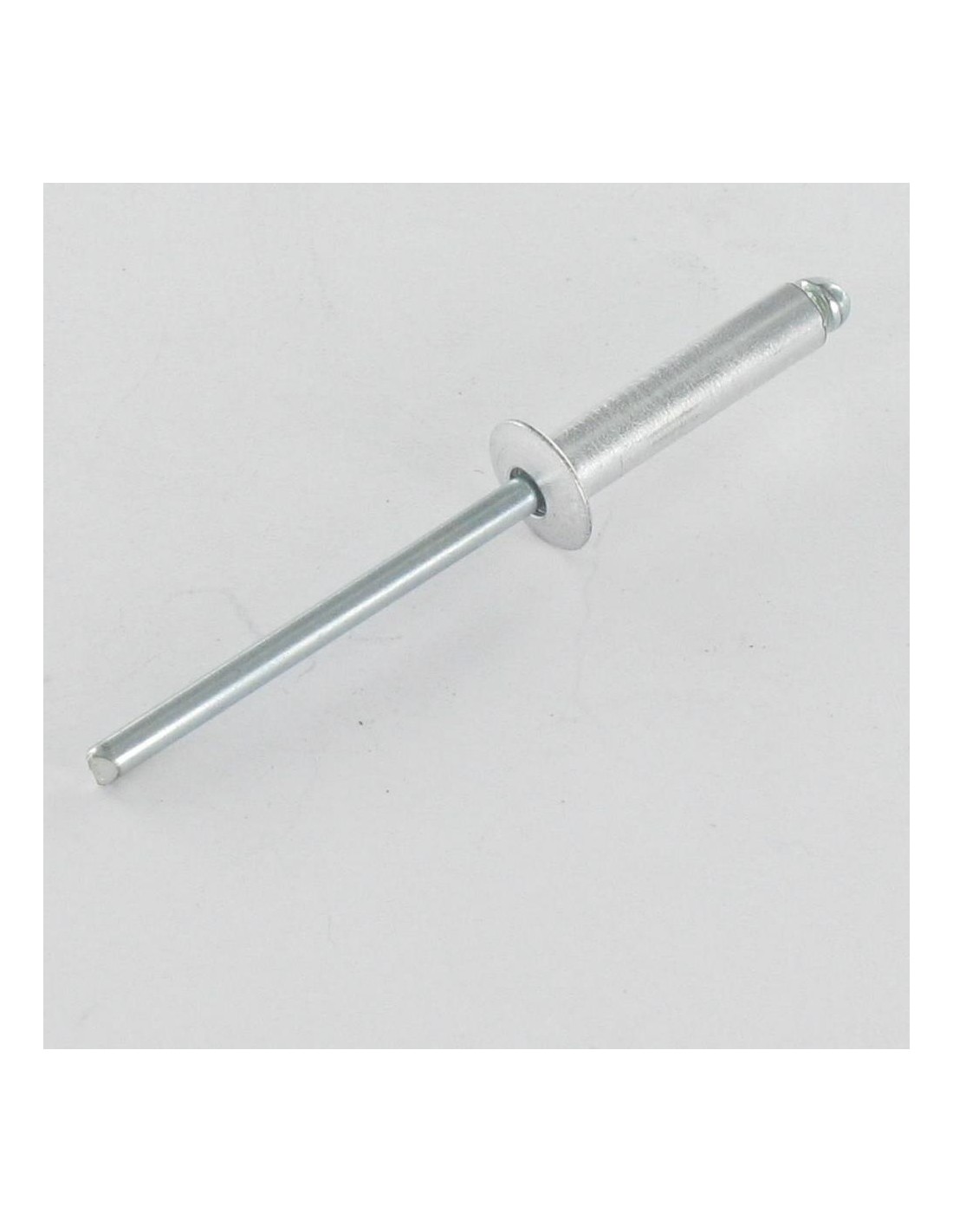

Blind rivets Aluminium Stahlgewinde 4.8X14 Thickness Of Panel 7 to 9 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Sub product family
Flat Head
WEIGHT For THERE unit
2.66 GR
Clamping thickness
7 to 9 MM
Rivet body length
14
73821 Items
3663072064195
Blind rivets Aluminium Stahlgewinde 4.8X14 Thickness Of Panel 7 to 9 Flat Head ALX
Diameter = Class 4.8

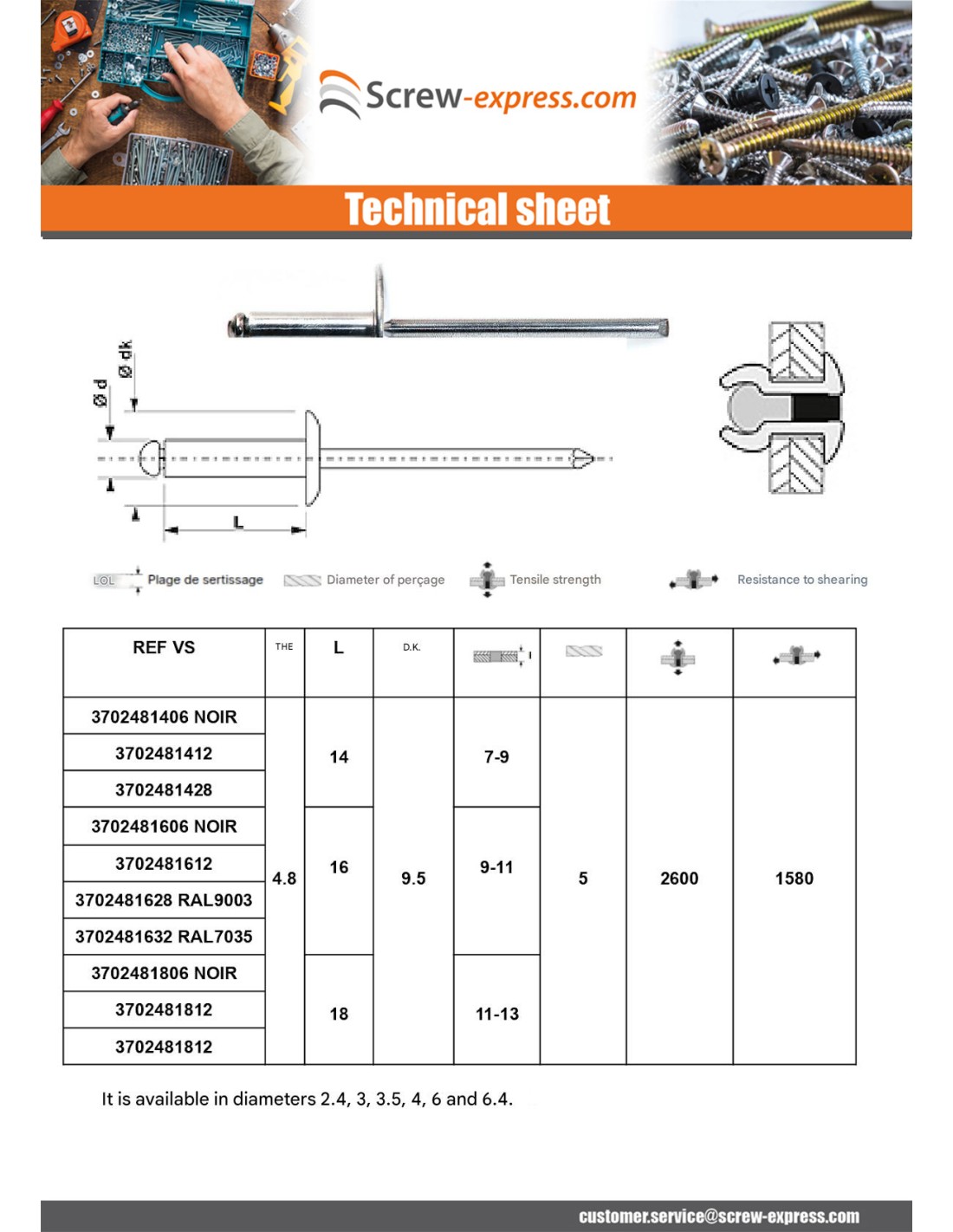

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103148141 RIVETPOP_5 130512 04194816 24101 3031001 RIVET4.8*14 AN 1407000014 30520366 A00027036 5483 PVRV02 016239 71IRIVET009 212037 03X010 046091 POP4-14 0847/0514 A3014814 SI003020 78722520 1010110 SI003020 0977AC/48*14 S010388800 7690006 390001759 3663072064195
