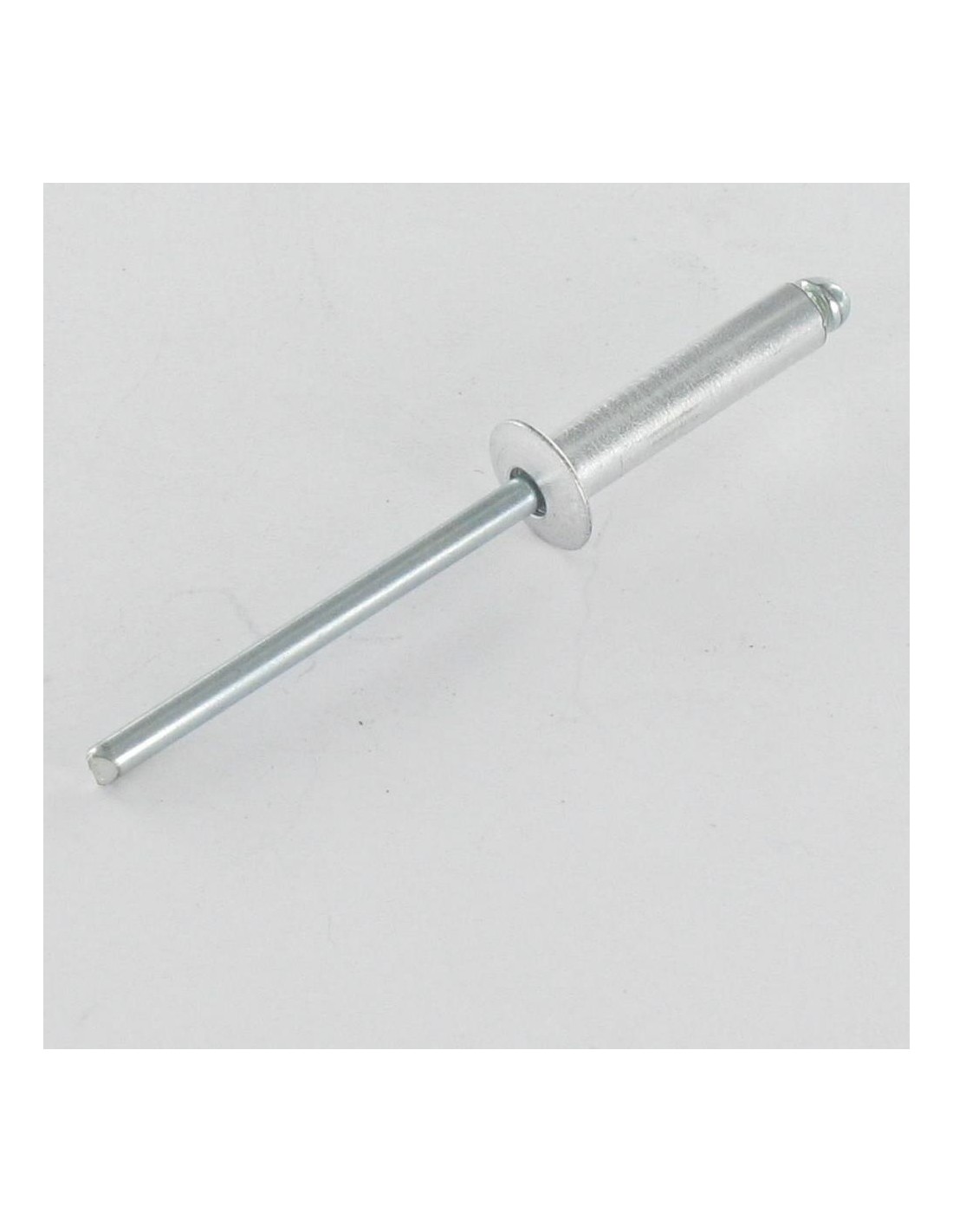

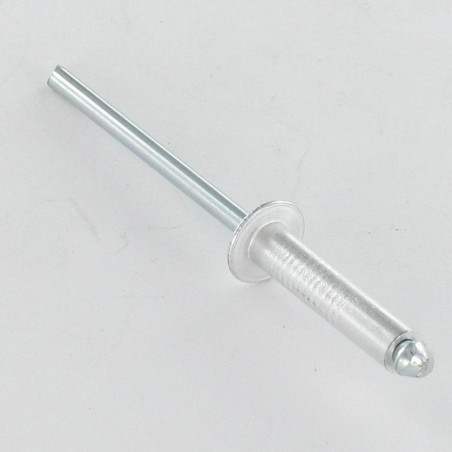

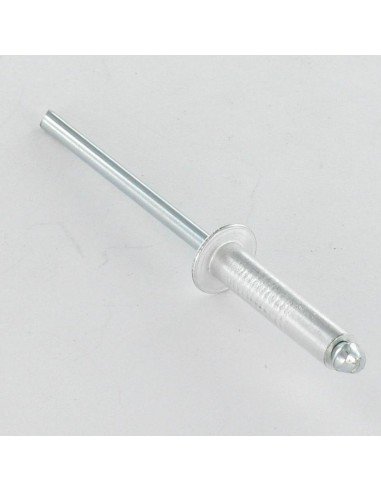

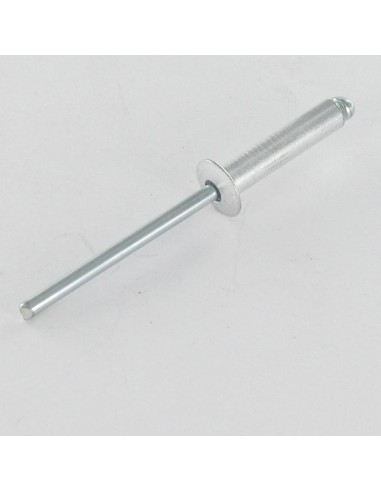

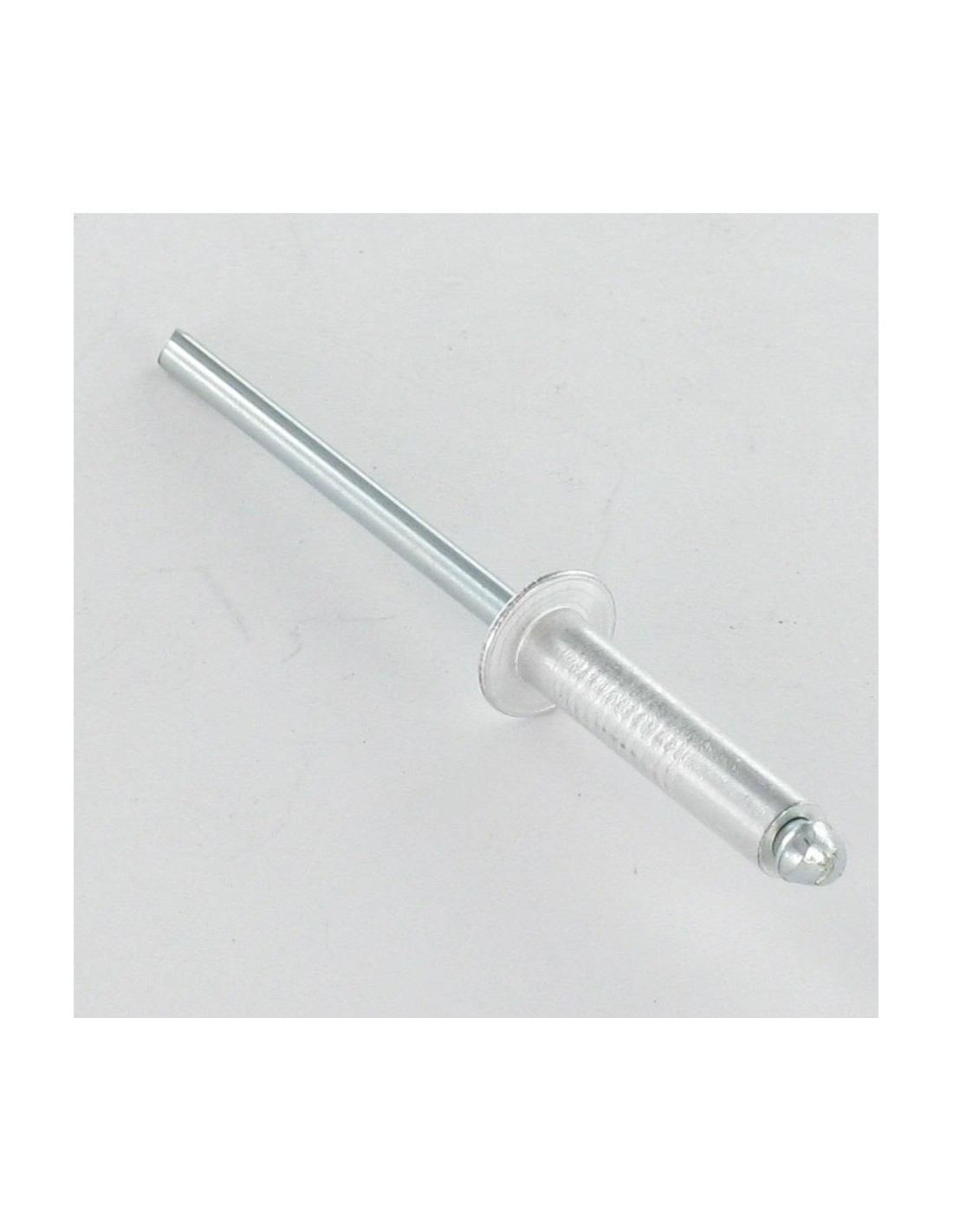

1 x Blind rivets Aluminium Stahlgewinde 6.4X18 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 6.4X18 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 6.4X18 Thickness Of Panel 10 to 12 Flat Head ALX
1 x Blind rivets Aluminium Stahlgewinde 6.4X18...
1 x Blind rivets Aluminium Stahlgewinde 6.4X18...
1 x Blind rivets Aluminium Stahlgewinde 6.4X18...

1 x Blind rivets Aluminium Stahlgewinde 6.4X18 Thickness Of Panel 10 to 12 Flat Head ALX

3702641812_1
In stock 3545 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included €3.85 €7.70 €9.30 €33.10
Blind rivets Aluminium Stahlgewinde 6.4X18 Thickness Of Panel 10 to 12 Flat Head ALX
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

Dimensions shown in millimeters (mm)

Diameter
6.4
Sub product family
Flat Head
WEIGHT For THERE unit
6.4 GR
Clamping thickness
10 to 12 MM
Rivet body length
18
3545 Items
3663072064355
Blind rivets Aluminium Stahlgewinde 6.4X18 Thickness Of Panel 10 to 12 Flat Head ALX
Diameter = 6.4

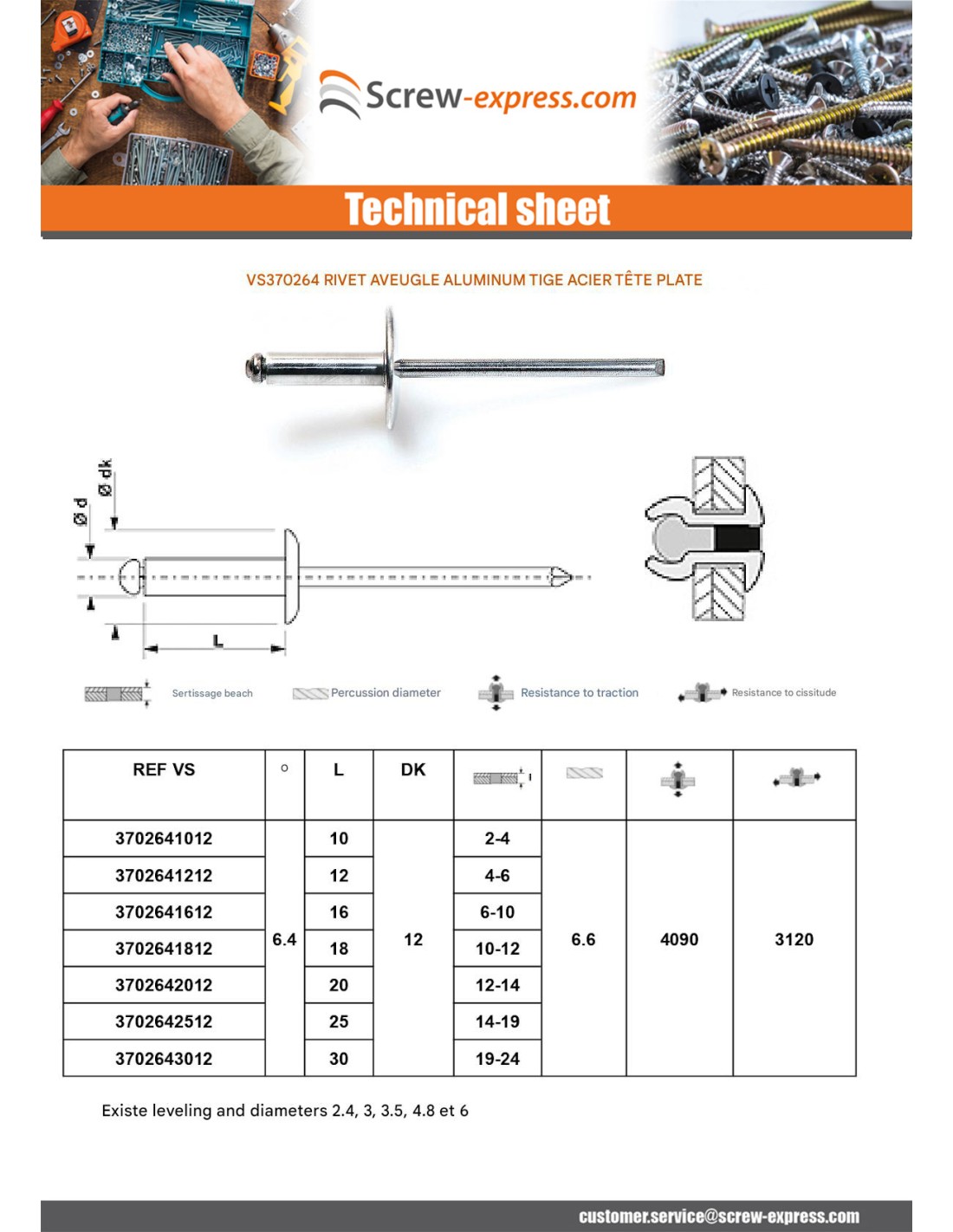

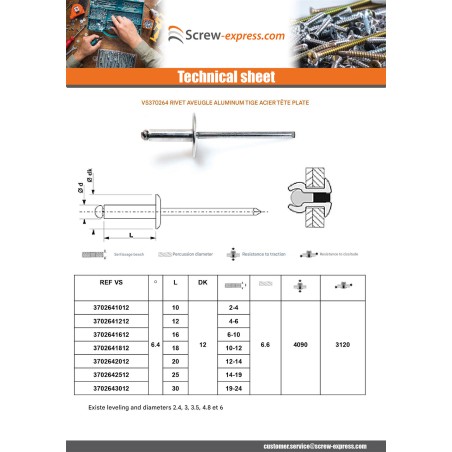

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103164181 32RI618A 451VI8200 3663072064355
