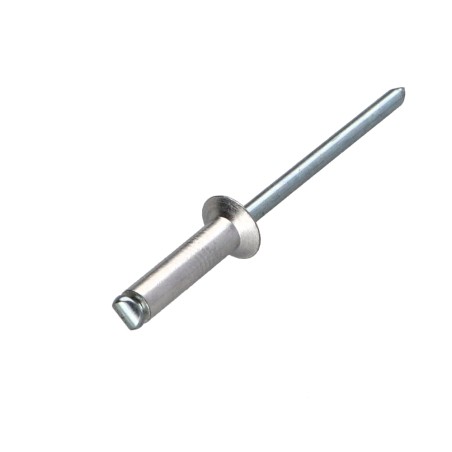

1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX

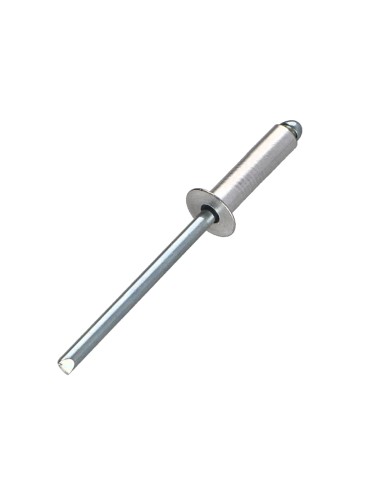

1 x Blind rivets Aluminium Stahlgewinde 2.4X6...

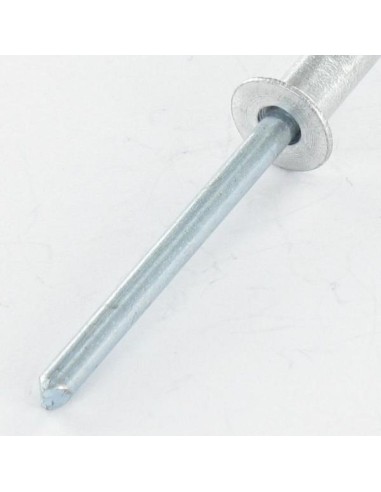

1 x Blind rivets Aluminium Stahlgewinde 2.4X6...

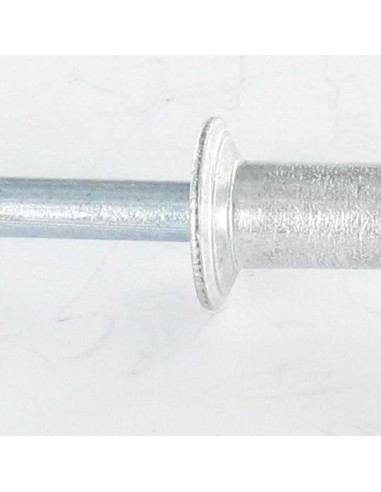

1 x Blind rivets Aluminium Stahlgewinde 2.4X6...
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...
1 x Blind rivets Aluminium Stahlgewinde 2.4X6...

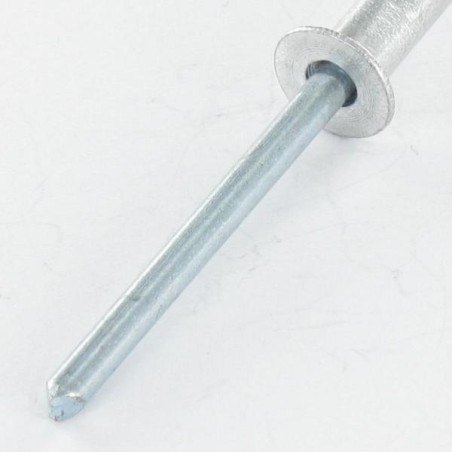

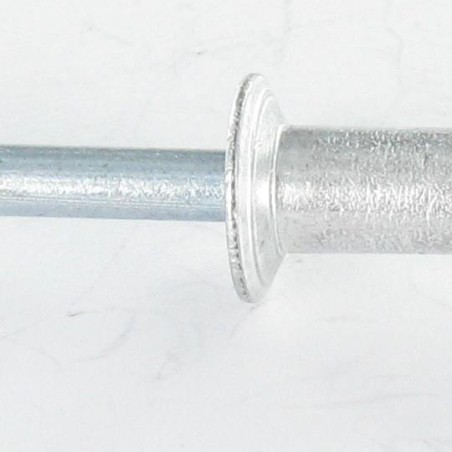

1 x Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX

3701240612_1
In stock 9369 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.34 £6.68 £8.03 £26.29

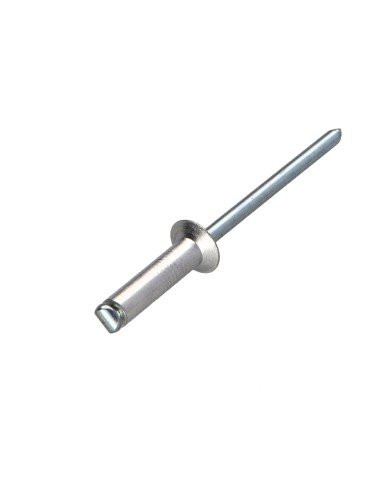

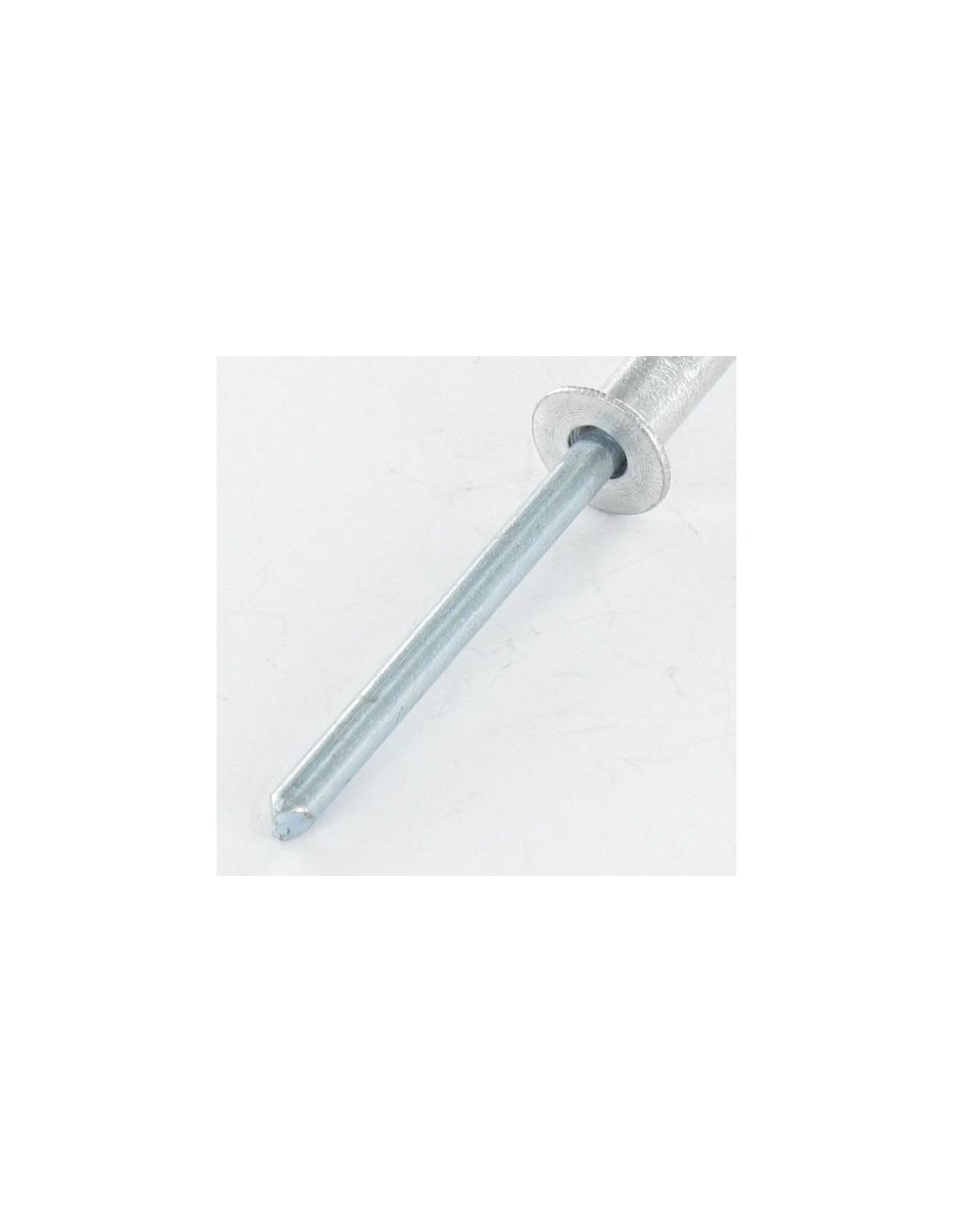

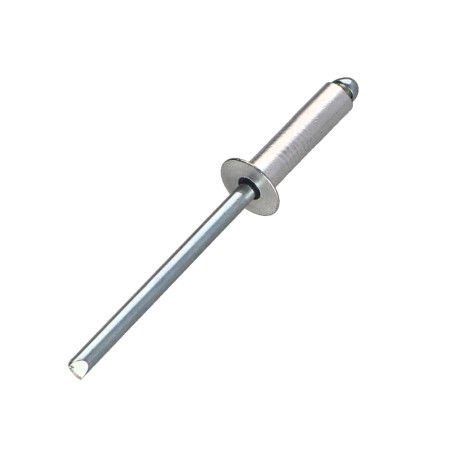

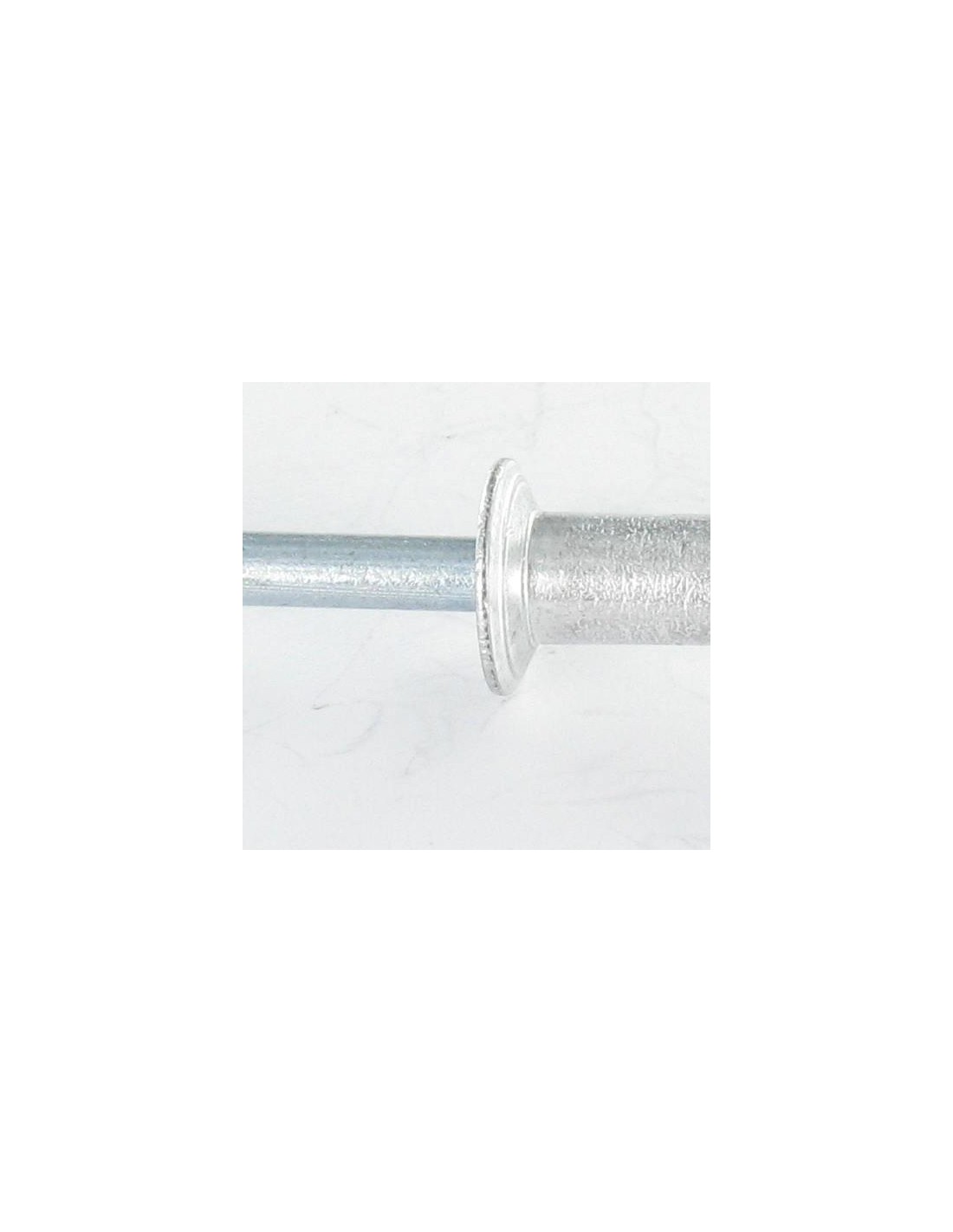

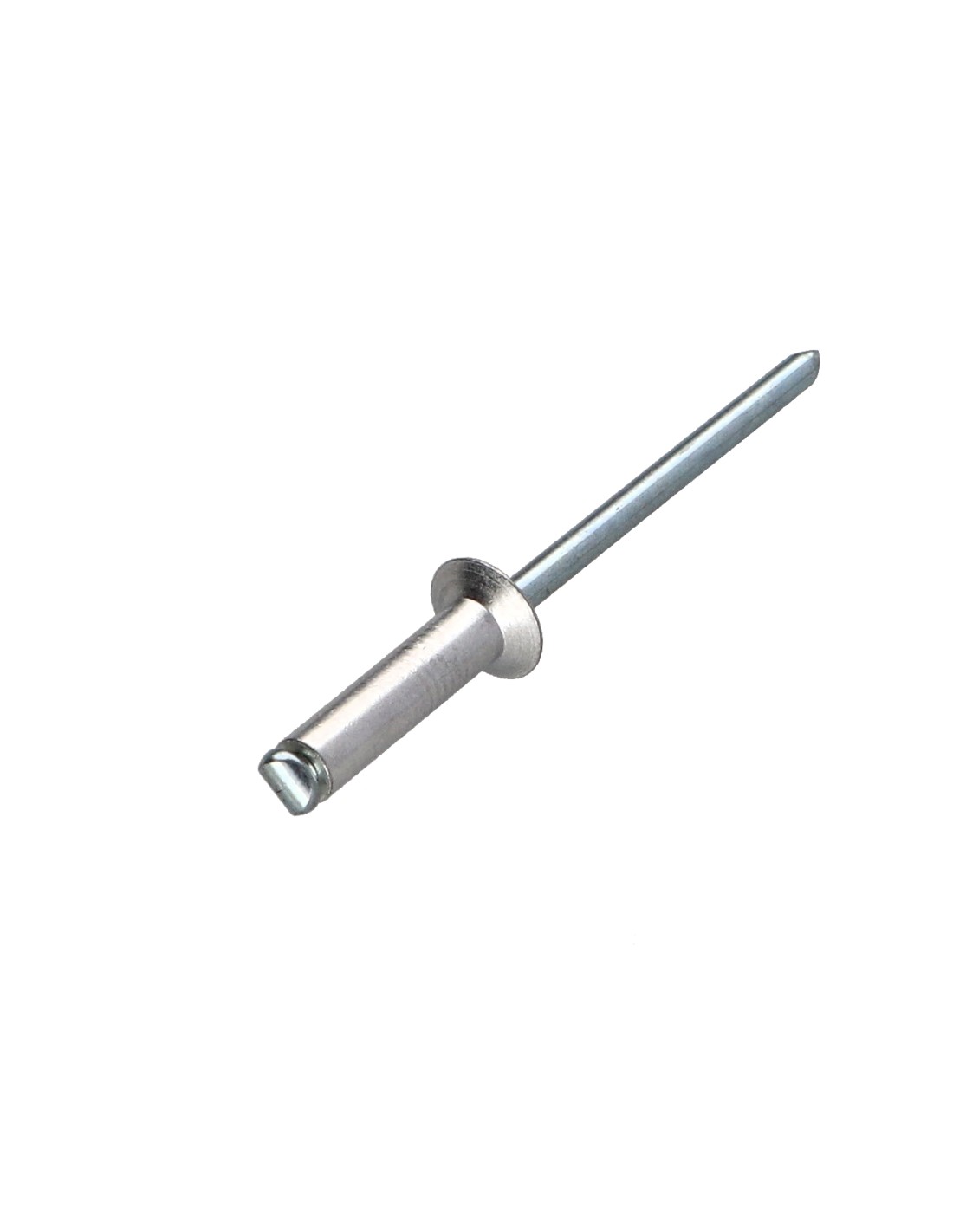

Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
2.4
Sub product family
Countersunk Head
WEIGHT For THERE unit
0.6 GR
Clamping thickness
2 to 4 MM
Rivet body length
6
9369 Items
3663072301771
Blind rivets Aluminium Stahlgewinde 2.4X6 Thickness Of Panel 2 to 4 Countersunk Head ALX
Diameter = 2.4, Sub Product Family = Countersunk Head

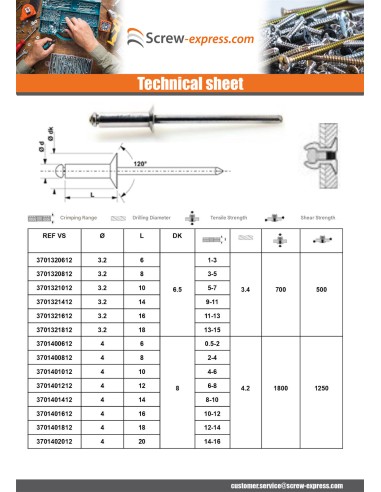

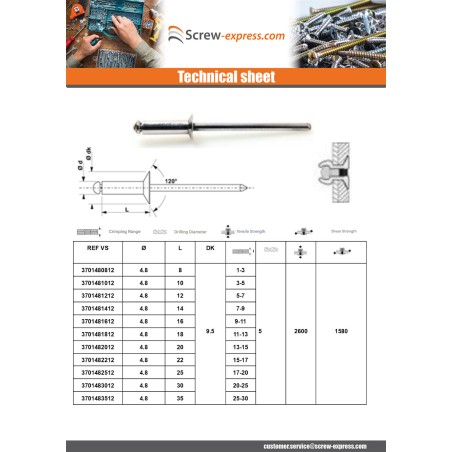

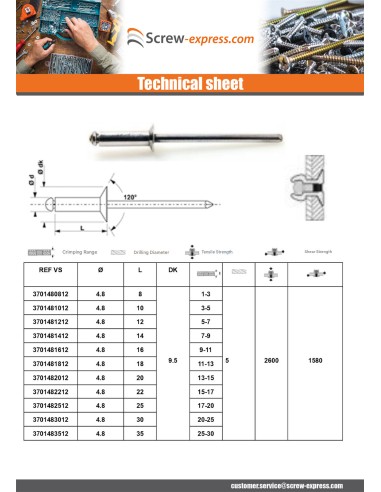

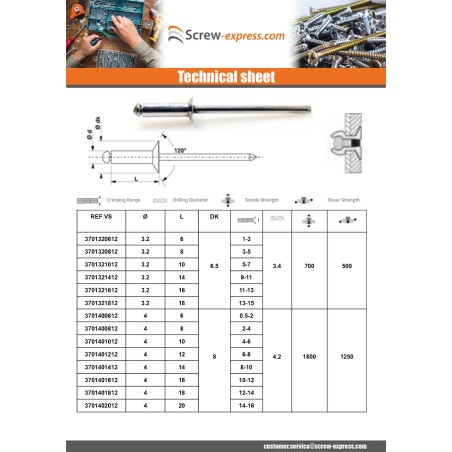

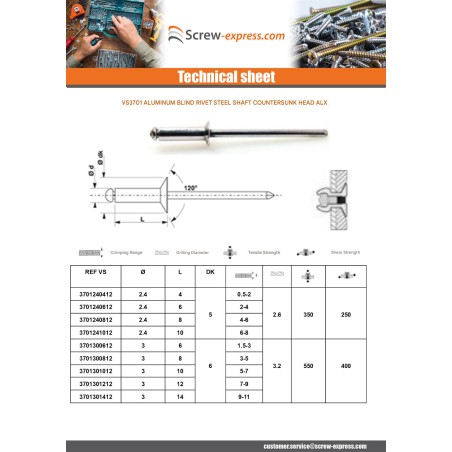

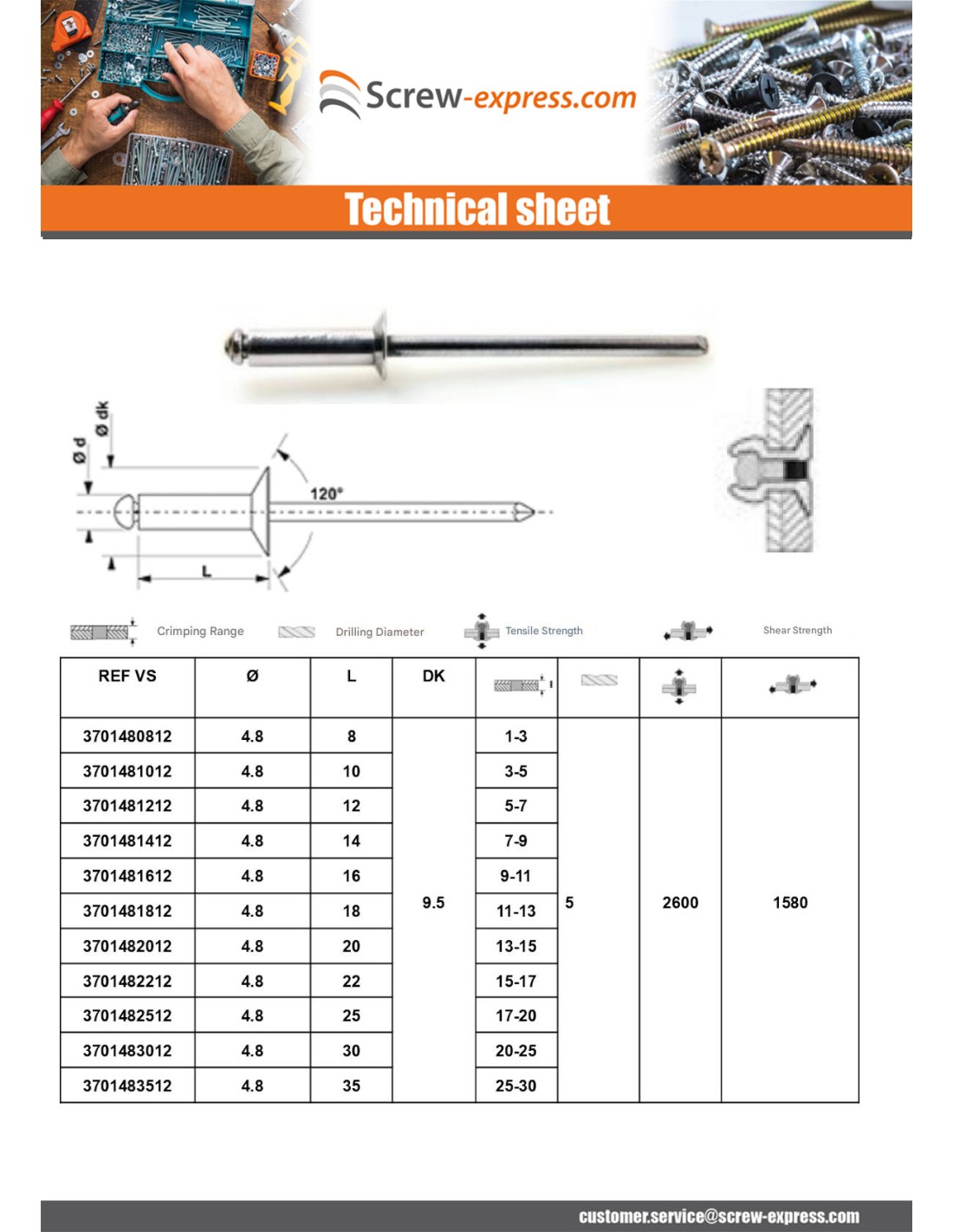

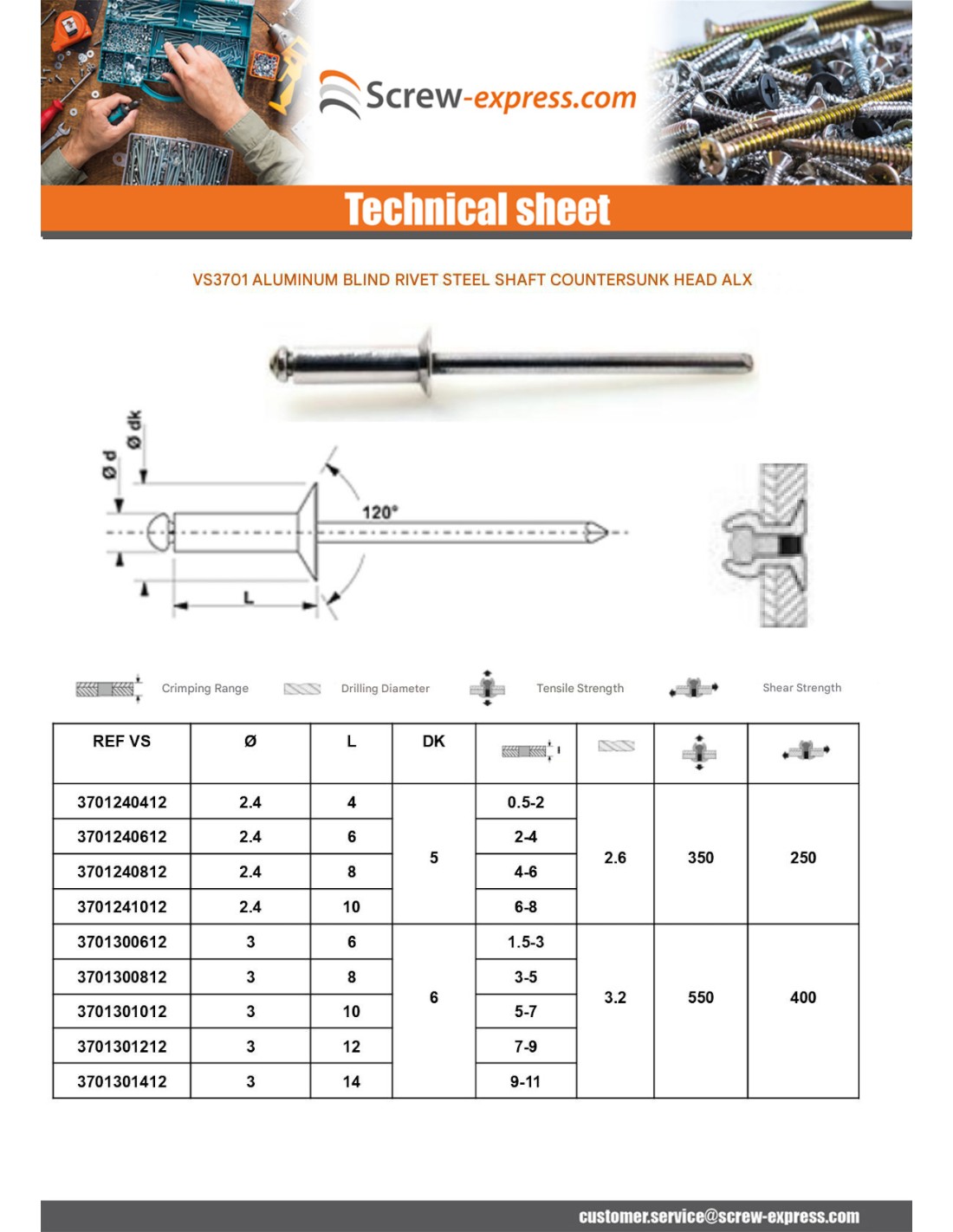

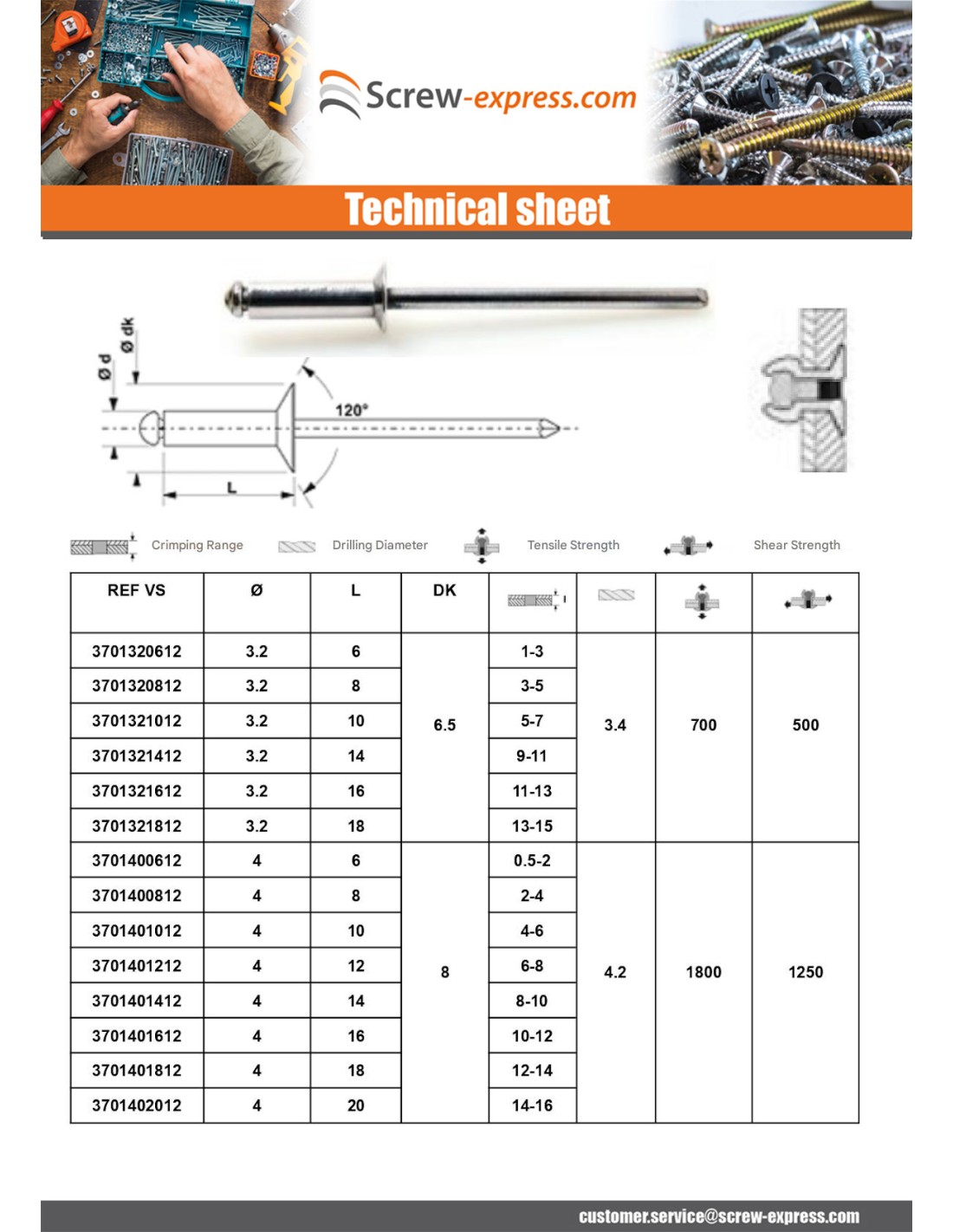

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103424061 RIVEAL/ACT C92571 3663072301771
