3701241012_1
In stock 1400 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €3.85 €7.70 €9.25 €27.40

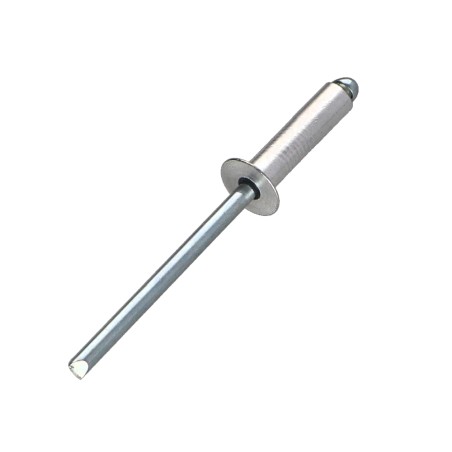

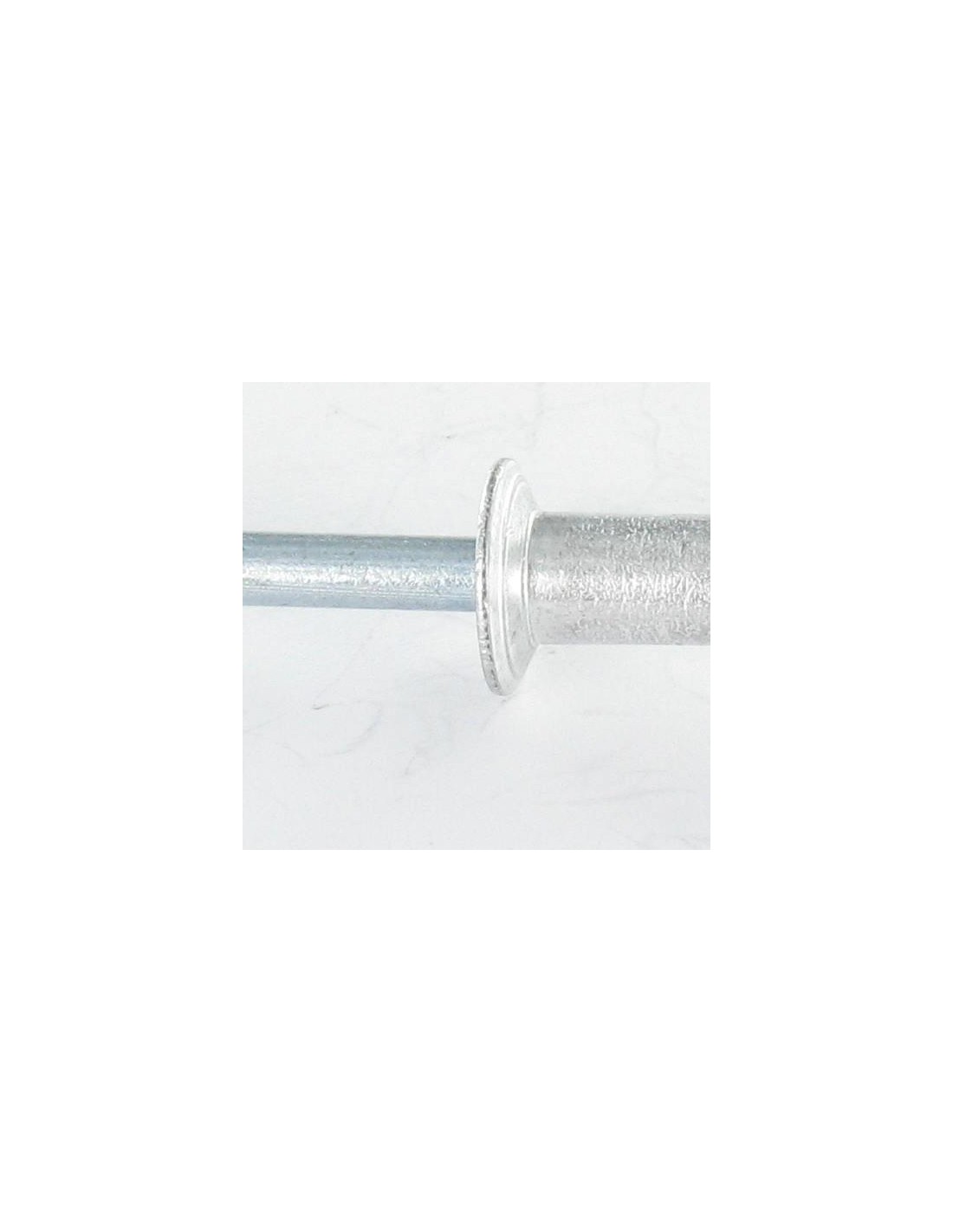

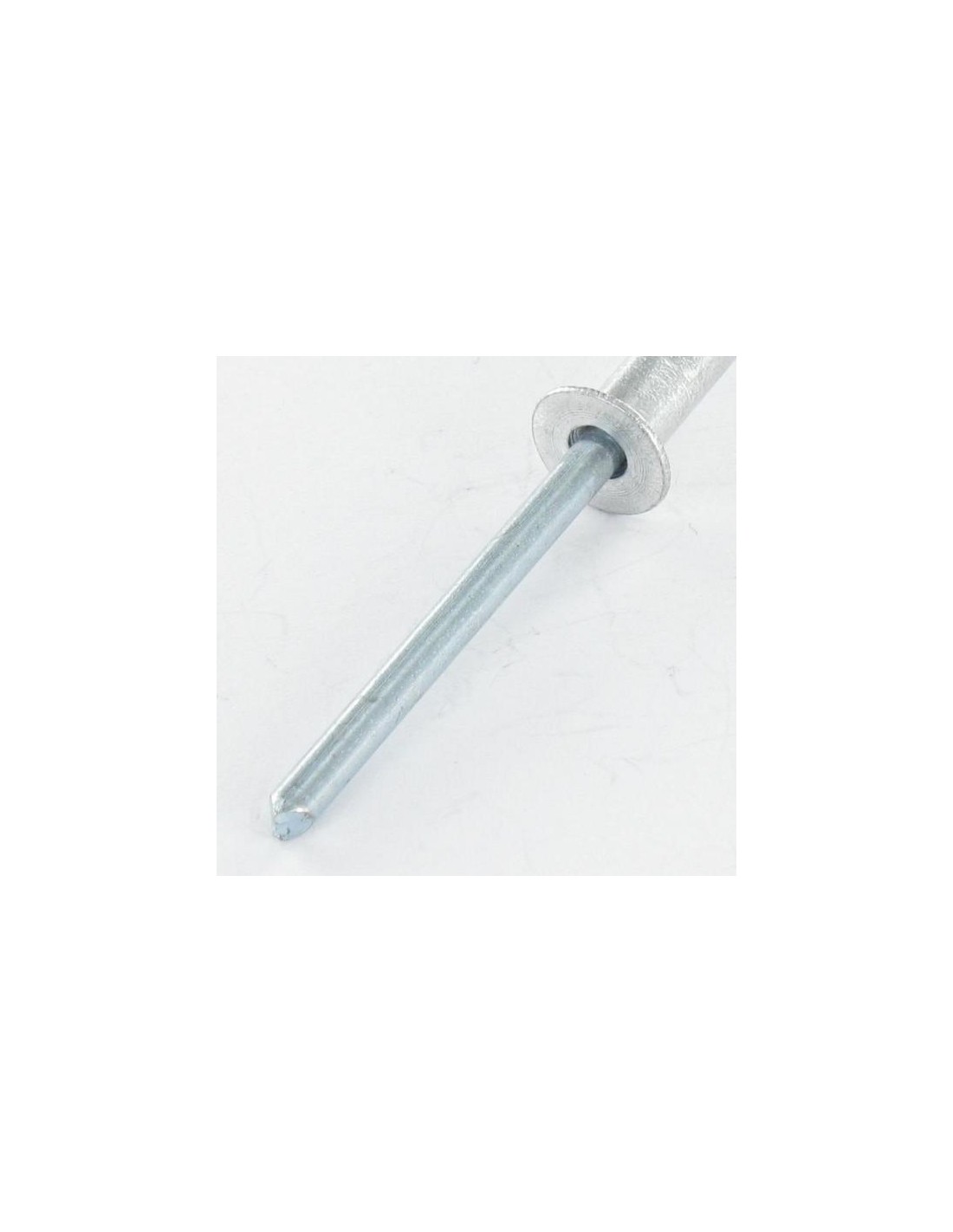

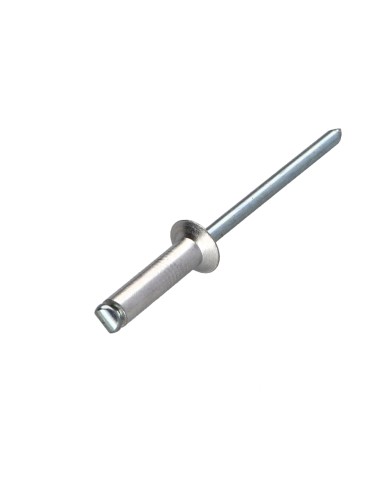

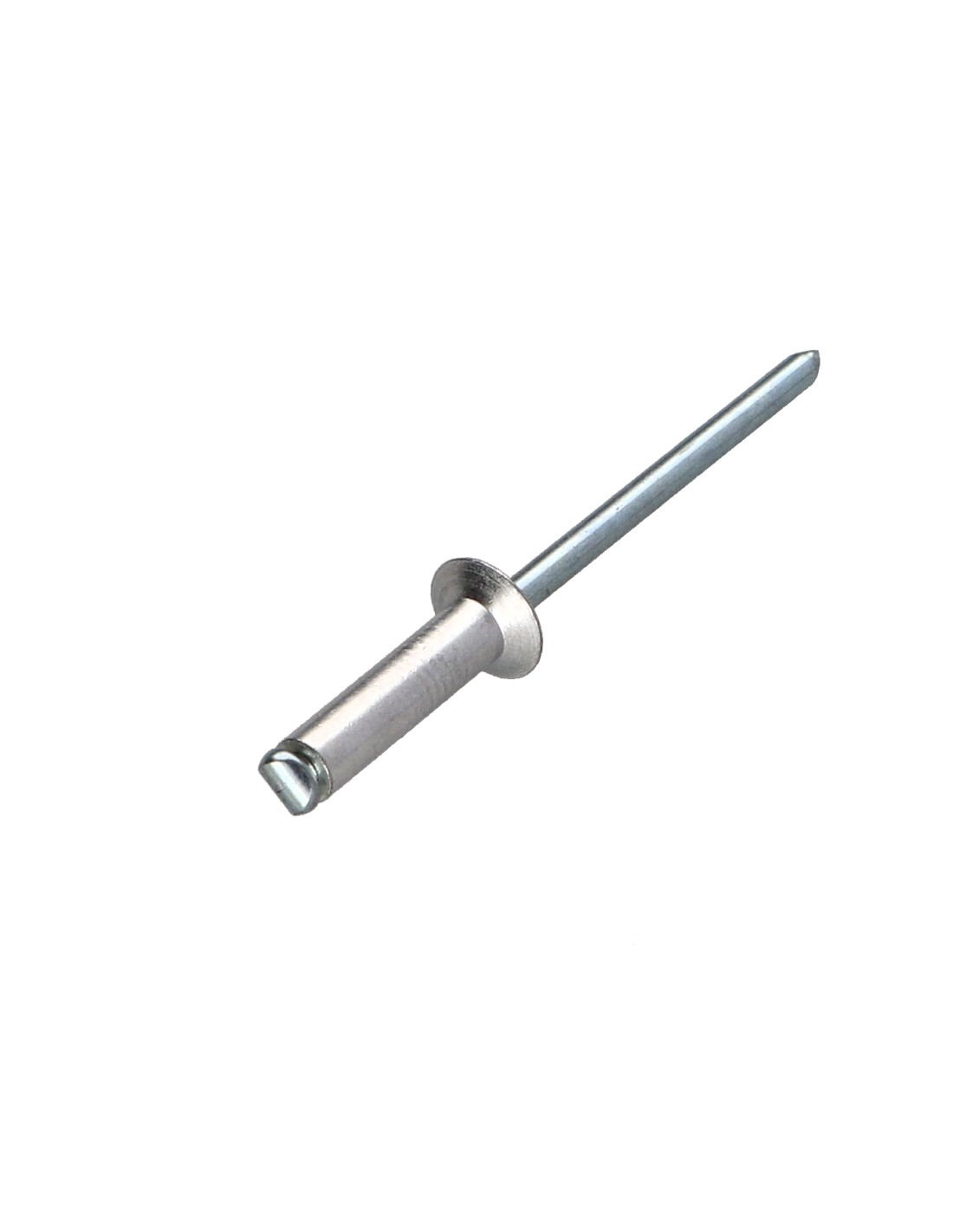

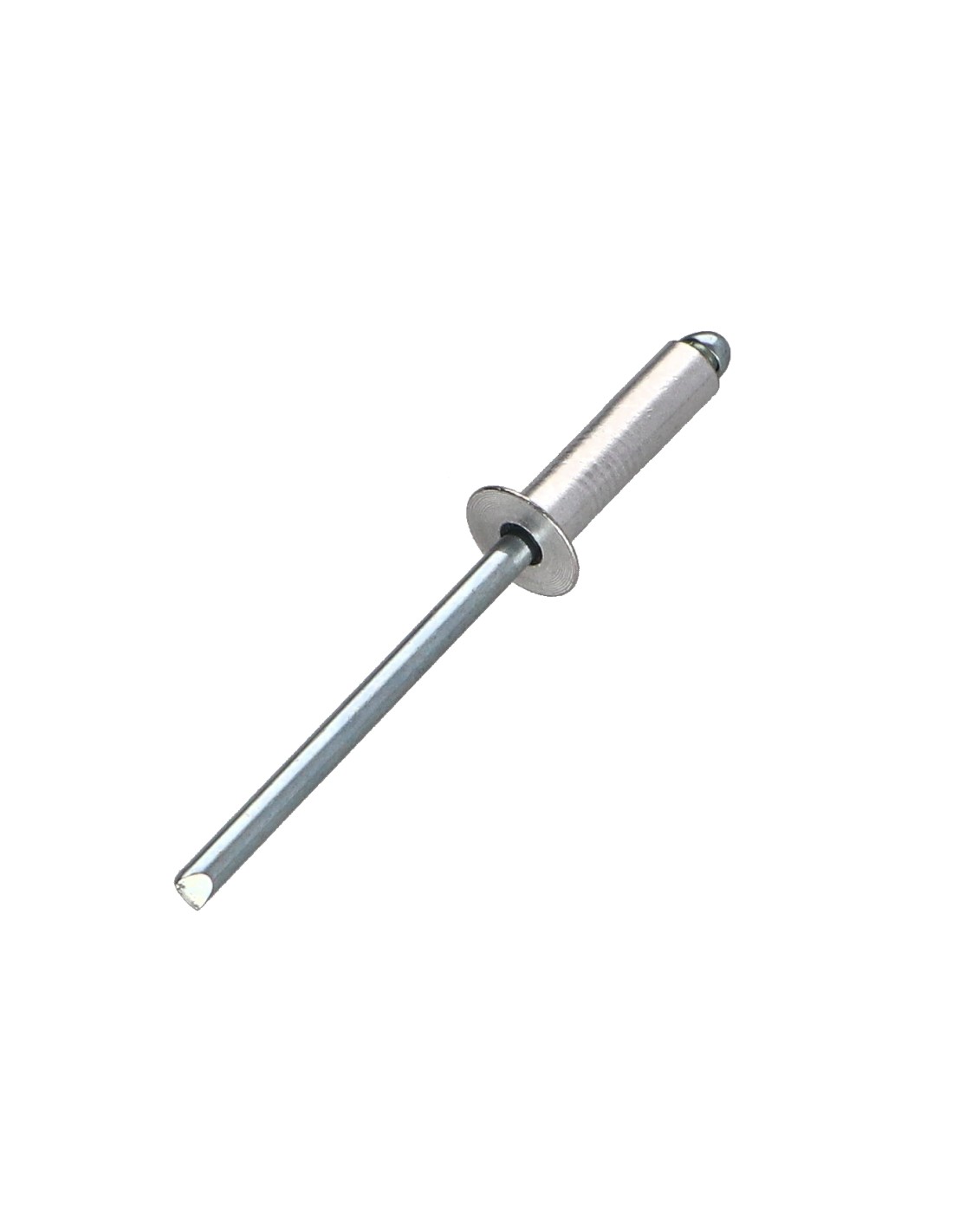

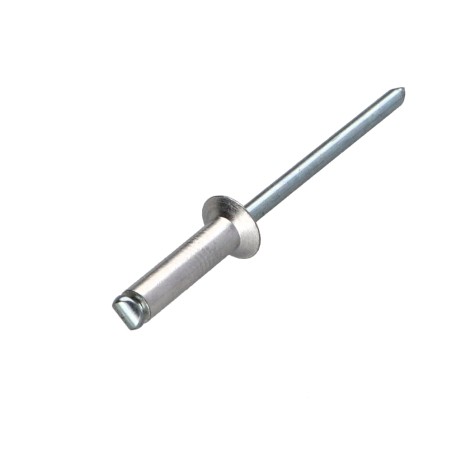

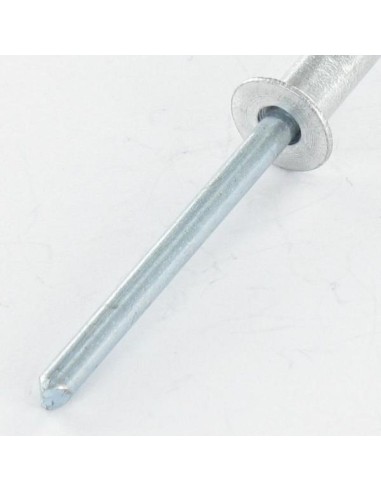

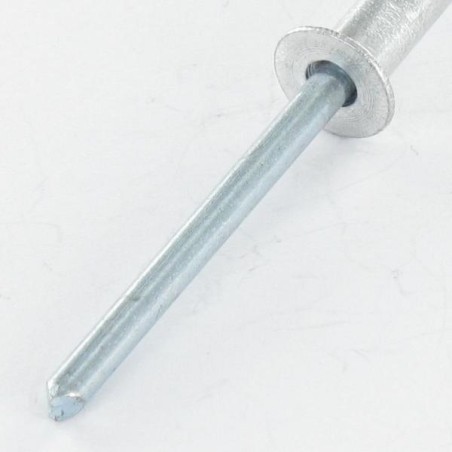

Blind rivets Aluminium Stahlgewinde 2.4X10 Thickness Of Panel 6 to 8 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
2.4
Sub product family
Countersunk Head
WEIGHT For THERE unit
0.65 GR
Clamping thickness
6 to 8 MM
Rivet body length
10
1400 Items
3663072187634
Blind rivets Aluminium Stahlgewinde 2.4X10 Thickness Of Panel 6 to 8 Countersunk Head ALX
Diameter = 2.4, Sub Product Family = Countersunk Head

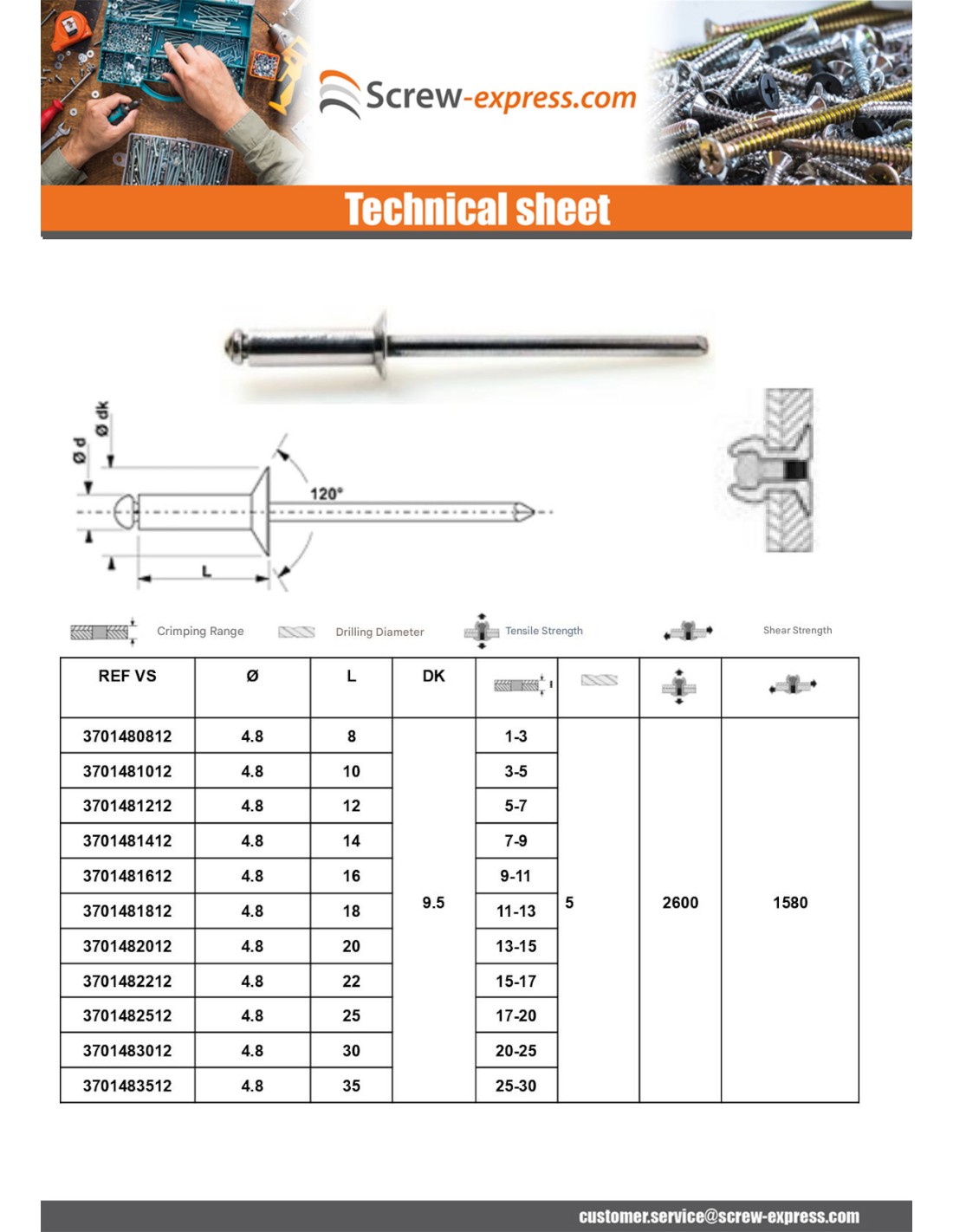

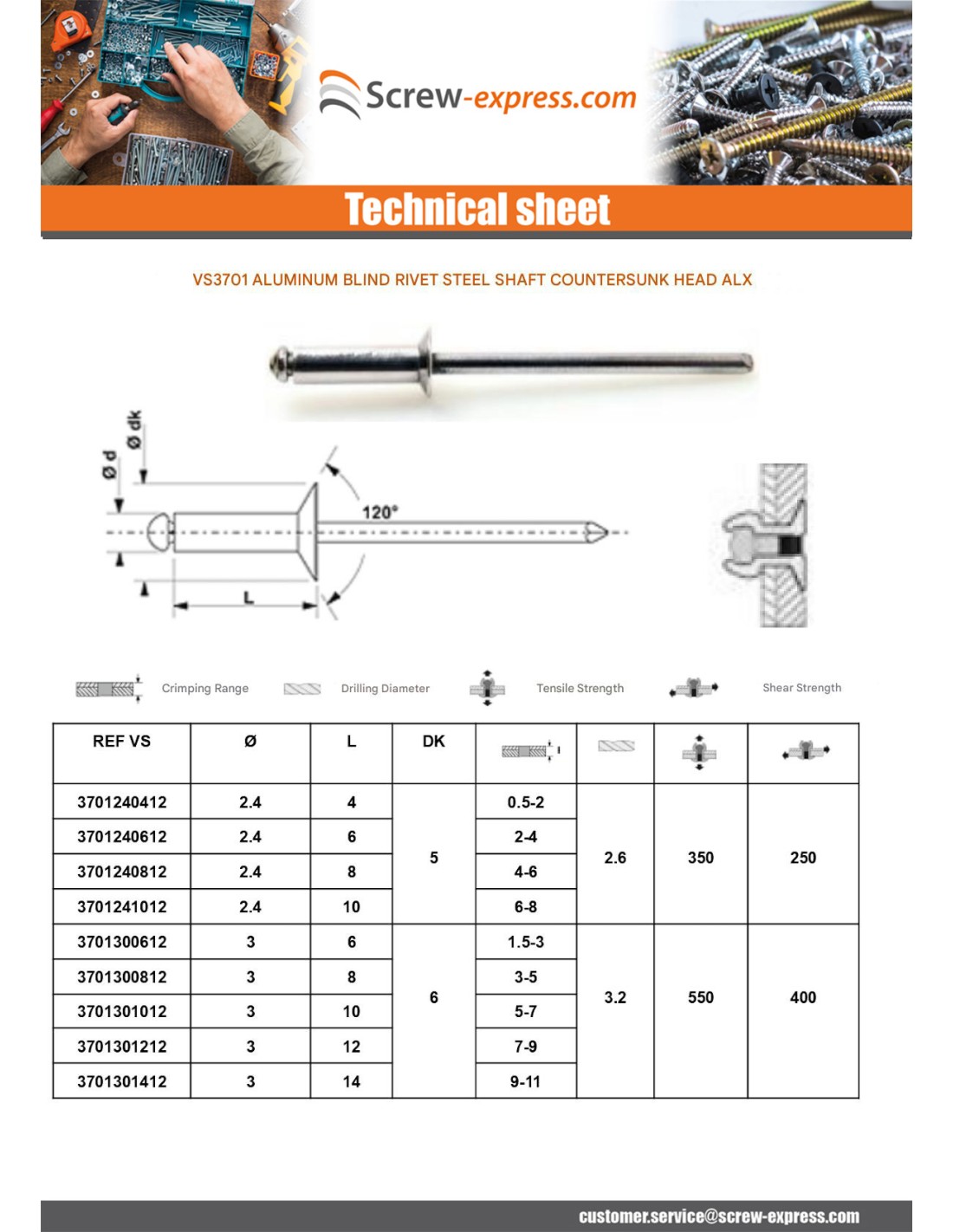

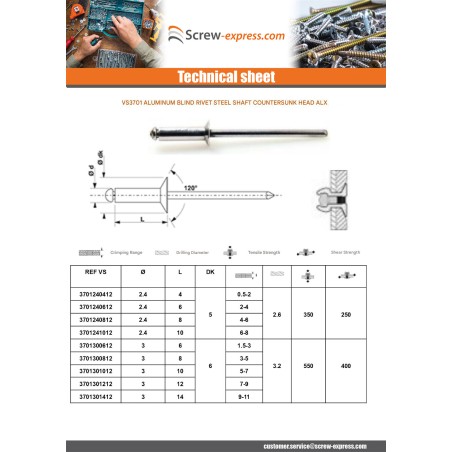

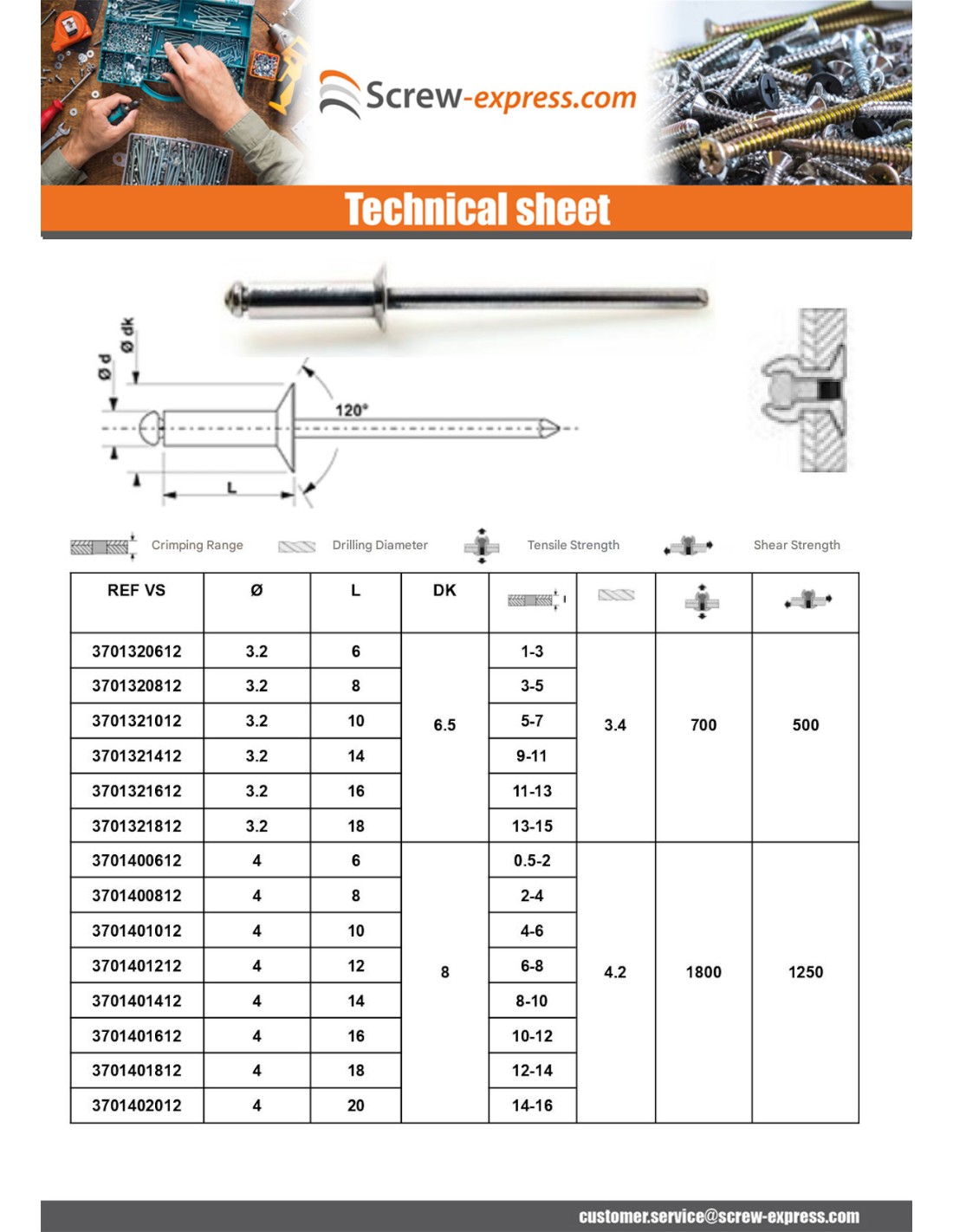

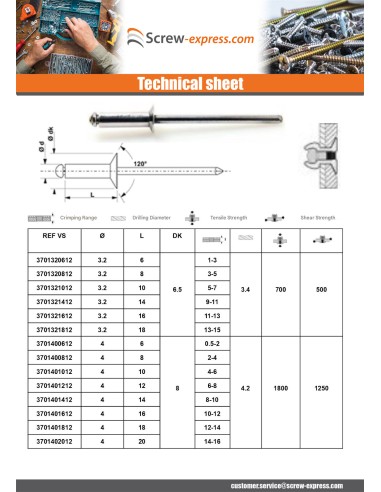

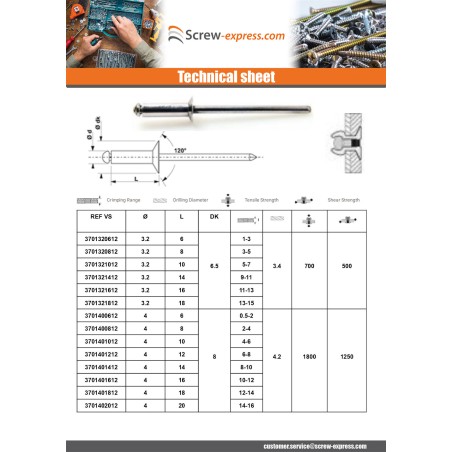

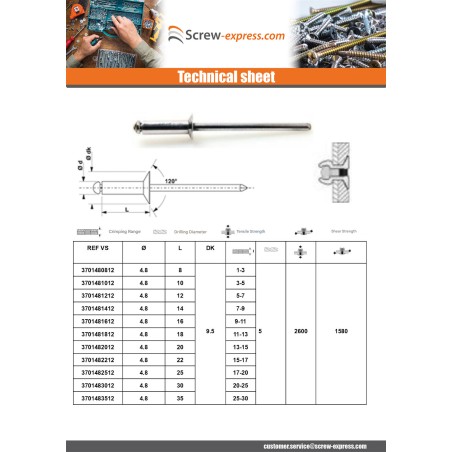

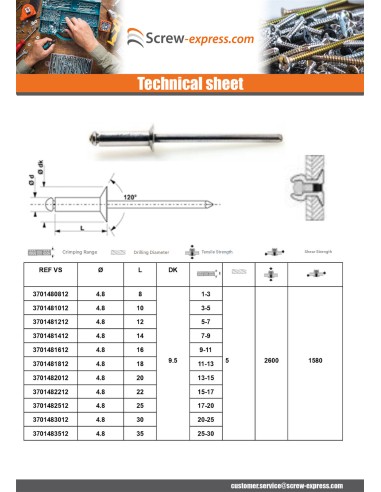

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103424101 C0254059 3663072187634
Sebastien H. (vis-express.fr)
2024-12-01

Repair of an aluminum profile box
