1 x Blind rivets Aluminium Stahlgewinde 4X20 Thickness Of Panel 14 to 16 Countersunk Head ALX

3701402012_1
In stock 296 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included €3.85 €7.70 €9.25 €24.85

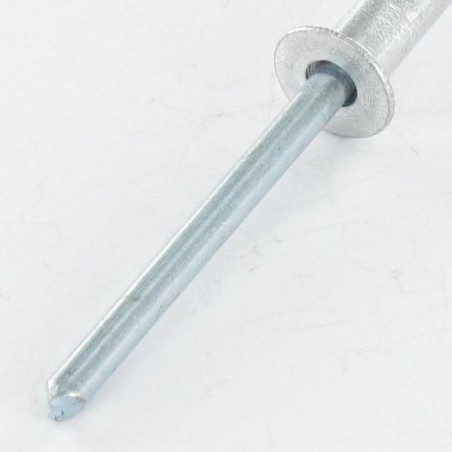

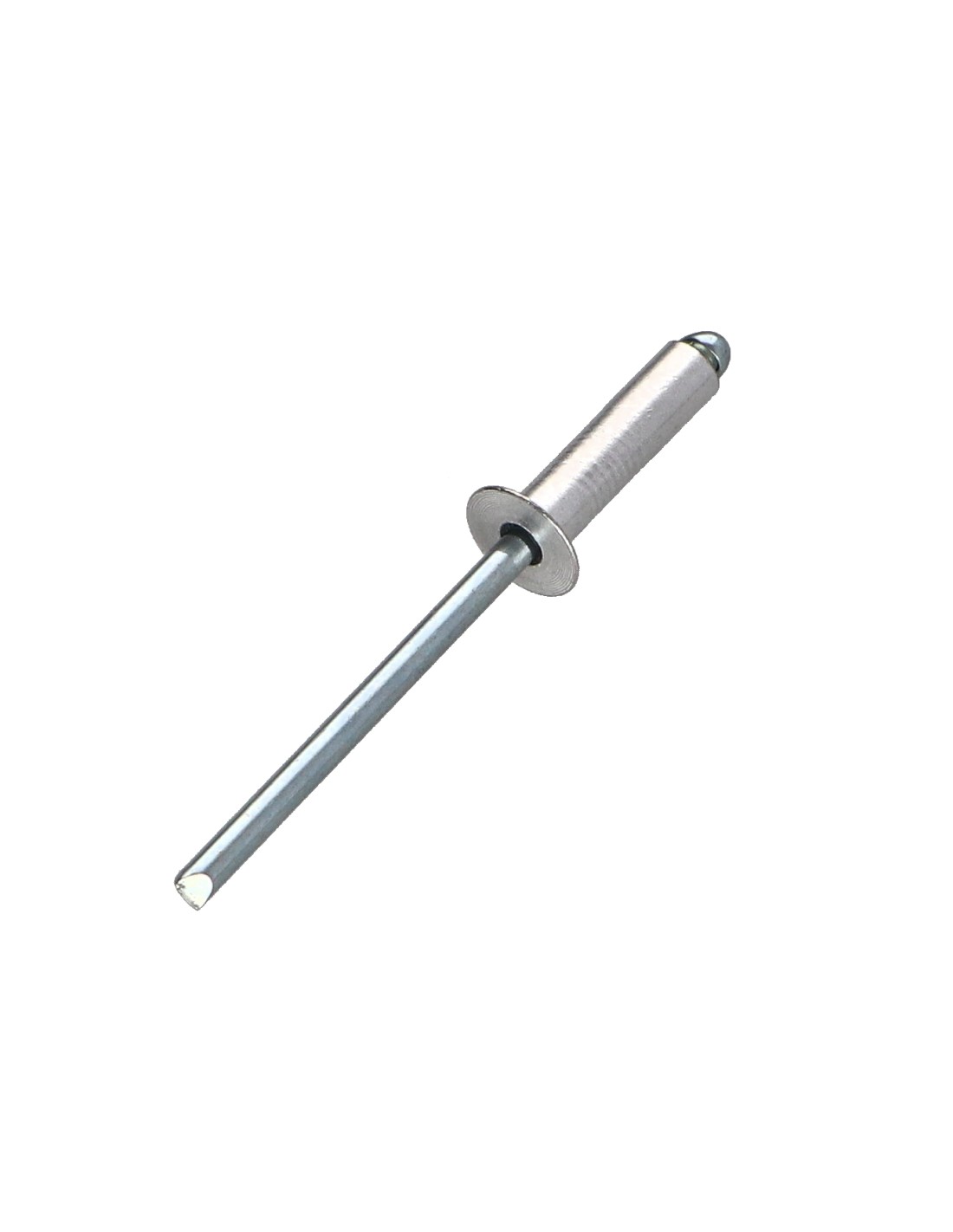

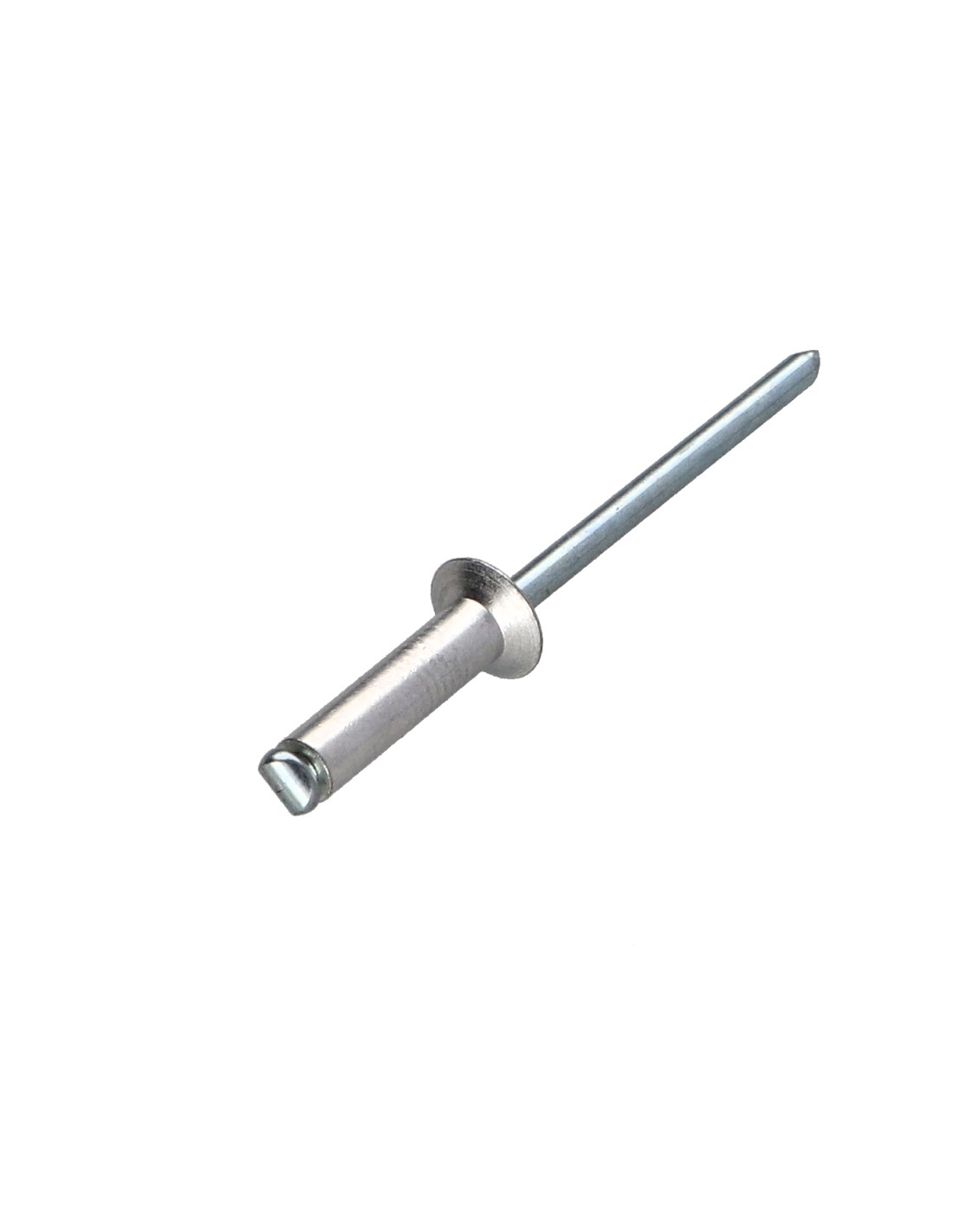

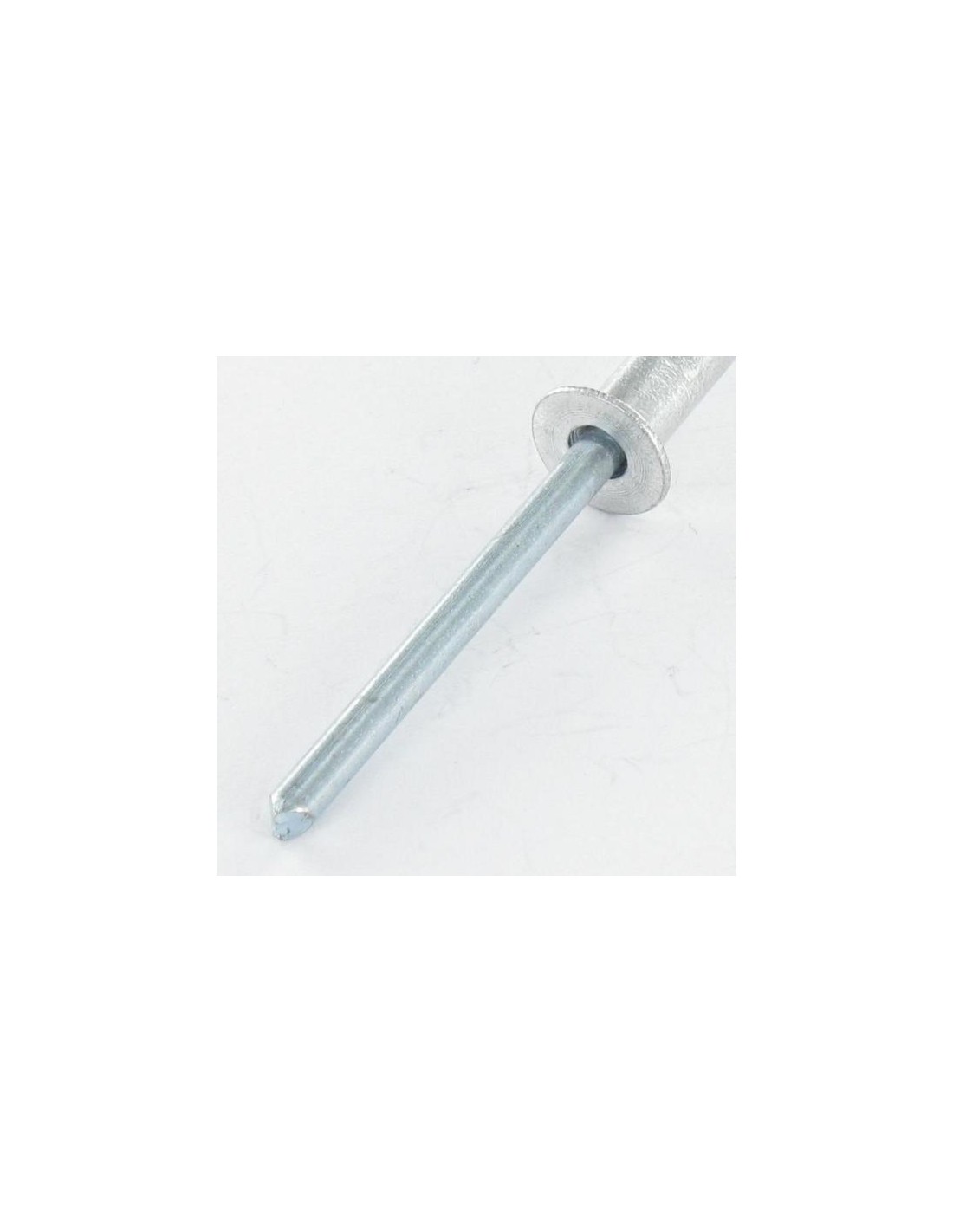

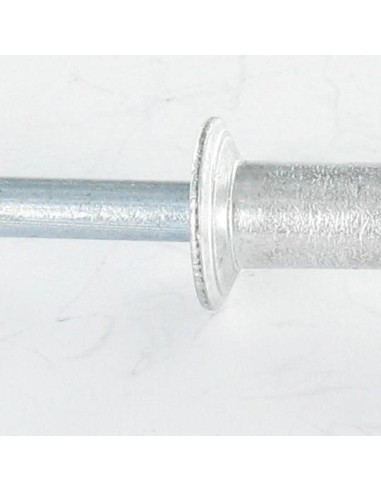

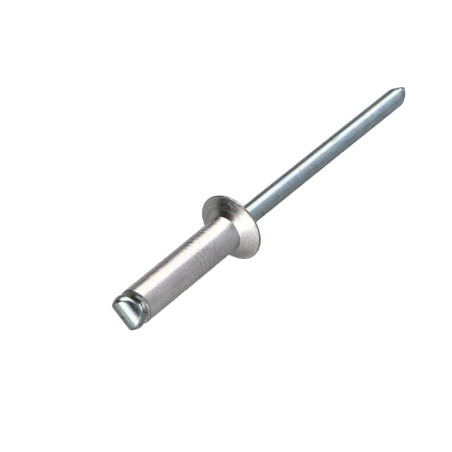

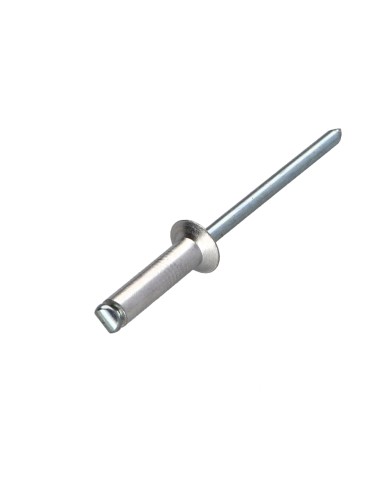

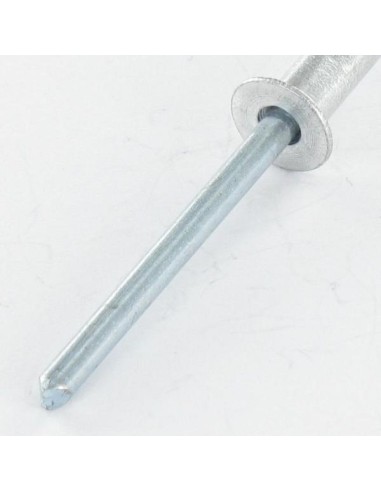

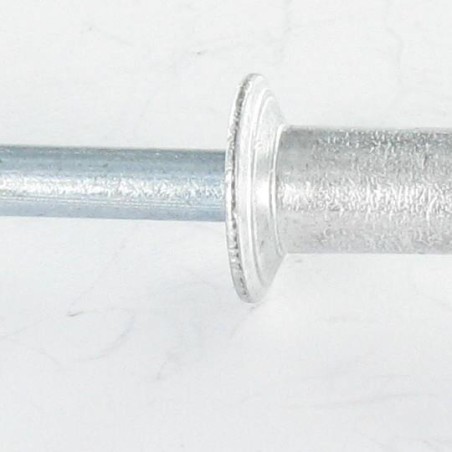

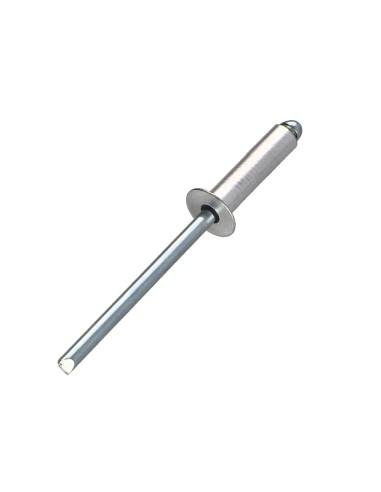

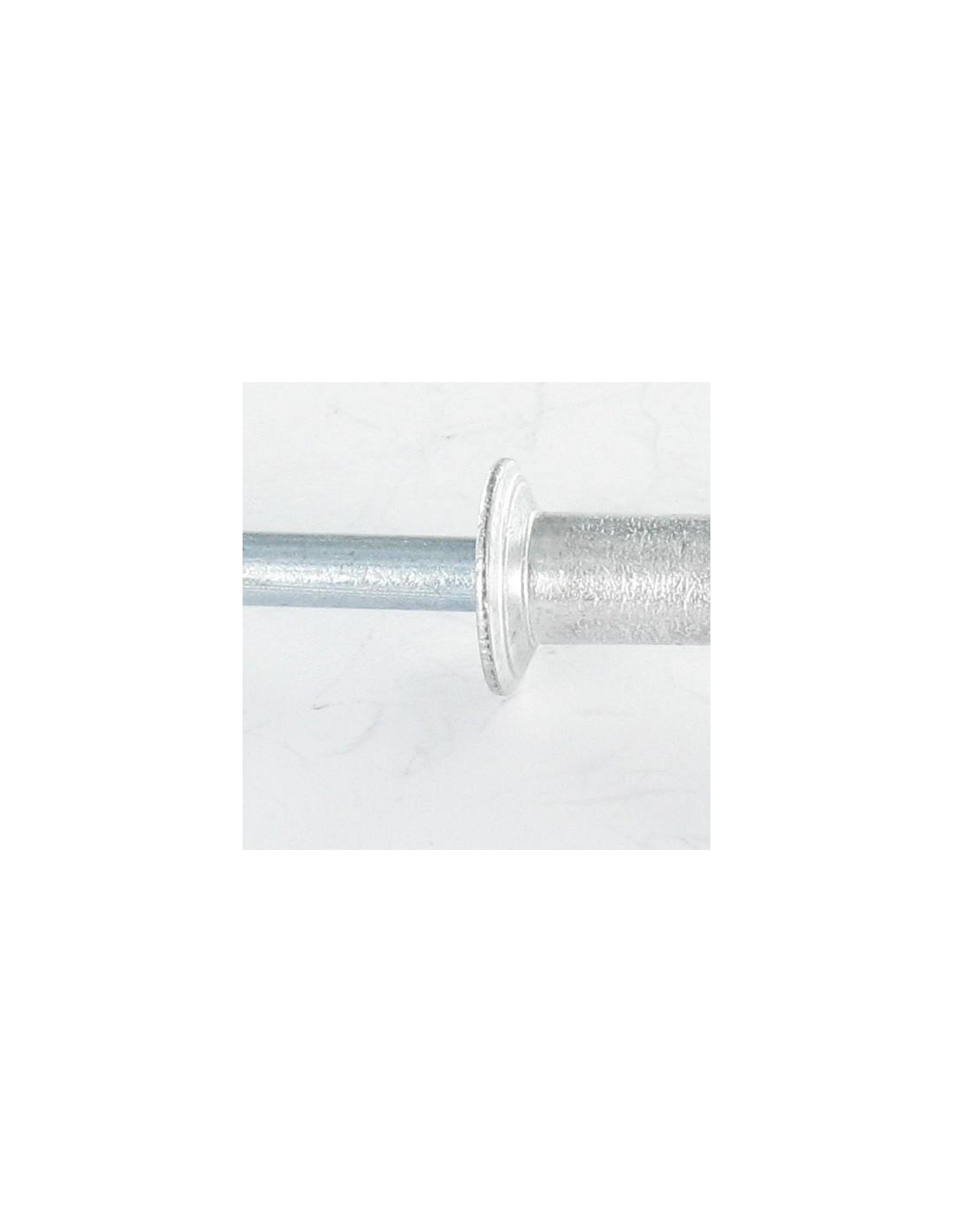

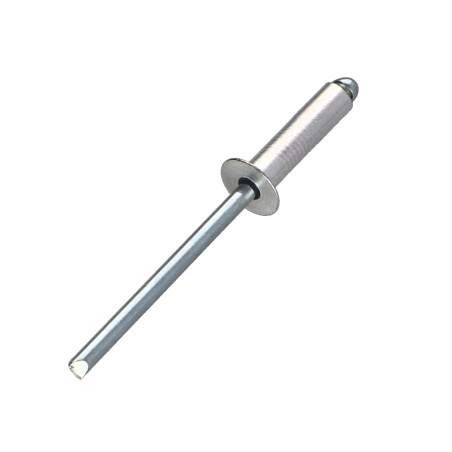

Blind rivets Aluminium Stahlgewinde 4X20 Thickness Of Panel 14 to 16 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
4
Sub product family
Countersunk Head
WEIGHT For THERE unit
2.32 GR
Clamping thickness
14 to 16 MM
Rivet body length
20
296 Items
3663072180802
Blind rivets Aluminium Stahlgewinde 4X20 Thickness Of Panel 14 to 16 Countersunk Head ALX
Diameter = 4, Sub Product Family = Countersunk Head

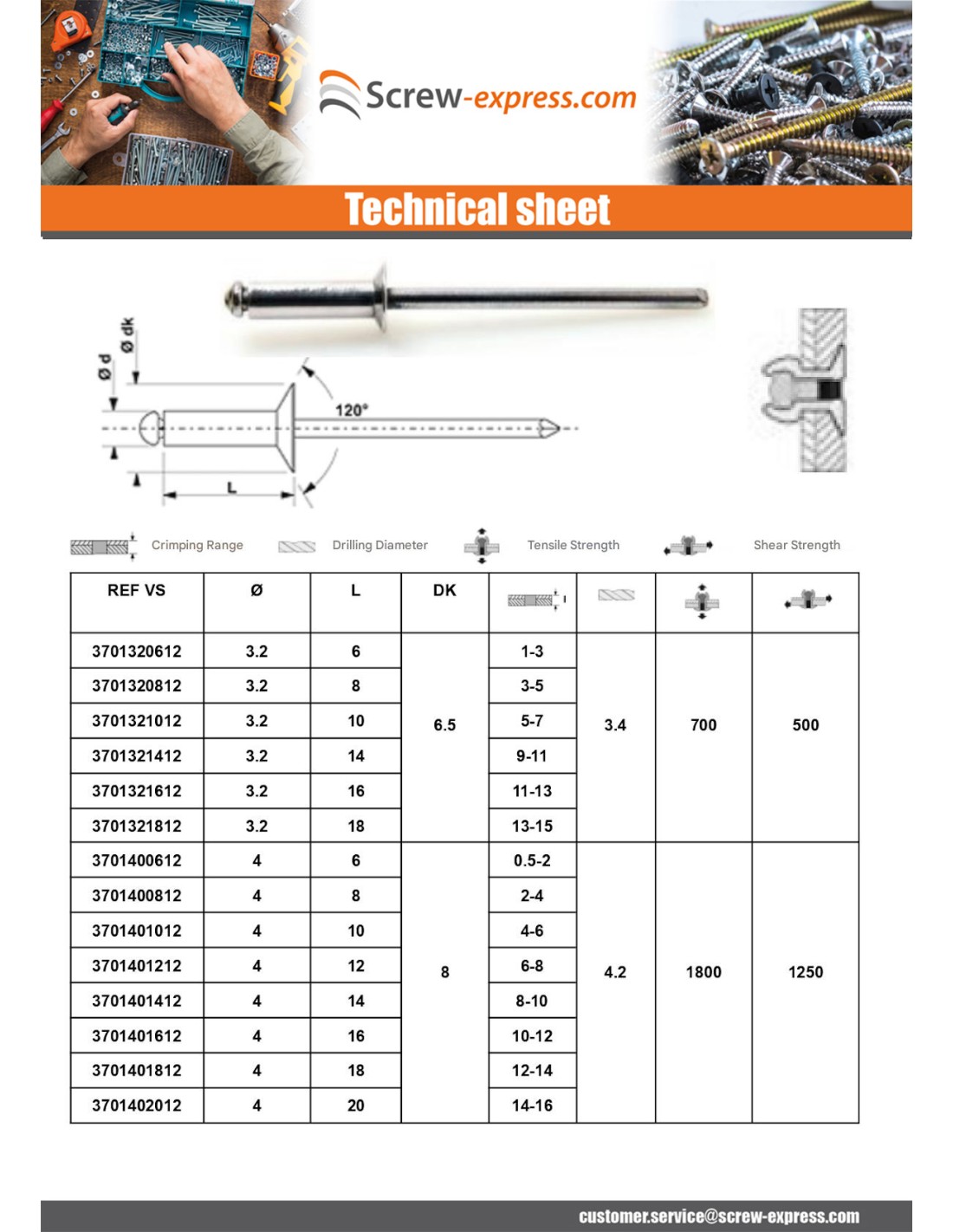

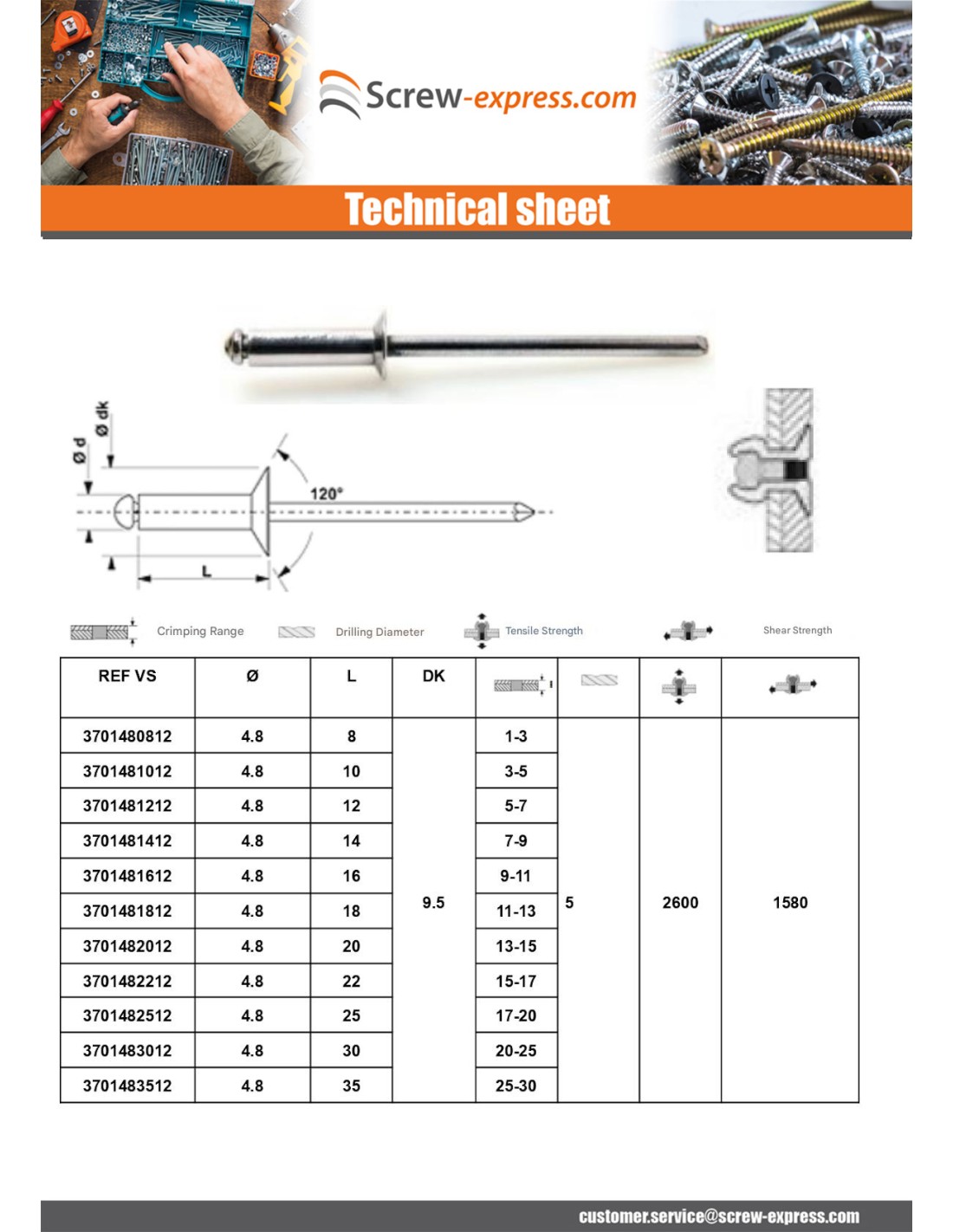

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)
tete fraisee a 120 degres

Other Reference : 103440201 3663072180802
