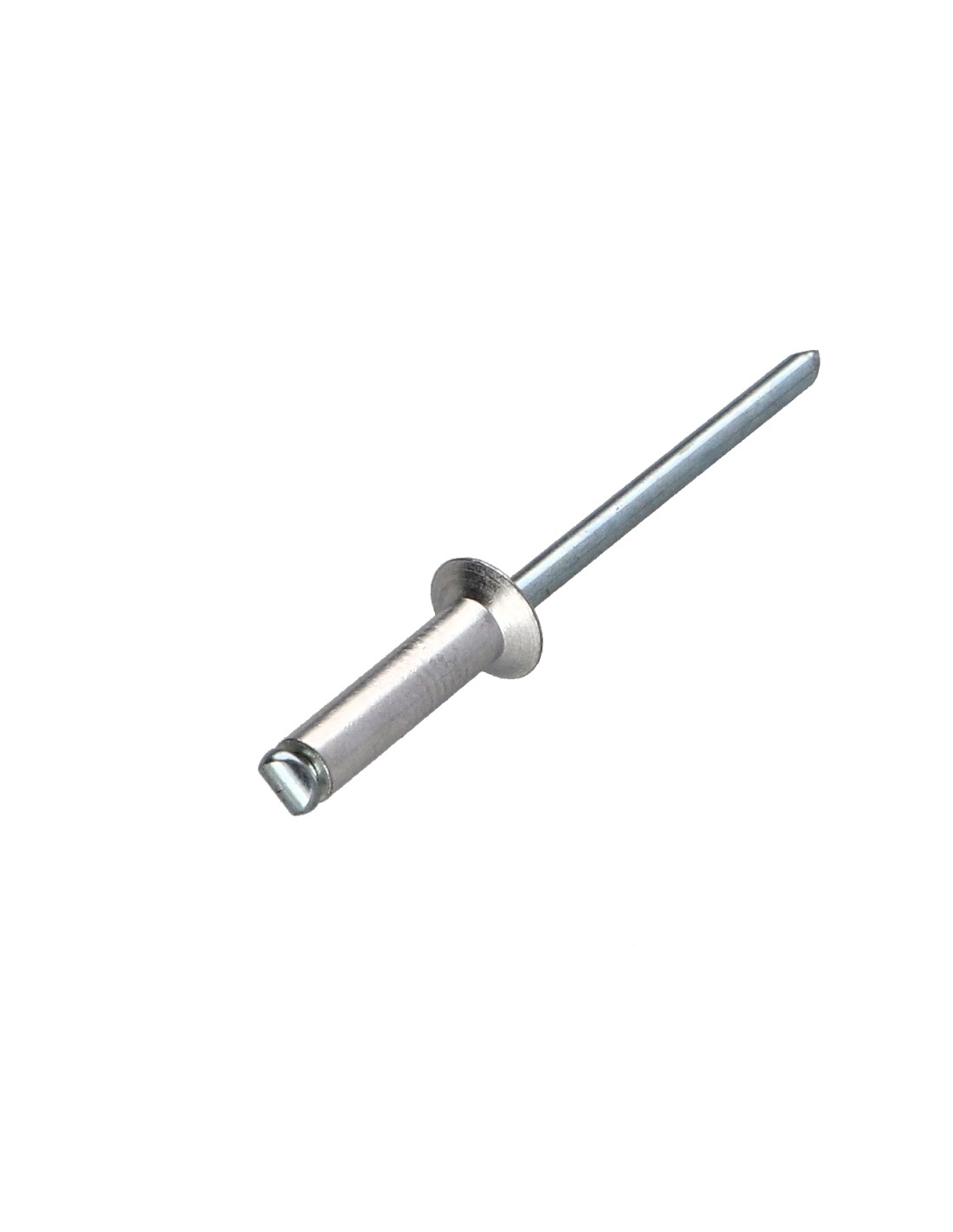

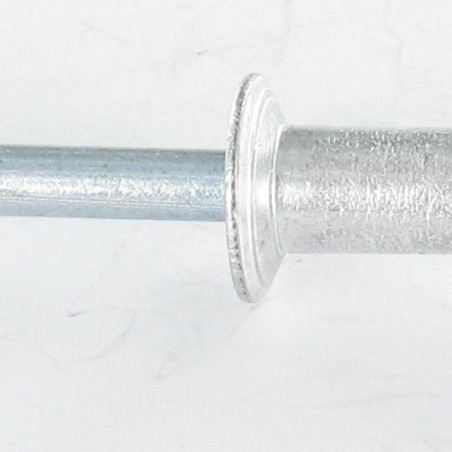

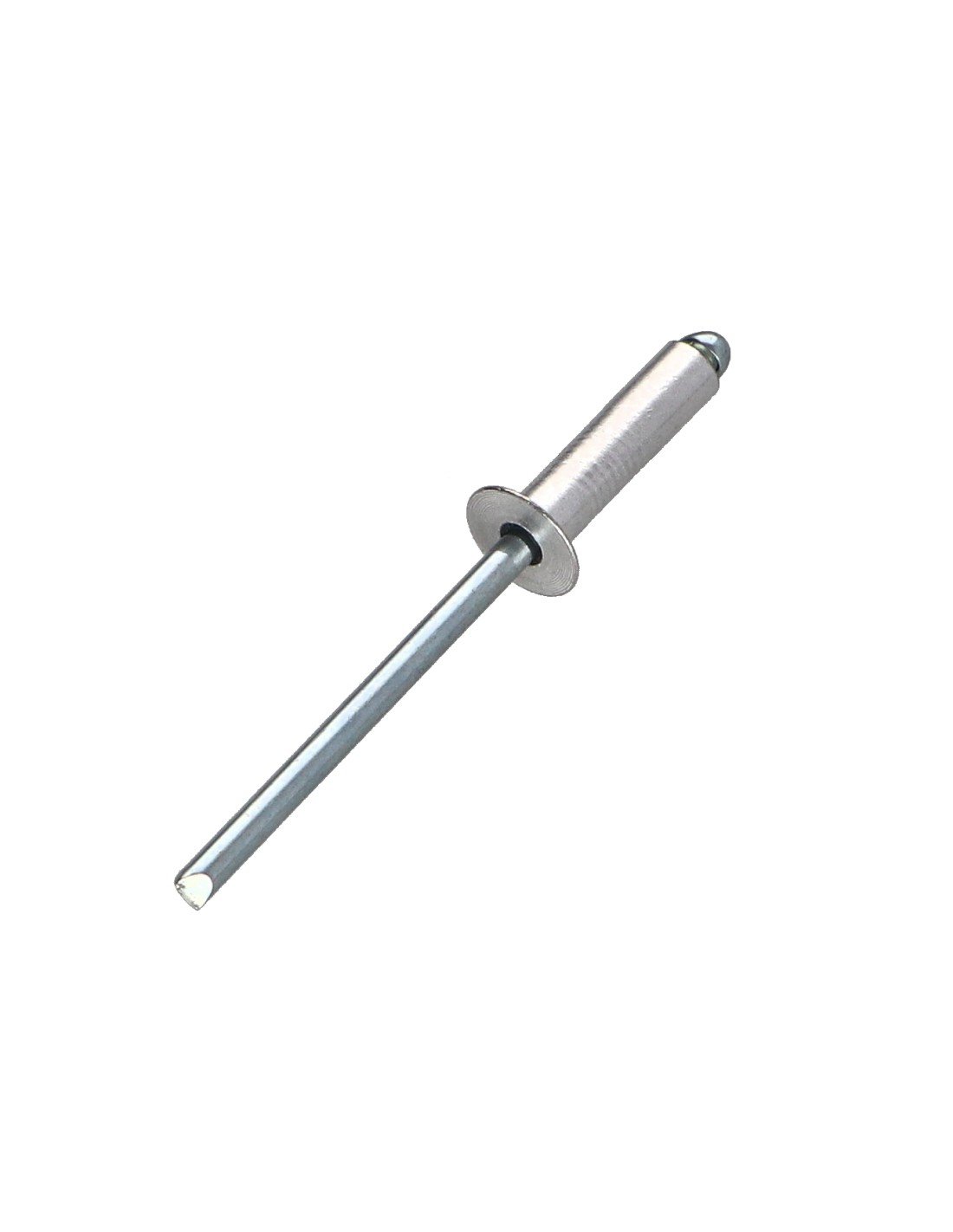

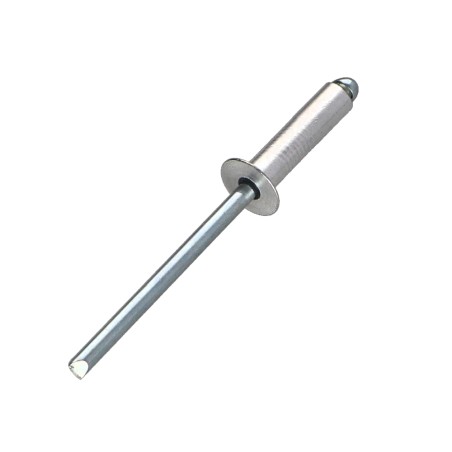

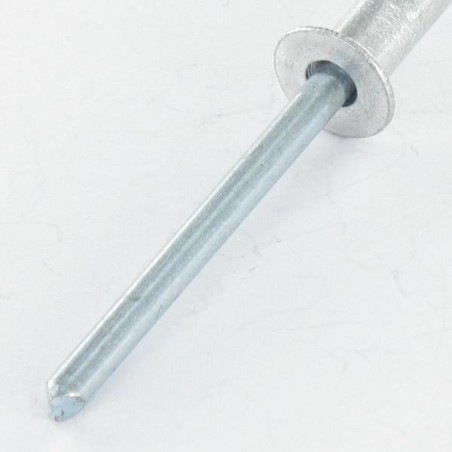

1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX

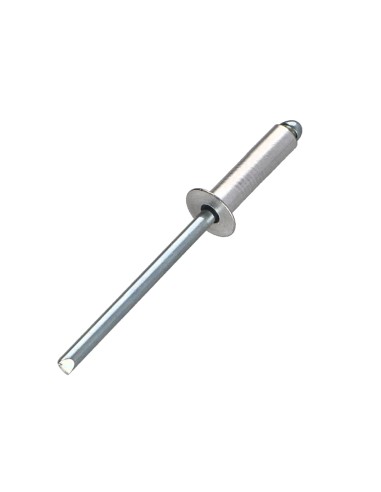

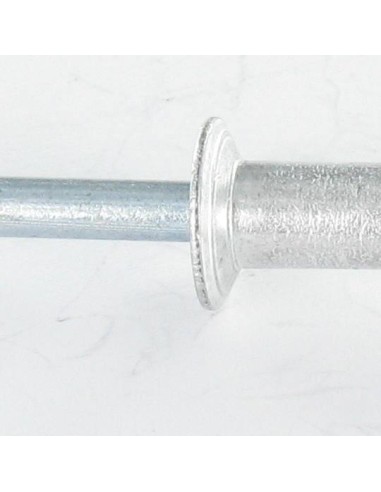

1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...
1 x Blind rivets Aluminium Stahlgewinde 4.8X12...

1 x Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX

3701481212_1
In stock 17080 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.34 £6.68 £8.03 £20.39

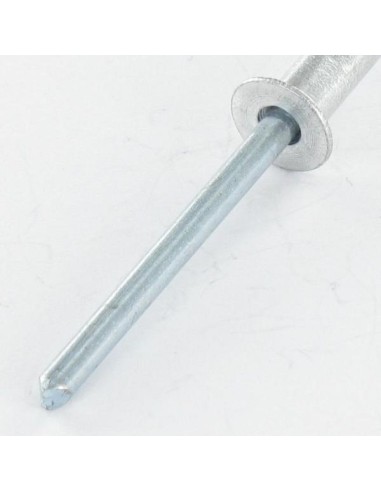

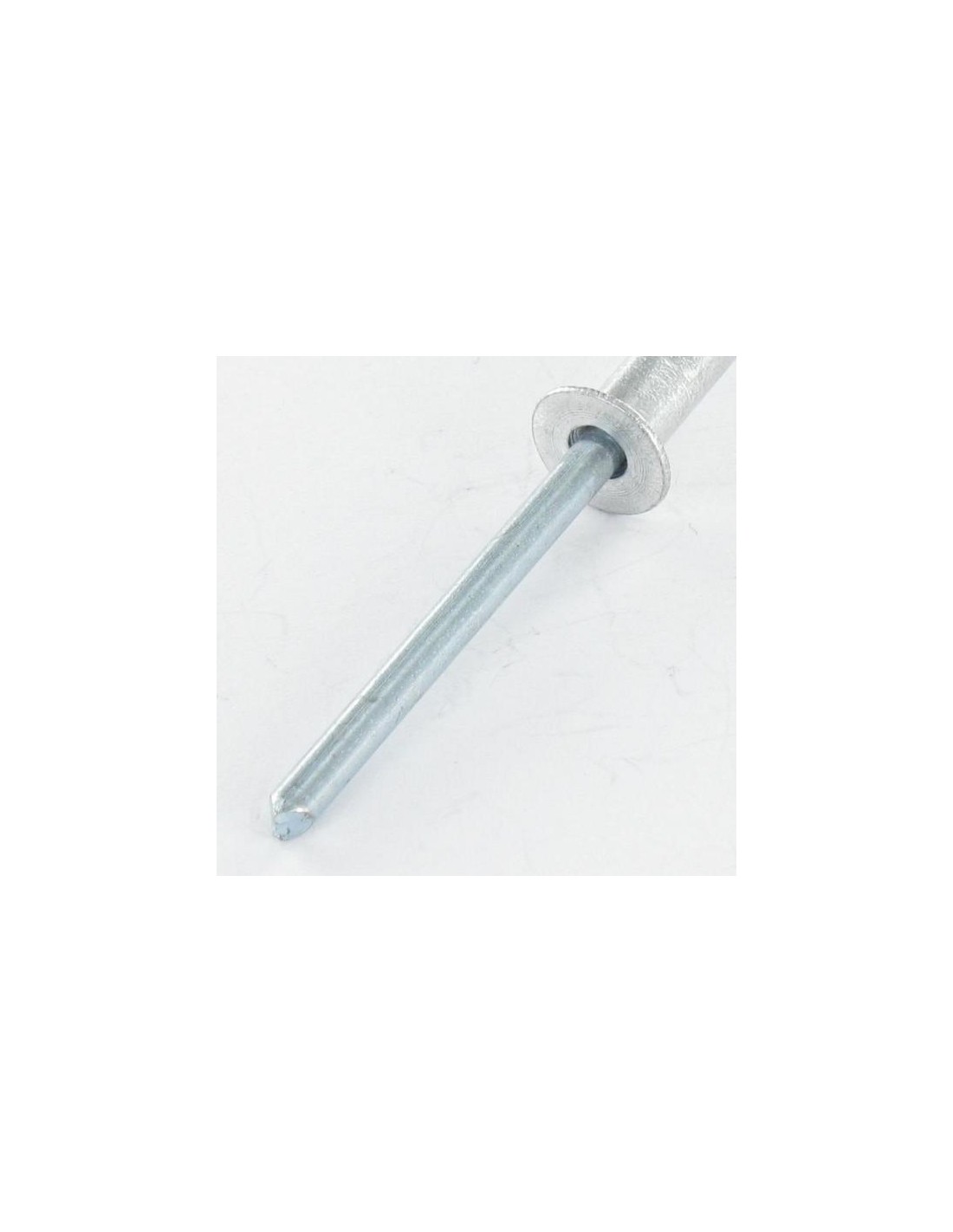

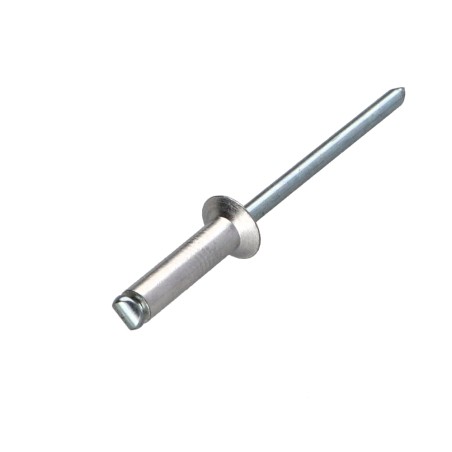

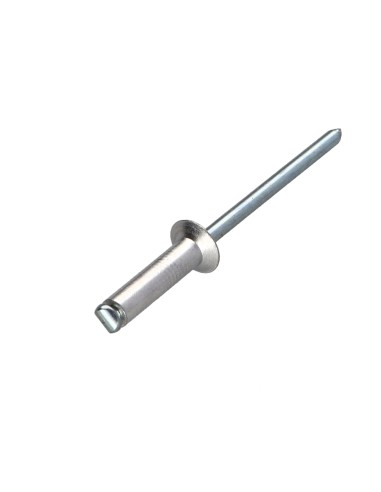

Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Sub product family
Countersunk Head
WEIGHT For THERE unit
2.6 GR
Clamping thickness
5 to 7 MM
Rivet body length
12
17080 Items
3663072063662
Blind rivets Aluminium Stahlgewinde 4.8X12 Thickness Of Panel 5 to 7 Countersunk Head ALX
Diameter = Class 4.8, Sub Product Family = Countersunk Head

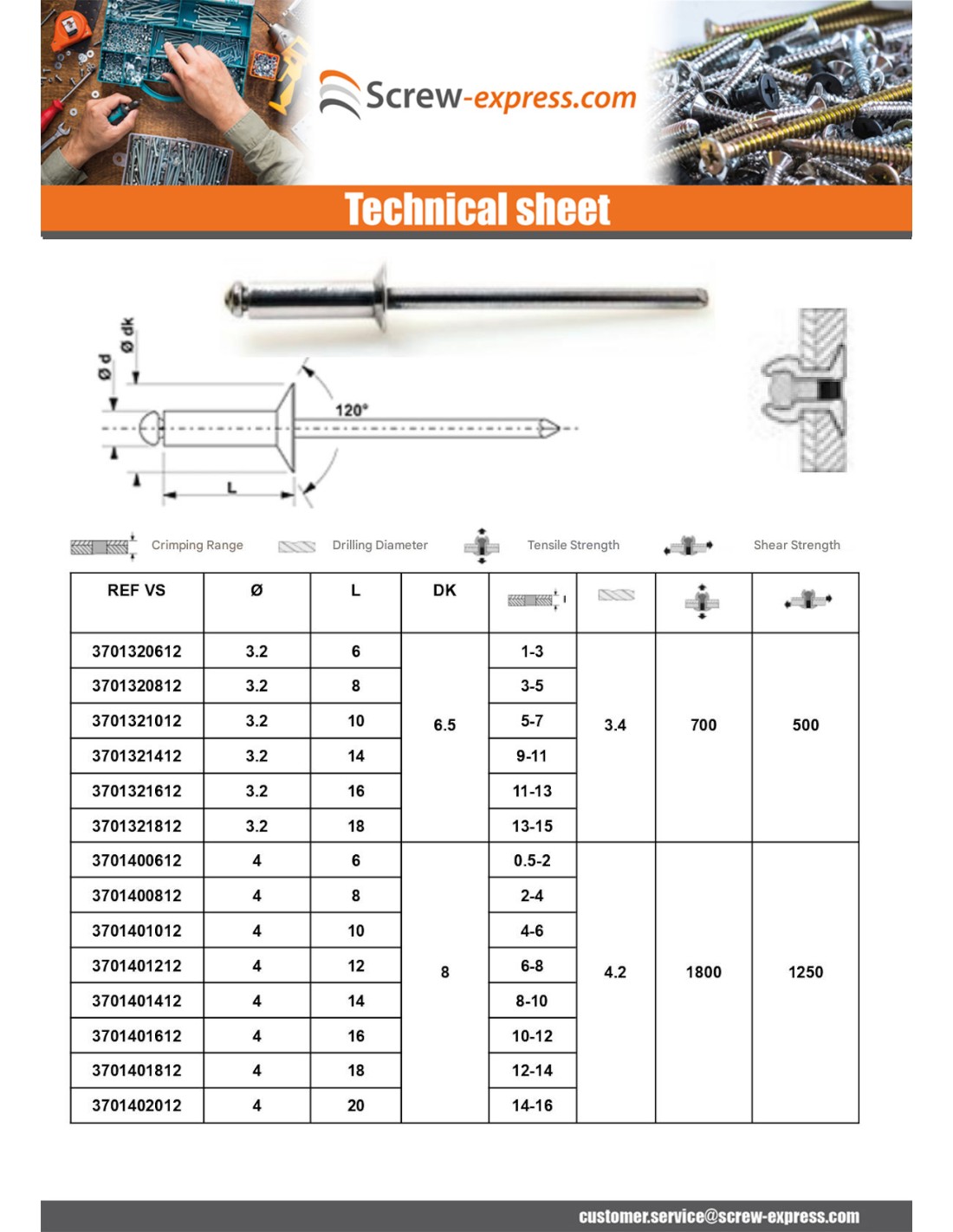

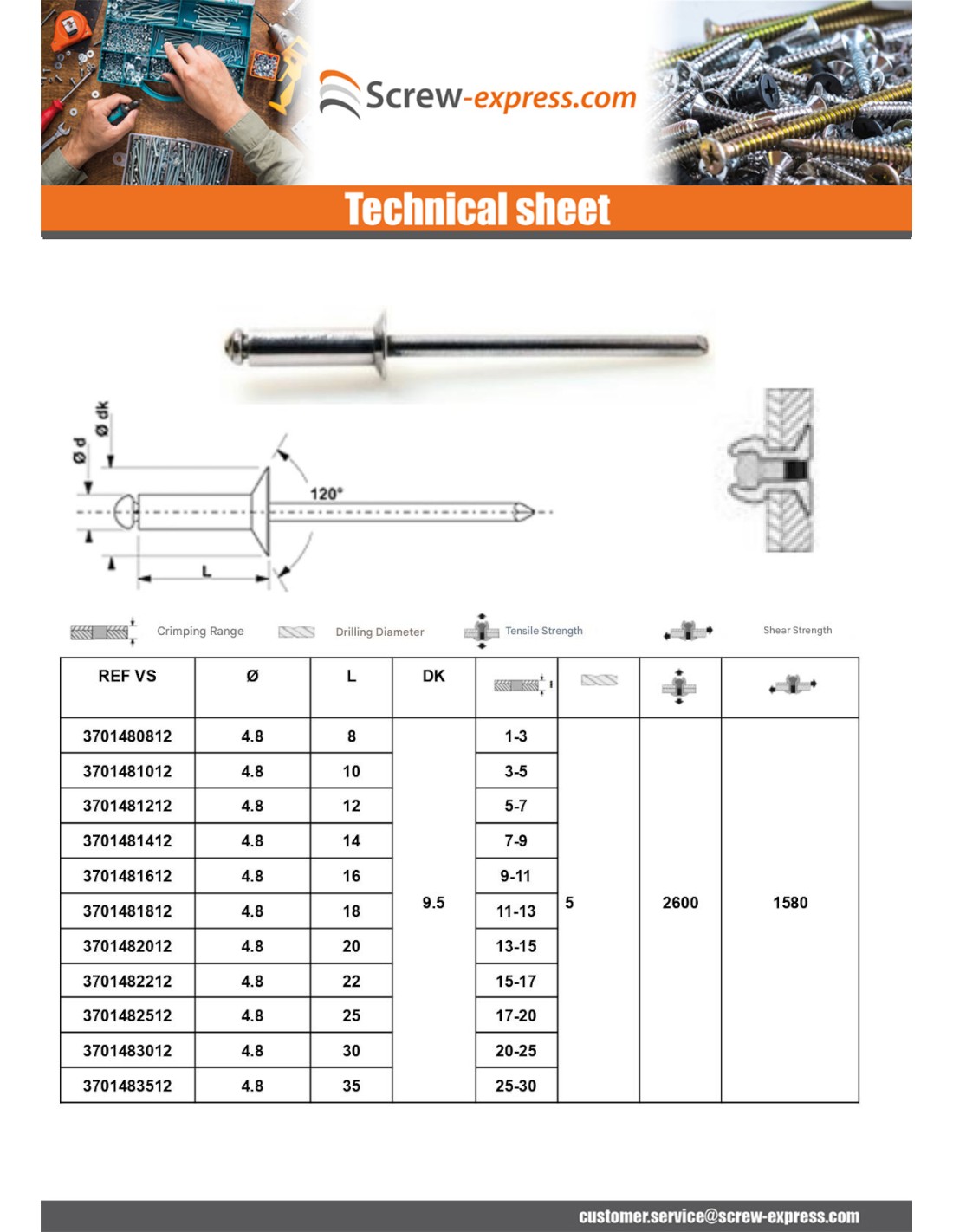

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8
Head diameter 5 6 6.5 8 9.5
Drilling diameter 2.6 3.2 3.4 4.2 5
resistance a la traction 500 800 1000 1600 2600
Shear strength 400 650 850 1300 2100
The length indicates the length of the body (useful length)

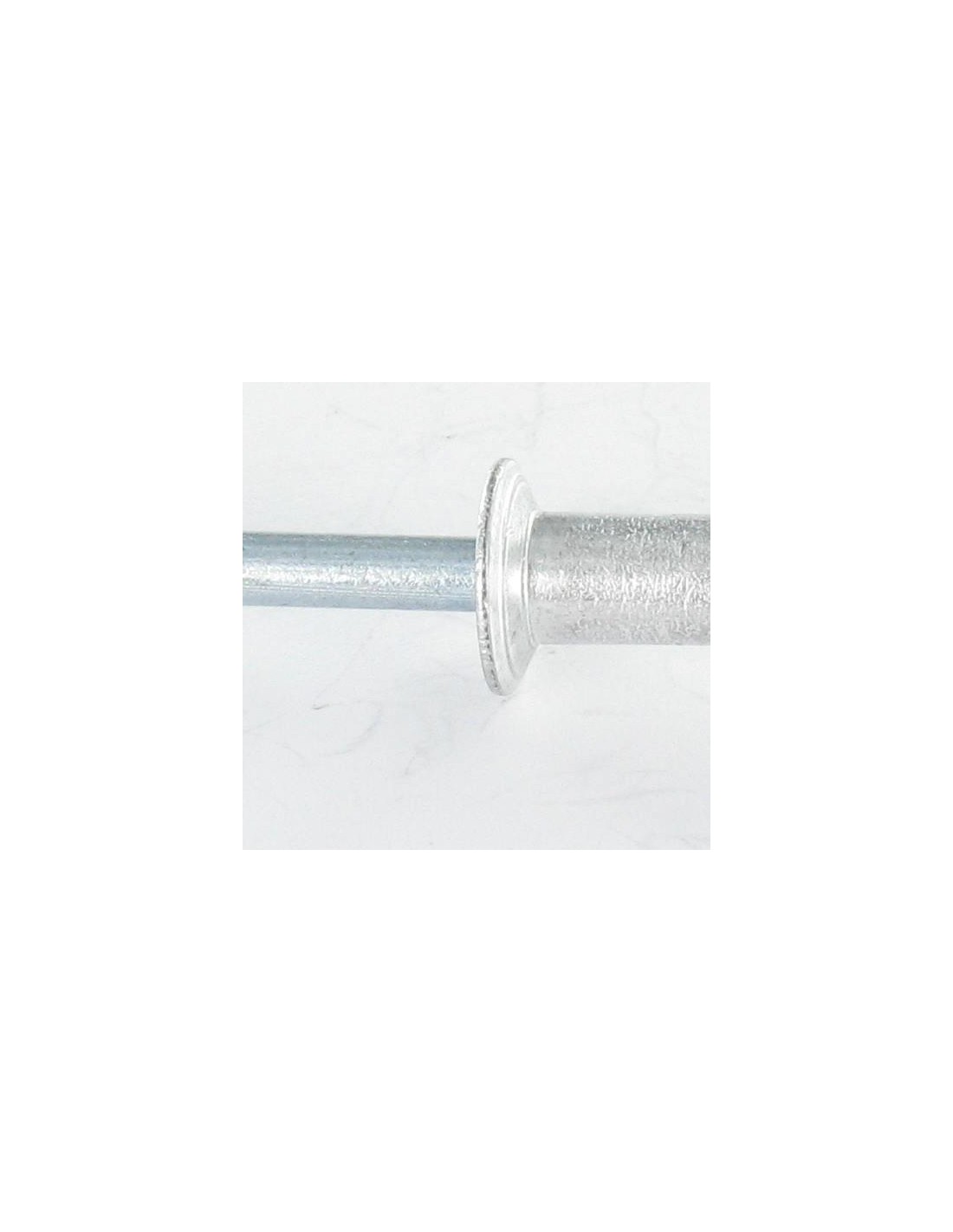

tete fraisee a 120 degres

Other Reference : 103448121 RIVTF4.8X12 64RIV4812.C Q00810U M018907 A.08.03.0185 RIVTF4.8X12 09384812 09384812 RIV4-12TPALU VIS005 141028 78725264 CF1469 CF1469 2954 080519 080519 3663072063662
