3702401812_1
In stock 35413 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £8.81 £19.87
Blind rivets Aluminium Stahlgewinde 4X18 Thickness Of Panel 12 to 14 Standard round head ALX
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1250
Clamping thickness
12 a 14 mm
Rivet body length
18
Unit weight
2.2 GR
Head shape
Round Head standard
Hole diameter
4.2
Tensile strength
1800
35413 Items
3663072064089

Application

  • Securing thin sheets (steel, aluminum)
  • Assembly of panels, plates or profiles
  • Aluminium joinery work
  • Installation of ventilation ducts
  • DIY, light bodywork
Blind rivets Aluminium Stahlgewinde 4X18 Thickness Of Panel 12 to 14 Standard round head ALX
Diameter = 4, Sub Product Family = Rivets BLIND STANDARDS (USE GENERAL), Material = BODY Aluminium / rod Steel, Diameter Head = 8

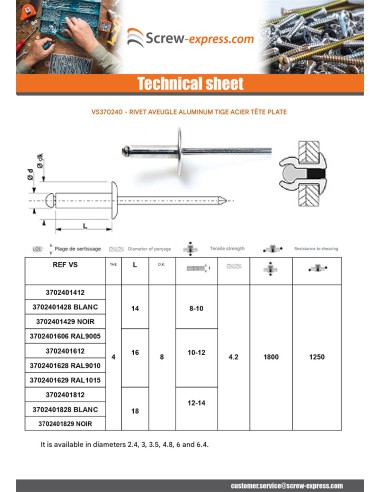

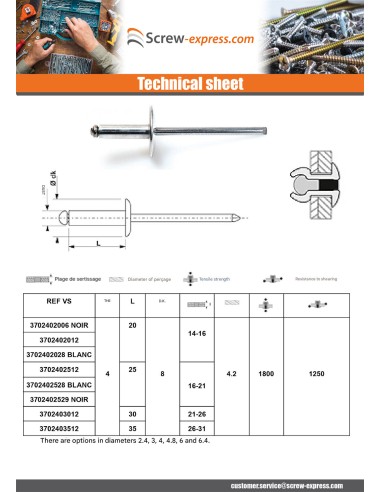

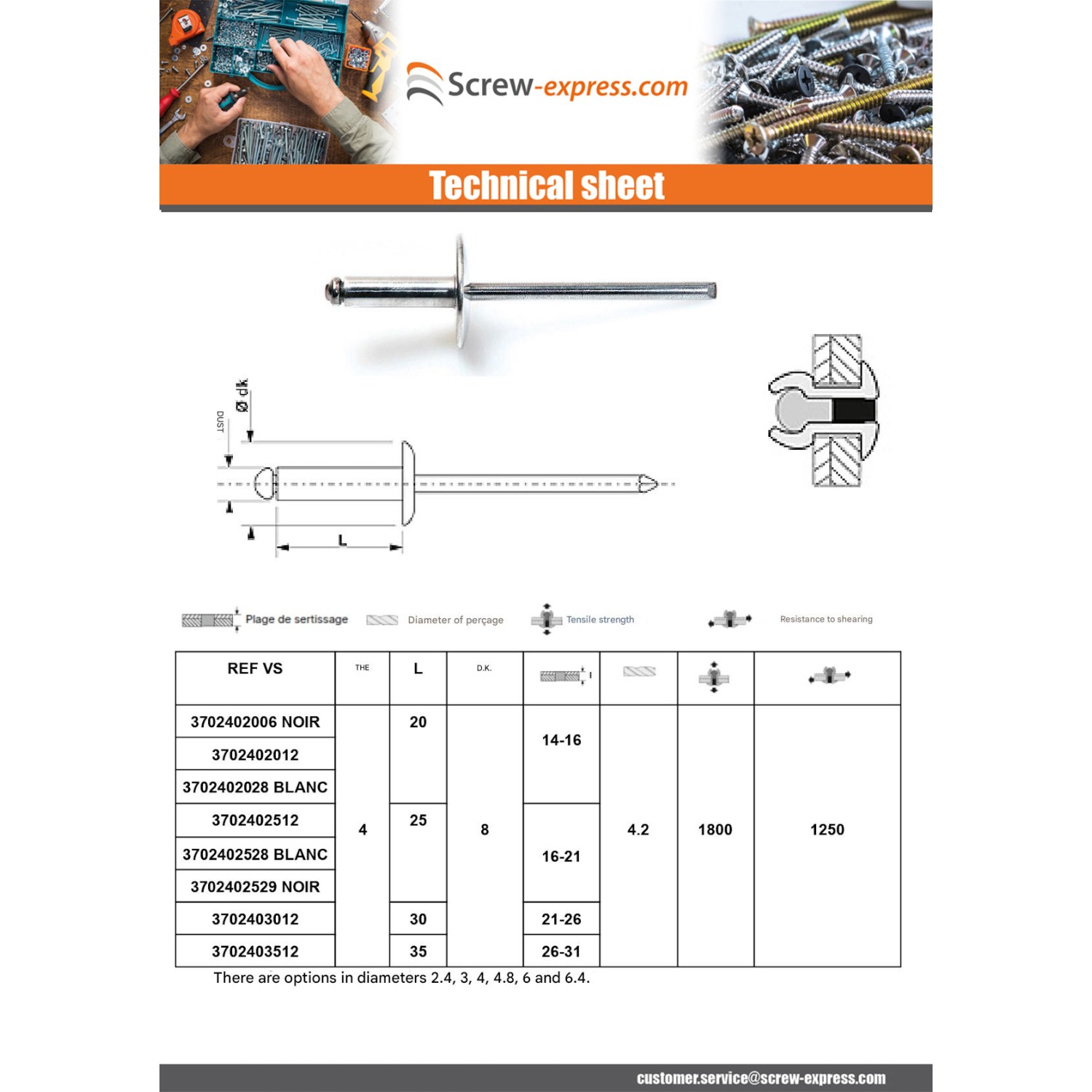

dimensional guide (mm)
Body diameter 2.4 3 3.2 4 4.8 6 6.4
Head diameter 5 6 6.5 8 9.5 11.5 12
Drilling diameter 2.6 3.2 3.4 4.2 5 6.2 6.6
resistance a la traction 500 800 1000 1600 2600 3800 4600
Shear strength 400 650 850 1300 2100 3000 3500
longueur tige 25 25 25 27 27 27 27 27

Other Reference : 103140181 A290006 A300104003 10531 VB136 RF16006 0626 301 RF16006 AN VIS154 RAS41003 212024 20911004 354448 301 123001020 A01313 123001020 MOIS 11595418 3663072064089
Clara L. (vis-express.fr)
2025-02-09

We use this product to assemble the sheets of our shelter. A shelter 1130 mm high and 800 mm wide.
