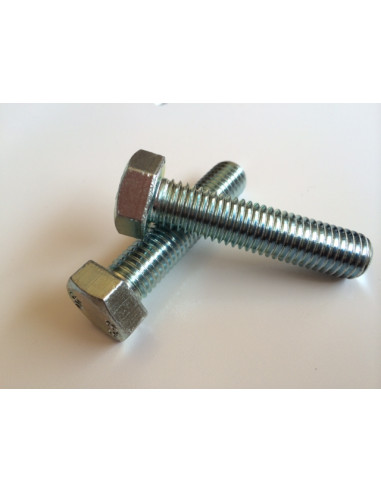

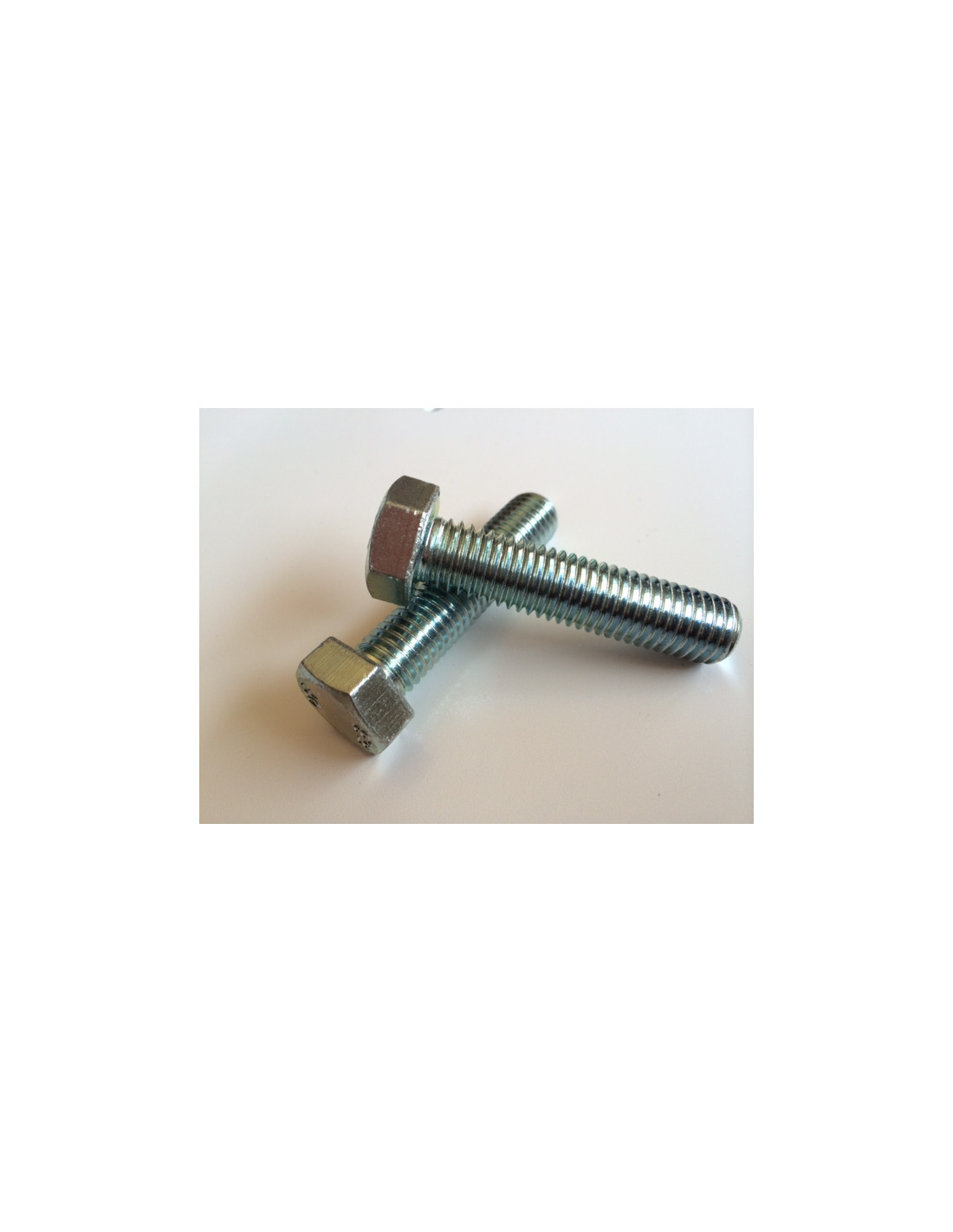

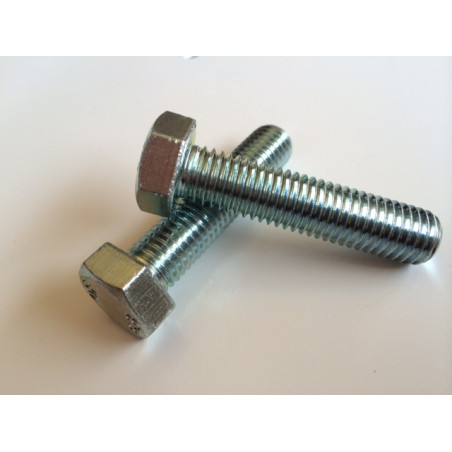

1 x Machine Screw Hexagonal Head 3/4X 2" Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated
4126205102_1
Available within 15 working days
€9.30
Incl VAT
Decreasing prices by quantity
| Number of pieces | 1 | 5 | 20 | 50 |
| Lot price VAT included | €9.30 | €46.50 | €186.05 | €465.10 |
ANSIB18-2-1 VS4126 - Machine Screw Hexagonal Head 3/4X 2" Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated1 inch = 25.4mm
- Diameter
- 3/4
-
Length
Length
How do I measure the length of a screw?
The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.
- 2.51
- Thread
- Metal
- Pitch
- Pitch Unc EQUIVALENT BSW
- Material
- Steel
- Coating
- ZINGUE White
- COLOR
- Grey
- Product Family
- Screw AMERICANS
- Sub product family
- Hex Head
-

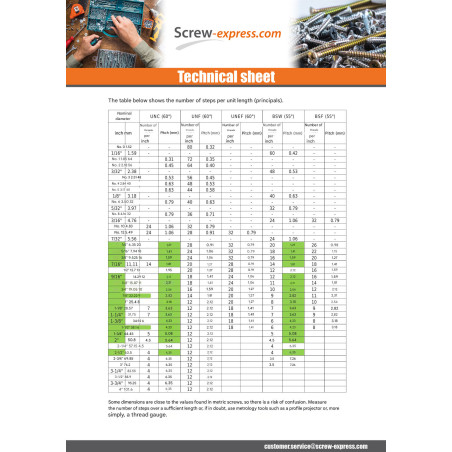

Number of threads per inch
Number of threads per inch

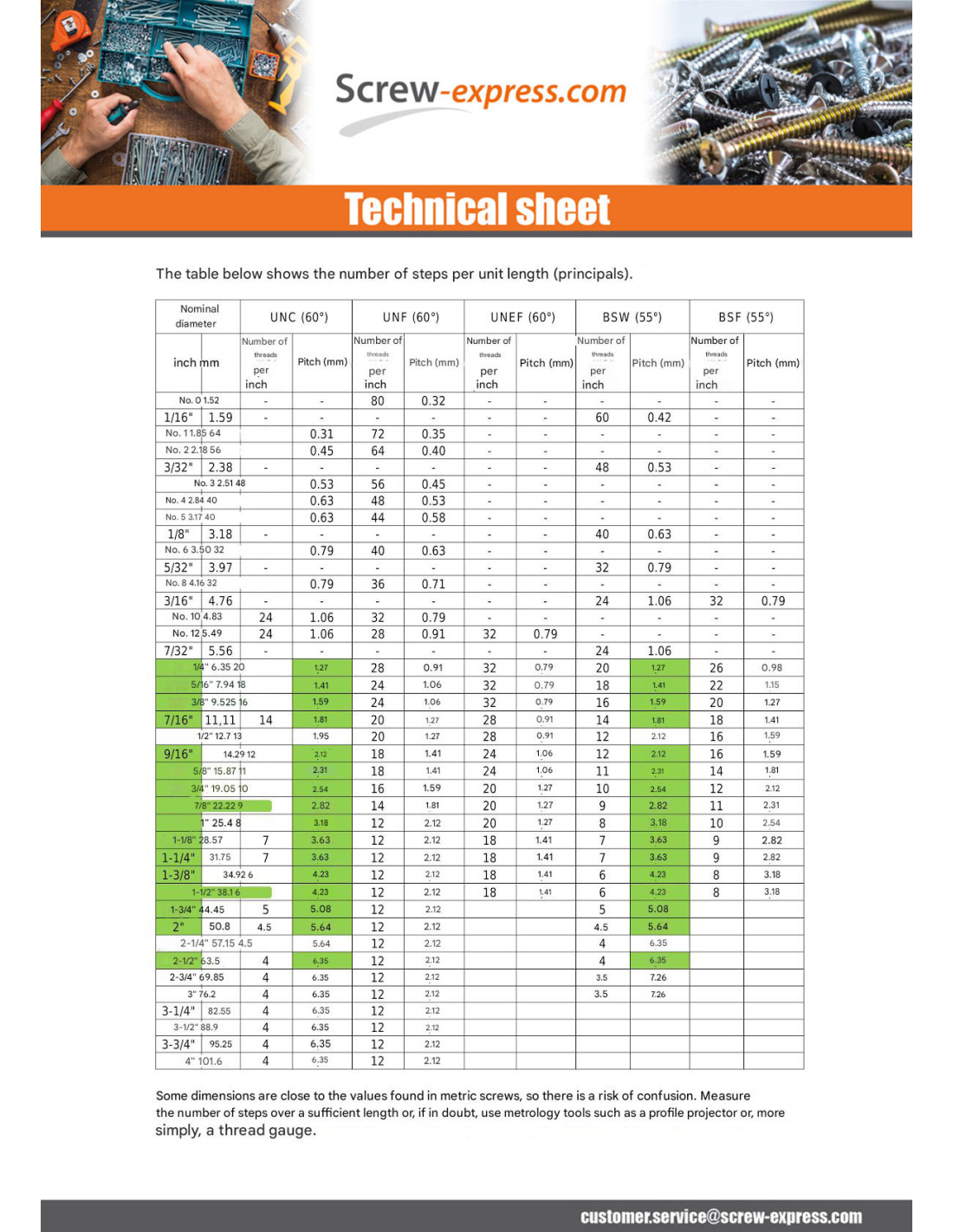

How to determine the diameter of a UNC or UNF screw:
The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.
Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.
For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD
- 10
- Diameter in mm
- 19.05
- Unit weight
- 160 GR
3663072552364
Machine Screw Hexagonal Head 3/4X 2" Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated Other Reference : 3617501493087 3663072552364
