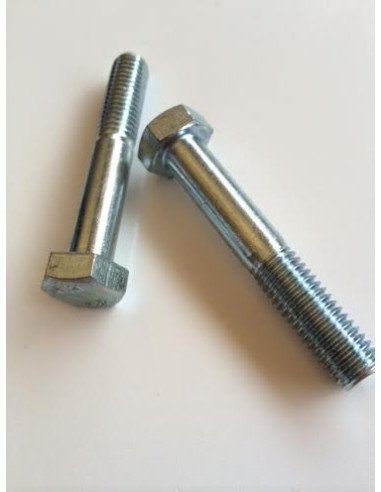

1 x Bolt Partial Thread Hexagonal Head 3/8X 1 1/4" Unc Or Bsw British Standard Whitworth GR5-ZG

1 x Bolt Partial Thread Hexagonal Head 3/8X 1...

1 x Bolt Partial Thread Hexagonal Head 3/8X 1 1/4" Unc Or Bsw British Standard Whitworth GR5-ZG

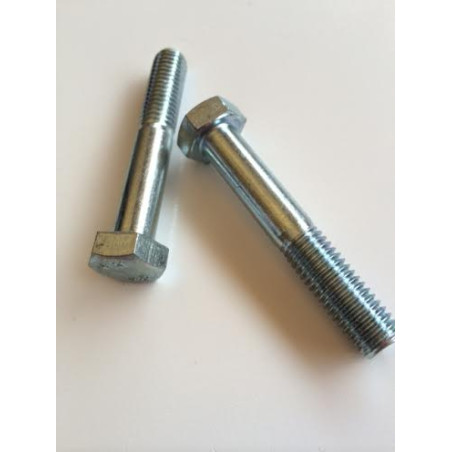

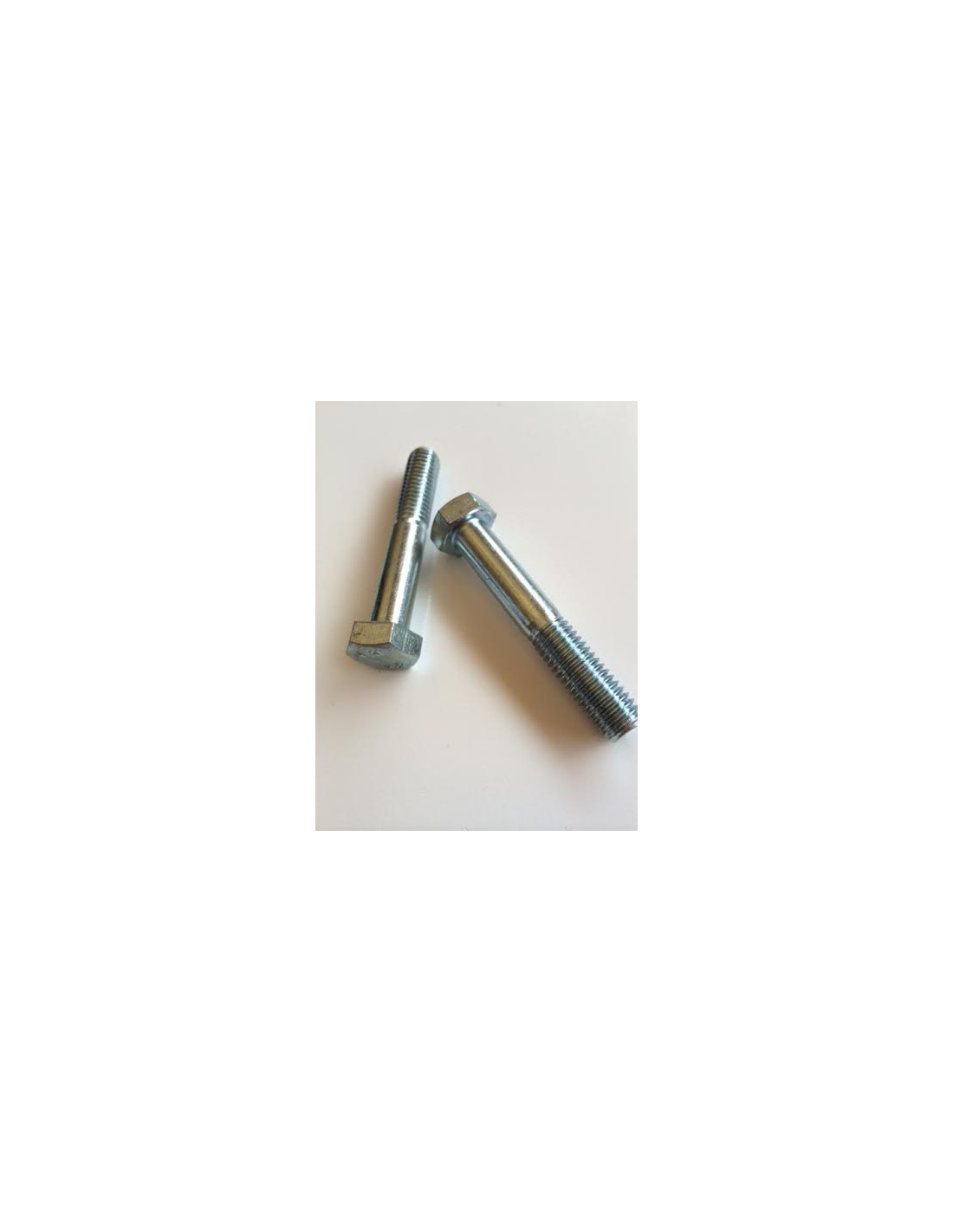

Name: Bolt Partial Thread Hexagonal Head 3/8X 1 1/4" Unc Or Bsw British Standard Whitworth GR5-ZG
Brand: Screw Express
SKU: 4127103202
Price: 20.74 GBP
Availability: InStock

Reference 4127103202_1

In stock 85 Pièces

£20.74 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50
Lot price VAT included	£20.74	£103.61	£414.35	£1,035.91

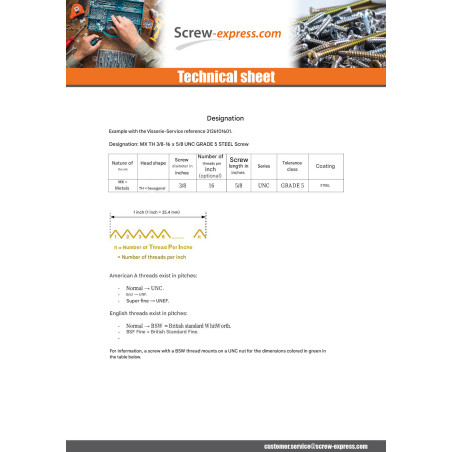

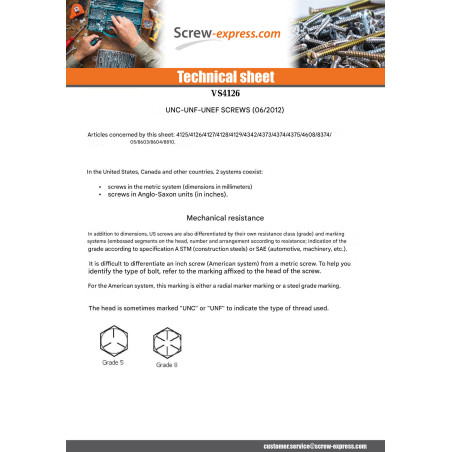

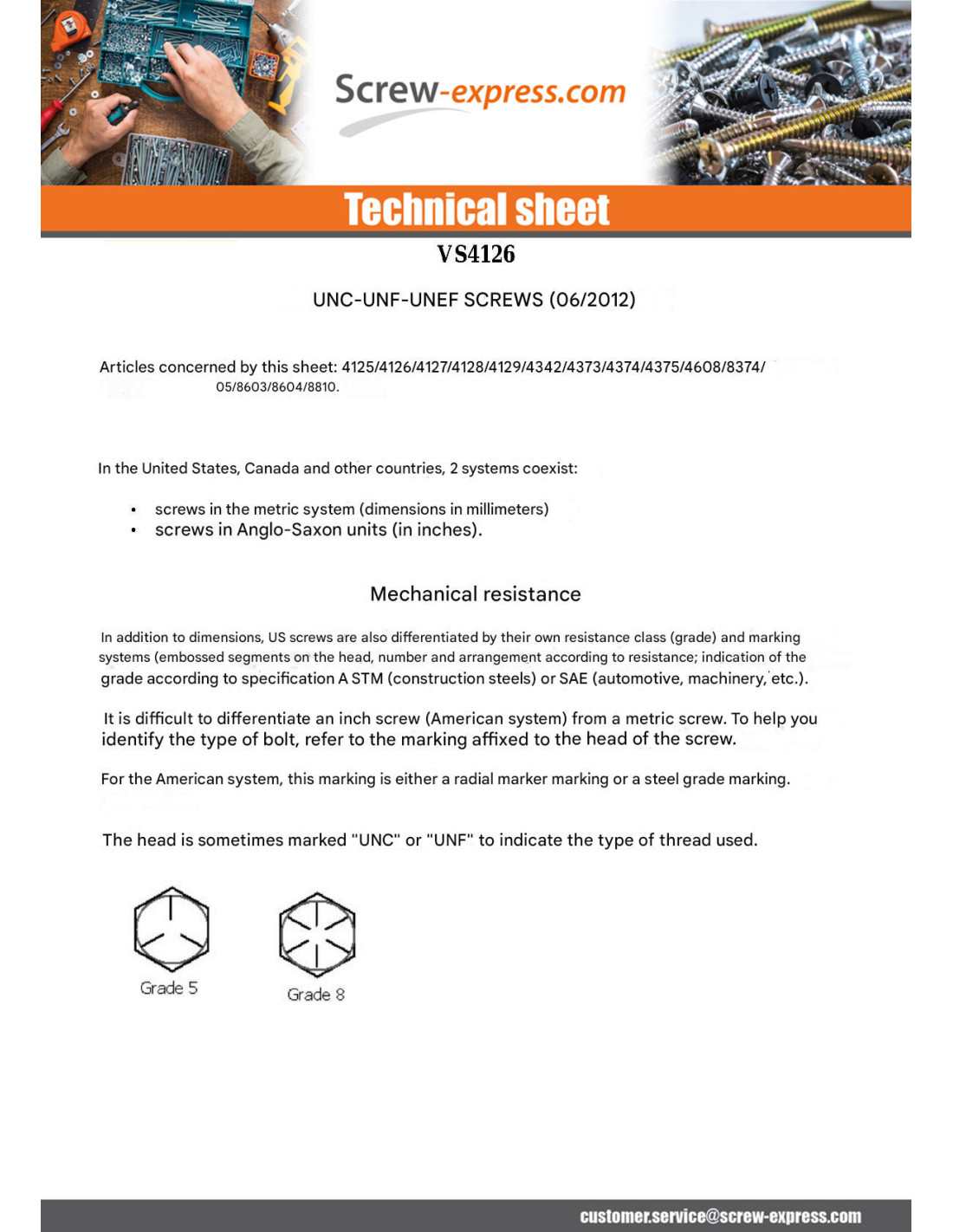

ANSI B18-2-1, VS4126 - Bolt Partial Thread Hexagonal Head 3/8X 1 1/4" Unc Or Bsw British Standard Whitworth GR5-ZG
1 inch = 25.4mm

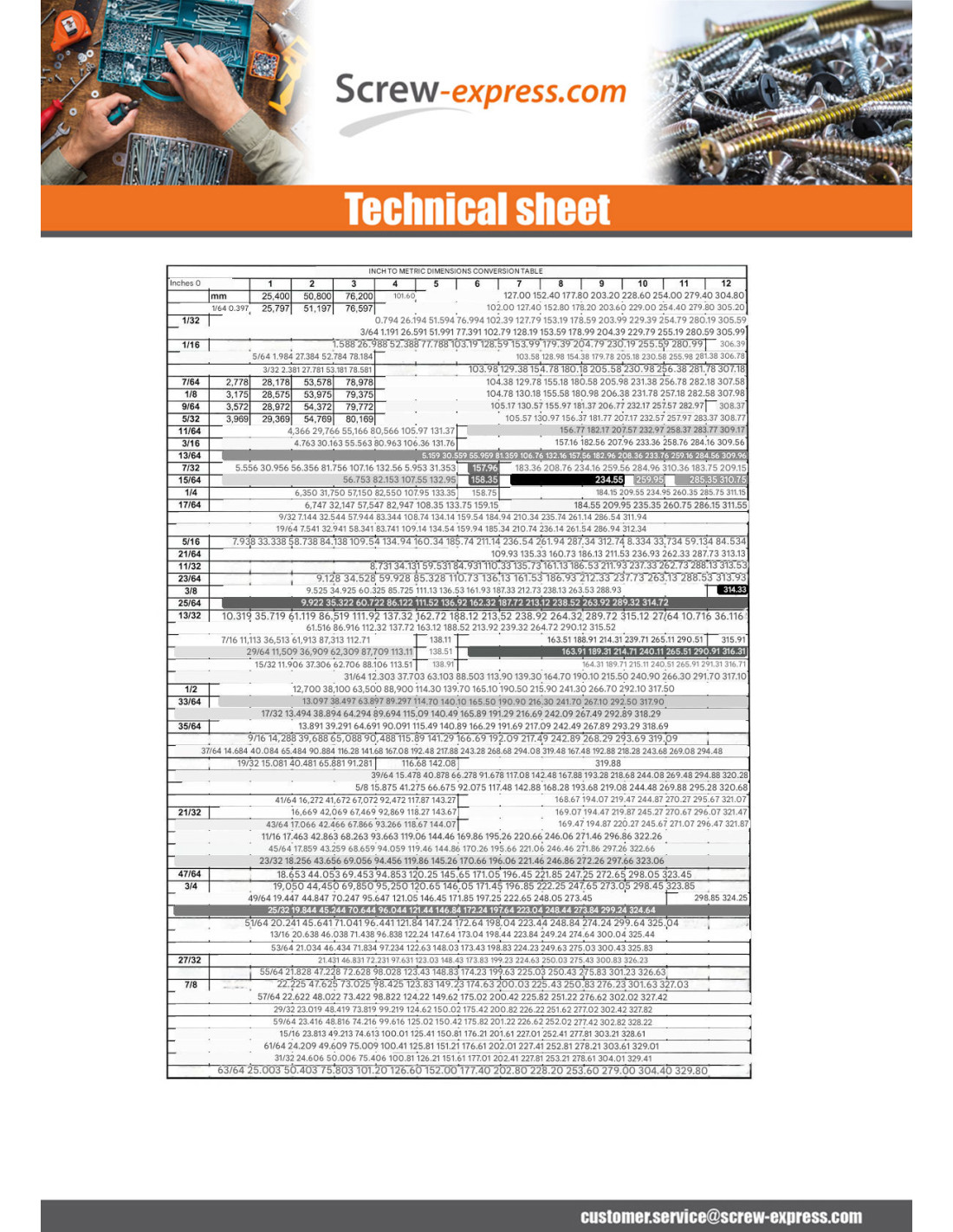

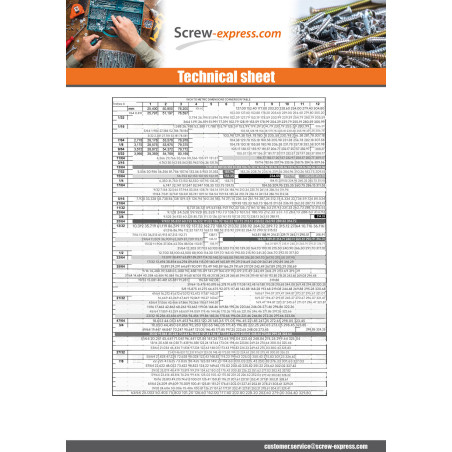

See all available dimensions in this range Correspondence table inches and mm

Product Details

Diameter: 3/8
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.

How do you measure the length of a threaded rod?
The length is measured from one end to the other.: 1"1/431,75
Pitch: Pitch Unc EQUIVALENT BSW
Product Family: Bolts Hexagonal Head
Number of threads per inch

Number of threads per inch

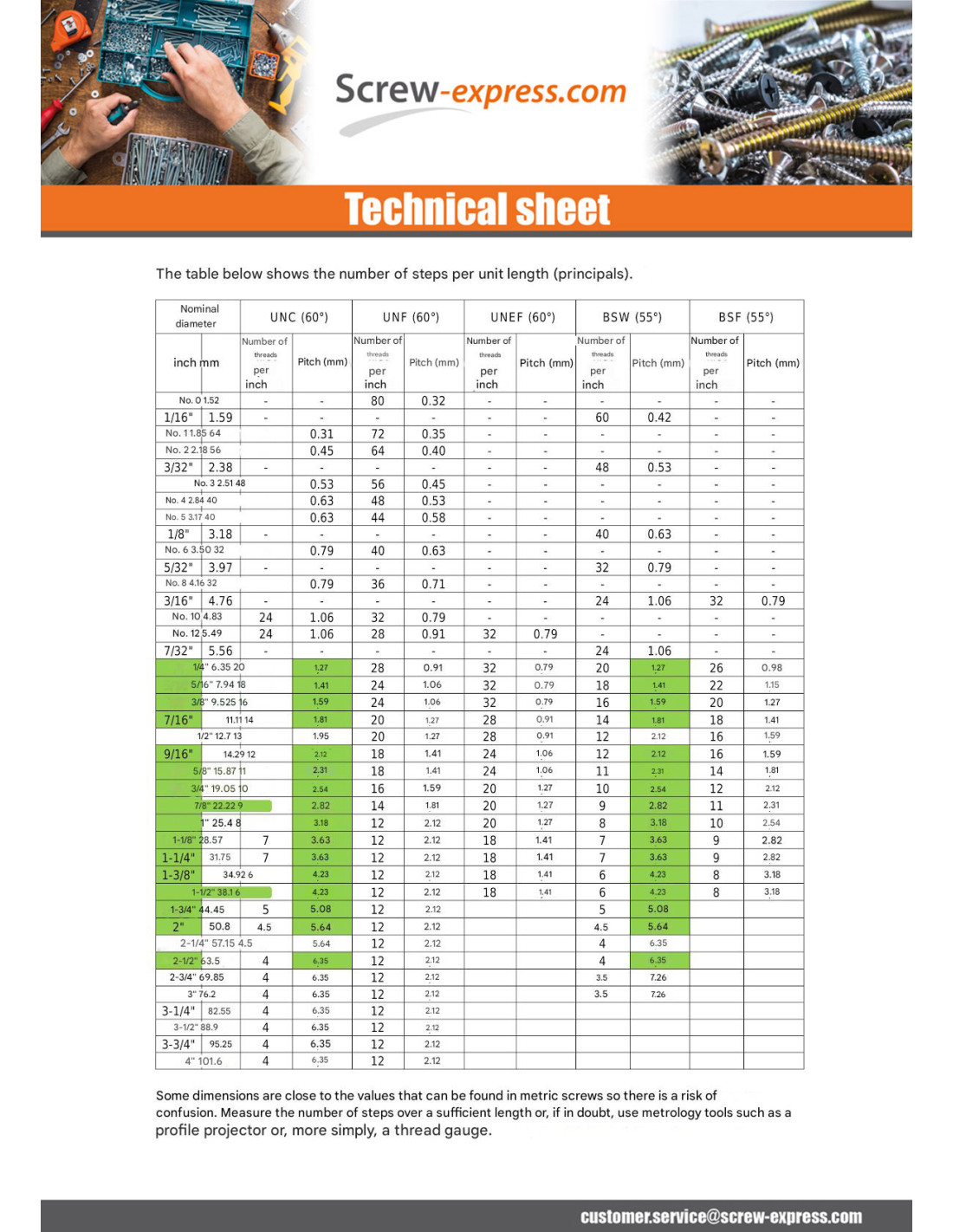

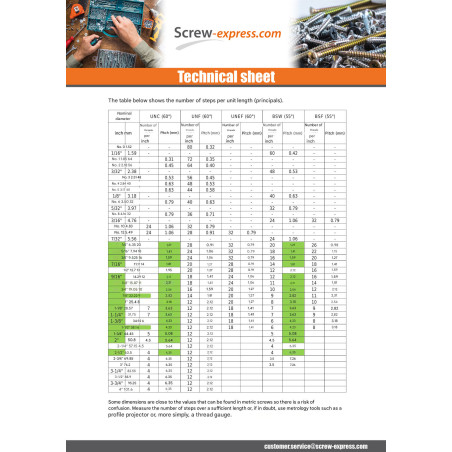

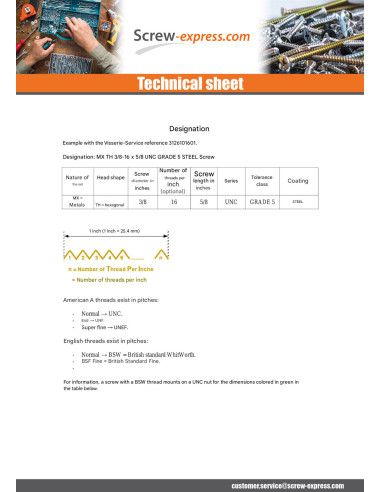

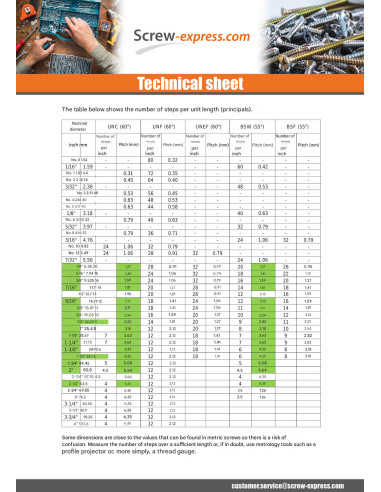

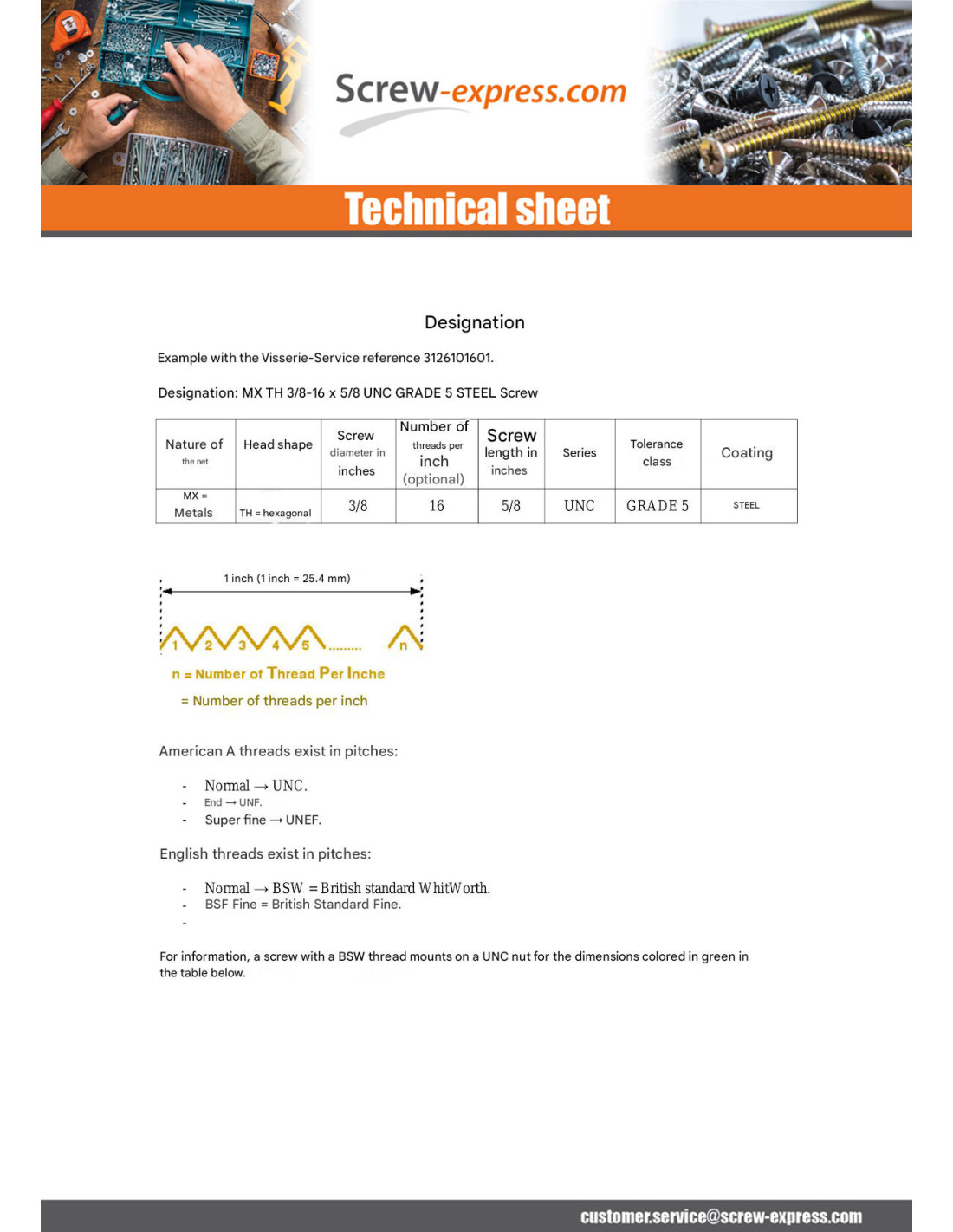

How to determine the diameter of a UNC or UNF screw:

The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.

Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.

For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD

Ø in inches

Ø in mm

Number of threads/inch in UNC

Number of threads/inch in UNF (fine pitch)

N°0

1.524

80

N°1

1.854

64

72

N°2

2.184

56

64

N°3

2.515

48

56

N°4

2.845

40

48

N°5

3.175

40

44

N°6

3.505

32

40

N°8

4.166

32

36

N°10

4.826

24

32

N°12

5.486

24

28

1/4

6.35

20

28

5/16

7.938

18

24

3/8

9.525

16

24

7/16

11.113

14

20

1/2

12.7

13

20

9/16

14.288

12

18

5/8

15.875

11

18

3/4

19.05

10

16

7/8

22.225

9

14

1”

25.4

8

14

1”1/8

28.575

7

12

1”1/4

31.75

7

12

1“1/2

38.1

6

12

1”3/4

44.45

5

-: 16
Diameter in mm: 9,525
Unit weight: 25 GR
Head shape: Hex Head

In stock 85 Items

ean13 3663072487437

Description

Bolt Partial Thread Hexagonal Head 3/8X 1 1/4" Unc Or Bsw British Standard Whitworth GR5-ZG
Diameter = 3/8, Length = 1"1/431.75, Pitch = Pitch Unc EQUIVALENT BSW, Product Family = Bolts Hexagonal Head

dimensional guide (mm)

1 pouce = 25.4 mm

Other Reference : 3617501675025 3663072487437
